Vigilance Full HD Outdoor PoE Mini Bullet Camera

DCS-4703E

  • Product Status: End of Sale

Professional.
Simple.
Affordable.

High-definition professional surveillance and security solution.

Using a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver superior quality video.

Rugged design makes this camera ideal for reliable deployment in all weather surveillance applications.

Features

D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Weatherproof
Durable IP66 rated casing for surveillance in any weather
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
65 Ft Night Vision
16 built-in IR LEDs guarantee bright & clear images, even in total darkness
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancement
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
3D Filter
Reduce noise in low-light environments for clear, smooth images


Security in High Definition

Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4703E Ideal for small, medium and large enterprise installations.

Security in High Definition

*Screen images simulated

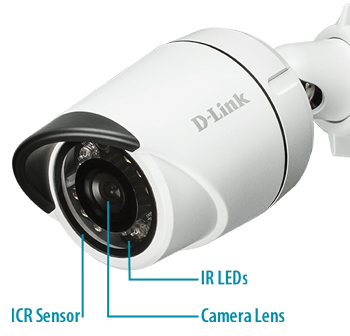

Continuous Monitoring with Night Vision

Continuous Monitoring with Night Vision

Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.

Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.


Anywhere anytime surveillance

Anytime, Anywhere Surveillance

Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-4703E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

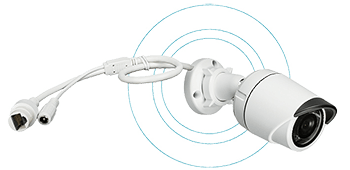

3-Axis Adjustment

3-Axis Adjustment

The Full HD Outdoor PoE Mini Bullet Camera's unique design with 3-axis cable management bracket allows for flexible and secure mounting options.


PoE = Convenience

PoE = Convenience

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4703E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4703E can also be powered by a standard 12V DC, 1.5A power adapter (not included).



Video Management Software (VMS)

The Full HD PoE Dome Network Camera includes a free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4703E is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.

Video Management Software (VMS)

Related Products

D-ViewCam
DCS-100
Find out more
Indoor/outdoor
Indoor
Outdoor
Type
Bullet
Connectivity
Wired PoE
Resolution
3 megapixel
Image sensor
1/3" 3 megapixel progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
2048 x 1536 (other)
Advanced Light features
Wide Dynamic Range
Lens
3.6 mm
F1.8
Fixed
Angle of View (H/V/D)
70° / 40° / 80°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
20 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Privacy Masks
3 zones
Power Consumption
6.4 W
App Support
JustConnect+
Features
D-ViewCam D-Link NVR compatible
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
