10/100 to 100BaseFX (SC) Multimode Media Converter
DMC-300SC
- Product Status: Live
Description
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

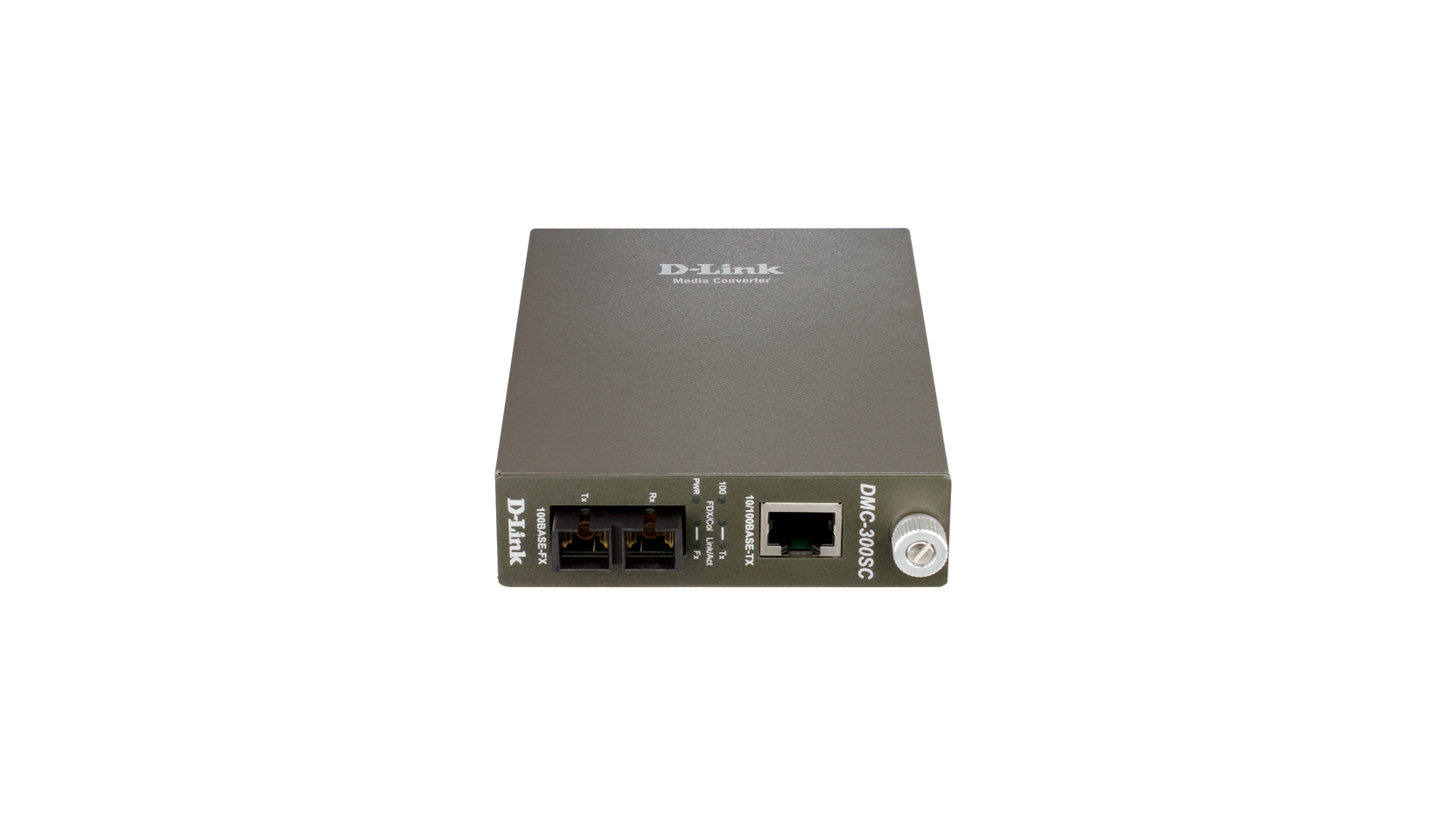

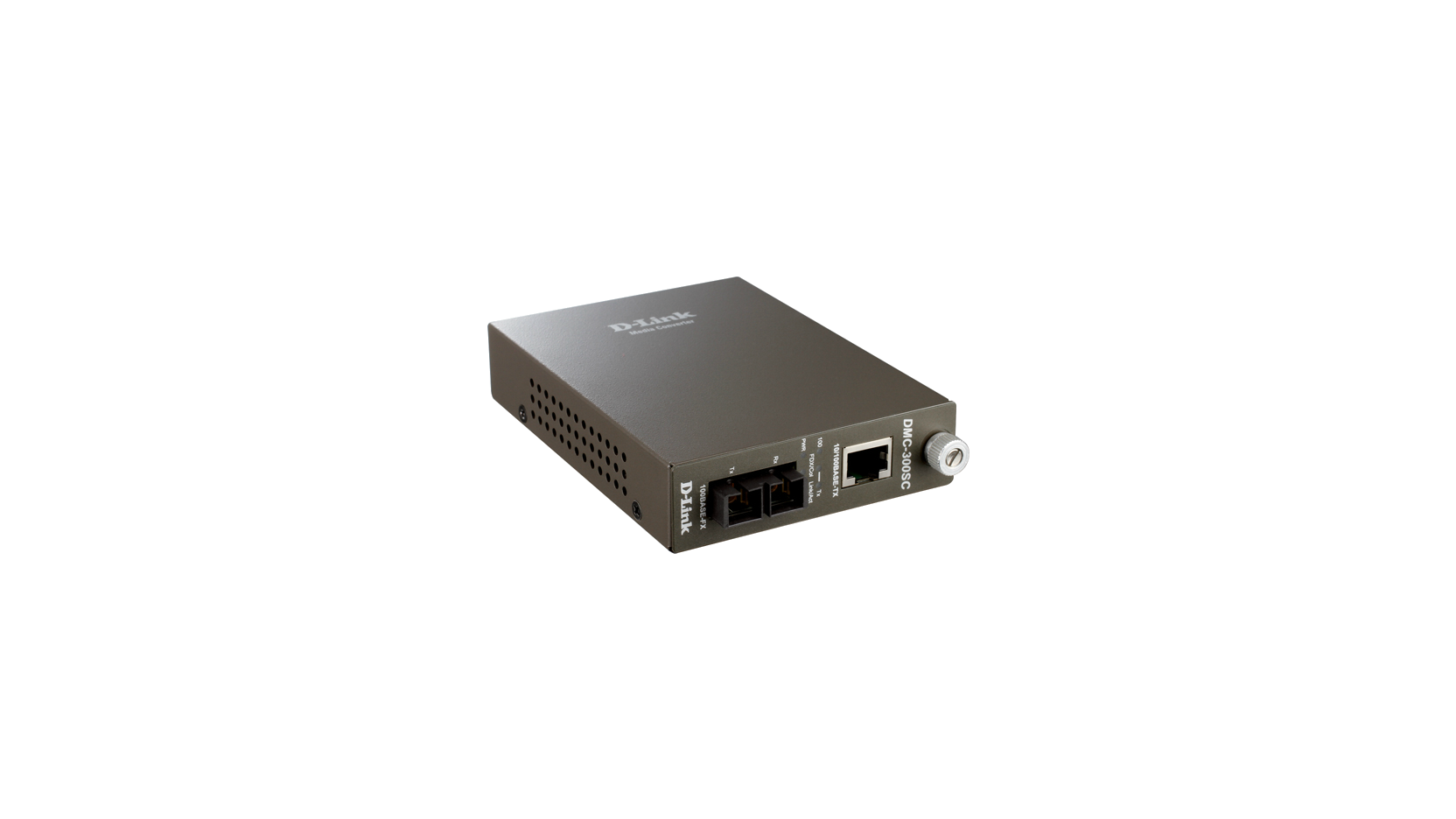

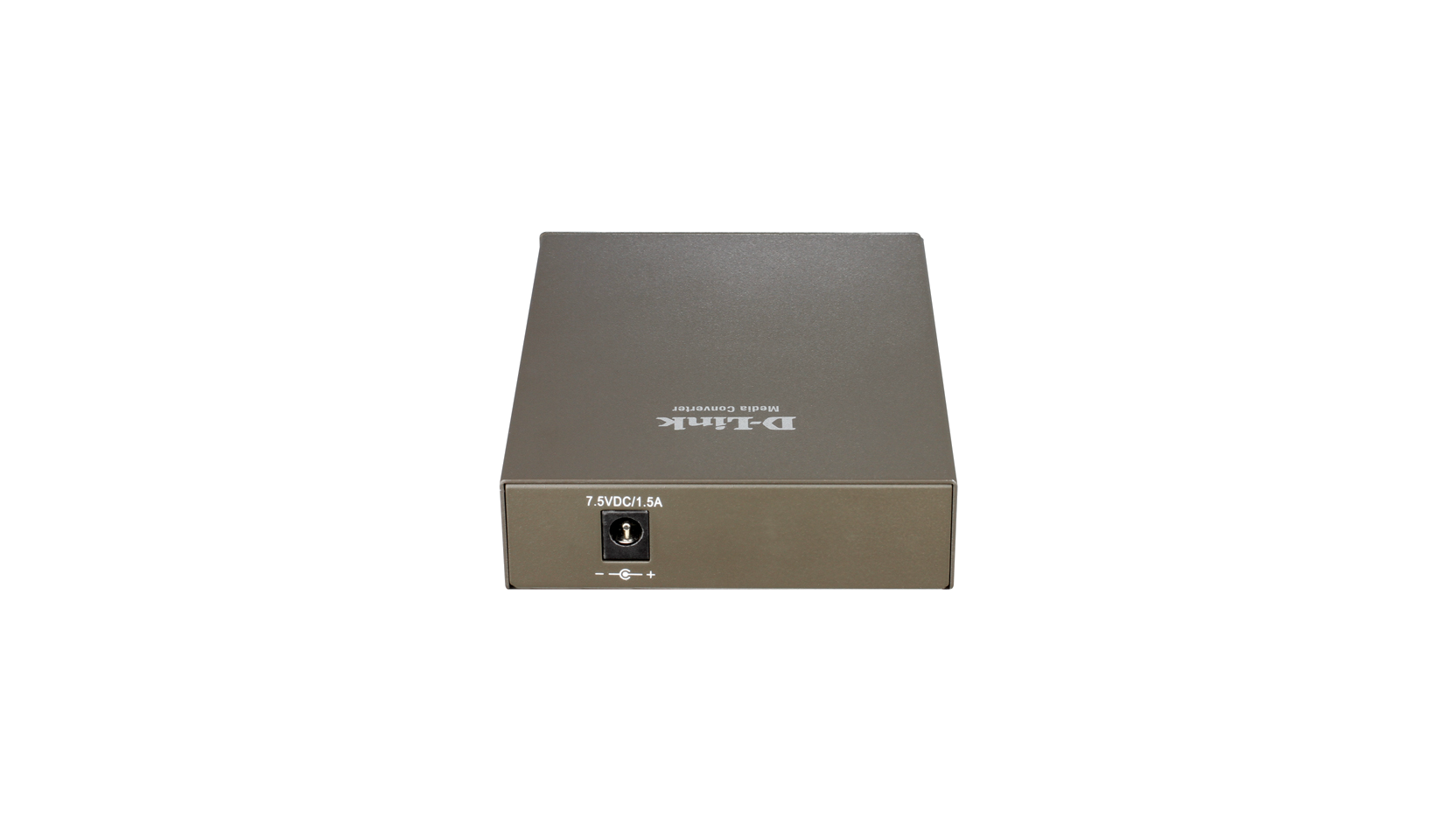

Actual product appearance may differ from the image displayed on this page
Specs
- Μετατροπή μέσων ενός καναλιού 10BASE-T/ 100BASE-TX και 100BASE-FX
- Καλώδιο οπτικών ινών με συνδετήρα MT-RJ ή SC
- Αυτόματη διαπραγμάτευση των ταχυτήτων και αμφίδρομη κατεύθυνση μετάδοσης σε θύρα συνεστραμμένου ζεύγους καλωδίων
- Auto MDI-II και MDI-X
- Ένας συρόμενος διακόπτης για τη ρύθμιση των σταθερών λειτουργιών half/full duplex
- Μηχανισμός αποθήκευσης και προώθησης
- Back-pressure και συμβατότητα με IEEE 802.3x Flow Control
- Πλήρης ρυθμός μεταβίβασης wire-speed
- Φωτεινές ενδείξεις κατάστασης LED στον μπροστινό πίνακα
- Μπορεί να χρησιμοποιηθεί ως ανεξάρτητη συσκευή ή με σκελετό
- Με δυνατότητα εναλλαγής κατά τη λειτουργία (hot-swap) όταν χρησιμοποιείται με πλαίσιο
FAQ
- I lost the power supply for my media converter. How can I get a new one? Read Answer
- What type of cable should I use on the copper port? Read Answer
- Can I install this media converter by itself or do I need a chassis? Read Answer
- What does the HDX/FDX switch control on this media converter module? Read Answer
Support
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual v1.0 (English) | Manual v1.0 (English) | - | 0.21mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.0 | Quick Installation Guide (English) | - | 0.61mb | Download |
| Version | Description | Date | |
|---|---|---|---|
| CE doc UKCA 1.90 RevD8 | CE Declaration | 11/5/2022 | Download |
| CE doc UKCA 1.70 RevD8 | CE Declaration | 17/10/2021 | Download |
| CE doc UKCA 1.70 RevD7 | CE Declaration | 12/8/2021 | Download |
| CE doc 1.60 RevD8 | CE Declaration | 31/10/2020 | Download |
| CE doc 1.50 RevD8 | CE Declaration | 27/5/2020 | Download |
| CE doc 1.40 RevD8 | CE Declaration | 26/12/2019 | Download |
| CE doc 1.20 Revision D8 | CE Declaration | 26/12/2018 | Download |
| DEU_DoC_D5_RevA | CE Declaration | 4/9/2009 | Download |
| DEU_DoC_A1_RevA | CE Declaration A1 | 17/6/2005 | Download |
