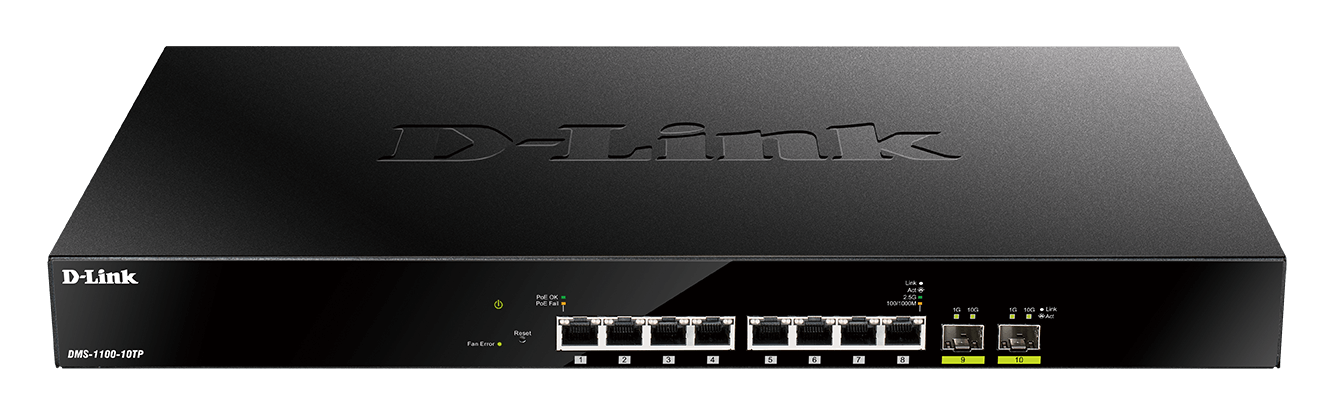

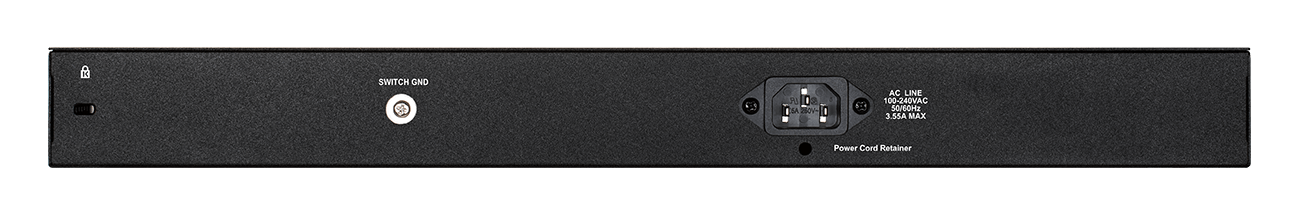

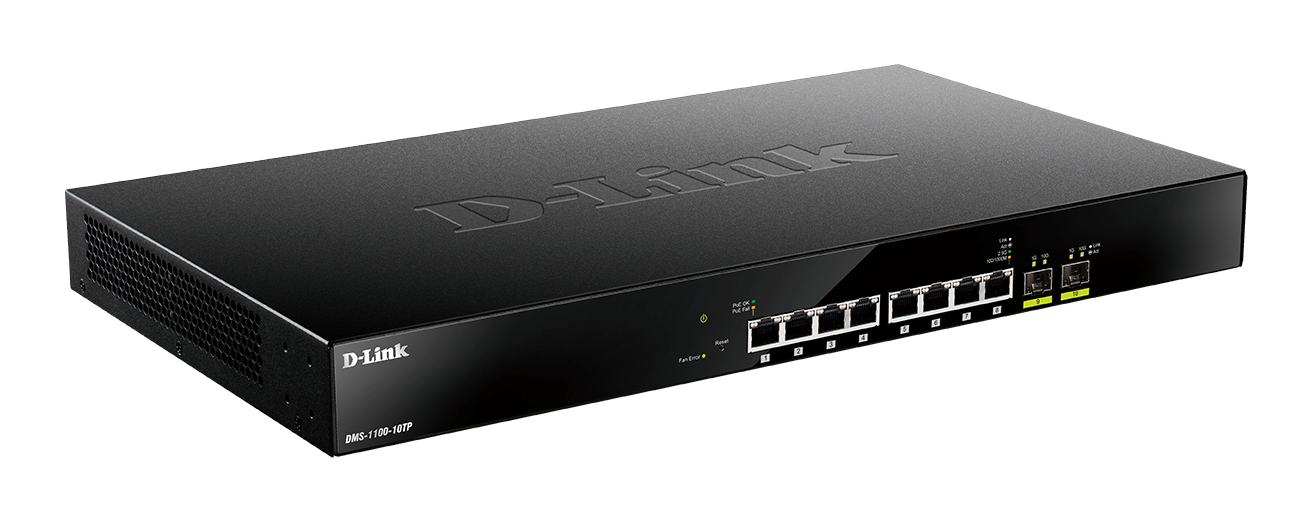

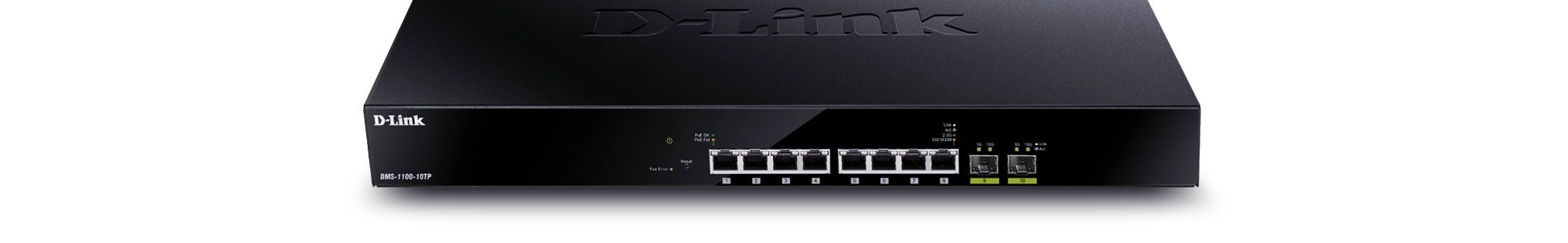

10-Port Multi-Gigabit PoE Smart Managed Switch
DMS-1100-10TP
- Product Status (Revision A1): Live
- x8 2.5 Gigabit PoE/PoE+ ports
- x2 10 Gigabit SFP+ uplink ports
- Layer 2 management and security
- PoE options up to 240W power budget
- Designed for Wi-Fi 6 access points
- Limited Life Warranty after registration
Where to buy

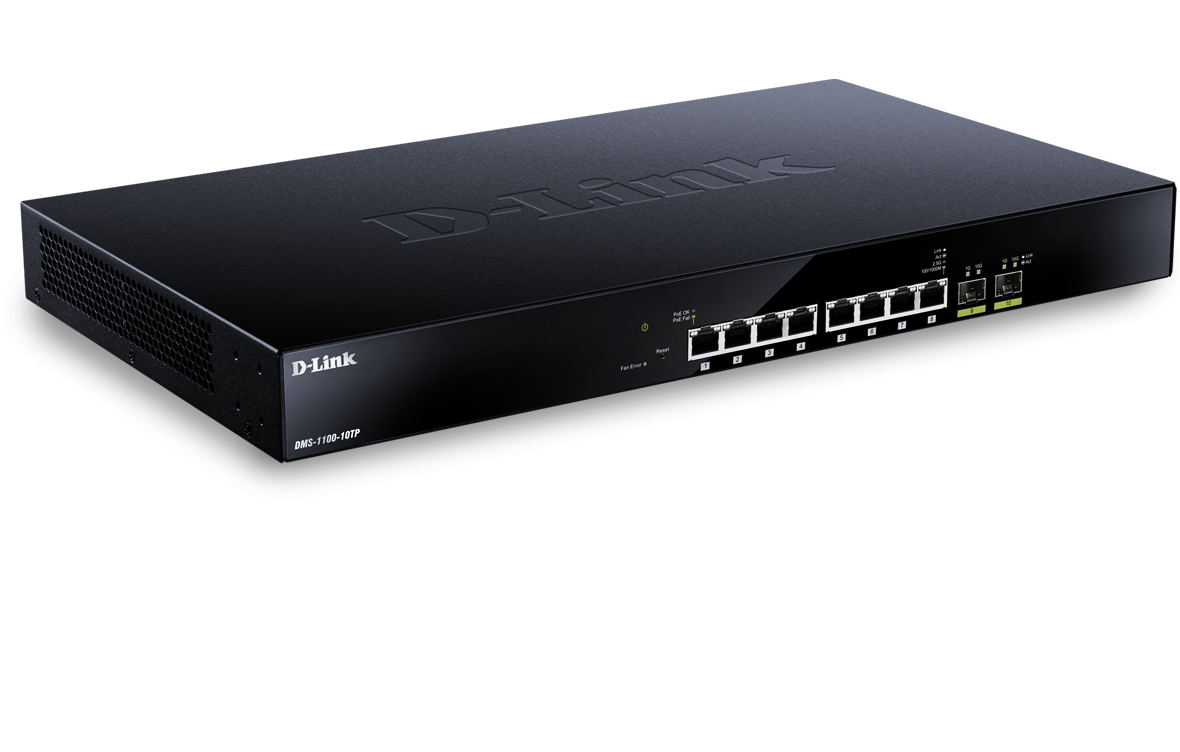

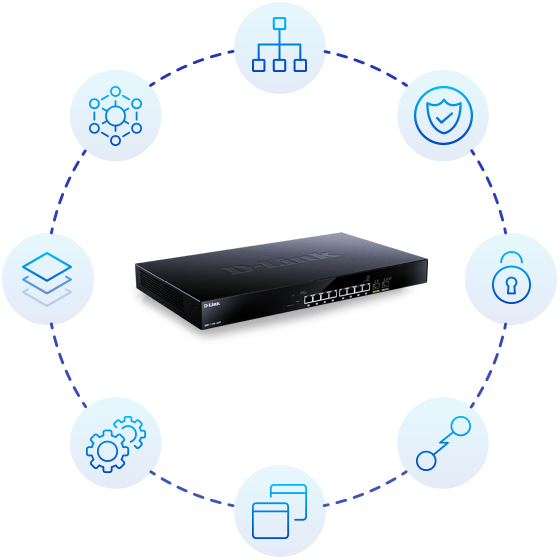

10G Multi-Gigabit
10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.
2.5 Gigabit PoE ports
8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.
Web-based GUI
Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.
Layer 2 Features
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).
Quality of Service (QoS)
Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.
Network Security
D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.
Energy Saving Technology
Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).
Futureproof your network. Ready for Wi-Fi 6.
Ideal for businesses looking to upgrade to Wi-Fi 6, the DMS-1100-10TP has 2.5 Gigabit PoE ports and 10 Gigabit SFP+ uplink ports, providing the multi-gigabit connectivity needed to maximise throughput between access points and the network infrastructure.
Affordable 10G capabilities, for a reliable high-speed network.
Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.
Έτοιμο για Wi-Fi 6.
Μπορείτε να προσθέσετε ένα σημείο πρόσβασης Wi-Fi 6 στο δίκτυό σας σε οποιαδήποτε από τις θύρες των 2,5 Gbps για να μεγιστοποιήσετε την απόδοση και την ταχύτητα. Το Multi-Gigabit Ethernet εξαλείφει πιθανά σημεία συμφόρησης με τα σημεία πρόσβασης Wi-Fi 6, επιτρέποντας στο δίκτυό σας να εκμεταλλευτεί πλήρως της αποτελεσματικότητας και των ταχυτήτων που παρέχει το Wi-Fi 6.
Extensive Layer 2 features.
Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.
PoE and PoE+, with budgets up to 270W
PoE and PoE+, with budgets up to 270W
Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Security with every port.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.

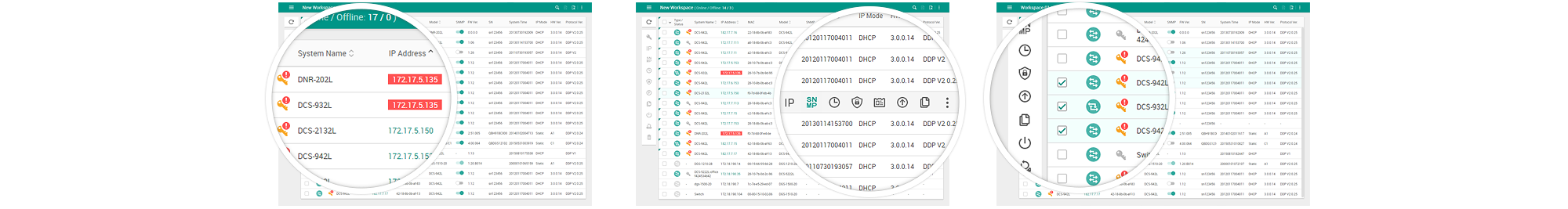

Versatile network management options.
The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.
Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.
Δωρεάν Service την Επόμενη Εργάσιμη
Απολαύστε δωρεάν υποστήριξη την επόμενη εργάσιμη , το οποίο παρέχεται με την επαγγελματική σειρά προϊόντων, για την άμεση αντικατάσταση του προβληματικού εξοπλισμού.
Το τεχνικό τμήμα άμεσης επέμβασης διασφαλίζει ότι οι επιχειρήσεις λαμβάνουν την μέγιστη υποστήριξη προσαρμοσμένη στις ανάγκες τους. Η εκτεταμένη εγγύηση μας και το ενισχυμένο πακέτο υποστήριξης επιμηκύνει την εγγύηση και επιπροσθέτως ελαχιστοποιεί το χρόνο.
We're here to help.
Πάνω από 35 χρόνια στη βιομηχανία δικτύακων συσκευών
Καινοτόμοι εμπειρογνώμονες ολοκληρωμένων λύσεων για μικρές επιχειρήσεις σε μεγάλες εταιρείες σε όλο τον κόσμο.
Η επικοινωνία μαζί μας είναι εύκολη
Ειδικευμένη τεχνική υποστήριξη σε 16 χώρες. Οι ομάδες υποστήριξής μας είναι έτοιμες να σας βοηθήσουν.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specs
Type
|
Smart managed |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
2.5GBASE-T Ethernet |
Type of uplink ports
|
10GbE SFP+ |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
8 |
PoE power budget
|
See datasheet |
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
MAC-based Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
8 |
Bandwidth control
|
1 Kbps minimum granularity |
SNMP (v1/v2c/v3)
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
