Nuclias Connect can work at a local level without uploading data to the cloud, making the management solution as secure as your own network.
Nuclias Connect
DNC-100
- Product Status (EU_RevA): Live
- Free network management software
- Supports up to 1500 access points/smart-managed switches (DGS-1210 Series)
- Traffic Reporting and Analytics
- Local or remote management options
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_software.png?mh=300&h=60&w=60&la=hr-HR&hash=A24DA247D437DF040DA34D23556B3F05)
Free-to-Download Network Management Software
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_accesspoints.png?mh=300&h=60&w=60&la=hr-HR&hash=671CAB039AF1206B6BE97AF8ECB29D53)
License-Free Management of up to 1,500 APs/Switches
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_backwards.png?mh=300&h=60&w=60&la=hr-HR&hash=A822CF30671F225467D75E5EF51CB703)
Backwards-Compatibility*
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_interface.png?mh=300&h=60&w=60&la=hr-HR&hash=5FE14DFD6EF4B958C4666592542E1490)
Intuitive Interface
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_controller.png?mh=300&h=60&w=60&la=hr-HR&hash=B1840D66DDE3E44368E6390E533A0D8B)
Inexpensive Hardware Controller
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_analytics.png?mh=300&h=60&w=60&la=hr-HR&hash=F54981546A221F91A246988306B8AC17)
Traffic Reporting and Analytics
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_config.png?mh=300&h=60&w=60&la=hr-HR&hash=ED6CD7490FCA868A24D7413A294C71D7)
Remote Config and Batch Config
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_admin.png?mh=300&h=60&w=60&la=hr-HR&hash=33B9FBC1823A5DD9BE594E88CD6E1E34)
Multi-Tenant and Role-Based Administration
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_changelogs.png?mh=300&h=60&w=60&la=hr-HR&hash=F67526C4E3C4744C0F911EFA881EADF5)
Searchable and Auditable Event and Change Logs
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_authentication.png?mh=300&h=60&w=60&la=hr-HR&hash=A6F33D31202FC017512654DC0CCD1BF1)
Authentication via Customizable Captive Portal 802.1x and RADIUS Server, POP3, LDAP, AD
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_support.png?mh=300&h=60&w=60&la=hr-HR&hash=666DCC956BD193A0C8551B2D5E72B8C0)
Multilingual Support
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect/featureicon_payment.png?mh=300&h=60&w=60&la=hr-HR&hash=B4BDAAB76D0EF820D3A9C0995D9F4AAA)
Payment Gateway (Paypal) Integration and Front-Desk Ticket Management
Download Nuclias Connect for free.
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind.
It can be used either as an on-premises software management platform, or as a cloud solution.
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=hr-HR&hash=26ABE86A8415BCAFEFE7A1CCBEBD036C)
Minimise the hassle of deployments, configurations and admin tasks.
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Role-based access with remote management Assign different privileges to users and conveniently configure all devices from the Nuclias Connect app or the web-based browser interface. | |
Branding & customisation Display, analytics, reporting, and management can be customized in a variety of ways for greater control and convenience. Add your logo to your Wi-Fi login screen via the captive portal functionality. | |
Existing infrastructure and multi-platform Convenience of working with an extensive range of existing D-Link access points (APs)*, and it works with Windows, Mac, or Linux. |
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_03_admins.png?h=1236&w=1281&la=hr-HR&hash=AFDF471178E60AA26D52AADCB5290CB4)
What Nuclias Connect means for admins.
Since Nuclias Connect's software operates transparently on the network, an AP can be deployed anywhere in a Layer 2/3 environment. Additionally, administrators can provide and manage a variety of distributed deployments, including the option to configure settings and administrator accounts in a specific manner for each deployment.
Nuclias Connect allows for multiple user authentications and also makes it possible to configure specific access controls for each SSID, giving admins the option of configuring separate internal networks for different subnets. This means that more advanced Value-Added Services, such as Captive Portal or Wi-Fi Hotspot, can be used to help manage wireless network traffic.
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_04.png?h=550&w=560&la=hr-HR&hash=4956ED842F0EE298C125F94E23EB4C04)

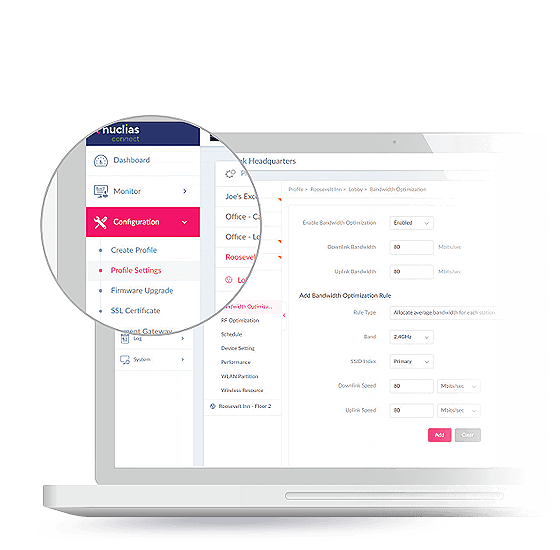

Multi-tenancy Network admins can create localised management authority for local networks. | |
x8 SSIDs per radio APs can support 8 SSIDs per radio, administrators have the option of using one SSID to create a guest network for visitors. | |
AP discovery and provisioning It allows users to find APs on the same Layer 2/3 network and import profiles easily, which can then be applied as needed to groups or individual APs for even more effective configuration. | |
Schedules and automated tasks Batch configuration, automated network management and reporting, and searchable and auditable Event and Change Logs save time. | |
Diverse authentication options Such as Captive Portal, 802.1x and RADIUS Server, POP3, LDAP, AD. |
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_05_diagram.png?h=706&w=560&la=hr-HR&hash=AB57D29D015E68C26ADDE381C78EC960)

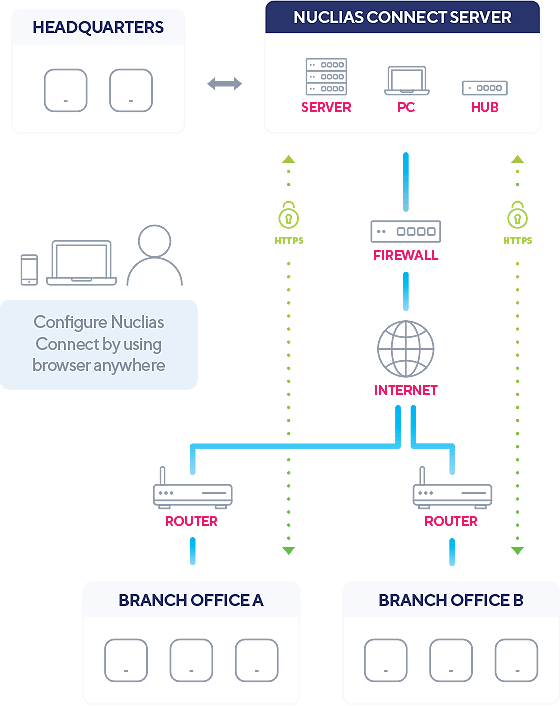

It all stays within your premises and follows your security measures.
Nuclias Connect is designed for businesses where concerns about security and privacy are paramount. User data never leaves your possession. It saves power and improves security with the wireless scheduler feature that switches off wireless connectivity when not needed. And additional security measures can be added easily.
![](/hr/hr/-/media/microsites/nuclias/overview/nucliasconnectproductpage_06_03-(1).png?h=480&w=560&la=hr-HR&hash=25EEDFDAAC6EB0CB4E658EF18A06DF6F)
![](/hr/hr/-/media/microsites/nuclias/overview/nucliasconnectproductpage_06_02-(1).png?h=480&w=560&la=hr-HR&hash=F2D4ECE36EEE07C0CAC089D48F1C791D)
![](/hr/hr/-/media/microsites/nuclias/overview/nucliasconnectproductpage_06_01-(1).png?h=480&w=560&la=hr-HR&hash=2C9AE1514F9BB503E091B2F1A7EE7FD6)

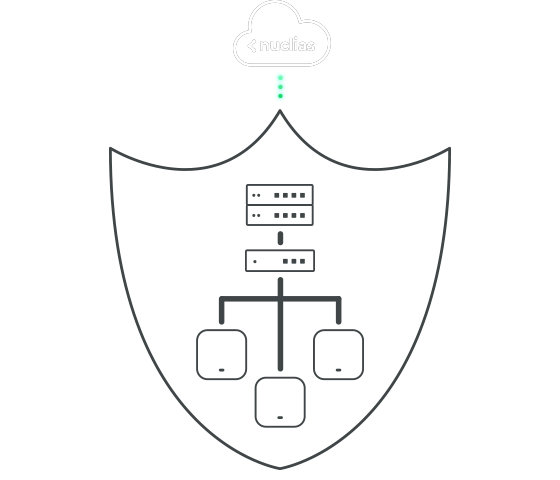

Locale-based software controller
Encrypted communications
Communication between Nuclias Connect and access points is via HTTPS for increased privacy.
Optional remote management
Optionally, you can enable Nuclias Connect for remote access, allowing network management from anywhere and free of charge.
Nuclias brings value to your business.
Its management software is free to download to any compatible PC or server, and is backwards-compatible with a selected number of D-Link APs* and DGS-1210 Series smart-managed switches. Nuclias Connect is also available as a standalone hub (DNH-100) which is an inexpensive option that allows you to manage up to 100 access points.
Use the simple Nuclias Connect app to instantly detect your devices in the network and push configurations remotely.
Unlimited installation Nuclias Connect can be installed on an unlimited number of terminals. | |
Cost-effective scaling Less costly network expansion thanks to centralised configurations. | |
Free software License-free management of up to 1,500 APs/switches. |
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_07.png?h=864&w=560&la=hr-HR&hash=63B4B81424B1CA5255EF0FD421AD61A2)

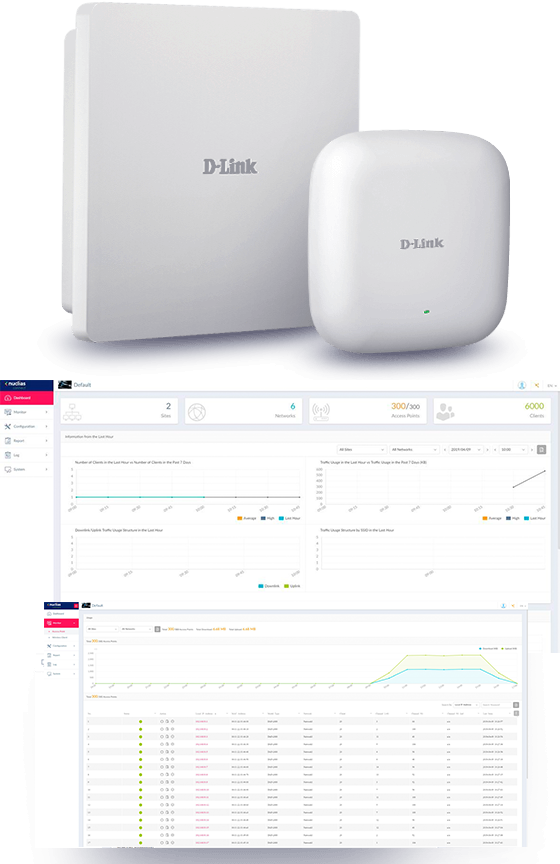

Scale your network alongside your business.
Nuclias Connect gives you the financial and technical flexibility to expand from a small network to a larger one of up to 1,500 APs/switches while retaining a robust and centralised management system.
With more devices being used on networks than ever before, privacy has become an essential requirement. Device information is stored locally and the network can be monitored in real-time.
1,500 |
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_08_product.png?h=838&w=985&la=hr-HR&hash=72DFA9DA564903DB6B6A7674848C7214)

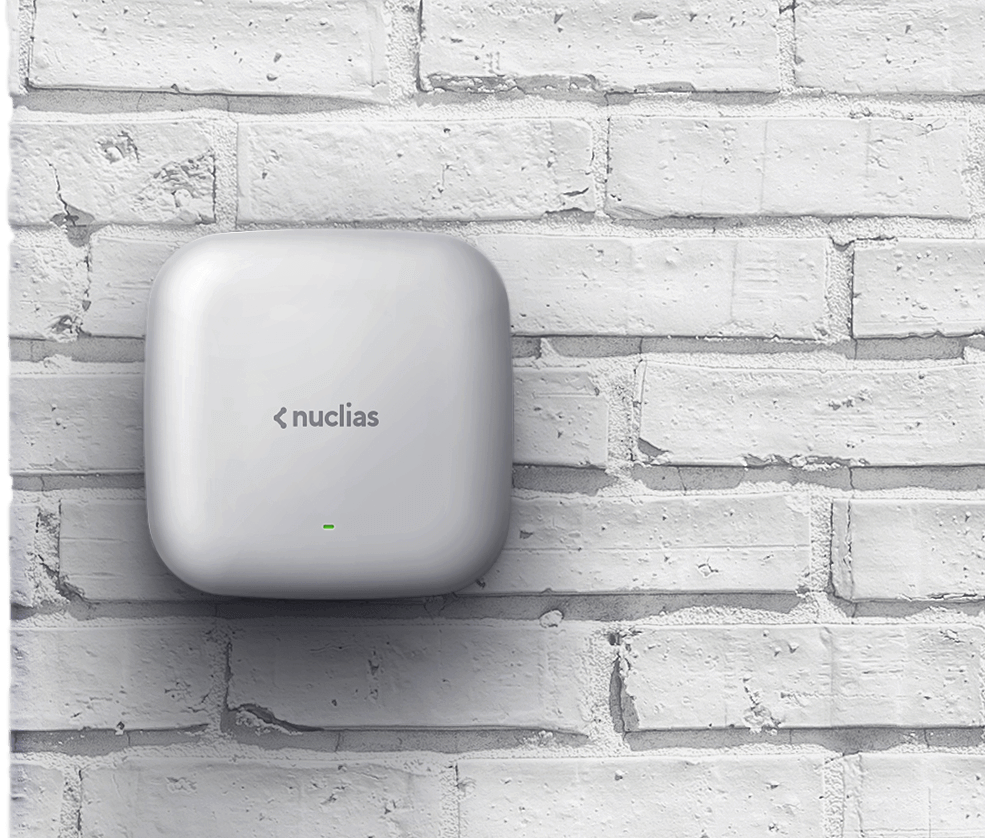

Flexible and intuitive
Through software-based monitoring and remote management of all wireless Access Points (APs) on your network, Nuclias Connect makes it easy to scale the network as new access points are automatically discovered allowing them to be quickly managed and deployed.
Know your business network, like never before.
Easily manage your network on the go, get an instant overview of live usage and your network health, and delegate access to your teams. You can even upload your own map to visually show the location of your devices and create Wi-Fi access log-in pages that can be fully customised with your brand's logo.
Detailed statistics and reports of network usage across time and locations. | |
Customisable Portal for brand awareness. |
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=354&w=680&la=hr-HR&hash=D2A3396EEECE528ABF08490AD319D65C)

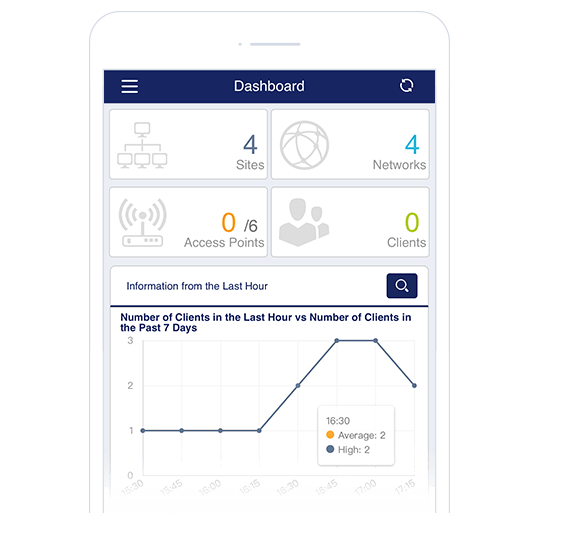

Nuclias Connect app.
Deployable on a server, PC, or phone via the app, the Nuclias Connect free-to-download software currently supports a dozen new and legacy D-Link Access Point (AP) models* as well as DGS-1210 Series smart-managed switches, and is capable of managing up to 1,500 APs/switches without the need for additional licensing charges.
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_10_app.png?h=545&w=561&la=hr-HR&hash=15D582DC185037A4E4E14C447B98C3B0)
Download Nuclias Connect for free.
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind.
It can be used either as an on-premises software management platform, or as a cloud solution.
![](/hr/hr/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=hr-HR&hash=26ABE86A8415BCAFEFE7A1CCBEBD036C)
Start creating your Nuclias Connect network.

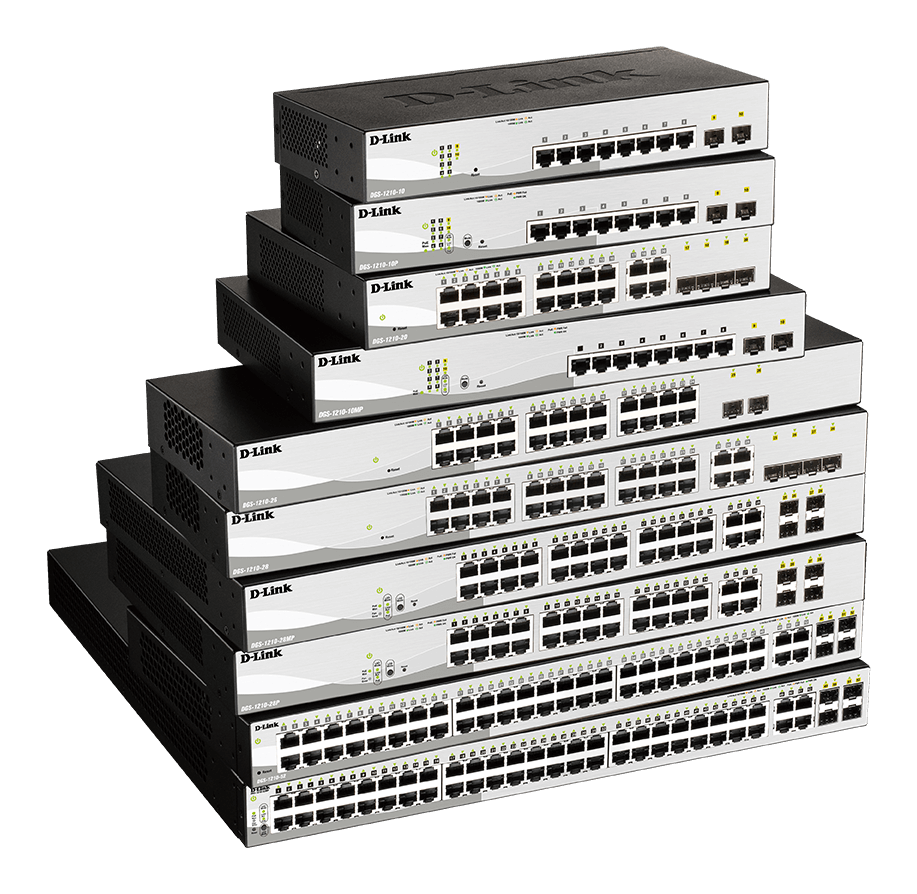

Deploy a Nuclias Connect network with our DGS-1210 Smart+ Managed Gigabit Switches and our range of compatible Wireless solutions today.
![](/hr/hr/-/media/product-pages/dgs/1210/f1/dgs12101010p10mp20262828p28mp5252mpf1image-lside1.png?h=894&w=917&la=hr-HR&hash=57F98637CDE61ACAFE01C49D03492851)
Related Products
![](/hr/hr/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=hr-HR&hash=B2A0B9AE7BD87A7BFED7130350F5ED8C)
![](/hr/hr/-/media/product-pages/dgs/1210/g1/dgs121008p162424p48g1image-lfront.png?h=100&w=175&la=hr-HR&hash=A3F5C4FA92C7C30C0566341507499B2C)
![](/hr/hr/-/media/product-pages/dgs/1210/f1/dgs12101010p10mp20262828p28mp5252mpf1image-lside1.png?h=100&w=103&la=hr-HR&hash=DBCED87531611E1BDFB8620F1A9F8222)
![](/hr/hr/-/media/product-pages/dap/x2850/dap_x2850_a1_front.png?h=100&w=100&la=hr-HR&hash=3600DE8C3D1AB373C77B59C3996AB0D5)
![](/hr/hr/-/media/product-pages/dap/x2810/dap_x2810_a1_front.png?h=100&w=100&la=hr-HR&hash=76C4F0E5E4043F916256CDA2A7C0CDCC)
* Devices require the latest firmware in order to be compatible. Compatible models at the time of writing: DAP-2230, DAP-2310, DAP-2360, DAP-2610, DAP-2620, DAP-2660, DAP-2662, DAP-2680, DAP-2682, DAP-2695, DAP-3315, DAP-3662, DAP-3666.
Specs
Management platform
|
Software |
---|---|
Access point management - number supported per unit (default/upgradeable)
|
Up to 1000 APs |
AP auto discovery and monitoring
|
Supported
|
Auto channel and power management
|
Supported
|
Band steering
|
Supported
|
Centralised AP firmware upgrade
|
Supported
|
Fast roaming
|
L2 |
Rogue AP/Client detection and mitigation
|
Supported
|
NAT pass-through
|
Supported
|
Multi-tenancy
|
Supported
|
Bandwidth optimisation
|
Supported
|
External user databae - POP3 and LDAP
|
Supported
|
Voucher-based authentication
|
Supported
|
Captive portal
|
Supported
|
