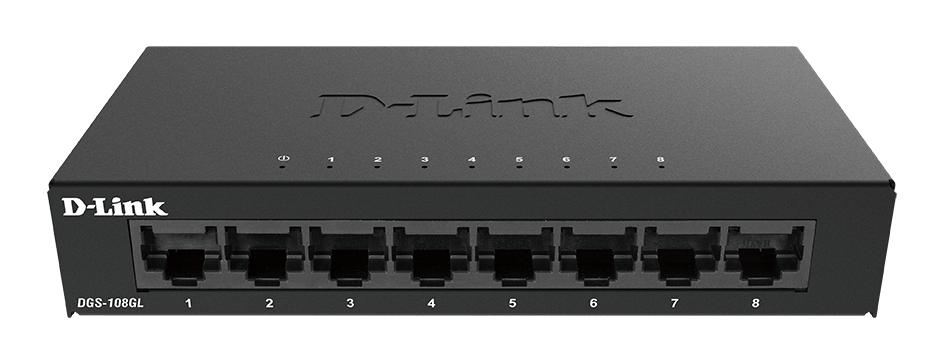

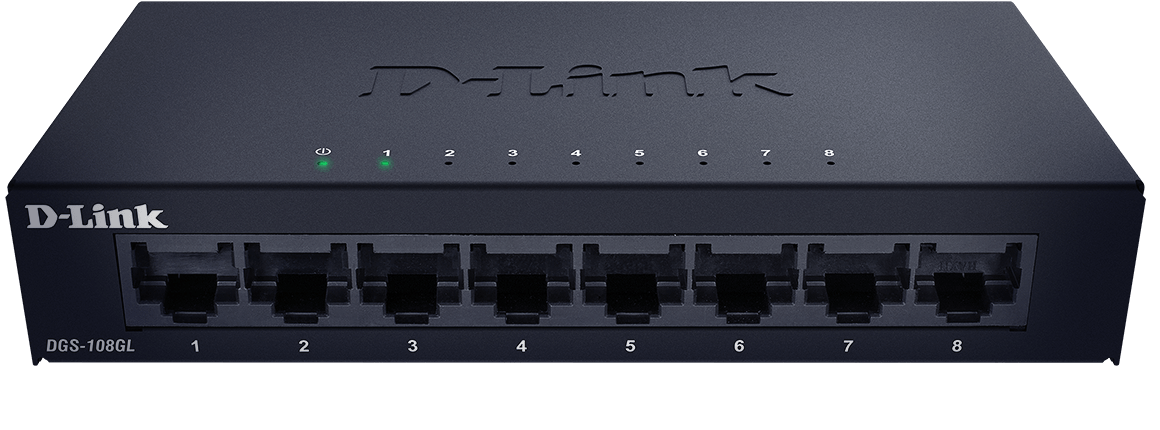

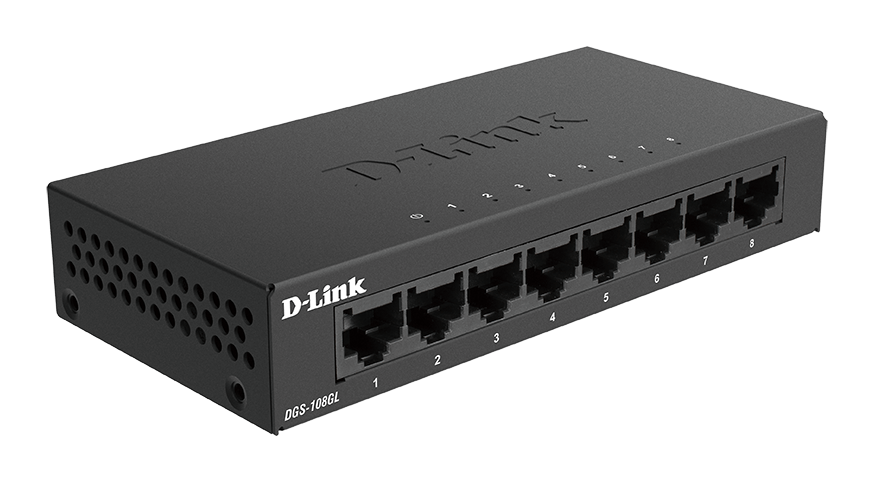

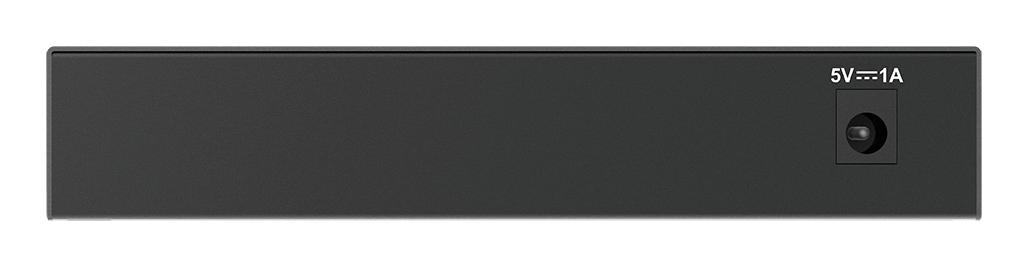

8-Port Gigabit Unmanaged Desktop Switch

DGS-108GL

  • Termék Státusz (Revision A1): Live
  • 8 Gigabit Ethernet ports
  • Metal casing
  • Energy efficient
  • Fanless
  • Plug & Play Installation

Download the datasheet.

Partner üzleteink

Effortless Gigabit networking.

Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.

Gigabit Ethernet

Save time transferring large files and improve sharing and productivity

Compact Metal Housing

Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design

Automatic power saving features to reduce power usage

Easy Setup

Plug-and-play installation enables you to expand the network in seconds

Plug-and-play. Easily extend a network.

The DGS-108GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

Effortless traffic optimisation.

With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Designed for life, built to last.

The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.

The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Related Products

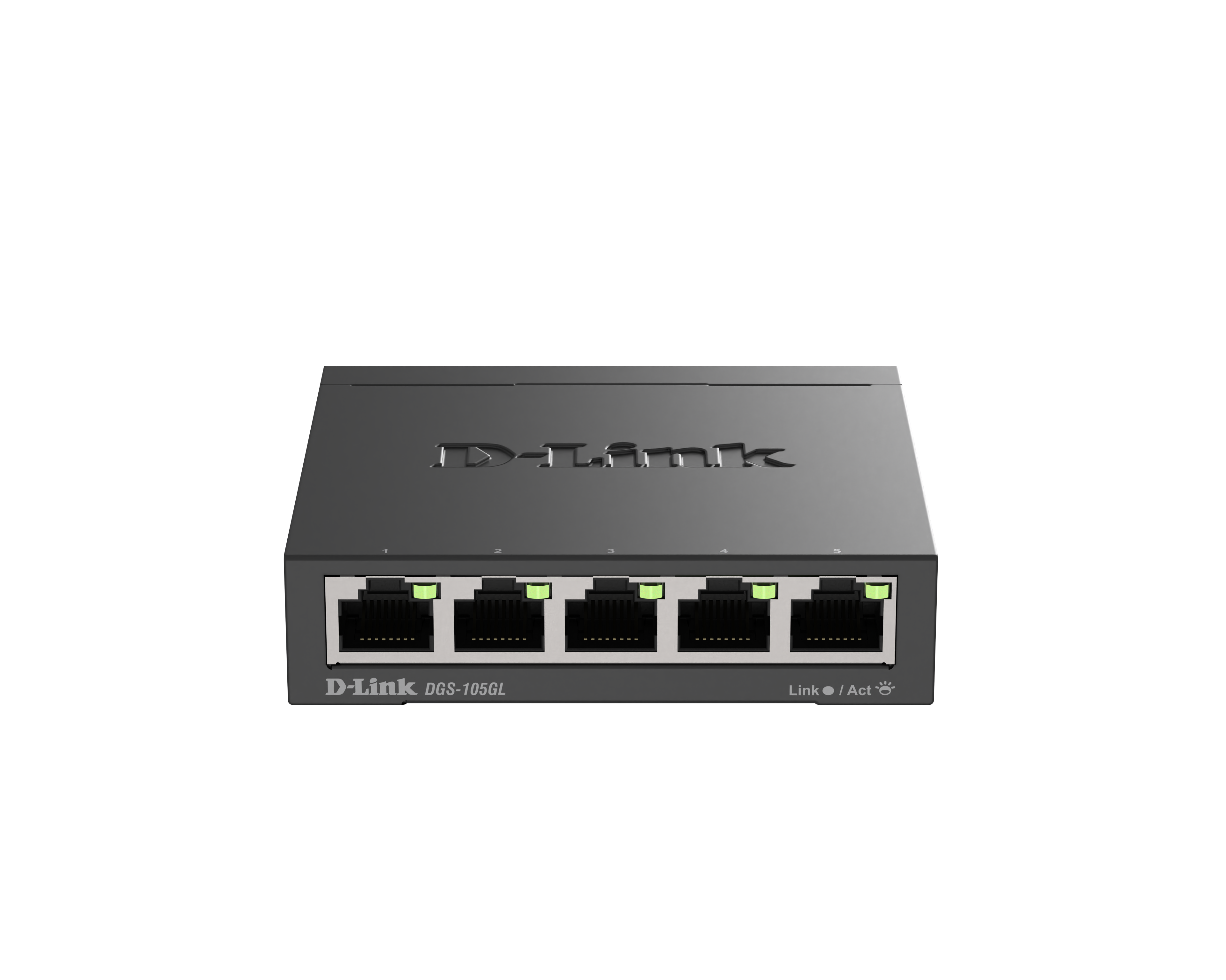

5-Port Gigabit Ethernet Switch
DGS-105GL
Tudj meg többet!
5-Port Gigabit Unmanaged Desktop Switch
DGS-105
Tudj meg többet!
8-Port Gigabit Unmanaged Desktop Switch
DGS-108
Tudj meg többet!
5-Port Desktop Gigabit PoE+ Switch
DGS-1005P
Tudj meg többet!
8-Port Gigabit PoE Unmanaged Desktop Switch
DGS-1008P
Tudj meg többet!
Type
Unmanaged
Number of ports
5 to 14 ports
Main type of ports
1000BASE-T Gigabit Ethernet
Switching capacity
16 Gbps
Fanless
Supported
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Housing
Metal
Jumbo frame
Supported
MAC address
4K
Number of QoS queues per port
8
Version Date Type File Size
Datasheet EN - PDF 0.27mb Letölt
Version Leírás Date Type File Size
QSG 1.00 RevA1 Quick Setup Guide 2020. 12. 09. - - Letölt
QIG 1.00 RevA1 Quick Install Guide 2020. 11. 06. - - Letölt
Version Leírás Date
CE doc 1.00 RevA1 CE documentation 2021. 10. 06. Letölt
