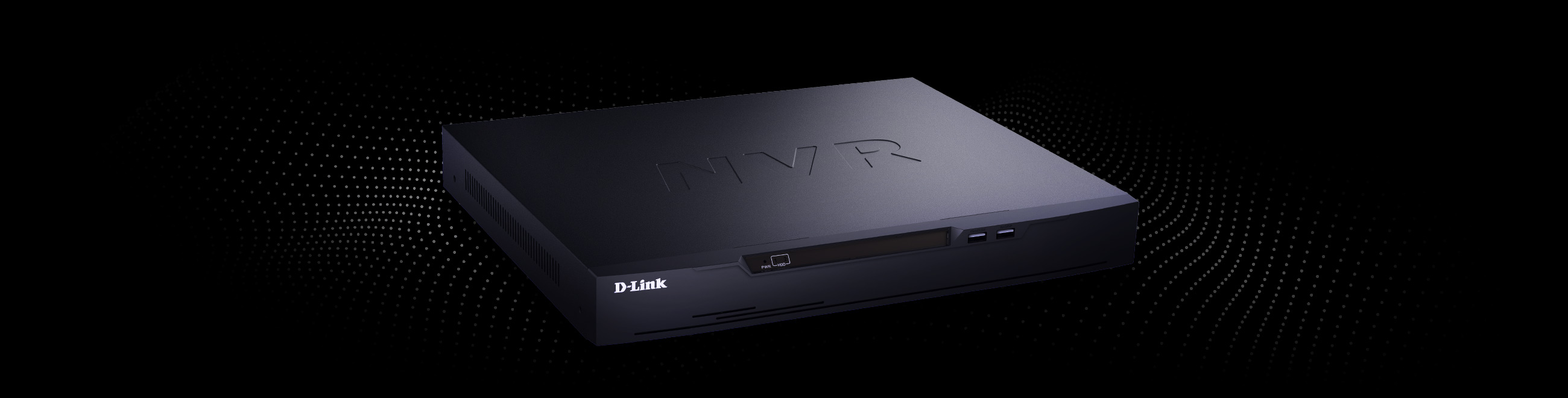

JustConnect 16-Channel H.265 PoE Network Video Recorder
DNR-4020-16P
- Termék Státusz (Revision A1): End of Sale
IP surveillance in a box.
All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet.
All-In-One Solution
Standalone NVR solution with no need for additional computer or software
16-Channels
Simultaneously record and view real-time video streams from up to 16 cameras
PoE Capable
16 x 802.3af PoE ports with a total PoE power budget of 120 W
High Efficiency Video Coding
Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements
Dual Bay SATA
Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity
User-Friendly Interface
Provides 16 channels of simultaneous live view, recording, playback, and PTZ control
JustConnect+ App
Mobile app allows easy and remote access on a mobile device
2-Year D-Link Warranty
You're protected by one of the global leaders in the industry

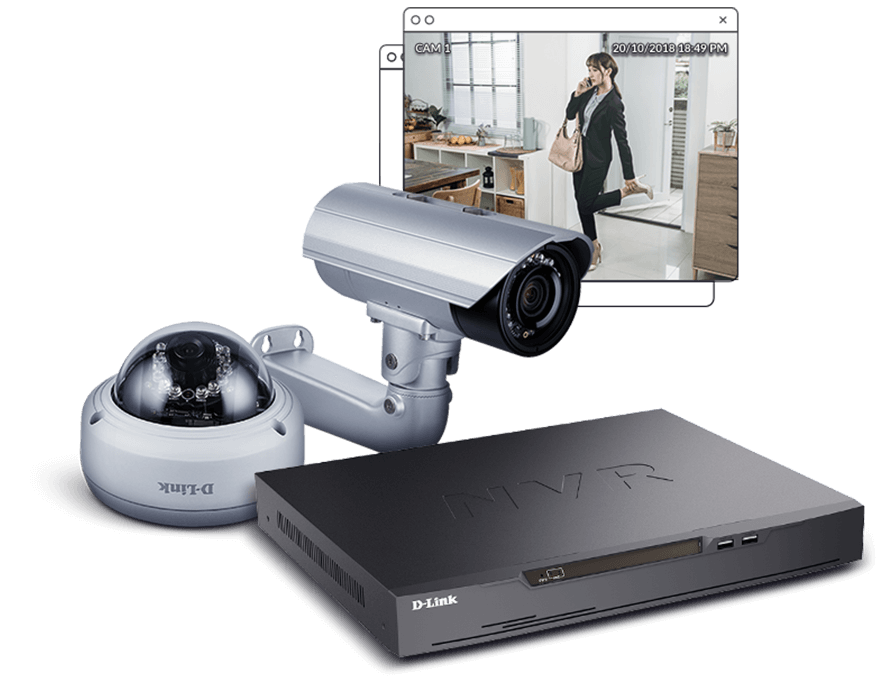

Automated Surveillance.
The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.
User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.

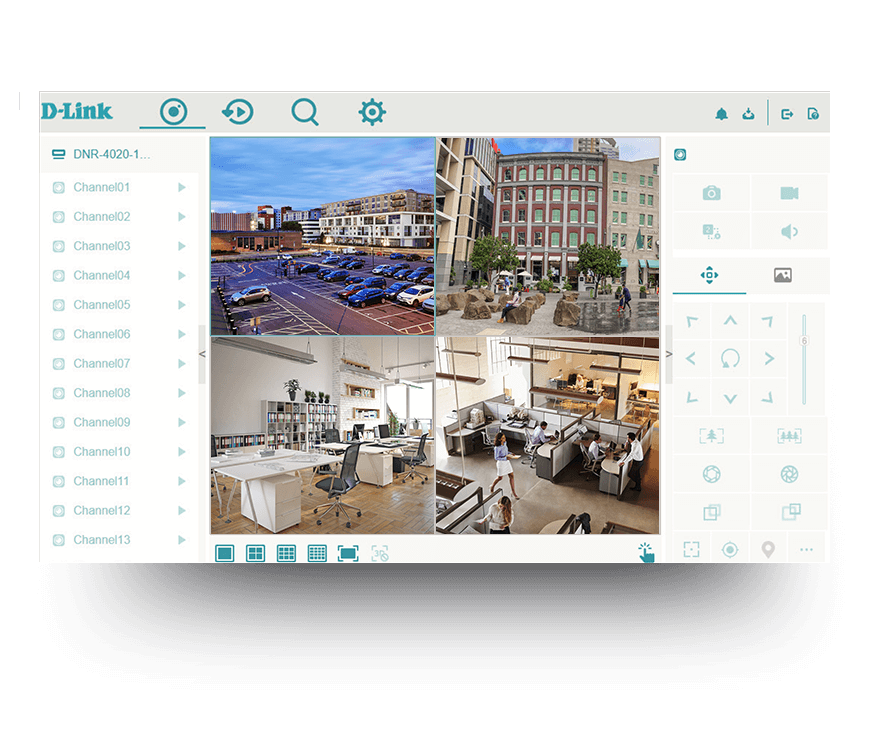

User-Friendly Interface.
Manage your surveillance network of up to 16 cameras from an easy-to-use GUI that provides real-time monitoring and controls.
The flexible Live View options allow you to see multiple cameras simultaneously with the option to view a single camera on full screen with two-way audio support. Advanced search features help administrators to find the specific footage they need quickly.

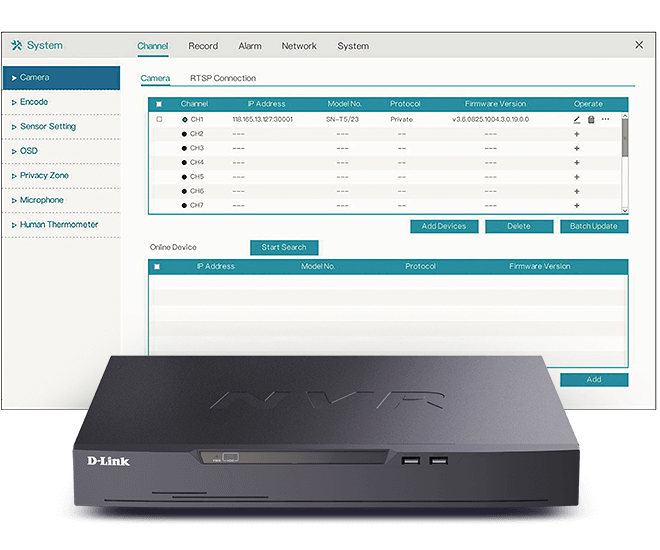

Extensive Monitoring and Recording Features.
The DNR-4020-16P’s intuitive interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Support for multiple encoding formats provides administrators with the flexibility to prioritise storage space and video quality.
Remote Access with Computer or Mobile Device.
The DNR-4020-16P allows users to remotely view and manage the surveillance system over the Internet via the web, giving administrators access to live view, recording, playback, and camera control.

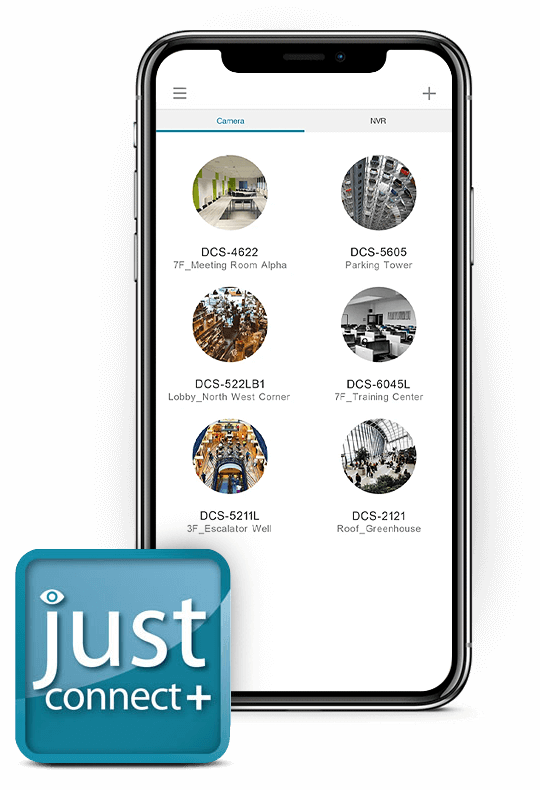

The free JustConnect+ mobile app allows anywhere access straight from your smartphone or tablet.
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
2‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
Specs
|
Channel Number
|
16 channels |
|---|---|
|
Compression Format
|
H.264 H.265 |
|
Video Output
|
HDMI VGA |
|
Display Mode
|
1, 4, 6, 9, 10, 13, 16 split screen |
|
PTZ Control
|
Supported
|
|
Audio
|
2-way |
|
Recording Type
|
Digital Input Edge Motion Detection by Camera Manual Motion Event Schedule |
|
Post-Recording Period
|
30/40/50/60 seconds |
|
Audio Recording
|
Supported
|
|
Auto/Scheduled Recycling
|
Supported
|
|
Simultaneous Playback
|
16 channels |
|
Video Control
|
Play, stop, pause, forward, backward, next, previous |
|
Digital Zoom
|
4X |
|
Audio Control
|
Supported
|
|
Video Search
|
Camera Event Time |
|
Video Export Format
|
MP4 |
|
Event to E-mail
|
Supported
|
|
Event to Alarm
|
Supported
|
|
Event by Signal Lost
|
Supported
|
|
Client Viewer
|
JustConnect+ App Web browser |
|
Remote View
|
Supported
|
|
Playback Viewer
|
Playback manager via browser |
|
Supported Camera
|
D-Link |
|
Number of HDD Bay
|
2 |
|
HDD Configuration
|
JBOD |
|
Network Interface
|
1 x Gigabit port |
|
Backup Options
|
USB |
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.43mb | Letölt |
http://tsd.dlink.com.tw/GPL.asp
Ezen termékben használt GPL és LGPL kódok GARANCIA NÉLKÜL lettek terjesztve, és azok egy vagy több szerző szerzői jogi védelme alatt állnak. Részletekért tekintse meg ezen termék GPL és LGPL kódját és a GPL és LGPL felhasználási feltételeit.
| Version | Leírás | Date | |
|---|---|---|---|
| CE doc 1.01 RevA1 | CE document | 2021. 06. 11. | Letölt |
