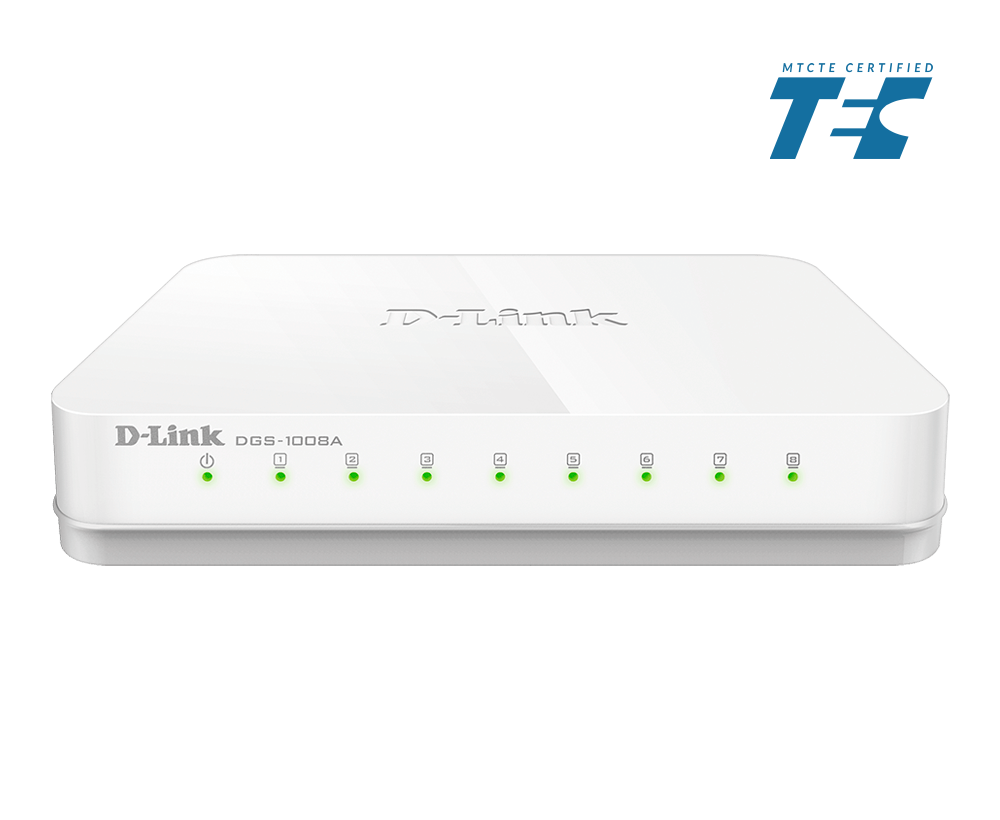

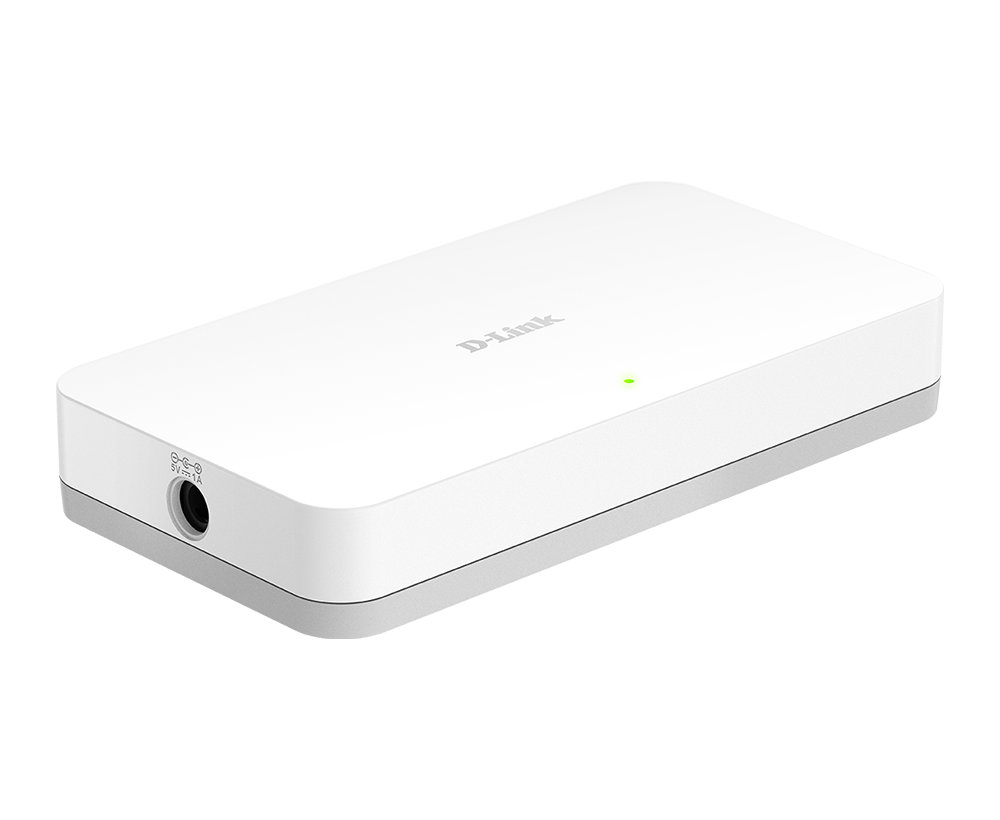

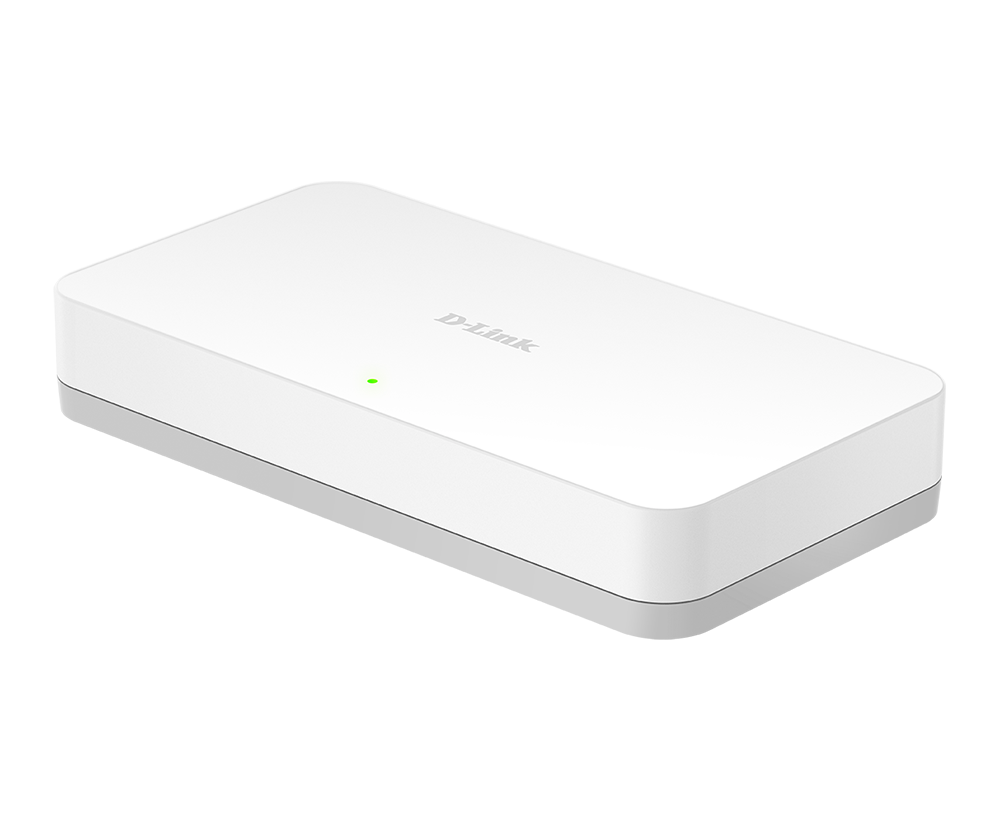

8-Port Gigabit Easy Desktop Switch

DGS-1008A

  • Product Status (DGS_1008A_F1_IN): Live

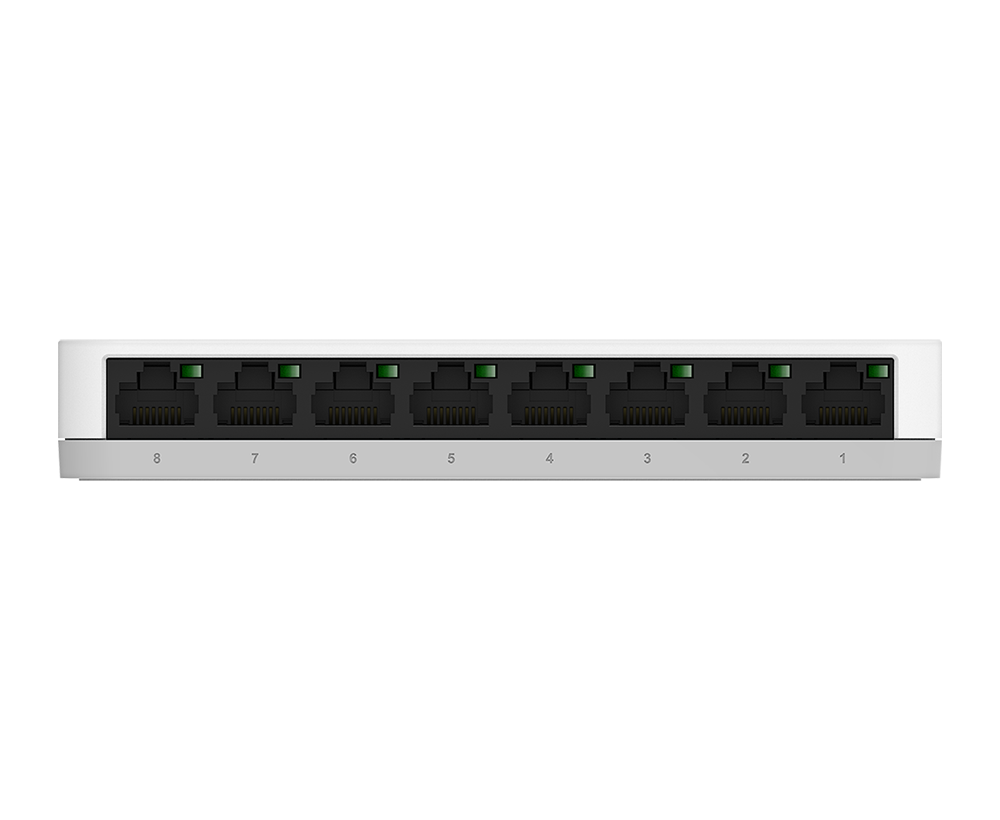

  • 8 high-speed Gigabit ports
  • Compact design for convenient placement
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
MTCTE CERTIFIED

Download the datasheet.

Where to buy

Fast and Reliable Networking

The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.

Conserve Energy

The 8-Port Gigabit Easy Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly

The 8-Port Gigabit Easy Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Air Discharge
8kV
Auto MDI/MDIX
Yes
Comply with RoHS 6
Yes
Contact Discharge
4kV
Control
802.3x Flow
Dimensions
130 x 79 x 22mm
Energy Efficiency Ethernet (EEE)
Yes
FAN
Fanless
Flash Memory Size
64KBytes
Head-of-line (HOL) Blocking Prevention
Yes
Interfaces
8 x 1000Base-T
Jumbo Frame
9,720 Bytes
MAC Address Table Size
4,000
Max. Packet Forwarding Rate
11.90 Mps
Maximum Heat Dissipation
16.368 BTU/h
Maximum Power Consumption
4.80 W
MTBF
1,061,267 hours
Operating Altitude
2000m
Operating Humidity
0% ~ 95% RH
Operating Temperature
0 ~ 40 °C
Packet Buffer Size
192KBytes
Power Input
AC:100 ~ 240 V
Power Saving By Cable Length
Yes
Power Saving By Link Status
YES
Standby Power Consumption
0.7 W
Storage Humidity
0% ~ 95% RH
Storage Temperature
- 10 ~ 70 °C
Store & Forwarding Forwading
Yes
Surge/Lightning Protection
AC Power Inet: 1kV
All Ethernet Ports: 1kV
Switch intelligence
Unmanaged
Switching Capacity
16 Gbps
Weight
130 g
