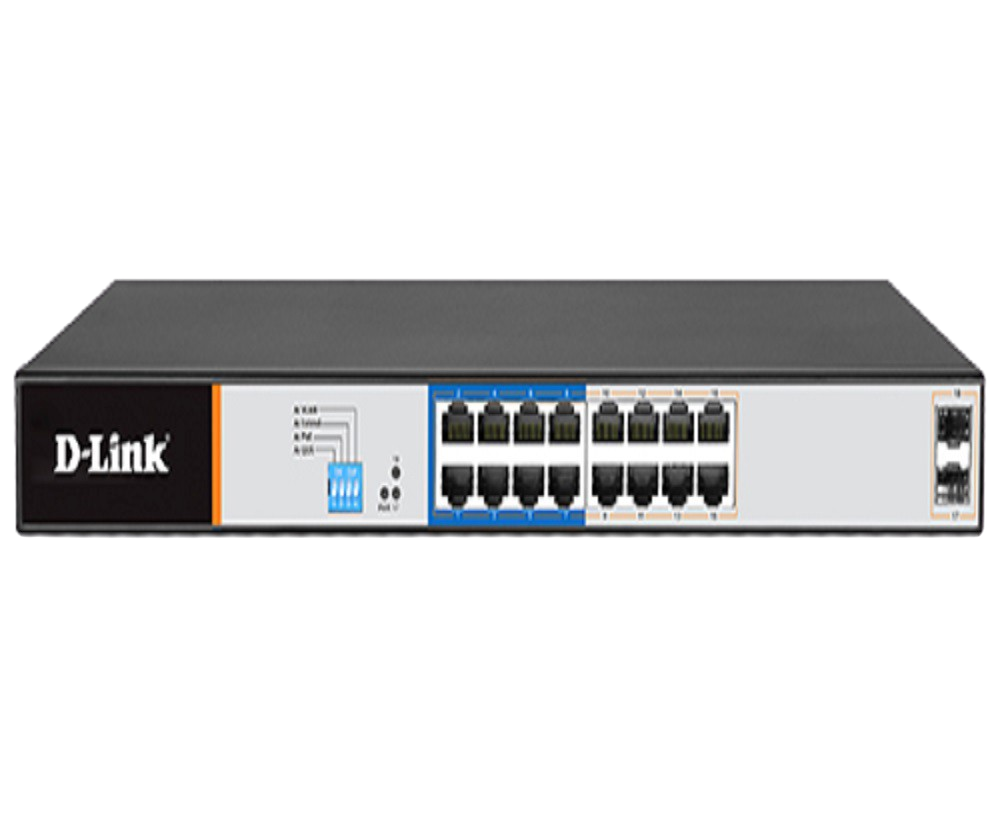

16GE PoE + 2 SFP Ports 250m PoE Switch
DGS-F1018P-E
- Product Status (Revision datasheet IN): Live
- 16 10/100/1000 Mbps gigabit ethernet ports
- 2 SFP port
- 150watts available PoE
- Flow control for protection against data loss
- Maximum distance of 250m
- Light protection (6kV)
- Operating Temperature: 0 to 40 deg C (32 to 104 deg F)
Where to buy
High Transmission distance
With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable.The DGS-F1018P-E features 16 ports 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 150W.
Plug & Play Installation
The DGS-F1018P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Different Switch working mode
The DGS-F1018P-E switch works in 4 operating modes using DIP switch
- VLAN: Isolating ports 1-16 from each other can effectively suppress network storms and improve network performance
- EXTEND: Supports 250meters long distance power supply (recommended cat 5 or above)
- PoE: Automatic detection power of port, power off and restart the device if find PD device crash
- QoS: Prioritize the identified video data to make video transmission smoother
Specification
| Size | Desktop (with Mounting Kit) |
|---|---|
| Network Interface | 16 10/100/1000 BASE-T ports, 2 SFP |
| Standards | Auto MDI/MDI-X adjustment on all ports |
| Media Interface Exchange | CE Class B, FCC Part 15，Class B, VCCI Class B, C-Tick |
| Lightning protection | 6KV |
| Switching Fabric | 36 Gbps |
| Transmission Method | Adopt Store-and-forward |
| Data Transfer Rates | Gigabit Ethernet -1000 Mbps, Ethernet -100 Mbps |
| Physical specifications | Dimensions (LxWxH): 440 x 180 x 44mm, Weight: 3kg |
| POE Power Budget | 150W (30 W max. per PoE port) |
| Power | Total Power: 150W |
| Humidity | Operating: 0% to 95% RH non-condensing, Storage: 0% to 95% RH non-condensing |
