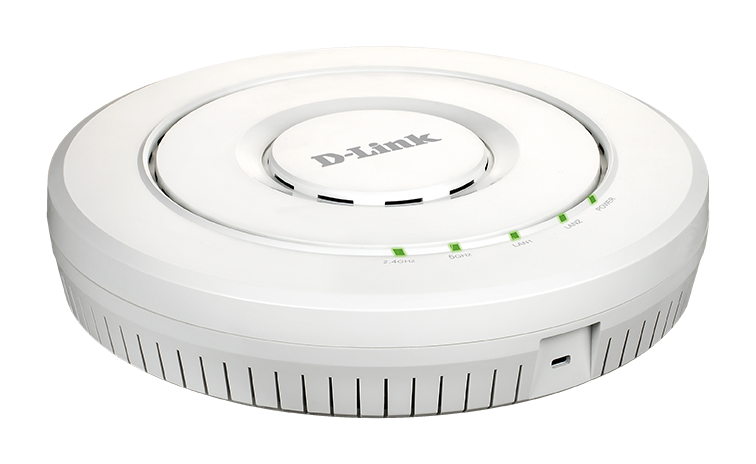

Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
- Product Status: Live
- 802.11ac Wave 2, Dual-Band, up to 2.5 Gbps2
- 4 Internal Omnidirectional Antennas
- Up to 64 dynamic VLANs per access point
- 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
- Link Aggregation
![](/in/en/-/media/product-pages/dba/1210p/assets/icon_05_wave.png)
AC2500 Wave 2
Combined wireless speeds of up to 2.5 Gbp2 with 802.11ac Wave 2 technology
![](/in/en/-/media/product-pages/dba/1210p/assets/icon_12_accesspoints.png)
Dual-Band Wi-Fi
Two bands to improve throughput and coverage. Reduces co-channel interference.
![](/in/en/-/media/product-pages/dwl/8620ap/assets/dwl8620ap_02_icon_mumimo.png)
4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network
![](/in/en/-/media/product-pages/dwl/8620ap/assets/dwl8620ap_04_icon_arf.png)
Automatic Radio Frequency (RF) Management
Greatly reduces RF interference and enables denser AP deployments.
![](/in/en/-/media/product-pages/dwl/8620ap/assets/dwl8620ap_06_icon_fastroaming.png)
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
![](/in/en/-/media/product-pages/dwl/8620ap/assets/dwl8620ap_05_icon_centrallymanaged.png)
Centrally Managed
Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.
Related Products
![](/in/en/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=en-IN&hash=EF6AC8775F92AC0C80716E056A2CF913)
Wireless Controller
DWC-2000
![](/in/en/-/media/product-pages/dwl/8620ape/dwl8620apea1image-lfront.png?h=100&w=163&la=en-IN&hash=BE7A5346339CEB491A98B8665437488C)
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
1733 Mbps 5 GHz 800 Mbps 2.4 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

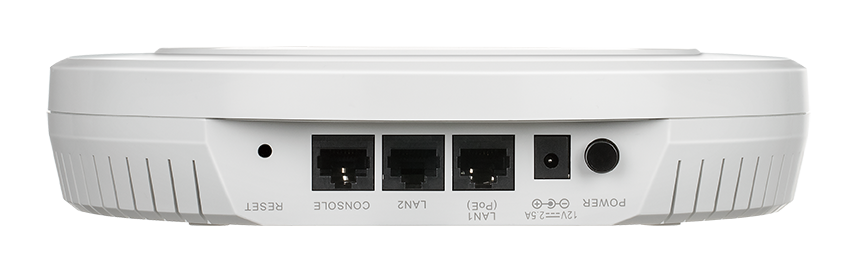

Wired interface
|
2 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client Wireless extender |
Advanced features
|
Fast Roaming MU-MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
