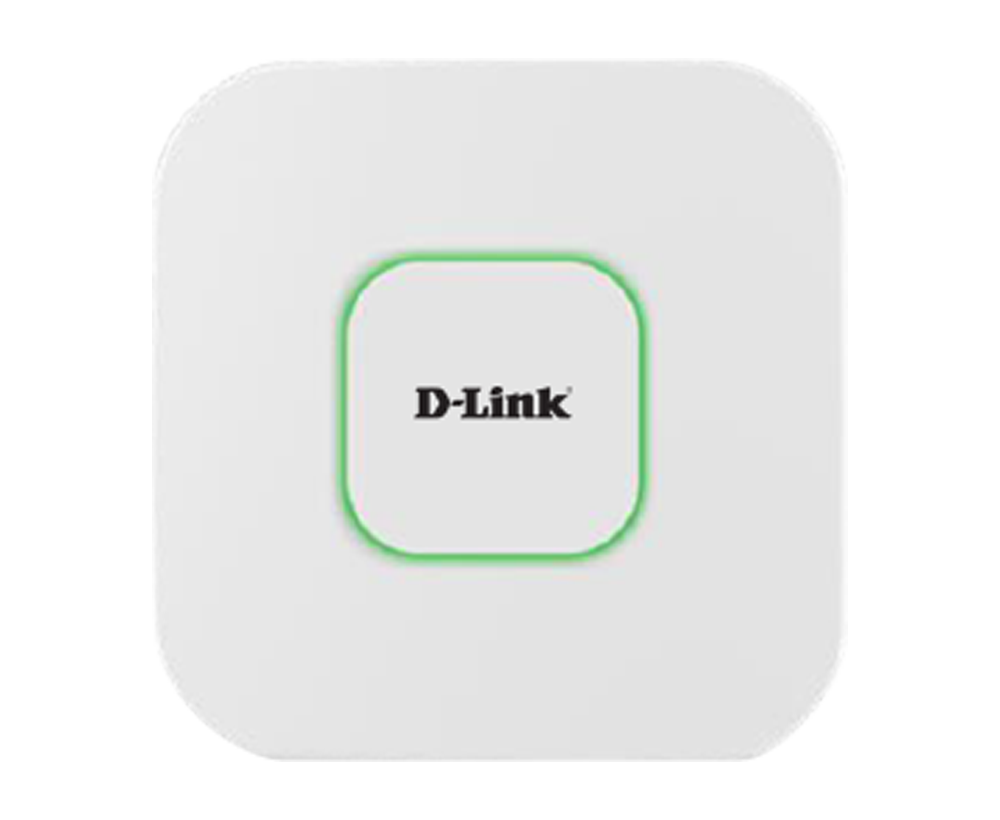

802.11a/b/g/n/ac 2G/5G Indoor high-performance Wireless Ceiling AP

DWL-F6612-I

  • Product Status (Revision Datasheet IN): Live
  • Dual-band concurrent (2.4GHz/5GHz)
  • Support 802.11ac standard, and2x2 MIMO technology
  • Longest transmission distance: 0~150m, and max transmission throughput: 867Mbps (5G)&300Mbs (2.4G)
  • Integrated smart wireless technology
  • Support operation modes: AP, Station, WDS AP, WDS Station
  • Support PPPOE and route mode
  • Wireless multimedia optimized shaping technology to ensure the stability of video and flow transmission
  • Support dual backup firmware
  • The operation management based on the Web makes the installation and maintenance of the equipment more convenient
  • Support SNMP
  • Standard 802.3at Power over Ethernet (POE+)
  • IP41

Download the datasheet.

Where to buy

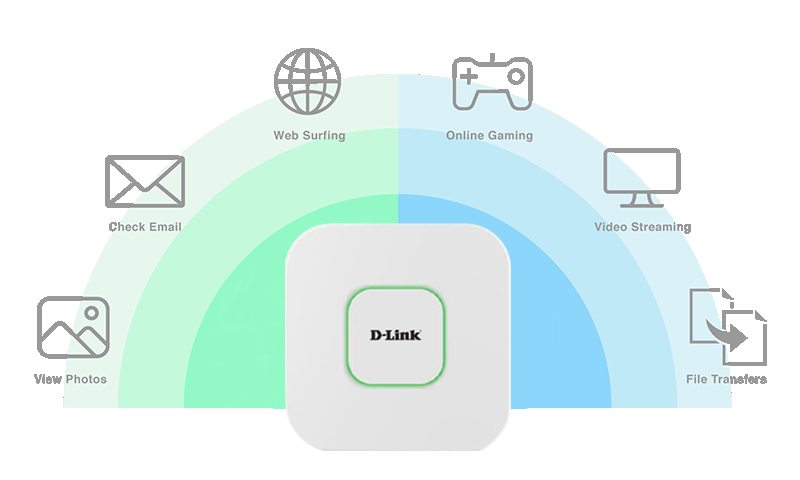

New generation Dual frequency AP for indoor applications

The DWL-F6612I-E is a new generation of 802.11ac 2x2 dual frequency AP for indoor applications. It can provide stable indoor wireless signal coverage, and provide customers with stable, high quality, convenient broadband services.
DWL-F6612I-E built in D-Link’s smart wireless technology, this technology incorporates industry-leading core technology, including MIMO-OFDM, TDMA, Beam-Forming, Auto ACK, etc., to ensure high throughput and reliable wireless signal coverage under various application scenarios.
This series of products have simple structure and designed fully considering harsh environment applications, and comply with the IP41 standard, so the DWL-F6612-E is a good candidate for enterprise level Wi-Fi coverage device

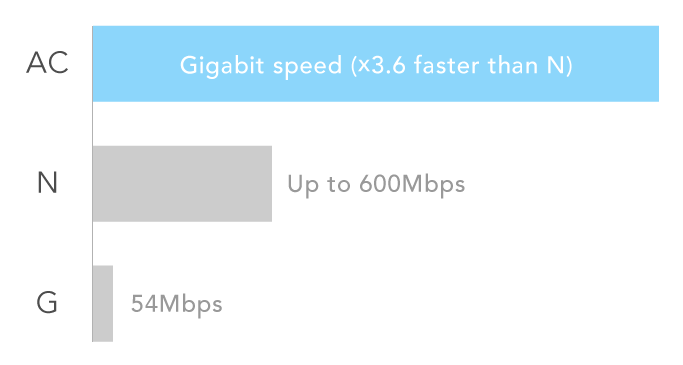

Unparalleled Speed and Connectivity

It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic.

Smart Wireless technology System

  • MIMO can improve wireless data rate and signal quality
  • 10/20/40/80MHz bandwidth can be flexibly configured by the users
  • The packet power control can dynamically select the transmitting power of the message, so as to effectively balance the coverage distance and mutual interference
  • Automatic rate adjustment can well adapt to the quality change of transmission link
  • Configure the Wi Fi as WAN or LAN port freely.

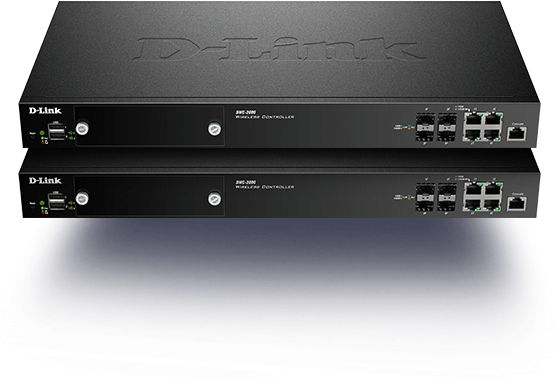

Centrally Manage Your Wireless Network

When working in conjunction with D-Link Unified Controllers, the DWL-F6612-I can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently. Once the APs are discovered by the controller, the administrator can push the configuration to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.

Description 802.11a/b/g/n/ac 2G/5G Indoor high-performance Wireless Ceiling AP
CPU IPQ4028
DDR 256MB DDR3
Memory 32MB Flash
Physical Interface 2×10/100M /1000MBase-TX (Cat. 5/5E, RJ-45)
Protocol 802.11a/b/g/n/ac, MU-MIMO
Power Supply POE+/DC 24V~48V
Network Mode Bridge, Router
Operating mode AP, Station, WDS AP, WDS Station
Operating Frequency 2G:2402~2480MHz; 5G:5180~5320,5745~5825MHz
Encryption WPA/WPA2, Hide SSID, IP/MAC Filtering
Configuration Web-based configuration, AC Management, SNMP Management
Firmware Update Firmware update via browser or AC
Enclosure Characteristics ABS
Mounting Kit Ceiling Installation
Working Temperature -20℃ to 55℃
Storage Temperature -40℃ to 85℃
Size 150×150×31.6mm
Weight 0.3kg
Max Power Consumption <=20W
Antenna Gain Omnidirectional dual-band 3dBi
