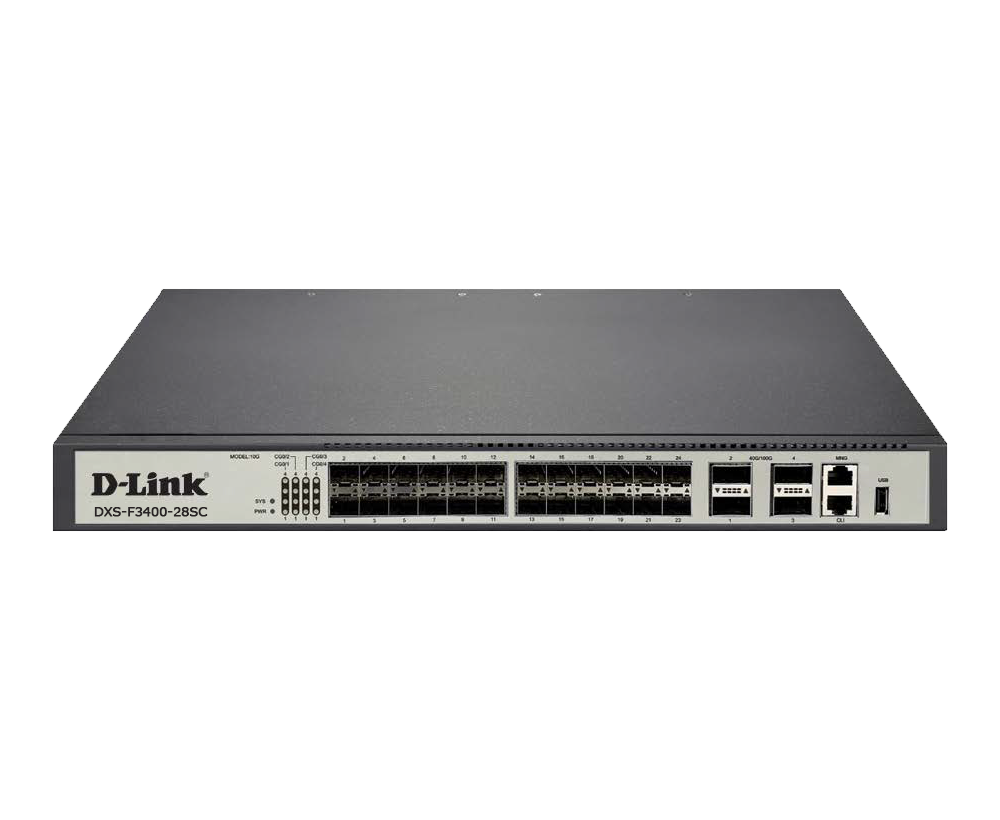

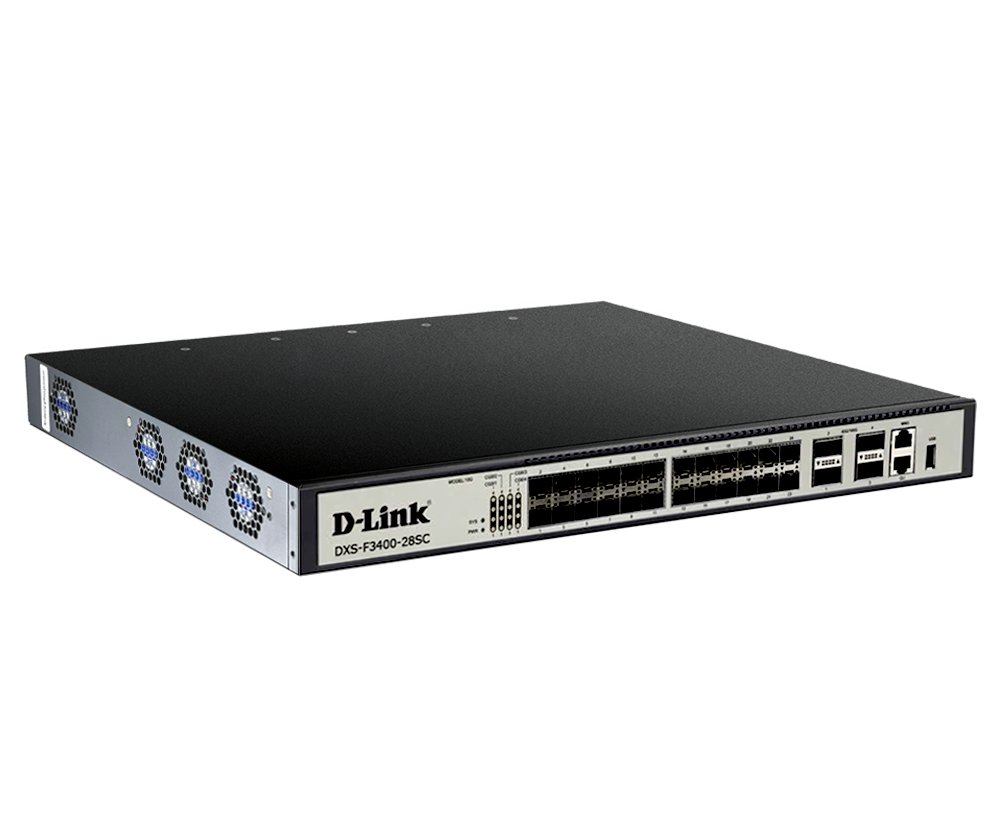

24 x 10G SFP + 4 x 100G QSFP28 Optical L3 Manage Switch

DXS-F3400-28SC

  • Product Status (Revision Datasheet IN): Live
  • 24* 10GE SFP+
  • 4*100GE QSFP28 Ports
  • VSS up to 4 devices stack
  • Layer 2+ static routing / RIPv1/v2/ng
  • Layer 3 dynamic routing / OSPF/BGP
  • Hot-swappable power supplies

Download the datasheet.

Where to buy

High Availability & Flexibility

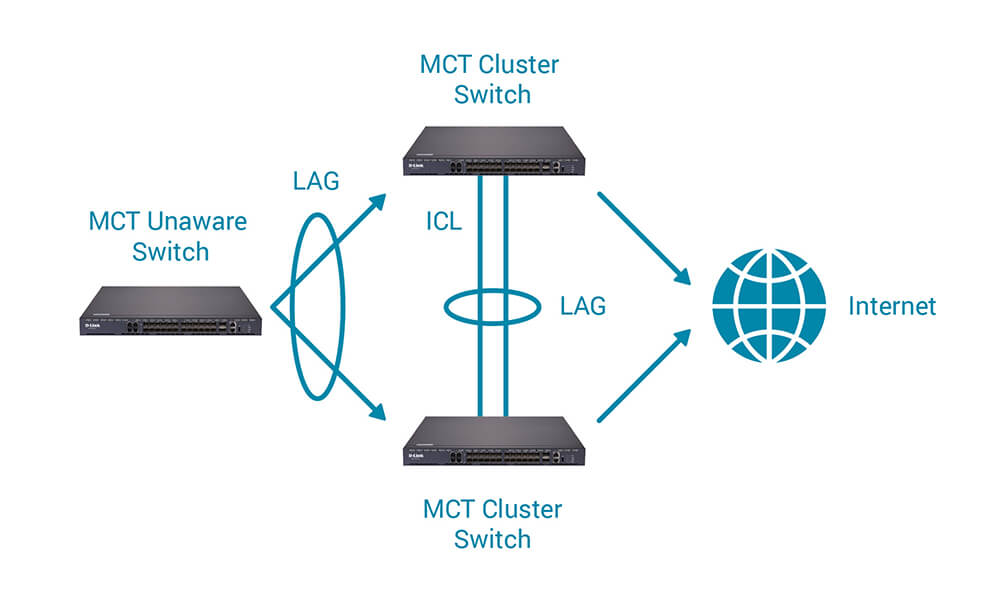

This switch features a modular power supply design for a high availability architecture. The hot-swappable design means that power supplies can be replaced without affecting switch operation. Virtual switch stacking allows the switch to be managed from a single IP address and provide redundancy for connected devices.

Layer 3 Routing

The DXS-F3400-28SC having features a wide range of Layer 2, VLAN, multicasting, Quality of Service (QoS), security, and static routing protocols including RIP, VRRP and OSPF. IPv4/v6 routing including BGP and L3 multicasting features such as IGMP, MLD, PIM-DM, SM. The DXS-F3400-28SC to be deployed as the core router or as an aggregation switch in an enterprise environment.

Interfaces 24* 10GE SFP+ & 4*100GE QSFP28 Ports
Console Port RJ-45 console ports for out-of-band CLI management
Management Port 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management
USB Port 1*2.0 port
Switching Capacity 1.280 Tbps
Packet Buffer Memory 4 MB
MAC Address Table Up to 32K entries
Power input 100 to 240 V AC, 50Hz ± 10%
Dimensions 440 x 350 x 44 mm
Operating Temperature 0° to 50° C
Flash 32 MB
Dram 1GB
Power Consumption No Load: 45W, Full Load: 70W
MTBF (H) >100 000
Stackability VSS (up to 4 Switches)
