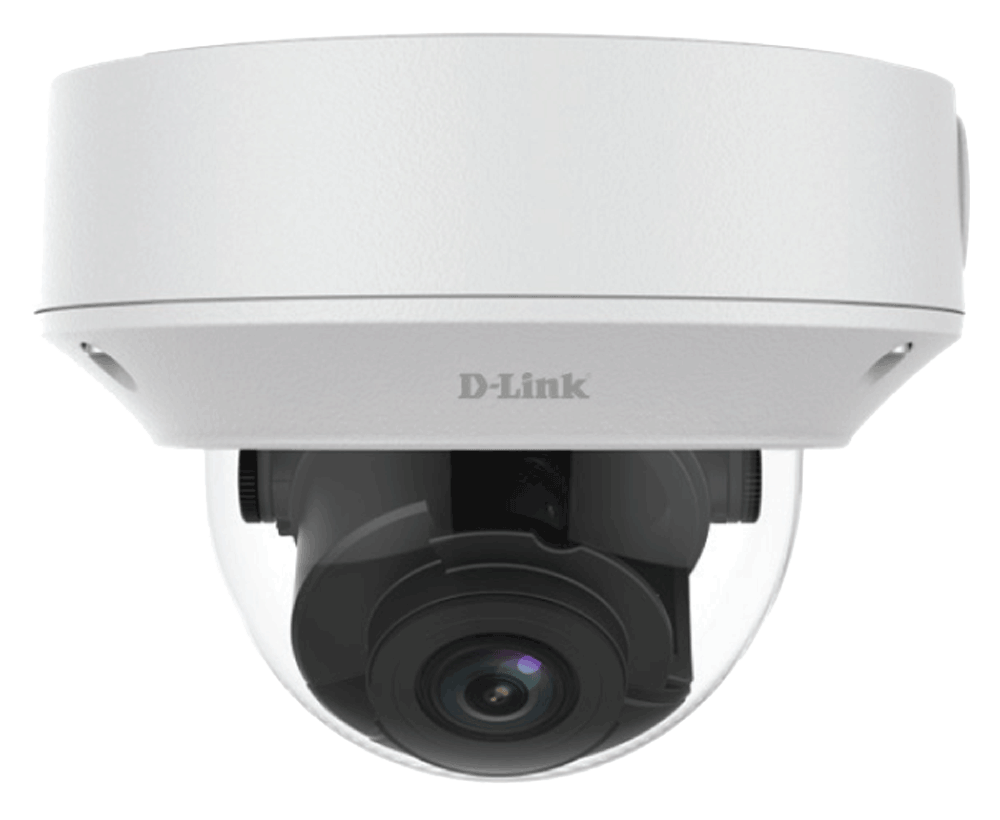

2MP VF VANDAL-RESISTANT NETWORK IR VF DOME CAMERA
DCS-F5612
- Product Status (Revision Datasheet ME): Live
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
Network
- ONVIF Conformance
Structure
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 2MP VF VANDAL-RESISTANT NETWORK IR VF DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | (1920×1080): Max. 30 fps |
| Image Sensor | 1/2.7", 2.0 Megapixel, Progressive Scan, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | Manual Zoom Lens |
| Focal Length | 2.8~12 mm |
| Angle of View (Horizontal / Vertical) | 112.7°~28.1°(H) 60.1°~15.4° (V)146.5°~33.2° (D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | IP67 |
| Power Input | DC12V±25% |
| Power over Ethernet (PoE) | IEEE802.3 af |
| Max. Power Consumption | Max 6.5W |
| Dimension (W x D x H) | 148 x 111.3 mm (Ø5.8” x 4.4”) |
| Net Weight | 0.92kg (2.0lb) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ 140°F) |
