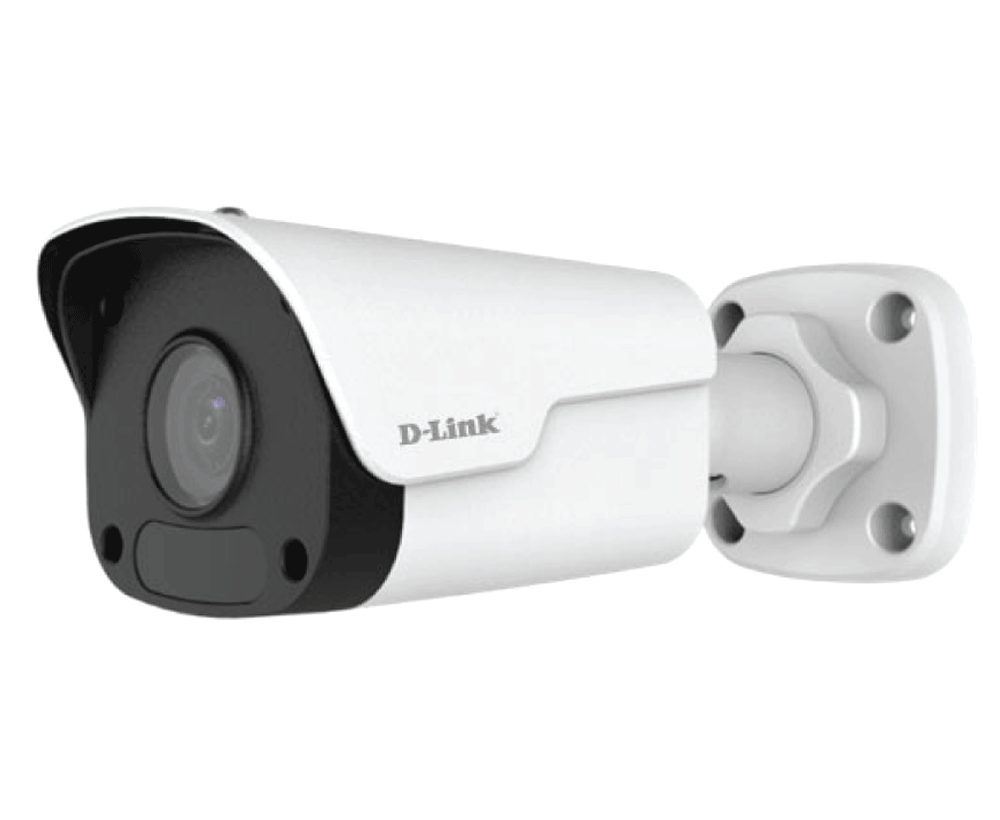

4MP DAY & NIGHT FIXED BULLET CAMERA

DCS-F5704

  • Product Status (Revision Datasheet ME): Live

Optics

  • Day/night functionality
  • SmartIR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis

Download the datasheet.

Where to buy
Product Description 4MP DAY & NIGHT FIXED BULLET CAMERA
Camera Type Bullet Camera
Video Compression Ultra 265,H.265, H.264, MJPEG
Max. Resolution 4 Megapixel
Max. Frame 4MP (2592*1520): Max. 20 fps
Image Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Day & Night (Illumination Range) Day & Night (30 Meters)
Lens Manual Zoom Lens
Focal Length 4.0mm
Aperture (F no. ) F2.0
Angle of View (Horizontal / Vertical) 78.9°(H) 39.6° (V)97.0° (D)
Mechanical PTZ No
Audio No
Audio Codec No
Storage Card Slot Yes
Digital Input / Digital Output No
Vandal proof Yes (IK10)
Indoor / Outdoor IP67
Power Input 12 V DC±25%
Power over Ethernet (PoE) IEEE802.3 af
Max. Power Consumption Max 4W
Dimension (W x D x H) 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Net Weight 0.37kg (0.81lb)
Operating Temperature -30°C to 60°C (-22°F to 140°F)

Support

Version Date Type File Size
Datasheet - PDF 0.65mb Download
