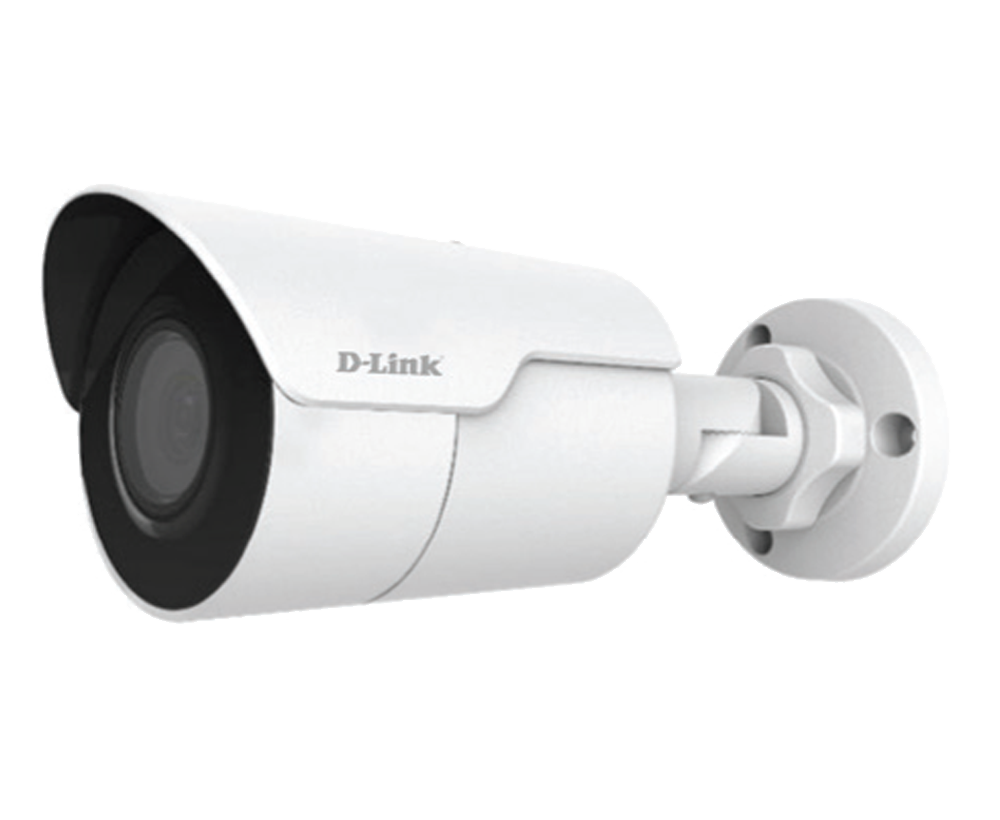

4K FIXED BULLET NETWORK CAMERA
DCS-F5708E
- Product Status (Revision Datasheet ME): Live
Optics
- Day/night functionality
- SmartIR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120dB WDR (Wide Dynamic Range
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 4K FIXED BULLET NETWORK CAMERA |
|---|---|
| Camera Type | NETWORK CAMERA |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| Max. Resolution | 4K |
| Max. Frame | 8MP (3840*2160), Max 20fps |
| Image Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | IR-cut filter with auto switch (ICR) |
| Lens | Fixed Focal |
| Focal Length | 4.0mm |
| Aperture (F no. ) | F2.0 |
| Angle of View (Horizontal / Vertical) | 91.6°(H)47.2° (V)112.7°(D) |
| Mechanical PTZ | No |
| Audio | Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | DC 12V±25% |
| Power over Ethernet (PoE) | IEEE 802.3af |
| Max. Power Consumption | Max 8W |
| Dimension (W x D x H) | 191.3×72.6×70.9mm (7.5”×2.9”×2.8”) |
| Net Weight | 0.5kg (1.1lb) |
| Operating Temperature | -30℃ ~ 60℃ (-22°F ~ 140°F), |
