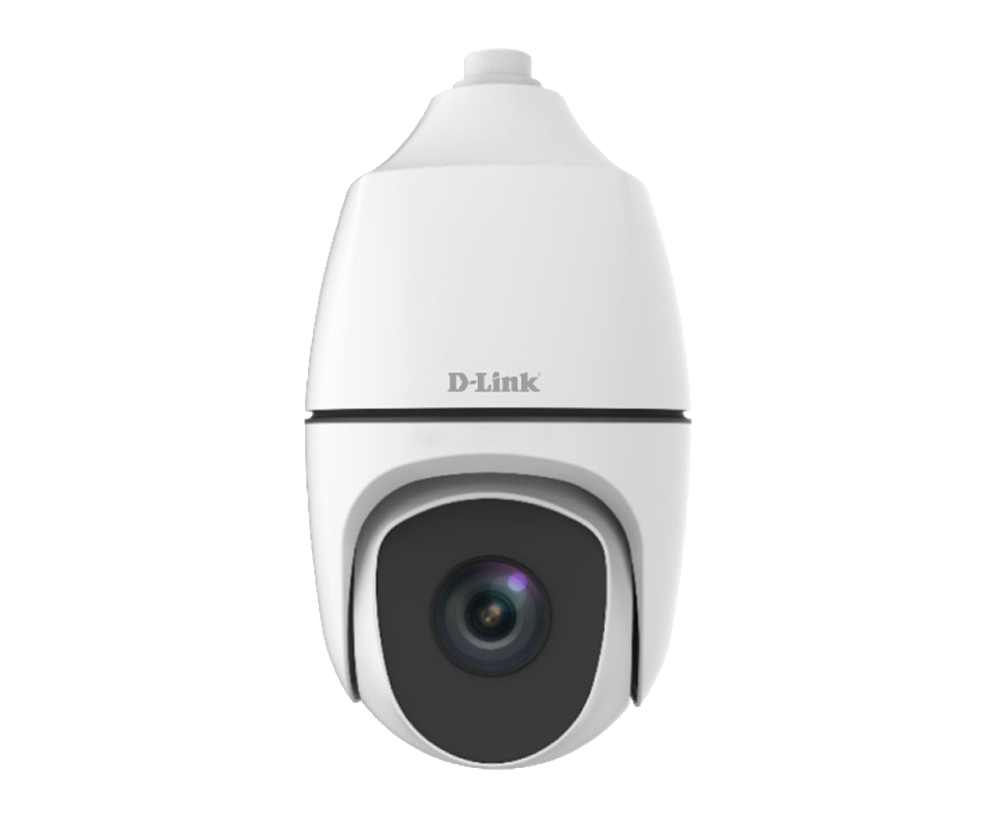

4MP Network IR PTZ Dome Camera
DCS-F5838-4M-SL
- Product Status (Revision Datasheet ME): Live
Optics
- 38X Optical Zoom
- Starlight illumination
- Accurate and fast focusing
- Smart IR, up to 250m (820ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Gyroscope
Compression
- 4 Megapixel image
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- IP66
- PoE++ (IEEE 802.3bt)
Where to buy
Specification
| Product Description | 4MP Network IR PTZ Dome Camera |
|---|---|
| Camera Type | Dome |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Max. Resolution | 4 Mega Pixel |
| Max. Frame | 4MP (2688*1520), Max 60fps |
| Image Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | IR-cut filter with auto switch (ICR) |
| Lens | AF automatic focusing and motorized zoom lens |
| Focal Length | 5.7 ~ 216.6mm |
| Aperture (F no. ) | AF automatic focusing |
| Angle of View (Horizontal / Vertical) | 58.5° ~ 2.1°(H)34.9° ~ 1.2° (V) 72.0° ~ 2.5° (D) |
| Mechanical PTZ | No |
| Audio | Two-way audio Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | AC 24V ±25%, DC 24V ±25% |
| Power over Ethernet (PoE) | PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required) |
| Max. Power Consumption | 16 ~ 51W |
| Dimension (W x D x H) | Φ270 x 496.7mm (Φ10.6” x 19.6”) |
| Net Weight | 9.69kg (21.4lb) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
