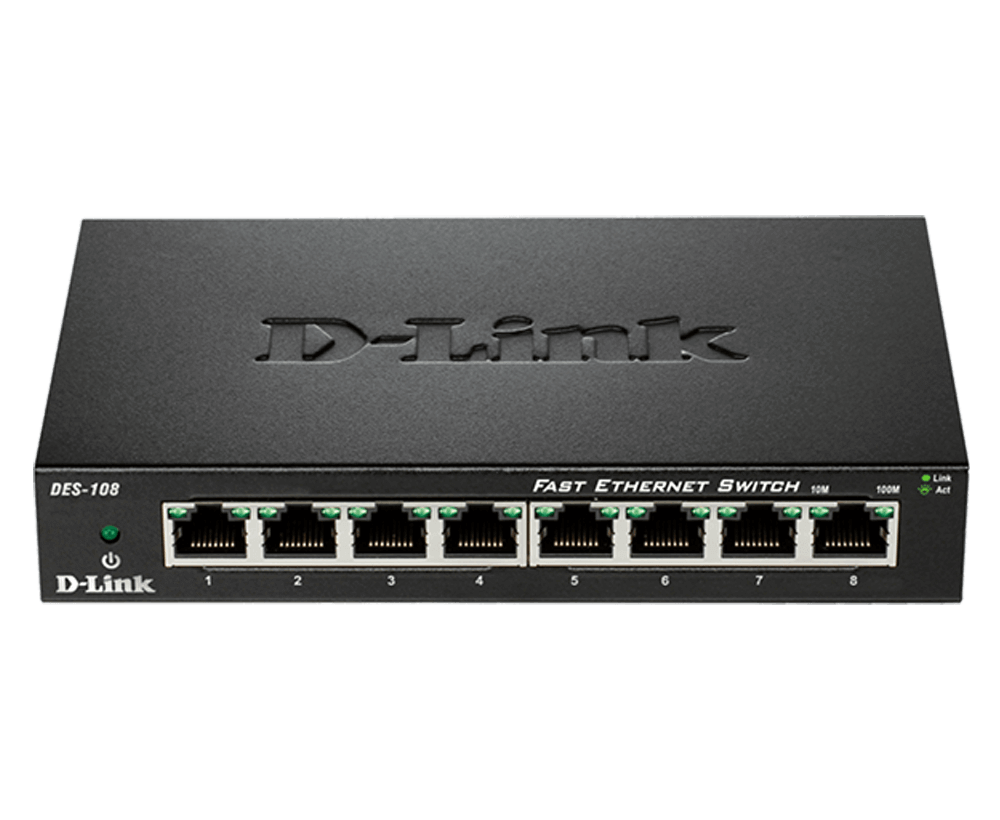

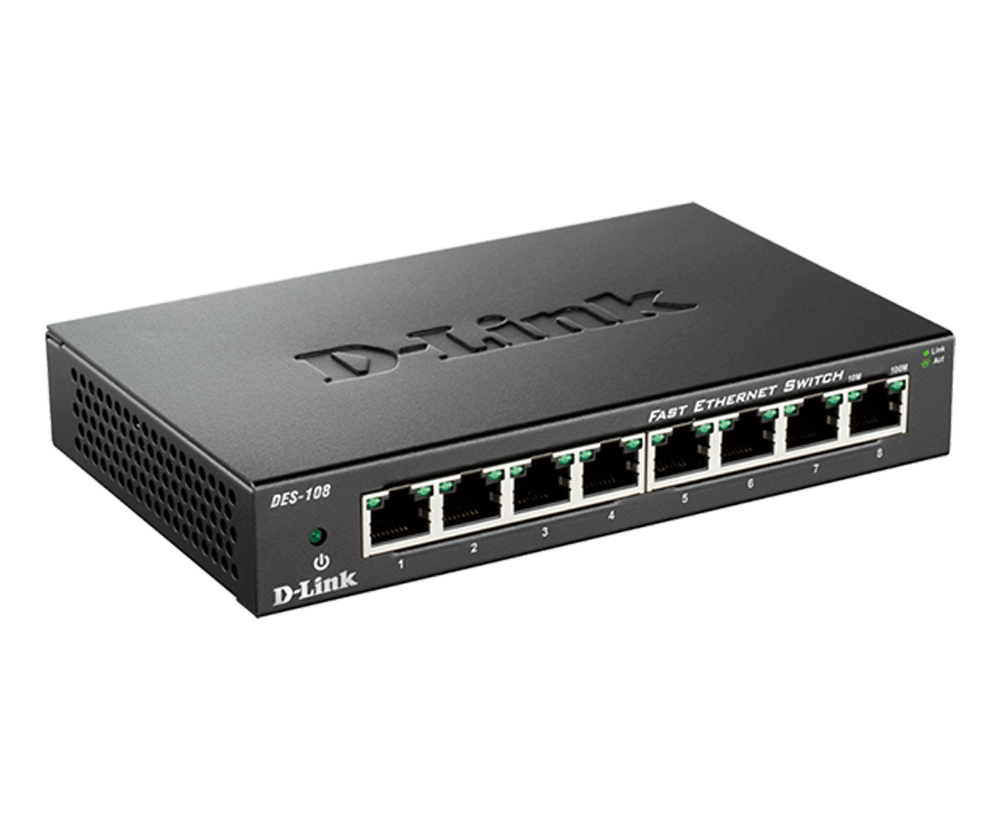

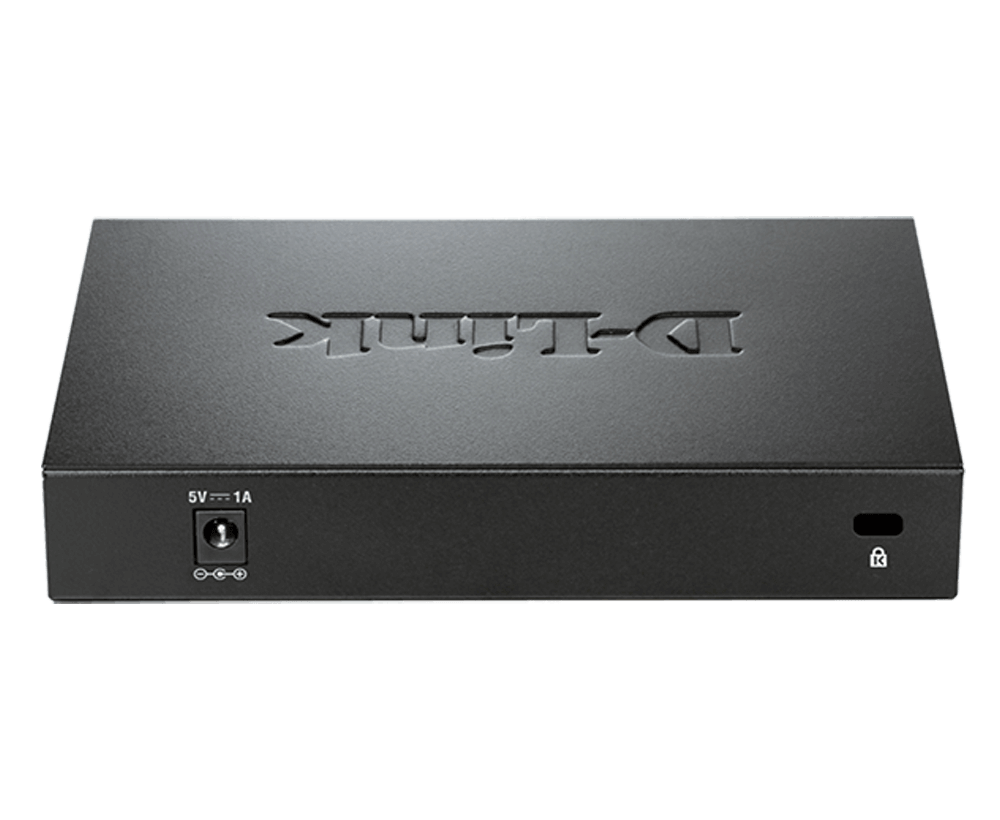

8-Port 10/100 Unmanaged Desktop Switch
DES-108/B
- Product Status: Live
- Auto-sensing 10/100 Mbps ports
- Auto-MDI/MDIX crossover
- Flow Control for secure transmission
- Innovative D-Link Green technology
Designed for Enterprise Connections
The 8‑Port 10/100 Unmanaged Desktop Switch provides a quick, easy, and economical way to connect up to eight devices for fast file transfers and smooth media streaming. Powerful and versatile, it eliminates network bottlenecks while giving home offices and small-to-medium businesses the capability to fine-tune performance.
Robust Design
The DES-108 is designed with durability and performance in mind. Its sturdy metal housing ensures the product can withstand extreme temperatures and can be placed in typical industrial environments such as factories, construction and mining sites. This helps dissipate heat to reduce stress on internal components.
Easy Installation
This unmanaged switch comes with easily-accessible, auto-sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-108 also supports Auto-MDI/MDIX crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.
Flow Control For Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Power-Saving Technology
TThe DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. It supports the IEEE 802.3az Energy Efficient-Ethernet (EEE) standard which detects when a connected device is shut down or when there is no Ethernet traffic, in which case the switch will power down the idle port, saving a substantial amount of power. This helps businesses to reduce their electricity bills with no compromise on performance.
Environmentally Friendly
The DES-108 switch is designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy-efficient power adapters. It's built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an Energy Star Level V-qualified power adapter all with recyclable packaging making this product truly environmentally friendly.
Specification
Store & Forwarding Forwading | Yes |
---|---|
Power Input | AC:100 ~ 240 V |
Comply with RoHS 6 | Yes |
Power Saving By Link Status | Yes |
Packet Buffer Size | 0.75 MB |
FAN | Fanless |
802.3x Flow Control | Yes |
MAC Address Table Size | 1024 |
Jumbo Frame | 1536 bytes |
Queue Handling | Yes |
Weighted Round Robin (WRR) | Yes |
Alarm Port | No |
Secure Digital (SD) Card Slot | No |
RJ-45 Management Port | No |
100Base-TX Interface | 8 |
Auto MDI/MDIX | Yes |
Console Port | No |
Max. Packet Forwarding Rate | 1.19 Mpps |
Switching Capacity | 1.6 Gbps |
Number of Queue | 2 |
Two Rate Three Color Marker (trTCM) | Yes |
