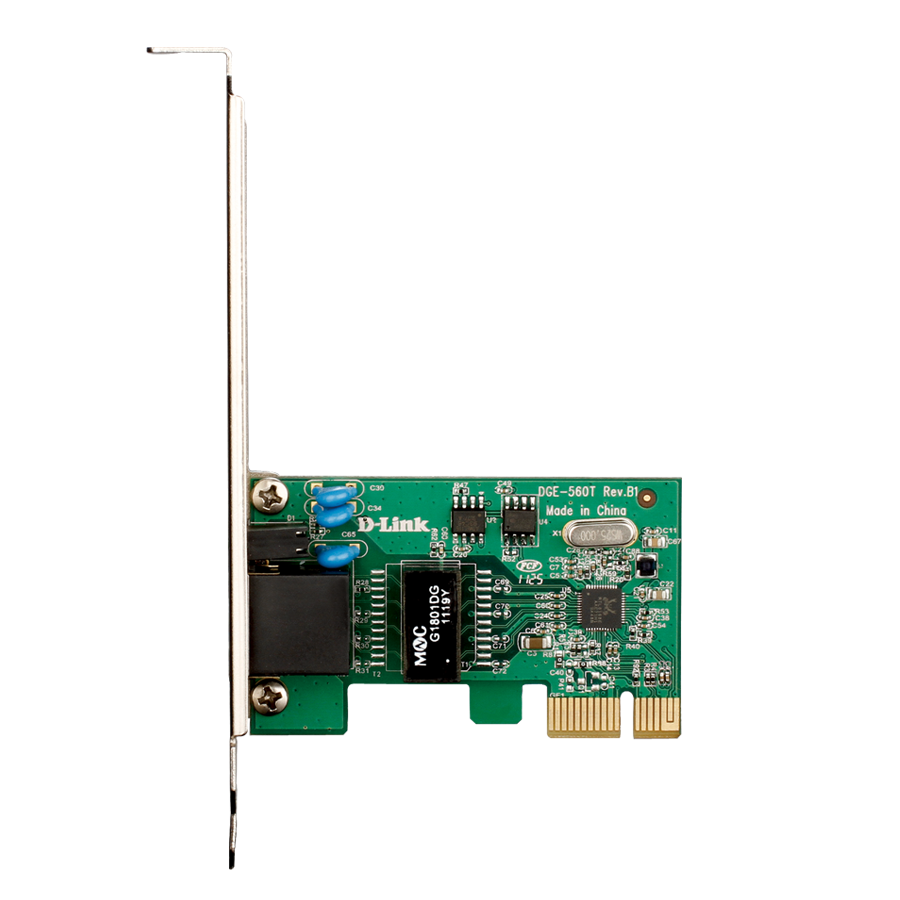

Gigabit Desktop PCI Express Adapter
DGE-560T
- Product Status (Revision B1_v100): Live
- One 1000 Mbps Gigabit port
- Auto-negotiates port speed to 10 Mbps, 100 Mbps, or 1000 Mbps
- Plug and play installation
- Supports Jumbo Frames of up to 9 KB
- ACPI 2.0 WOL Power Management
- Supports 802.1Q VLAN tagging
Where to buy
Remote Management
The DGE-560T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.
Versatility
The DGE-560T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying troubleshooting.
Specification
| Certifications | CE |
|---|---|
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -40 to 70 °C (-40 to 158 °F) |
| Dimensions | 120 x 120 x 18 mm (4.7 x 4.7 x 0.7 inches) |
| Supported Functions | 7 KB Jumbo Frames, IEEE 802.1p Priority Queues, IEEE 802.1Q VLAN Tagging, Wake on LAN, Remote Boot (PXE), Diagnostics utility |
| Power Consumption | 3.42 W maximum |
| Data Transfer Rate | Gigabit Ethernet: Up to 2000 Mbps full duplex, Fast Ethernet: 100 Mbps half duplex, 200 Mbps full duplex, Ethernet:10 Mbps half duplex, 20 Mbps full duplex |
| Diagnostic LEDs | 10/100/1000 Link, 10/100/1000 Activity |
| Interface | PCI half-height card suitable for low-profile cases |
| OS Support | Microsoft Windows XP/Vista/7/8/8.1/10, Microsoft Windows Server 2000/2003/2008/2012, Linux for Kernel 2.4.x/2.6.x/3.16, Free BSD 7.x/8.x,NDIS 2 for DOS, Novell client for DOS,Novell client for server 5.x/6.x,Mac OS X 10.4/10.5/10.6 |
| Standards | IEEE 802.3, 802.3u, 802.3ab, PCI local bus 2.2, 2.3, ANSI/IEEE 802.3, NWay auto-negotiation, Universal Bus Support 3.3 V / 5 V, IEEE 802.3x Flow Control |
| Topology | Star |
| Weight | 50 grams (1.76 ounces) |
