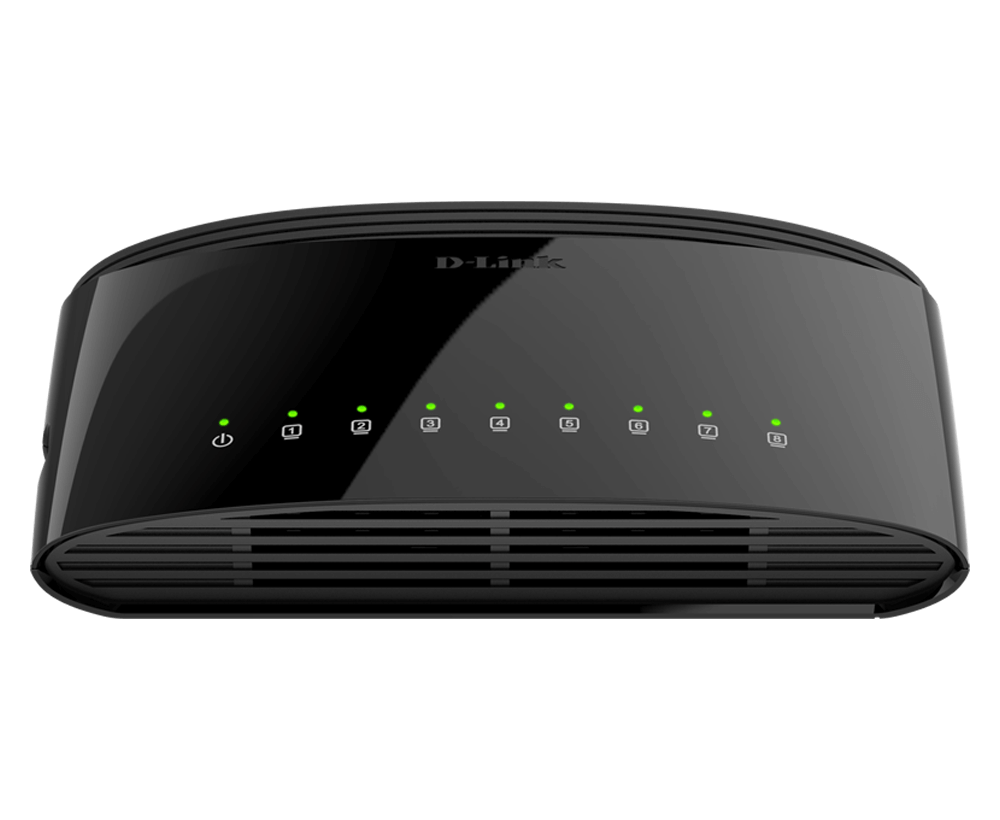

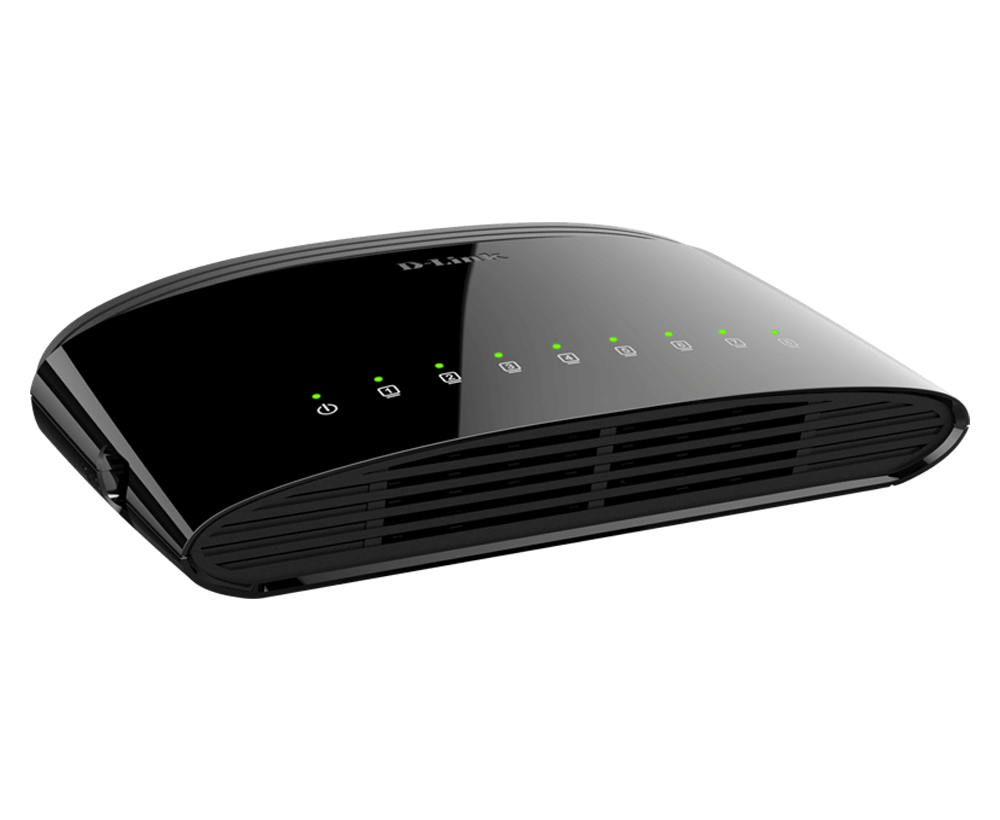

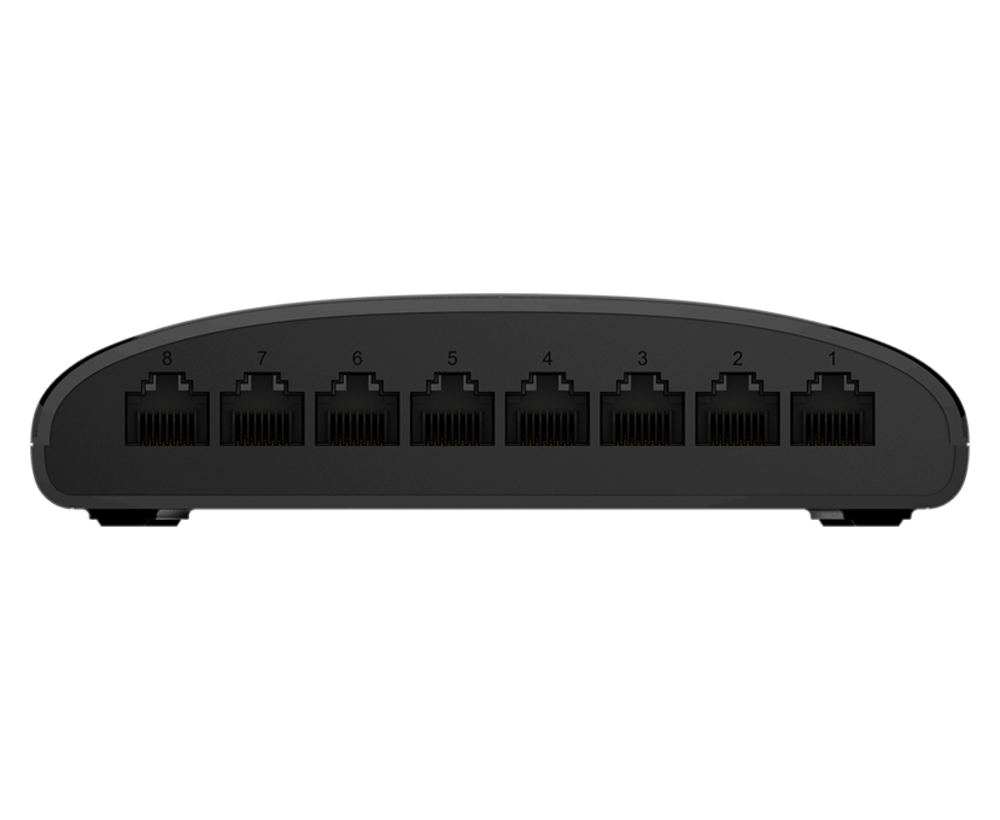

8-Port Gigabit Ethernet Switch
DGS-1008G
- Product Status: Live
- 8 high-speed Gigabit ports
- QoS support provides clear VoIP calls and smooth online gaming
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
Effortless High Speed Networking
The D-Link 8-Port Gigabit Ethernet Switch transfers data at blazing gigabit speeds, boosting your network performance when running bandwidth-intensive applications or gaming. Environmentally friendly, the 8-Port Gigabit Switch adjusts power usage and reduces energy consumption without affecting operational performance.
Think Green
The DGS-1008G Gigabit Desktop Switch makes use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. Minimized use of harmful substances (RoHS compliant), and recyclable packaging makes this switch truly environmentally friendly.
Conserves Energy
The DGS-1008G helps conserve energy automatically, saving substantial amounts of power by cutting power usage for unused ports or ports connected to computers that are idle.
Gigabit Connection for Home and Media Center
This Gigabit Desktop Switch offers an economical way for homes and media centers to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Specification
|
Air Discharge
|
8kV |
|---|---|
|
Auto MDI/MDIX
|
Yes |
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
Dimensions
|
138 x 85 x 34 mm |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
64KBytes |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Interfaces
|
8 x 1000Base-T |
|
Jumbo Frame
|
9,720 Bytes |
|
MAC Address Table Size
|
2,000 |
|
Max. Packet Forwarding Rate
|
11.90 Mps |
|
Maximum Heat Dissipation
|
18.073 BTU/h |
|
Maximum Power Consumption
|
5.30W |
|
MTBF
|
1,060,912 hours |
|
Operating Altitude
|
2000m |
|
Operating Humidity
|
0% ~ 95% RH |
|
Operating Temperature
|
0 ~ 40 °C |
|
Packet Buffer Size
|
192KBytes |
|
Power Input
|
AC：100 ~ 240 V |
|
Power Saving By Cable Length
|
Yes |
|
Power Saving By Link Status
|
YES |
|
Standby Power Consumption
|
0.7 W |
|
Storage Humidity
|
0% ~ 95% RH |
|
Storage Temperature
|
- 10 ~ 70 °C |
|
Store & Forwarding Forwading
|
Yes |
|
Surge/Lightning Protection
|
AC Power Inet: 1kV All Ethernet Ports: 1kV |
|
Switch intelligence
|
Unmanaged |
|
Switching Capacity
|
16 Gbps |
|
Weight
|
0.13 kgs |
