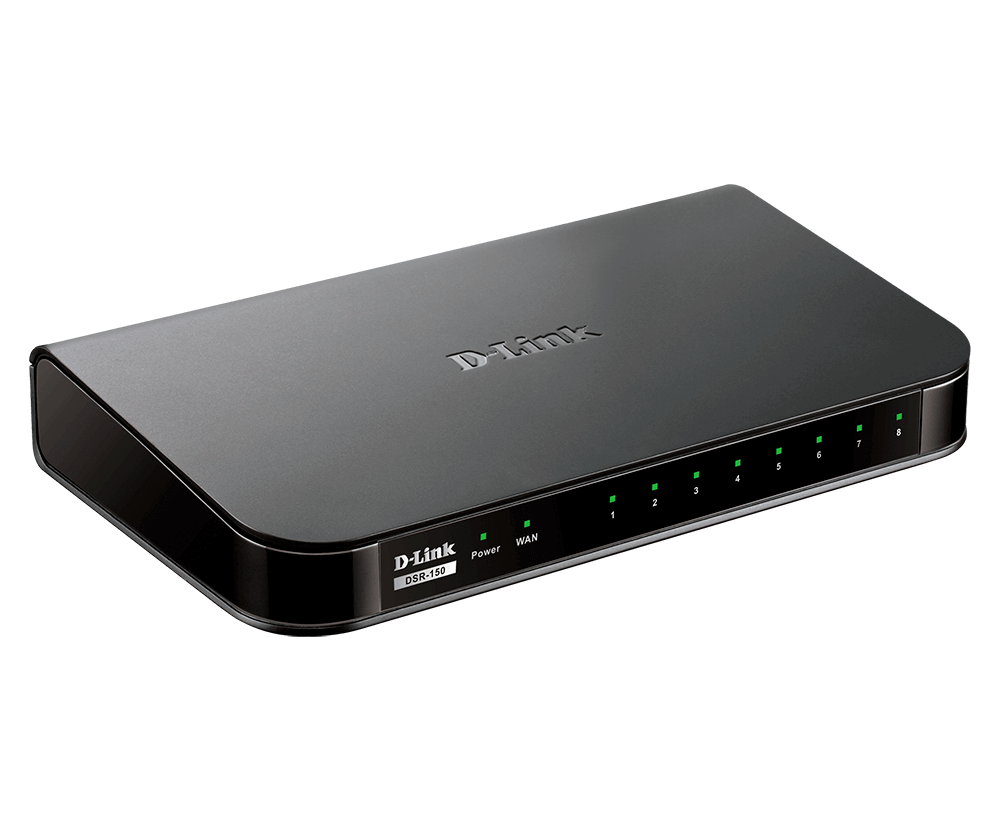

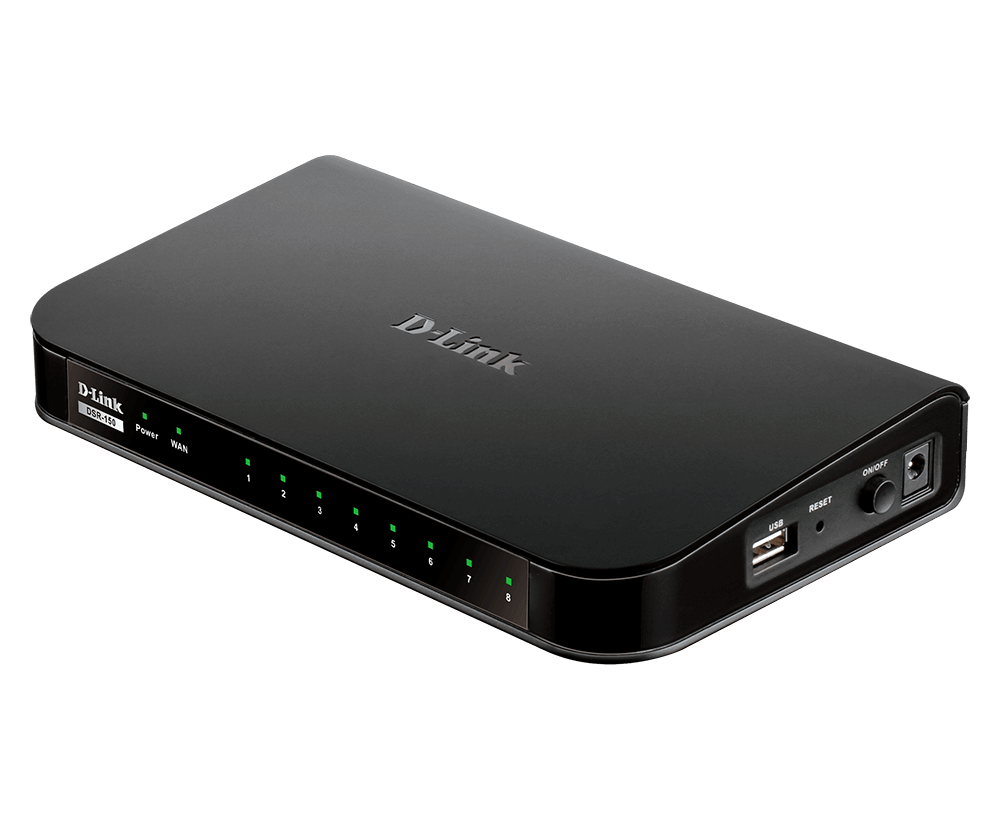

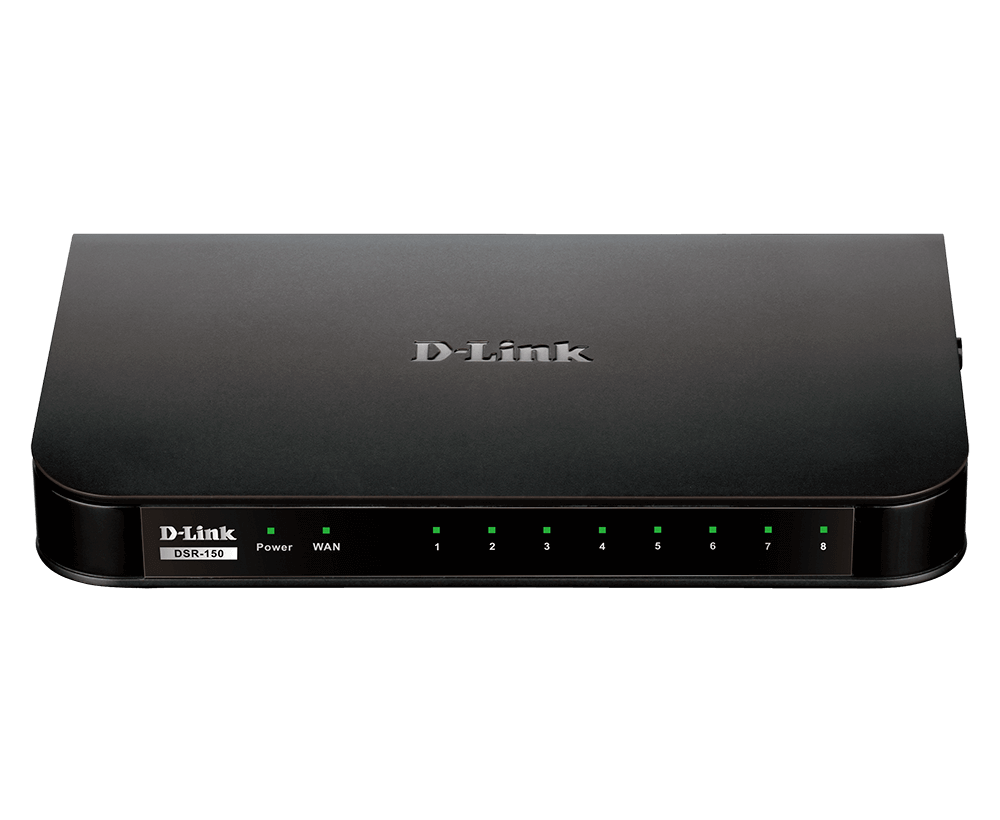

8-Port Fast Ethernet VPN Router
DSR-150
- Product Status (Revision Series_v1500): Live
The DSR-150 VPN Router has 8 Fast Ethernet 10/100 LAN ports, 1 Fast Ethernet WAN port, and supports up to 35 VPN tunnels. The DSR-150 also supports Dynamic Content Filtering – a powerful feature that enables the network administrator to allow or block access to web sites depending on the category they have been classified into by an automatic classification service.
Where to buy
Why You Want It
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network
A Secure Sockets Layer (SSL) VPN tunnel provides remote access to a central corporate network
Site-to-site VPN tunnels use IP Security (IPSec) Protocol
Point-to-Point Tunneling Protocol (PPTP)
Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links
WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.
Flexible Deployment Options
With 3G mobile Internet connectivity support via an optional 3G USB dongle, the DSR Series offers the ability to stay connected when wired Internet is not available or as a backup if the wired Internet connection fails.
Security
This affordable, high-performance router also enables businesses to secure their network whether in the office, at home or out on the road. You and your colleagues can stay connected to the office anywhere, anytime. Complete VPN features, as well as IPSec Hub and Spoke technology, ensures secure communication between mobile employees and offices.
Web Content Filtering
The DSR series web content filtering feature to help administrators monitor, manage and control employees’ Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword. Dynamic web content filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximize service availability.
Specification
| Product Range | Entry-level VPN Router |
|---|---|
| WAN Redundency | Dual WAN Failover |
| Ethernet Type | Fast Ethernet |
| Network Security | "IDP/DoS Protection Category-based Web Content Filtering Application Control/Management" |
| H/W Redundancy | N/A |
| Wired/Wireless | Wired |
| WAN Load Balancing | Outbound Load Balancing |
| Port Configurable | 1 port configurable (LAN/WAN) |
| Console Port | RJ-45 |
| USB Storage/Printer server | Yes |
| 3G Support | Yes |
| Transparent Mode | Yes |
| NAT, PAT | Yes |
| Static Route | Yes |
| H.323 NAT Traversal | Yes |
| Application Layer Gateway (ALG) | Yes |
| Time-Scheduled Policies | Yes |
| DHCP Server/Client | Yes |
| DHCP Relay | Yes |
| IEEE 802.1q VLAN | Yes |
| IGMP | Yes |
| IPv6 | Yes |
| One-to-One NAT | Yes |
| UPnP | Yes |
| PPTP/ L2TP/ IPsec Pass Through | Yes |
| SSL VPN | Yes |
| VLAN (port-based) | Yes |
| IPsec VPN Tunnel | 35 |
| X.509 v3 | Yes |
| XAUTH for IPSec Authentication | Yes |
| PPTP/L2TP Server | Yes |
| Hub and Spoke VPN | Yes |
| SSL VPN Tunnel | 1 |
| IPSec NAT Traversal | Yes |
| SSL Encryption Method | RC4-128 , RC4-56, 3DES |
| Encryption Method: (DES/3DES/AES/Twofish/Blowfish/CAST-128) | Yes |
| Built-in User Database | Yes |
| RADIUS Support | Yes |
| LDAP Support | Yes |
| Microsoft AD Support | Yes |
| Console Interface | RJ-45 |
| Web UI Interface | HTTP,HTTPS |
| Command Line/SSH | Yes |
| Upgrade and Config Backup/Restore | Yes |
| Trusted Host for Remote Management | Yes |
| Firewall Throughput | 95Mbps |
| VPN Throughput | 40Mbps |
| IPS Throughput | NA |
| AV Throughput | NA |
| New Sessions / Second | 200 |
| Firewall Policies | 200 |
| Concurrent Sessions | 20,000 |
| LAN Port | 8*FE |
| DMZ Port | Yes |
| WAN Port | 1*FE |
| Internal Log | Yes |
| External Log | Yes |
| Email Notification | Yes |
| Event log and alarm | Yes |
| SNMP | Yes |
| WAN Failover | 3G |
| Maximum Bandwidth | Yes |
| Guaranteed Bandwidth | Yes |
| Priority Bandwidth | Yes |
| Dynamic Web Content Filtering | Yes |
| DoS/DDoS Protection | Yes |
| Static URL Filter | Yes |
| VPNC AES | Yes |
| VPNC Basic | Yes |
| ICSA Firewall - Corporate | ICSA Firewall - SMB |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 70 °C |
| Operating humidity | 5% to 95% non-condensing |
| EMI | FCC Class B, CE Class B, C-Tick, IC |
| Safety | cUL, LVD (EN60950-1) |
| MTBF | 240,000 hours |
| Power Supply | External Power Supply Unit DC 12 V/1.5 A |
| Max. Power Consumption | 7.44 W |
| Dimensions | 208 x 118 x 35 mm (8.19 x 4.65 x 1.38 inches) |
