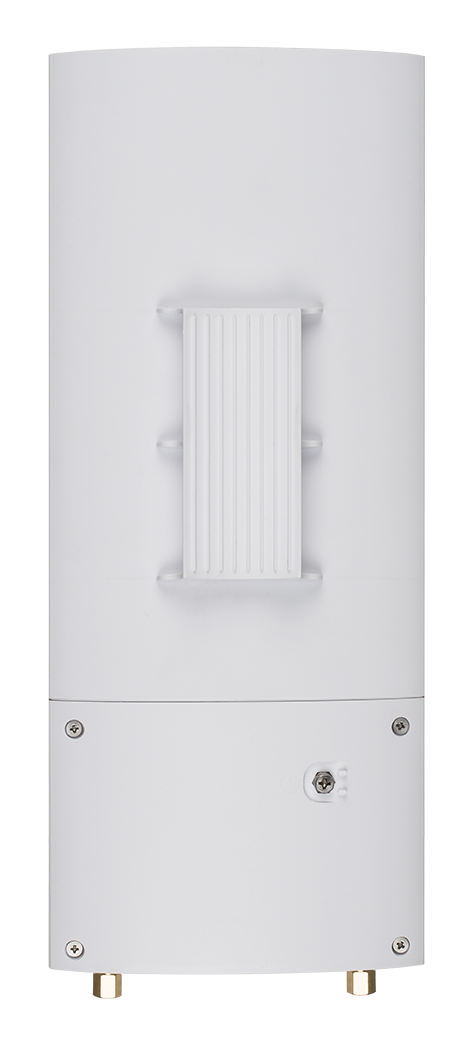

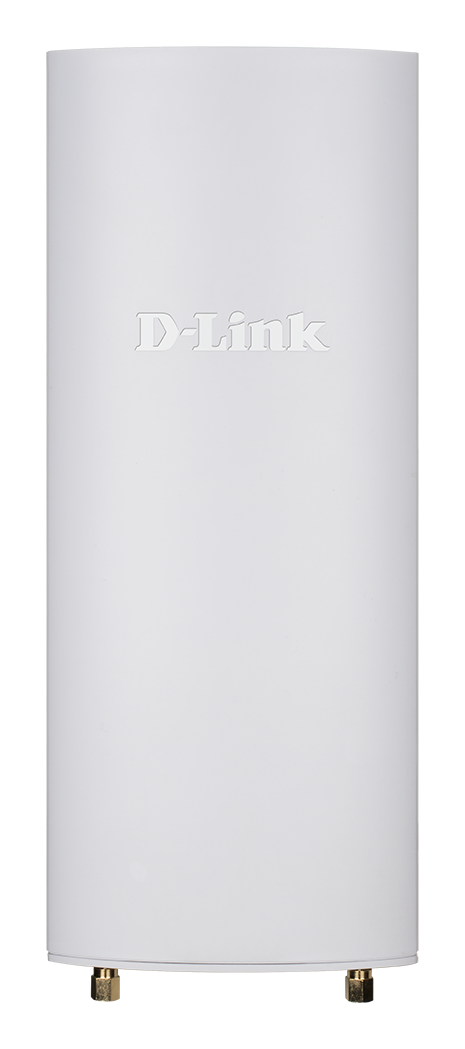

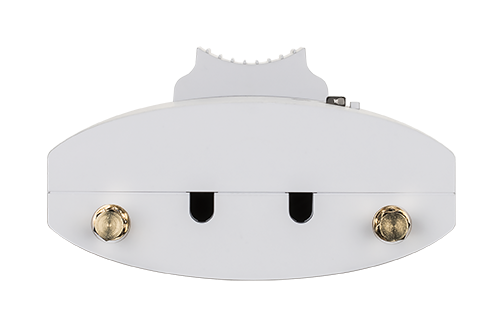

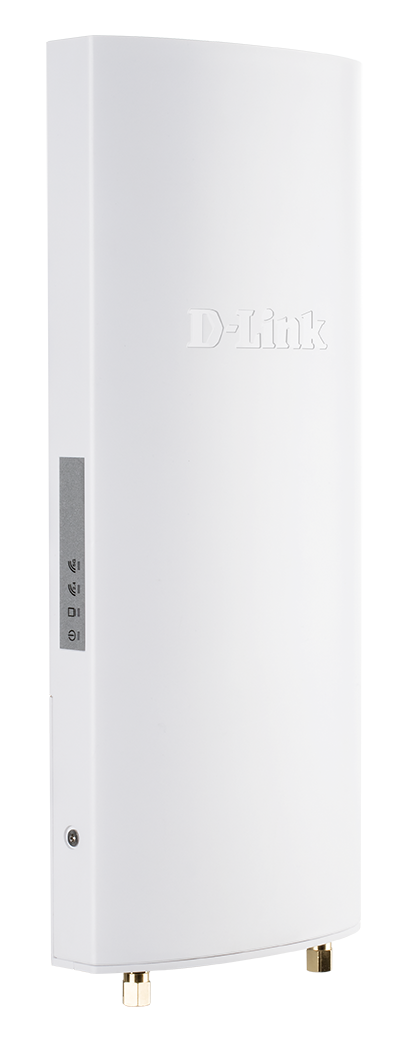

Nuclias Wireless AC1300 Wave 2 Outdoor Cloud‑Managed Access Point

DBA-3620P

  • Statut produit (Revision A1): Live
  • Nuclias cloud-based remote management (1-year license included)
  • Dual-band AC1300 Wave 2, 2x2 MU-MIMO
  • IP55 water, dust-proof, weather-resistant housing (-40 to 50°C)
  • Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability
  • Instant alerts, real-time statistics, WPA3 encryption, captive portal

Télécharger Fiche technique

Voir la liste de nos partenaires

Cloud-managed outdoor Wi-Fi.

Manage your outdoor wireless network from anywhere with this Nuclias Cloud outdoor access point. Designed to give you Wi-Fi connectivity in outdoor spaces, it’s ideal for education, retail and hospitality and a great option for managed service providers. Deliver high-combined data rates of up to 1,300 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.

Network management has never been this easy.

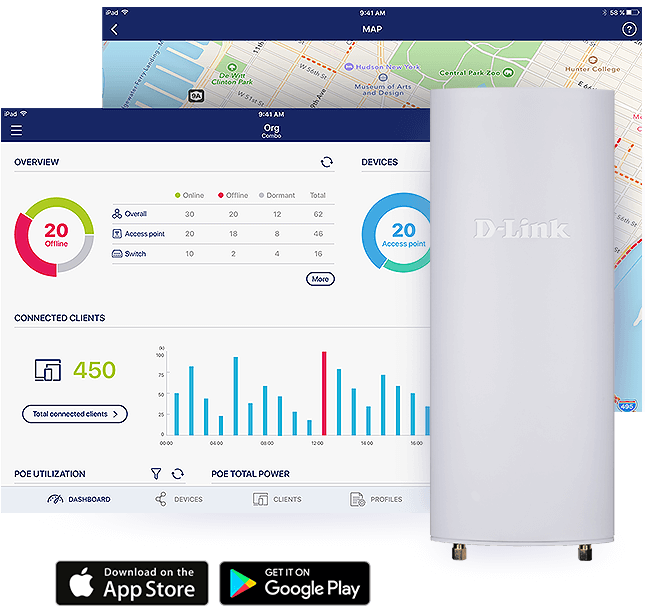

Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.

Learn more about Nuclias Cloud
Nuclias cloud-based network management

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1

Outdoor design

IP55-rated weatherproof design with a wide -40 to 50°C operating temperature range.

WPA3 Security

Keep your wireless network secure with the latest Wi-Fi encryption technology.

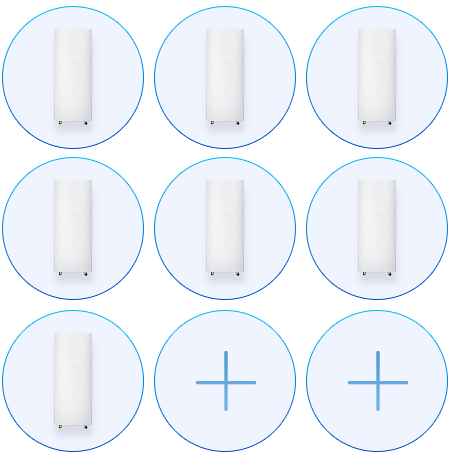

Unlimited scalability

Easy to add or scale back in line with demand.

Zero-Touch Provisioning

Plug and play, cloud-based auto-configuration.

License included

1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.

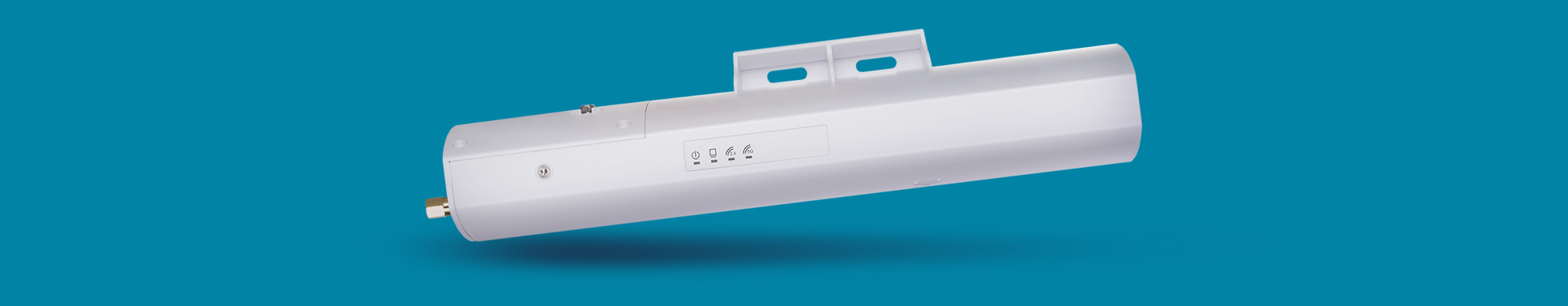

Easy-mount setup with PoE

Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.

Exceptional connectivity, exceptional performance

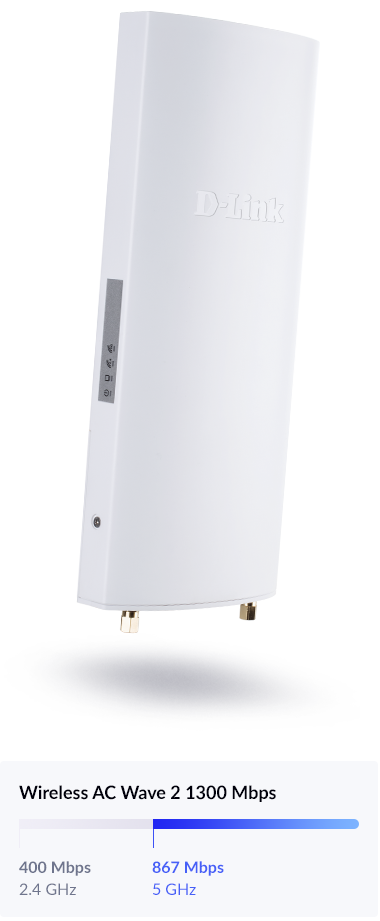

The DBA-3620P delivers reliable, high-speed AC1300 Wave 2 Wi-Fi with maximum combined wireless speeds of up to 1.3 Gbps2. Band steering, MU-MIMO, beamforming and load balancing support further enhance the overall connectivity performance.

A more effective and efficient network.

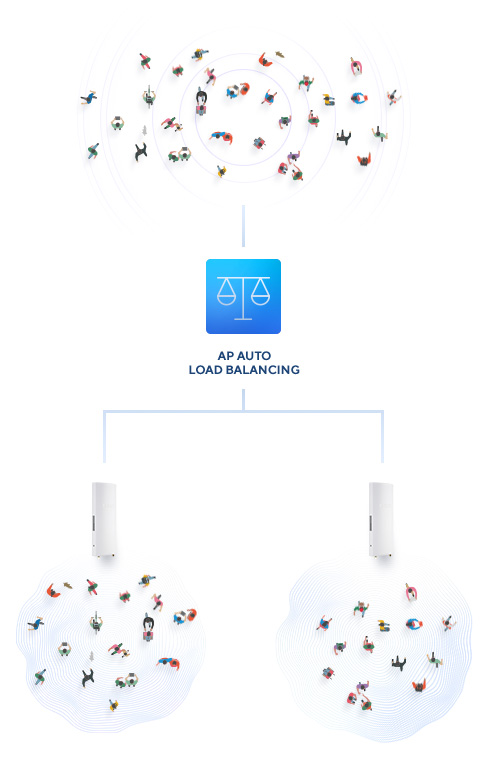

When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time.

Reliable connectivity, whatever the weather.

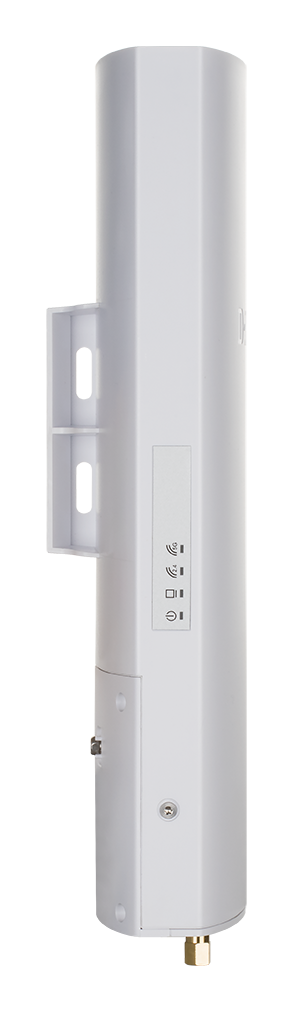

Its IP55-rated weather-proof housing offers dust, rain, heat, snow and rust protection, even during extreme summers or freezing winters between -40 to 50°C.

Dust

Weather
Dust Resistant
Protected against everyday dust.
Water Resistant
Protected against rain and lower pressure water jets from any direction

Network management, refreshed.

Automate, monitor, manage and scale your network without the complexity or cost.

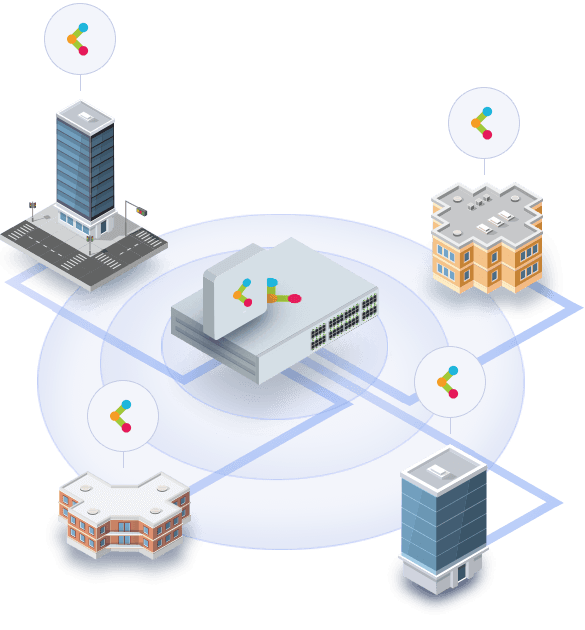

Get your networks up and running from anywhere easily and quickly.

The DBA-3620P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.

Learn more

Complete control over your network.

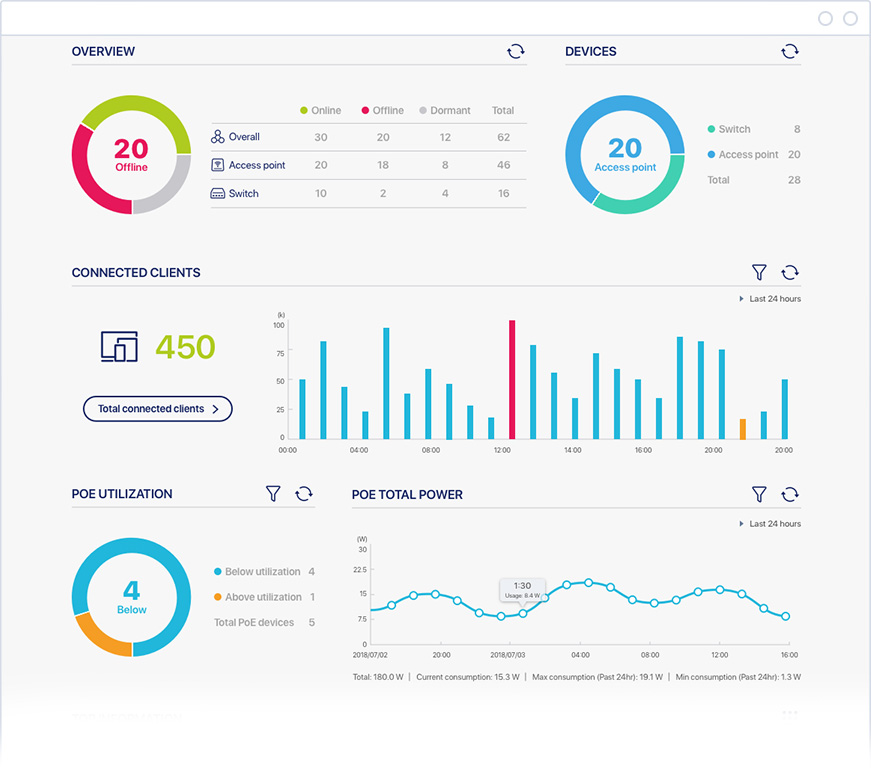

With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.

  • Intuitive app
  • Real-time network information
  • Manage multiple sites and devices
  • Over-the-air firmware updates

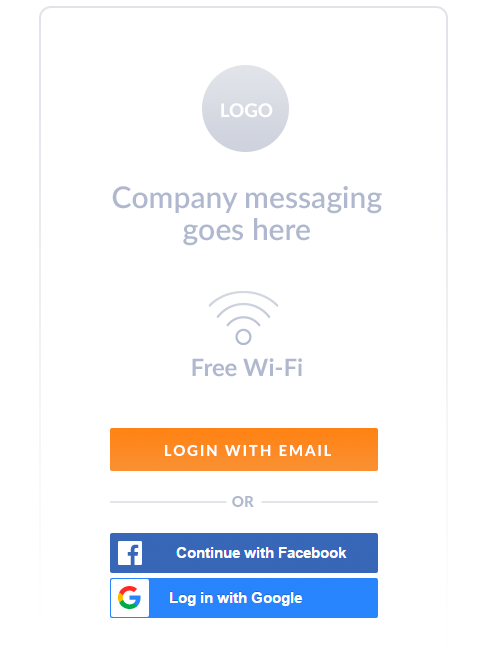

Your Guests Online in No Time with a Captive Portal

Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.

Scale your Wi‑Fi alongside your business.

Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.

Chaînes de magasins

Une interface entièrement personnalisable avec le logo de votre client pour assurer la visibilité de la marque.

Sociétés

Déployez un réseau efficace conçu pour l’avenir. Gérez facilement de multiples sites et accédez à des rapports détaillés.

Hôtellerie

Consultez l’utilisation en direct et recevez des rapports classés par dates, heures et lieux.

Écoles

Déployez des switches et des points d’accès rapidement et efficacement et gérez-les à distance à partir du Cloud.

Renouvellements économiques


Tous les produits Nuclias sont fournis avec une licence d’un an.
Contrairement aux autres solutions de cette catégorie, il n’y a aucune licence supplémentaire pour les fonctionnalités à acheter et les prix ne sont pas basés sur le nombre d’utilisateurs.

Nous sommes là pour vous aider.

Plus de 35 ans d’expérience dans la gestion de réseau.

Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.

Une assistance facilement accessible.

Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.

Garantie à vie limitée de D-Link

La qualité et la fiabilité des produits D-Link nous permettent de fournir une garantie à vie limitée leader du secteur avec chaque enregistrement.

Produits apparentés

Nuclias Wireless AC1300 Wave 2 Outdoor IP67 Cloud Managed Access Point
DBA-3621P
En savoir plus
Nuclias Cloud-Managed Switches
DBS-2000-10, DBS-2000-10MP, DBS-2000-28, DBS-2000-28P, DBS-2000-28MP, DBS-2000-52, DBS-2000-52MP
En savoir plus
Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
DBA-X2830P
En savoir plus
AX1800 Wi-Fi 6 Cloud-Managed Access Point
DBA-X1230P
En savoir plus
Type
Cloud-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3.5 dBi for 2.4 GHz
5 dBi for 5 GHz
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Outdoor
Type of housing
Plastic
IP rating
IP55
Wireless modes
Access Point (AP)
Advanced features
802.11k/r Roaming
MU-MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
IPv6
Supported
Management platform
Nuclias Cloud Networking Solution

1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
