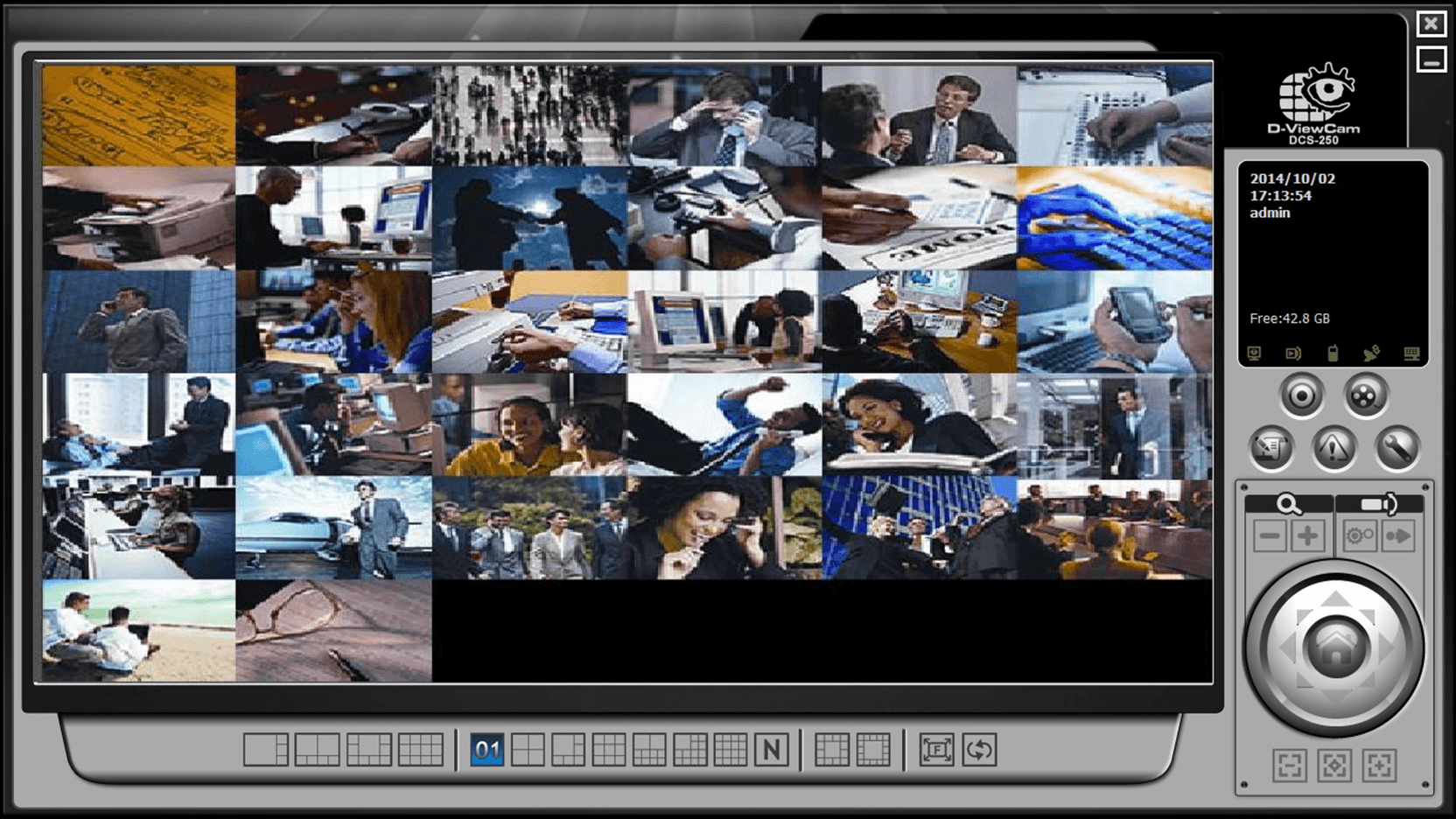

Live Monitoring & Centralised Management

The DCS-250 is a comprehensive surveillance system designed to centrally manage up to 64 network cameras, while displaying real-time status information. Map mode allows you to create maps based on camera location and orientation, and the Device Tree lists all the cameras connected to the interface for easy viewing. Additional features such as patrol, rotate, zoom, and focus provide users with optimal control over their video surveillance.

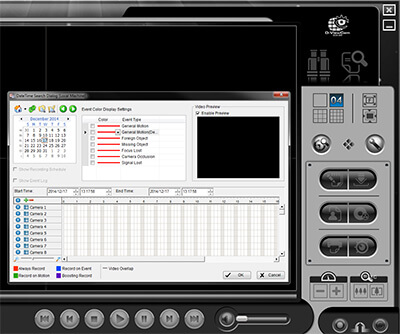

Video Recording & Playback

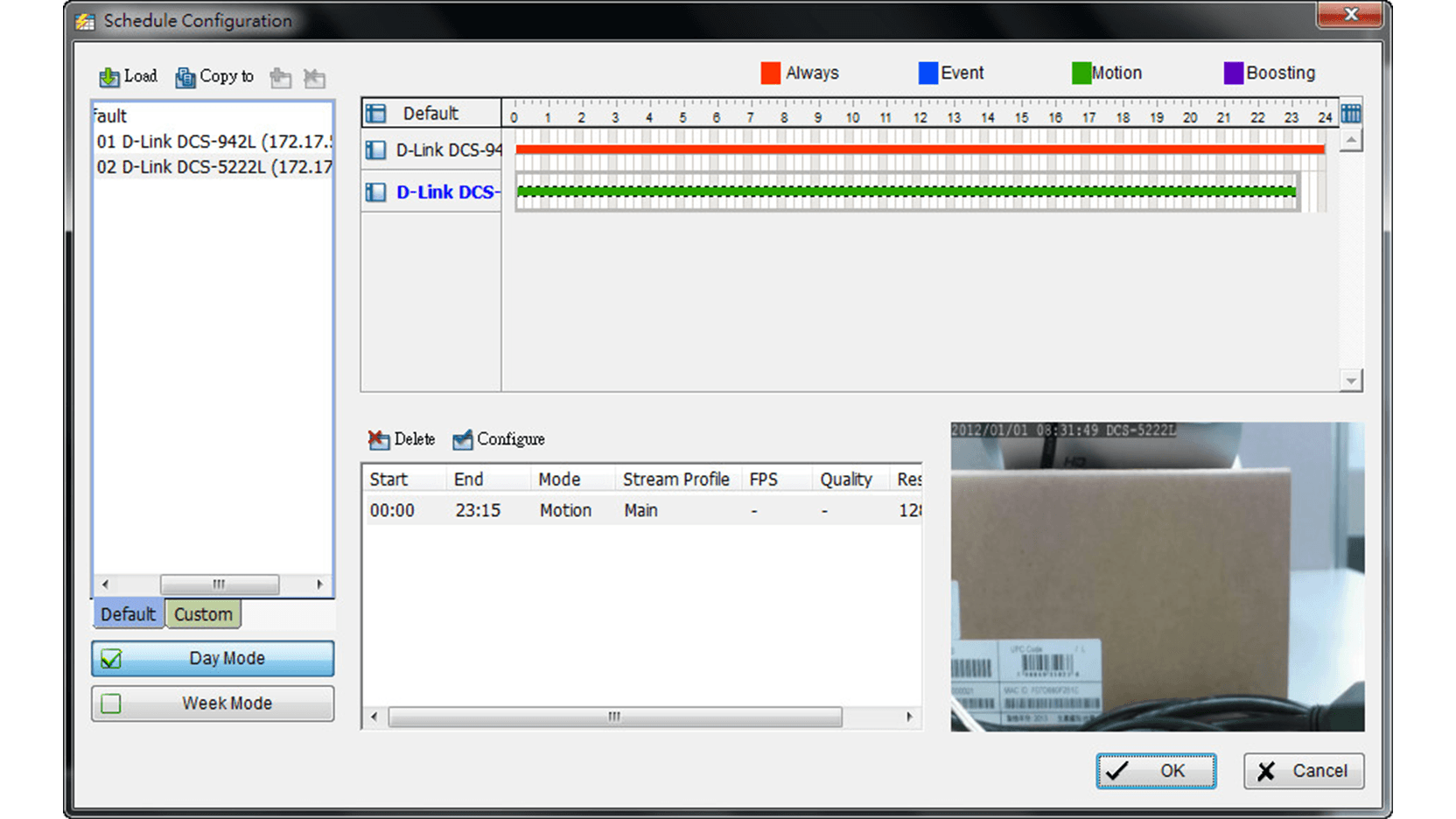

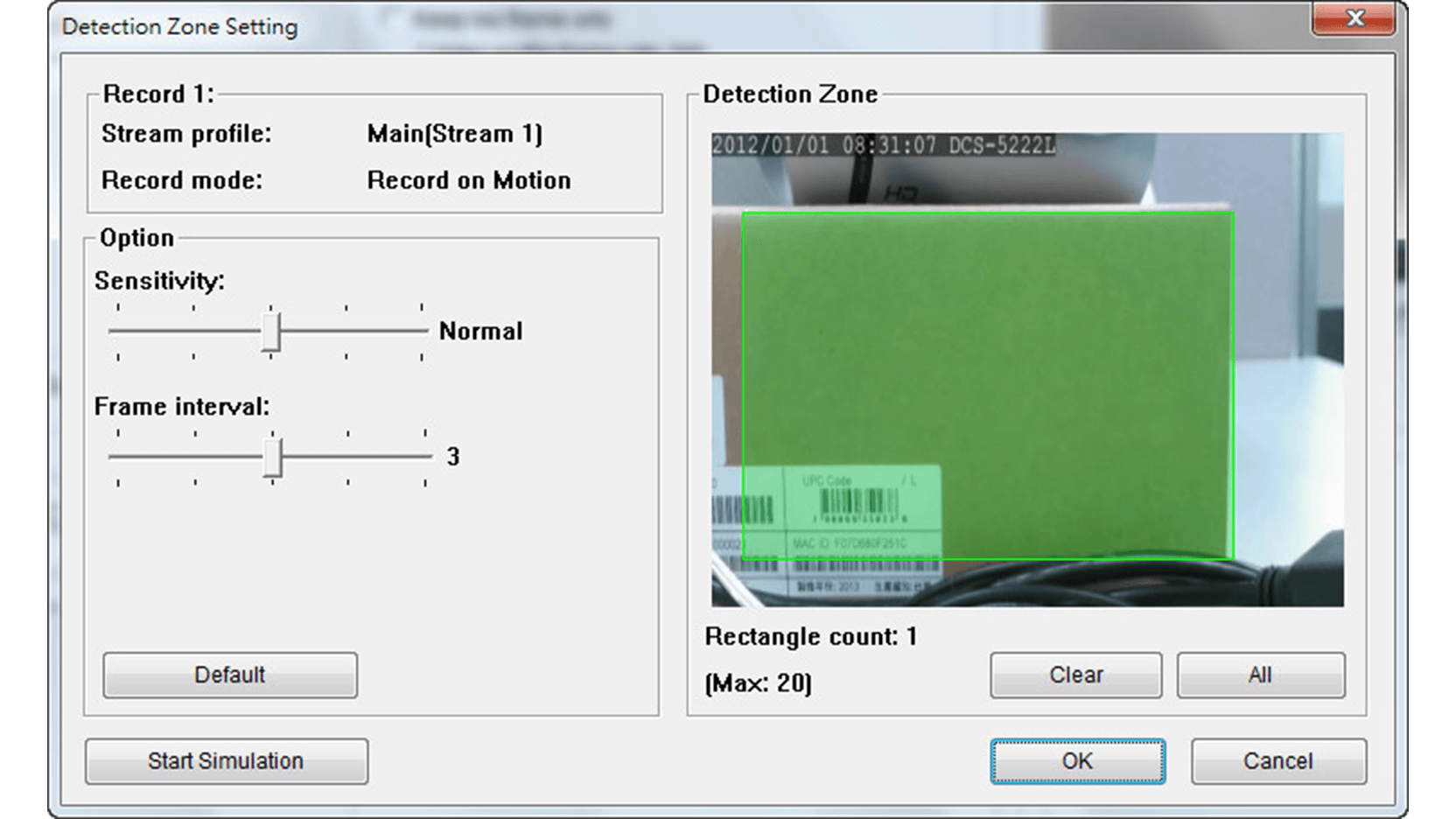

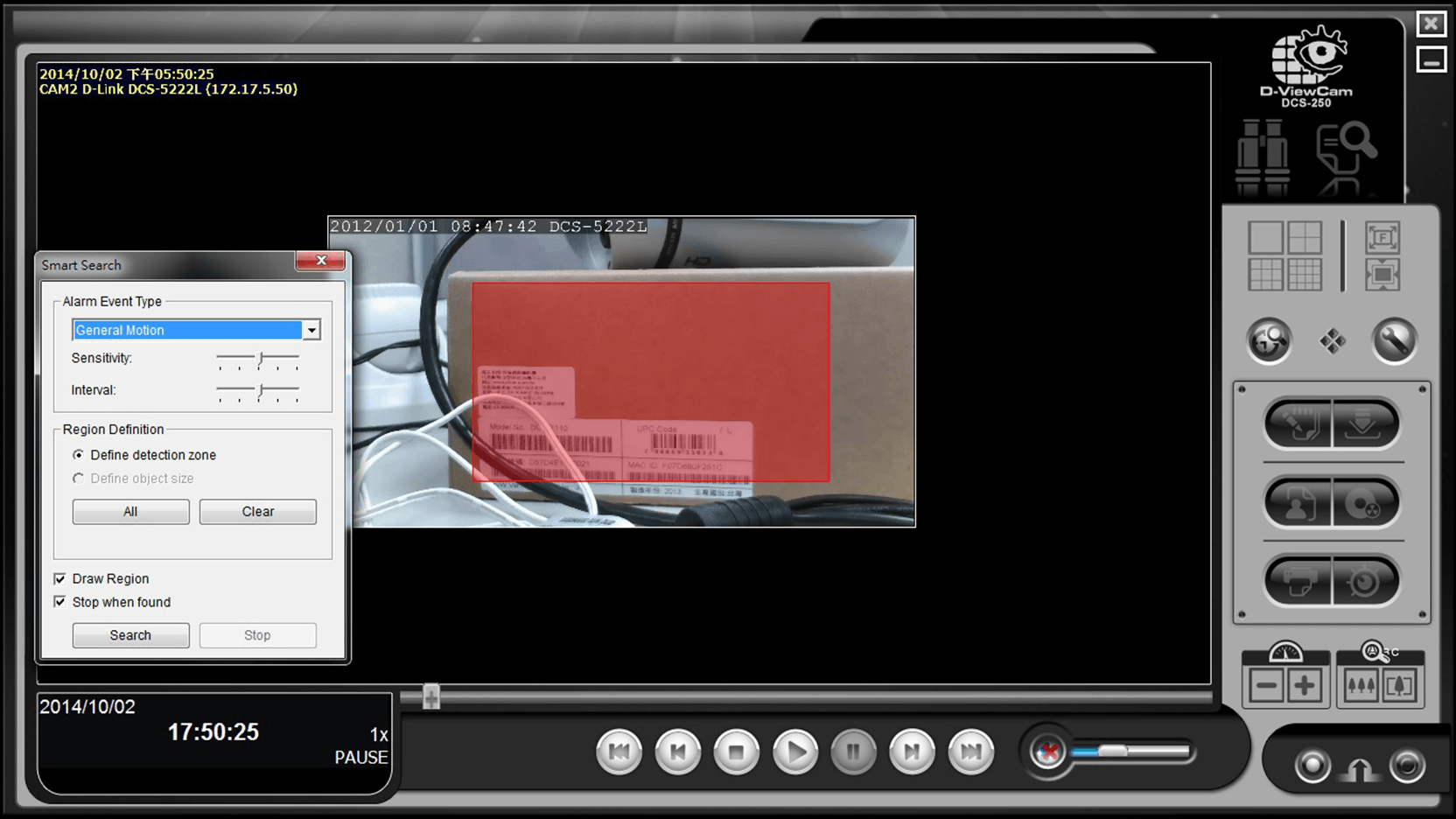

The D-ViewCam Plus offers scheduled, motion and manual recording options to meet specific user demands. Recorded files can be searched according to video type or selected within the user interface for playback, editing, or AVI /ASF file conversion.

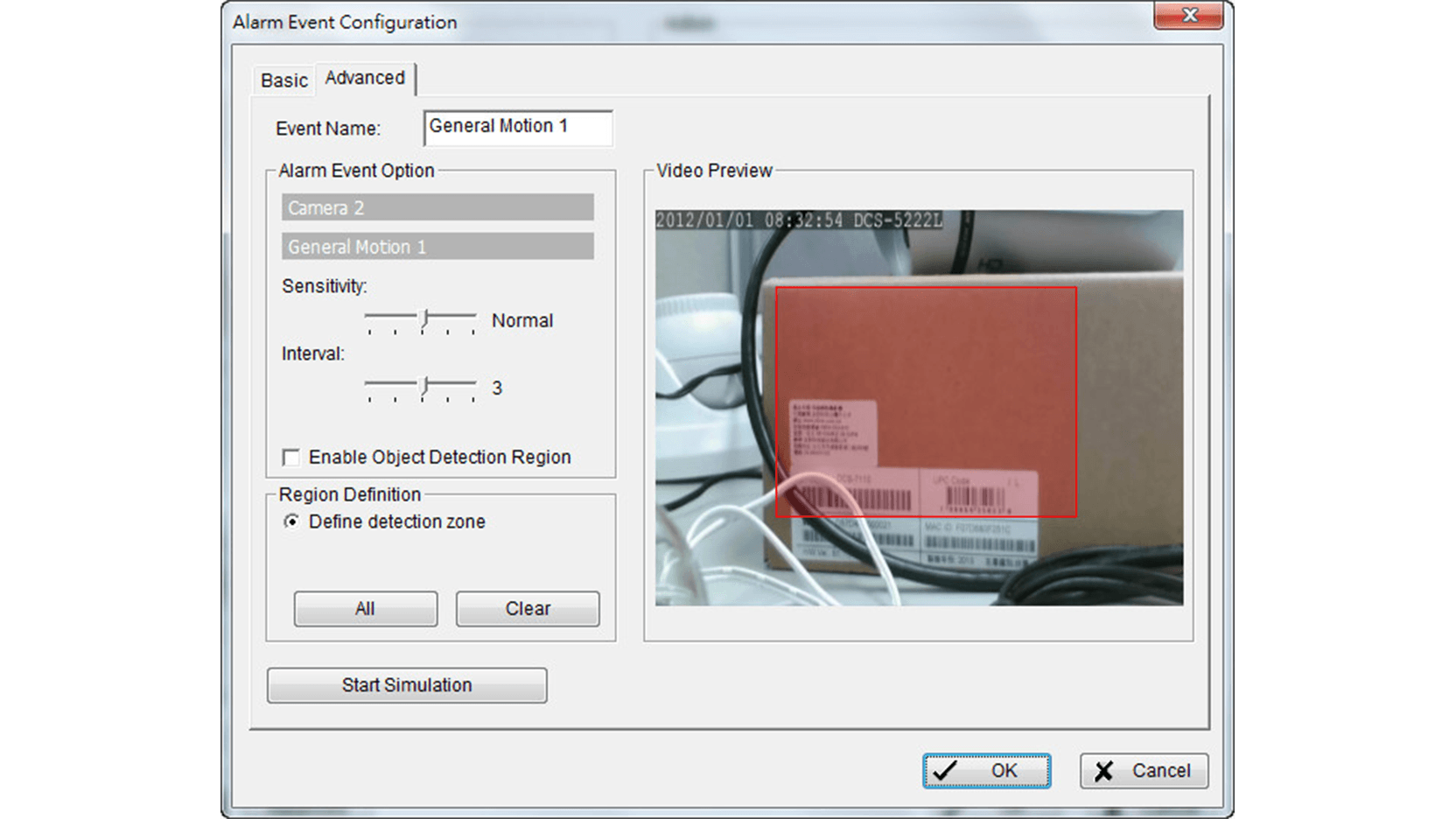

Event Action Configuration

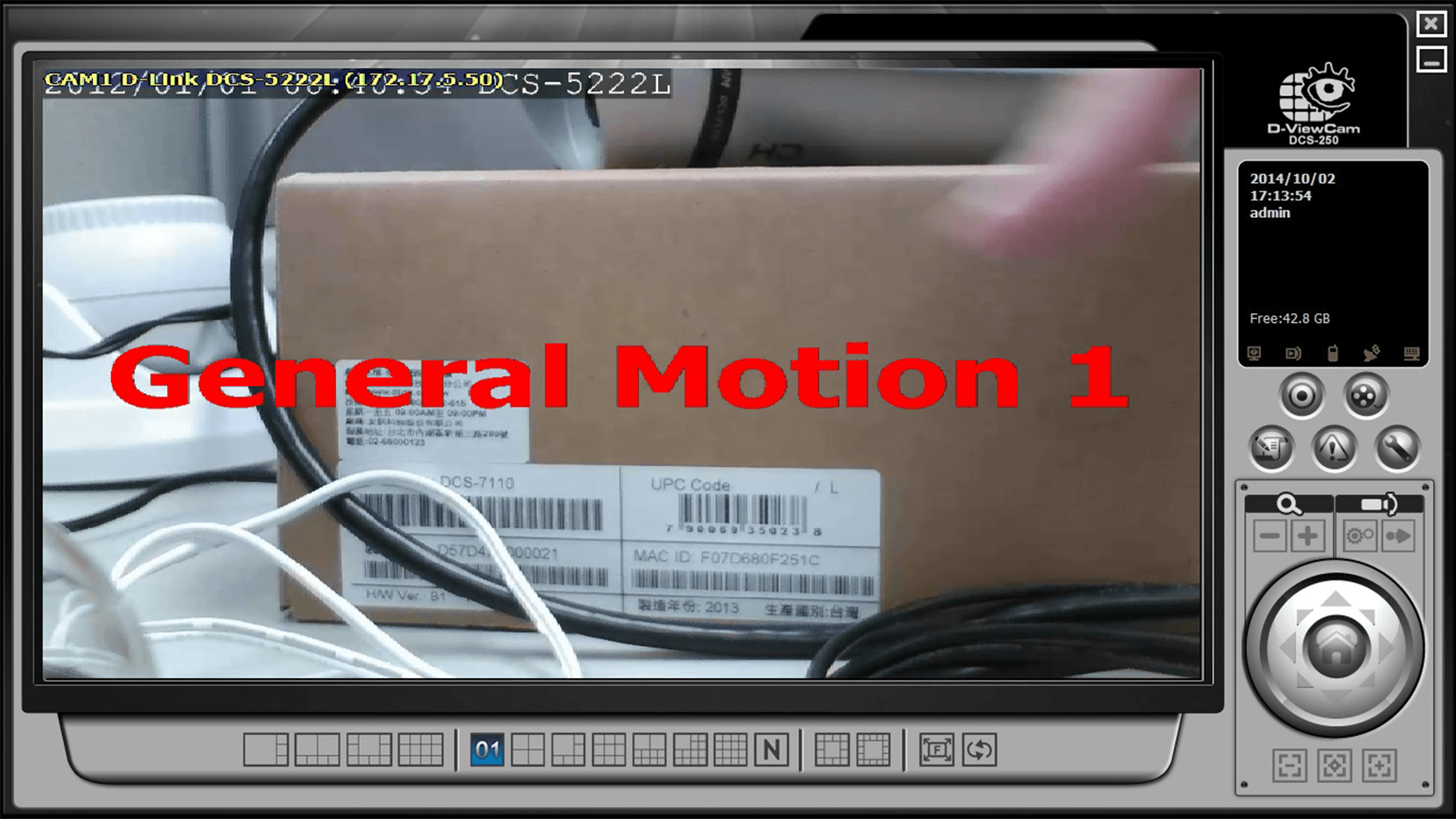

Event Action provides enhanced surveillance and security by detecting events from smoke detectors, magnetic door sensors, emergency buttons, cameras, card readers, or other I/O devices. Connect any of these devices to the I/O connector of a compatible D-Link network camera so that, when an event triggers a device, a notification is immediately sent to the D-ViewCam Plus software. The D-ViewCam Plus then notifies you either by e-mail or an audio alert.

Video & System Database Backup

The D-ViewCam Plus playback function allows users to load and play a recorded file on a Windows PC. It allows users to monitor a live feed on one computer while watching a recorded file on another. D-ViewCam Plus also provides a utility (DBTool) to reconstruct, repair or relocate the databases (such as event log, system log, video recording) in a local drive or external drive. It also supports the import/export of configuration files, enabling users to synchronise surveillance settings across devices.

Intelligent Video Analytics

Powerful optional Intelligent Video Surveillance (IVS) packages are available for the D-ViewCam Plus, including Presence/Tripwire and Counting IVS packages. The Presence/Tripwire Package (DCS-250-PRE-001-LIC) allows users to set up to 40 zones or lines which detects when an object is inside or is crossing a zone or a line, as well as camera-shake elimination; whilst the Counting Package (DCS-250-COU-001-LIC) allows objects such as people or vehicles to be counted. Both packages provide tamper detection to give users an extra piece of mind.

D-ViewCam Plus IVS Presence License (1 channel) (DCS-250-PRE-001-LIC)

This license enables video analytics functions to detect when an object is inside or is crossing a zone or a line.

• Effective video analytics
• Low cost and affordable
• 40 detection zones or lines

Precise detection algorithm

• Up to 95% accuracy
• No false alarms from falling leaves, rain, snow or camera noise

Save recording space

• Recording function triggers only on event, with high precision detection algorithm which translates to significant savings in storage space

Stabiliser:

• In environments where camera stability is an issue, this feature compensates for any movement to provide a clear view

Tamper Detection:

• Detects any event that significantly changes the field of view of the camera, such as focus loss of camera being covered up.

D-ViewCam Plus IVS Counting License (1 channel) (DCS-250-COU-001-LIC)

This license enables video analytics functions such as people and vehicle counting, camera stability and tamper detection for the D-ViewCam Plus for one camera. The engine can track, classify, and analyse the behaviour of individual or a group of objects over long distances to greatly improve parameter security and monitoring efficiency.

• Instant alarm notifications
• Intelligent event search with video
• Intuitive 3D grid calibration
• 40 detection zones and tracks up to 100 targets per camera
• Self-learning algorithm automatically adapts to environment changes

People Counting

• Includes a bi-directional line-crossing filter, suitable for counting people in busy doorways and entrances

Vehicle Counting

• Captures statistics on vehicle flow
• Provides an estimated speed of the vehicle

Tamper Detection:

• Detects any event that significantly changes the field of view of the camera, such as focus loss of camera being covered up.
