1000Base-BX-U SFP Fibre Transceiver
DEM-330R
- Statut produit (Revision Series_Datasheet_v3.01): End of Life

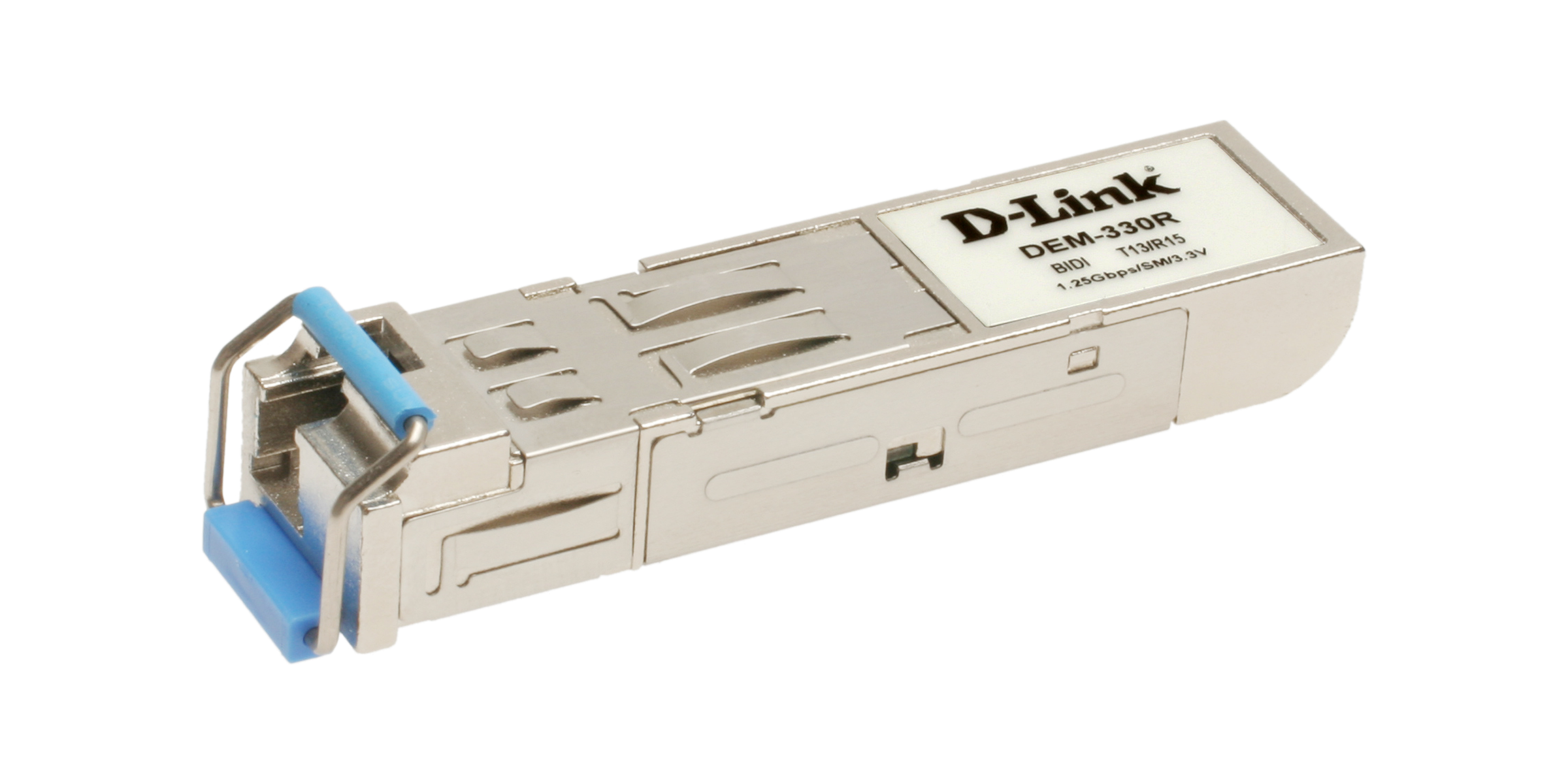

Actual product appearance may differ from the image displayed on this page
Specification
Standard
EEE802.3z 1000BASE-BX-U
Wavelength
Tx: 1310nm, Rx: 1550 nm
Connector
Simplex LC
Fiber Type
9/125um Single-mode Fiber
Maximum Fiber Cable Length
10 km
Transmit Power Range
-3 to -9 dBm
Receive Power Range
-1 to -21 dBm
Sensitivity
-21 dBm
Min. Power Budget
12 dB
Max. Power Budget
18 dB
Power Support
3.3 V
Supply Current
250 mA
MTBF
445,890
Dimensions
13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H)
Weight
19.8 grams
Emission (EMI) Certifications
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
Safety Certification
TUV, UL, FDA
RoHS
Compliant
EEE802.3z 1000BASE-BX-U
Wavelength
Tx: 1310nm, Rx: 1550 nm
Connector
Simplex LC
Fiber Type
9/125um Single-mode Fiber
Maximum Fiber Cable Length
10 km
Transmit Power Range
-3 to -9 dBm
Receive Power Range
-1 to -21 dBm
Sensitivity
-21 dBm
Min. Power Budget
12 dB
Max. Power Budget
18 dB
Power Support
3.3 V
Supply Current
250 mA
Heated Generated
1.78 kJ/hMTBF
445,890
Dimensions
13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H)
Weight
19.8 grams
Emission (EMI) Certifications
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
Safety Certification
TUV, UL, FDA
RoHS
Compliant
Support
Ce produits est en fin de vie depuis le : 10/06/2013
Dernière date de support technique 10/06/2015
| Version | Date | Type | Taille de fichier | |
|---|---|---|---|---|
| Datasheet | - | 0.70mb | Télécharger |
