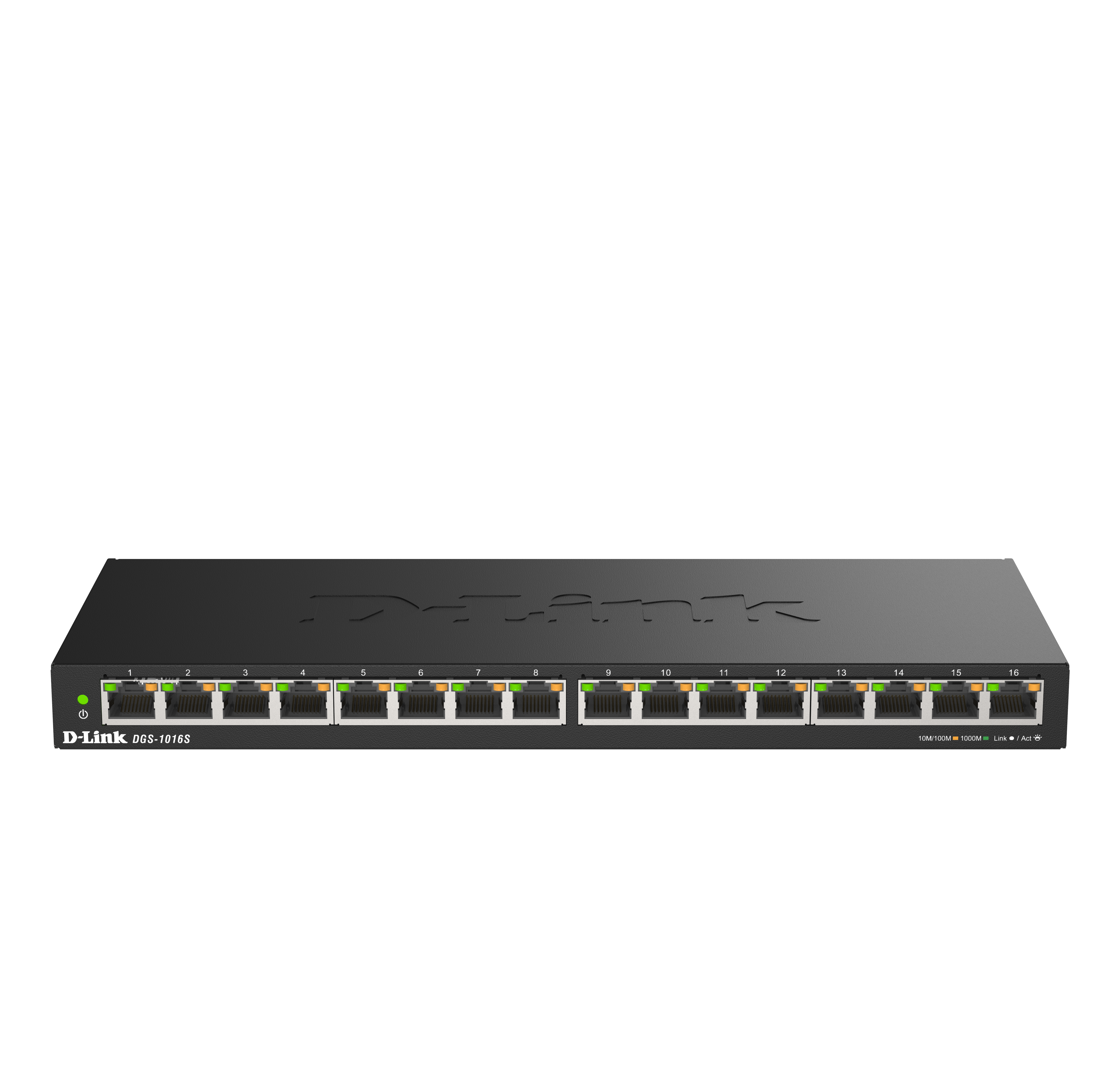

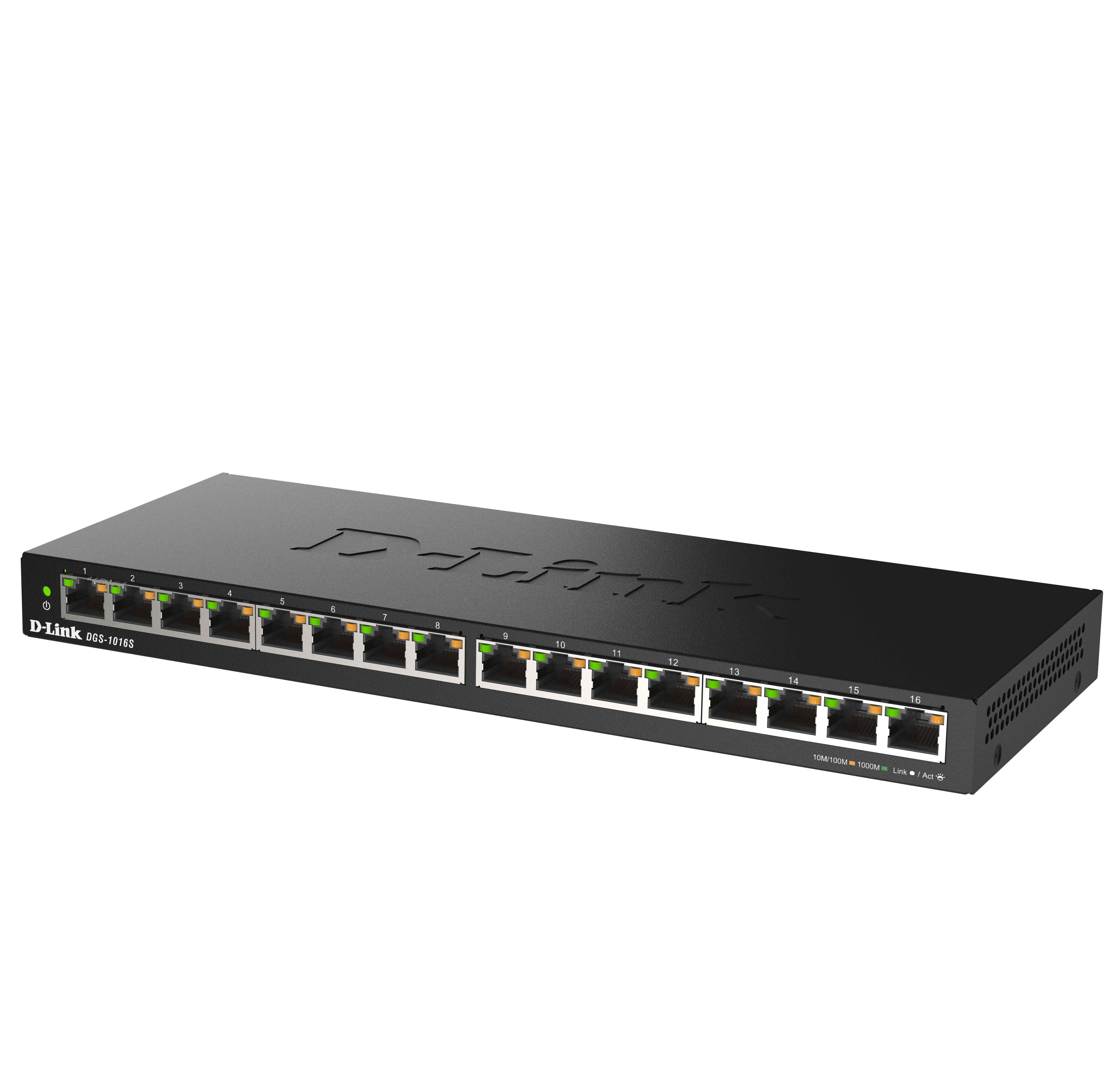

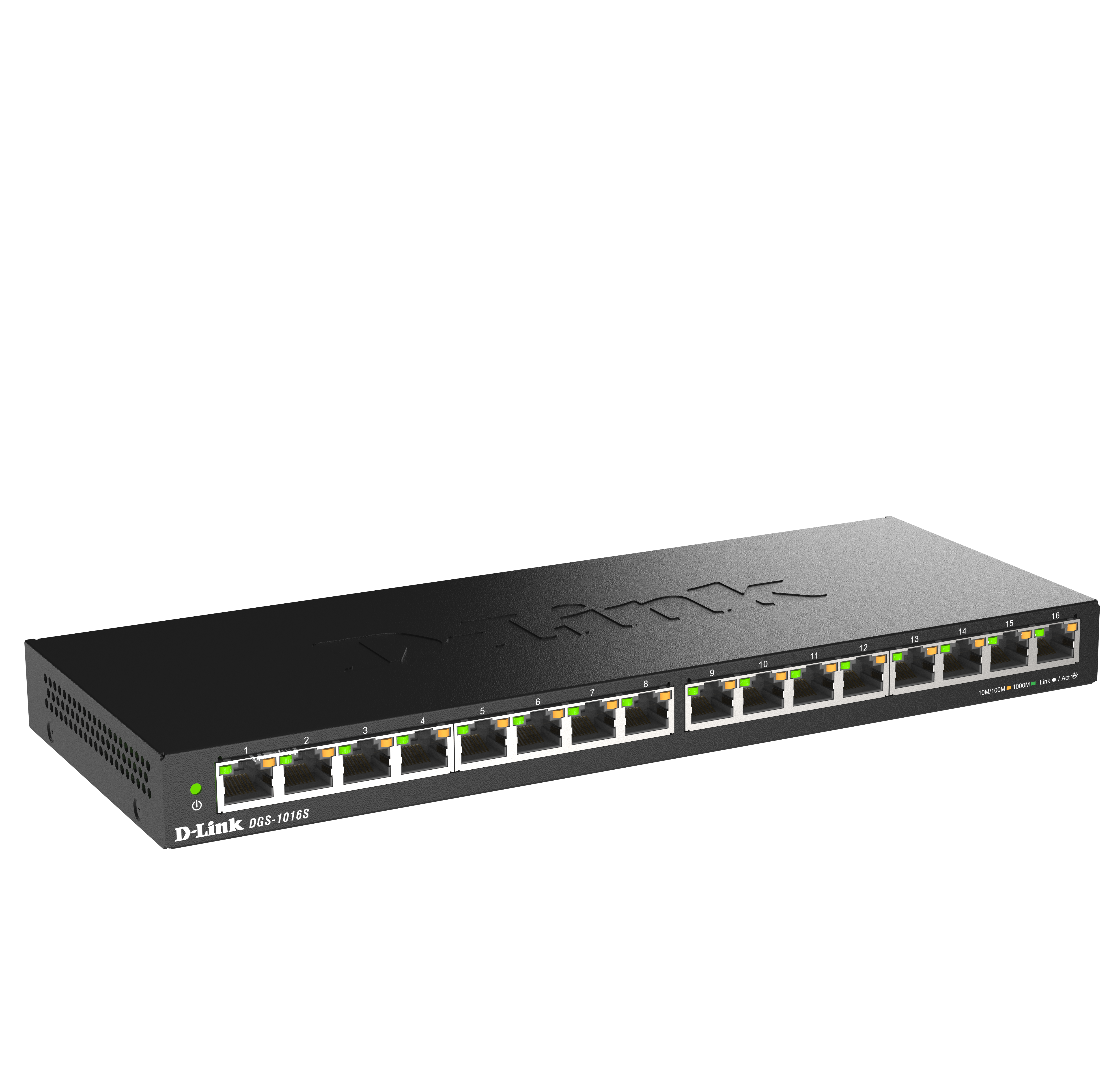

16-Port Desktop Gigabit Unmanaged Switch

DGS-1016S

  • Statut produit: Live
  • 16 Ports 1G Ethernet for downlink
  • Plug and Play simplicity for easy installation
  • Fanless design for silent operation
  • Durable metal housing
  • Auto MDI/MDI-X crossover on all ports
  • IEEE 802.3x flow control
  • Quality of Service (QoS)
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)



Voir la liste de nos partenaires

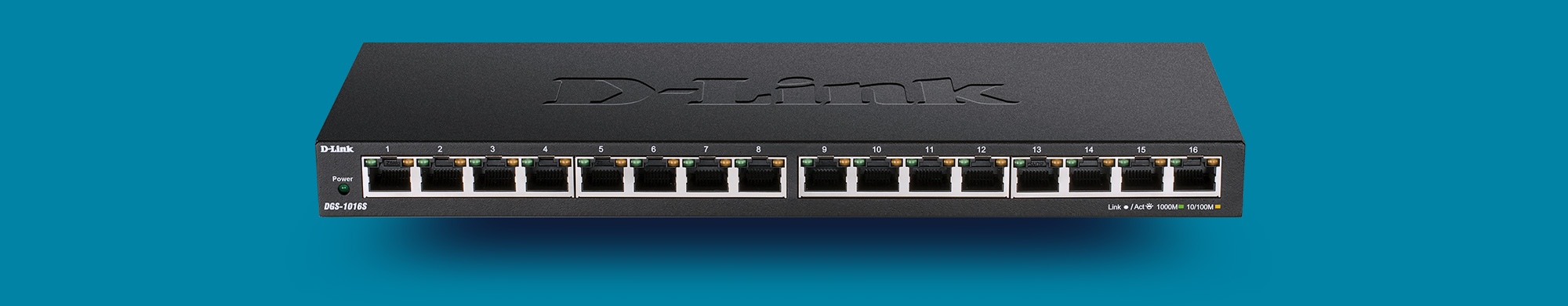

Slim and Compact

Allowing the switch to be placed on the desktop or mounted on the wall

High Speed

Connect to up to 16 devices for fast file transfers and smooth media streaming

Silent Operation

Fanless design boosts reliability, perfect for noise-sensitive environments

Energy Efficient

Integrated energy-saving technology to reduce power usage automatically

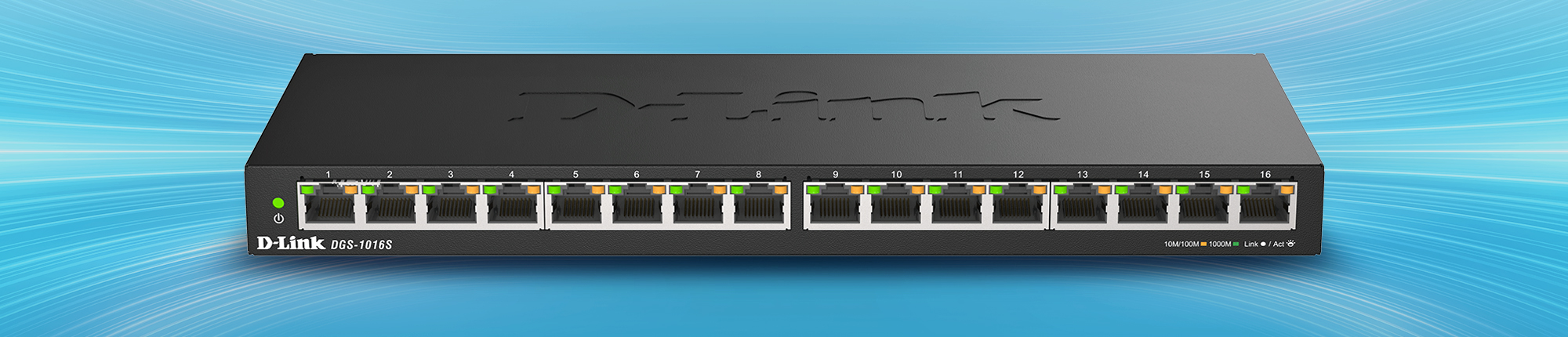

Connect More, Connect Faster

The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

All speed and no fuss

Gigabit connectivity with support for 802.1p Quality of Service means faster uploads and downloads without video streaming or voice calls being interrupted.

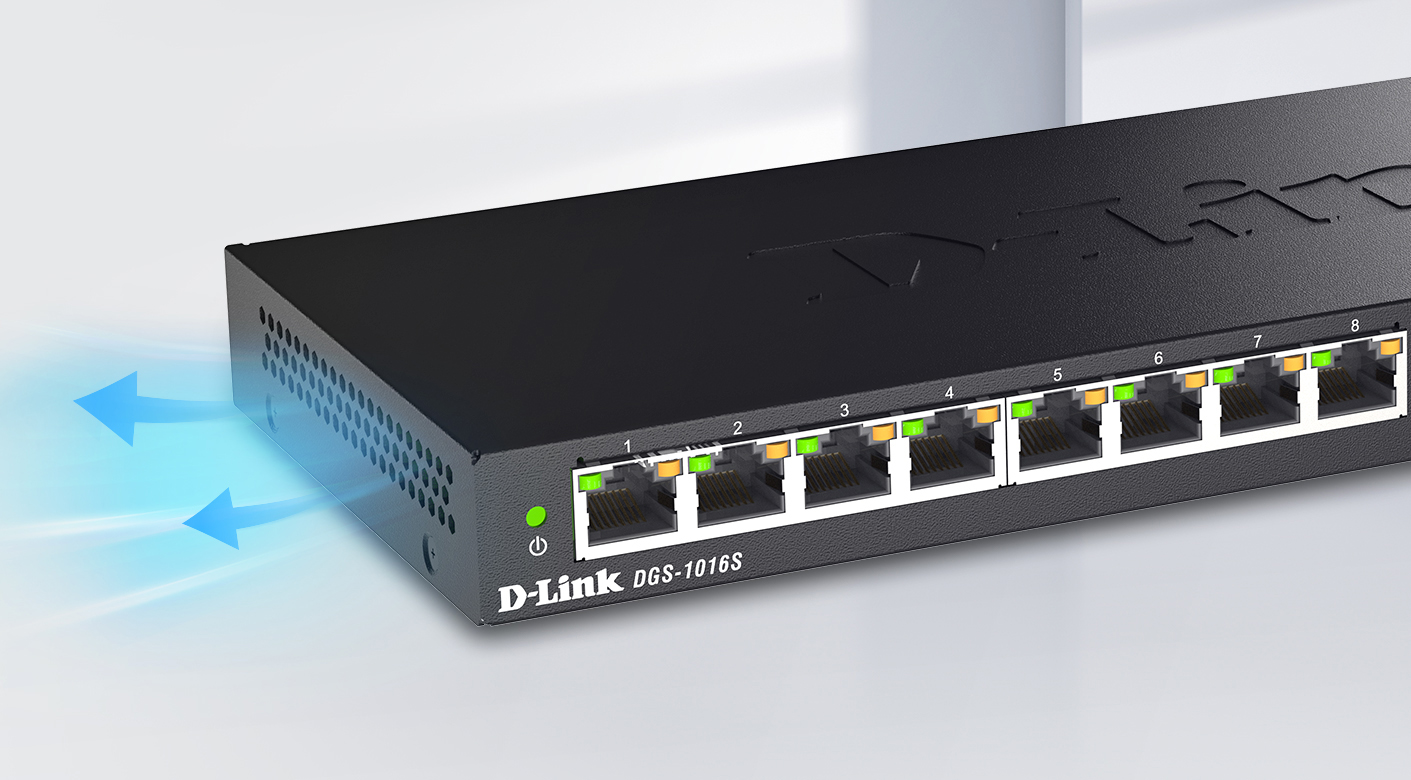

Silent and built to last

Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet

With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Nous sommes là pour vous aider.

Plus de 35 ans d’expérience dans la gestion de réseau.

Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.

Une assistance facilement accessible.

Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.

Garantie D-Link de 2 ans

Protégé par l’un des leaders mondiaux du secteur.

Produits apparentés

Switch 5 ports Gigabit - Métallique
DGS-105
En savoir plus
Switch 8 ports Gigabit - Métallique
DGS-108
En savoir plus

Specification

Packet Buffer RAM
512 KB per device
Power Consumption
Maximum: 9.645 W
Advanced Features
Auto-MDI/MDIX crossover for all ports
Auto-negotiation for each port
Back pressure at half-duplex operation
Full/half-duplex for Ethernet/Fast Ethernet speeds
Quality of Service (8 queues, strict mode)
Supports 9,216 byte jumbo frames
Wire-speed reception and transmission
Dimensions
280 x 110 x 25 mm
Interfaces
16 x 10/100/1000 Mbps LAN ports
MAC Address Table Size
8K entries
Maximum Forwarding Rate
23.808 Mpps
Media Interface Exchange
Auto-MDI/MDIX adjustment for all ports
MTBF
647,567.92 hours

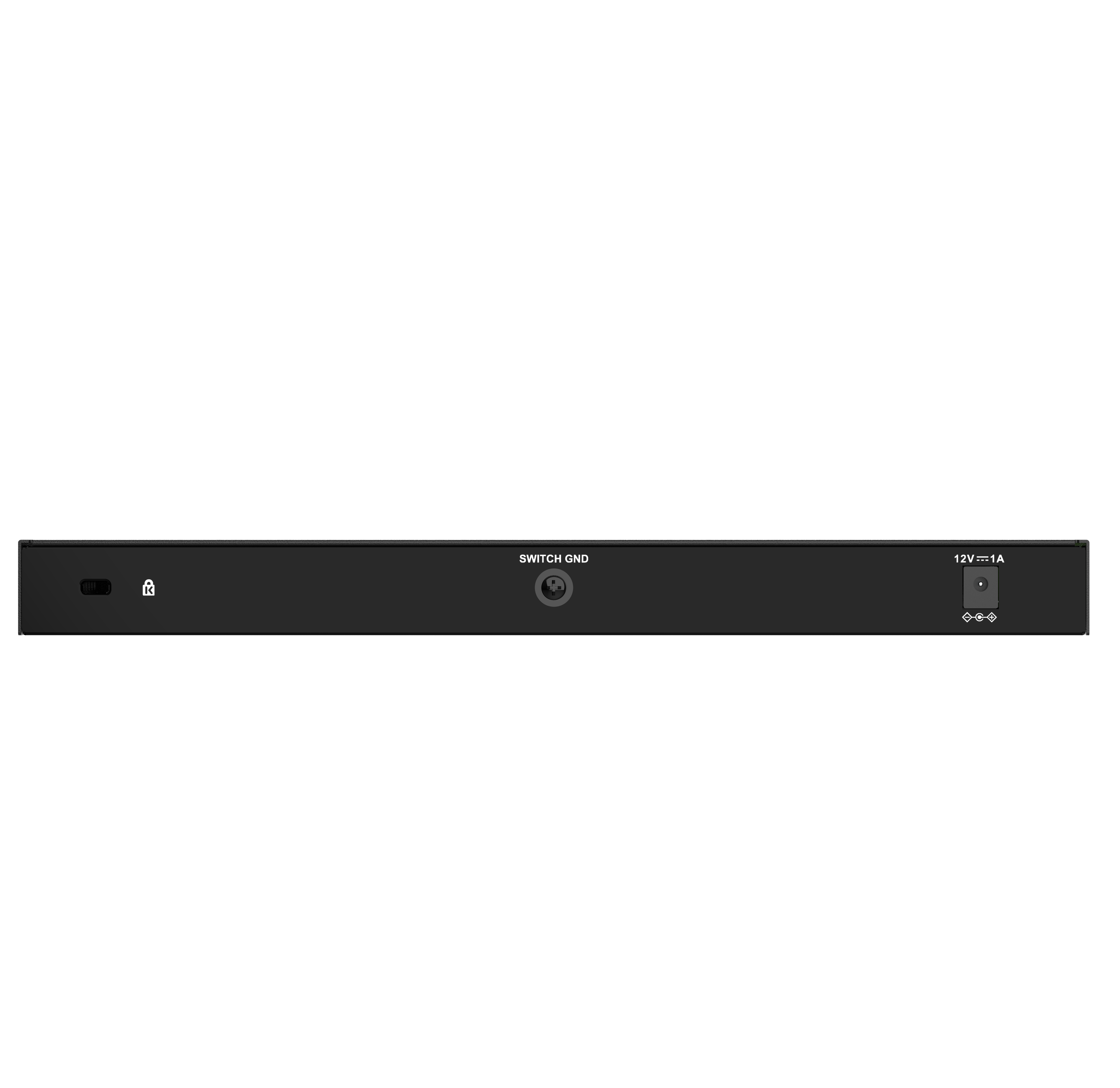

Power Input
12 V / 1 A
Switch Capacity
32 Gbps
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Transmission Method
Store-and-Forward
Weight
0.742 kg
