Gigabit Layer 3 Stackable Managed Switches
DGS-3130 Series
- Statut produit (Revision B): Live
- Unified software image with powerful L2 and L3 features
- 6x 10 Gigabit ports
- 6kV Surge Protection for Gigabit Ethernet ports
- Power over Ethernet (PoE) options, up to 740W with RPS
- D-Link Safeguard Engine
Voir la liste de nos partenaires
2 x 10GBASE-T, 4x SFP+ 10G ports
Connect to areas of your network at 10G speeds, and reach even further distances with fibre optic cabling.

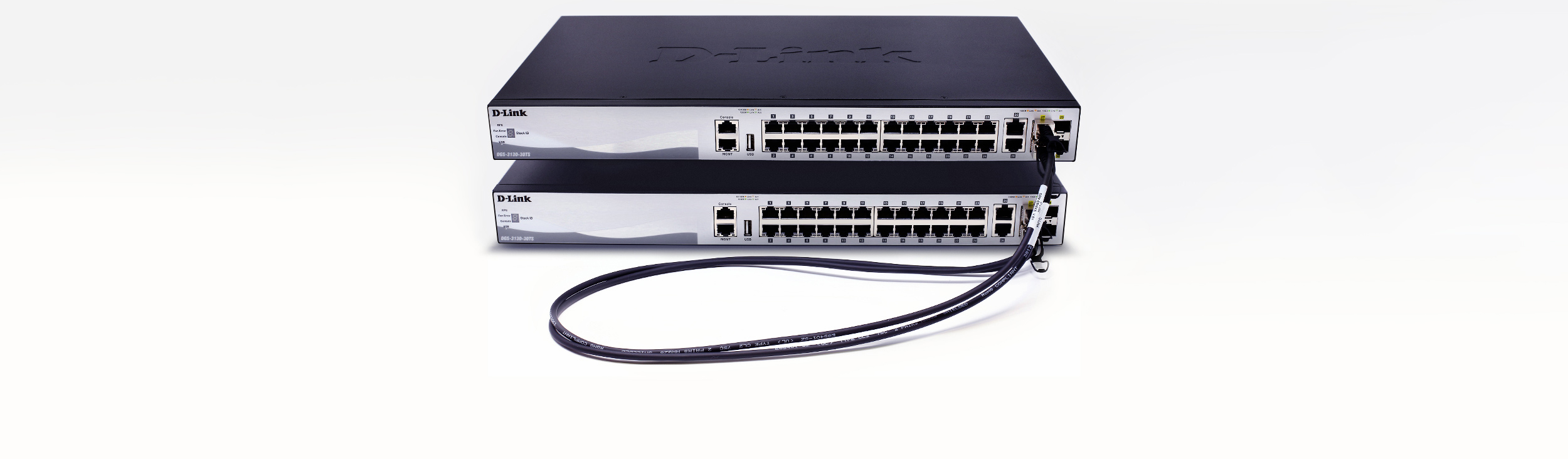

Physical Stacking
Up to 9 units per stack1, with a maximum of 324 ports, and up to 80GB of bandwidth.
Layer 2 Features
Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, IGMP/MLD Snooping.
Layer 3 Features
Including up to 128 IP Interfaces, IGMP Filtering, Neighbor Discovery Protocol (ND), ARP Proxy, VRRP.
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Industry Standard CLI
Supports a full industry standard Command-Line Interface for system management.
Dual Image
Risk-free configuration testing.
Greater port density. Powerful Layer 3 features.
Designed for small to medium-sized business networks, the unified software incorporates Layer 2 and Layer 3 features, with 10-Gigabit ports, greater port density thanks to physical stacking, all of which enables the DGS-3130 Series to be deployed in a variety of environments and topologies, including Metro Ethernet deployments.
World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options like a multilingual web-UI, and industry standard CLI support, with support for multiple images and multiple configurations.

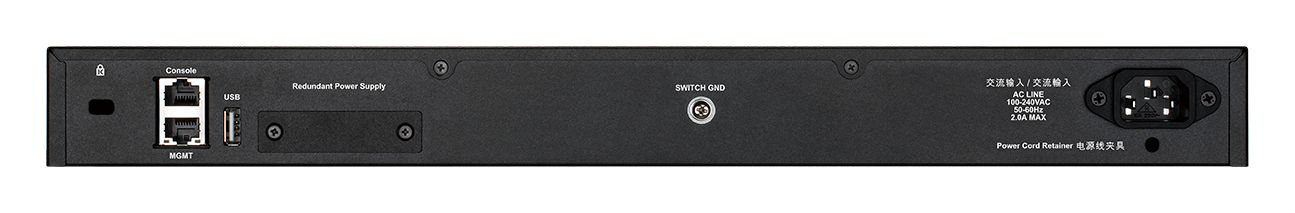

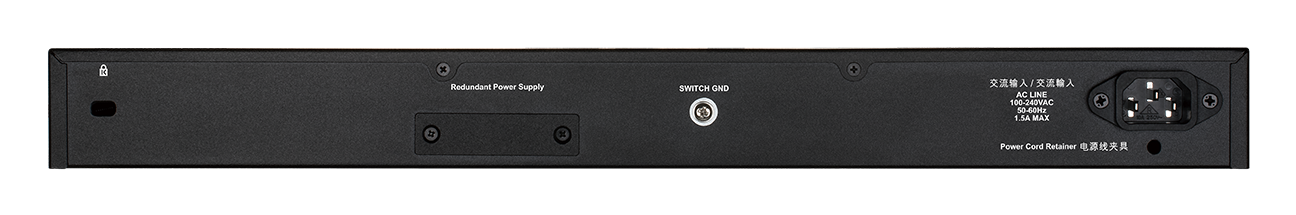

6x 10-Gigabit ports, physical stacking for more ports, and they have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime.
Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.
Versatile traffic management.
A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.
Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.
PoE+ with budgets up to 740W2

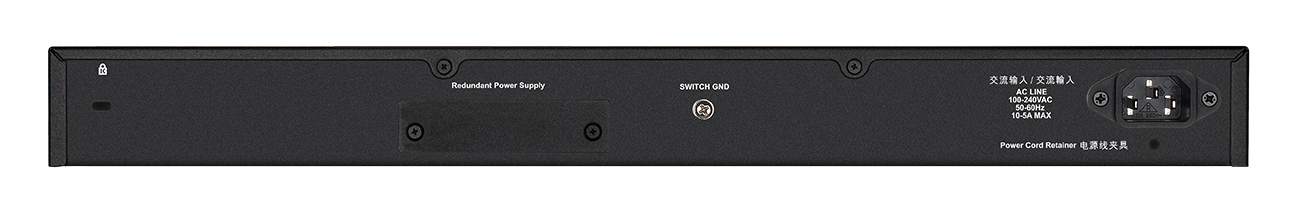

The 30PS and 54PS models have 370W PoE power budgets. Or utilise a total of 740W when adding a redundant power supply.
Service gratuit le jour ouvrable suivant
Profitez de notre service gratuit Next Business Day Service (Expédition le jour ouvré suivant), en standard, pour remplacer rapidement les équipements défectueux.
Notre assistance technique à réponse rapide est conçue pour que les entreprises obtiennent la meilleure assistance possible dans leur environnement unique. Notre garantie étenue et nos forfaits de services améliorés augmentent la durée des garanties et minimisent les temps d'arrêt. Vous pouvez même opter pour notre service le jour même (Same Business Day Service), qui garantit la livraison du produit de remplacement dans les 4 heures suivant la confirmation de la défaillance du produit.

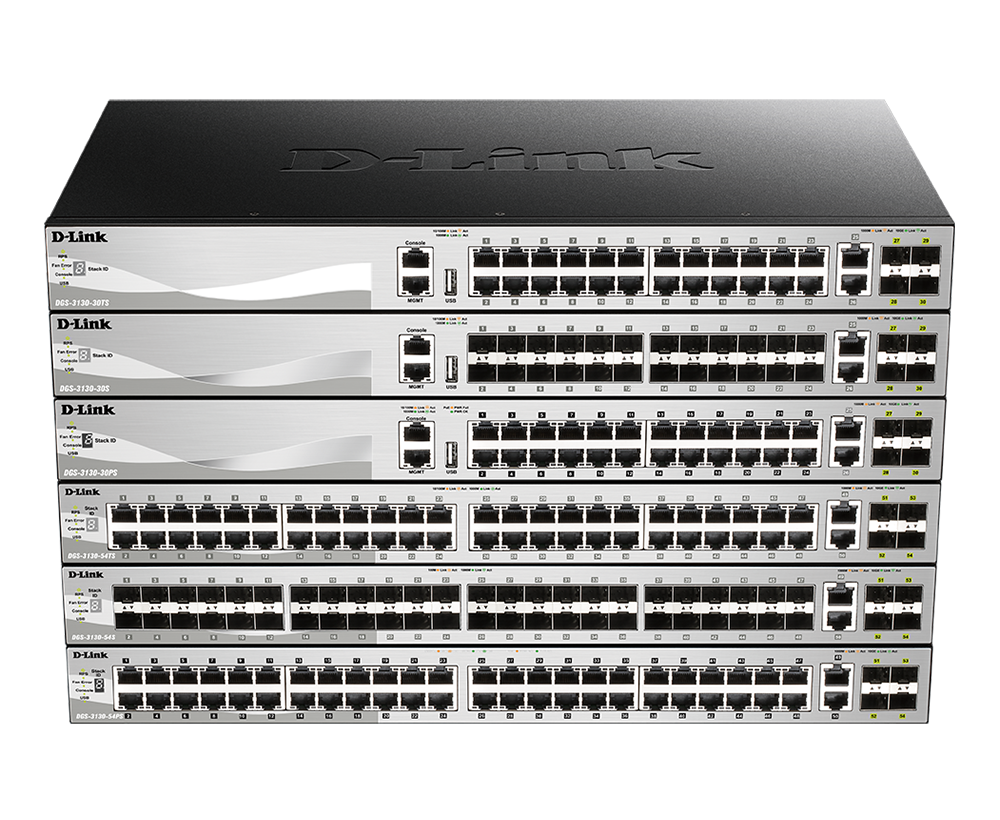

DGS-3130 Switch Series

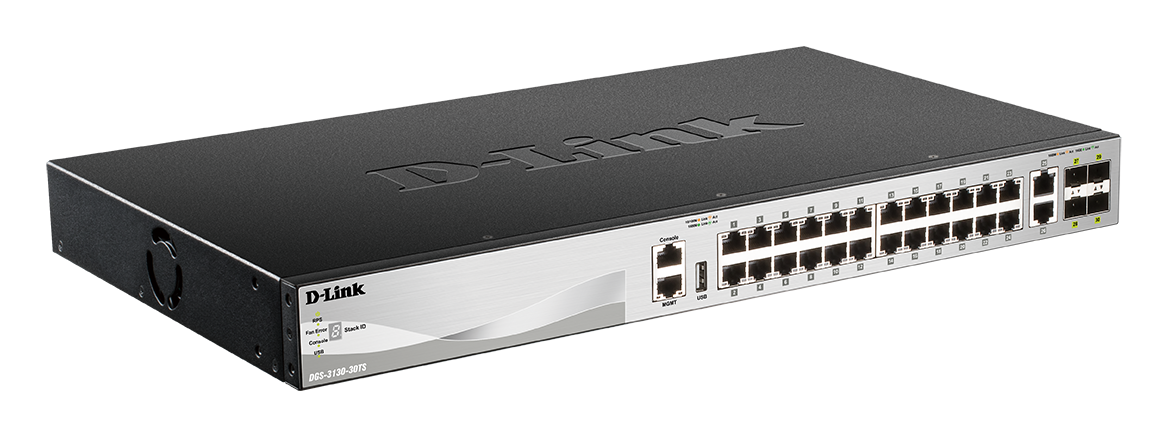

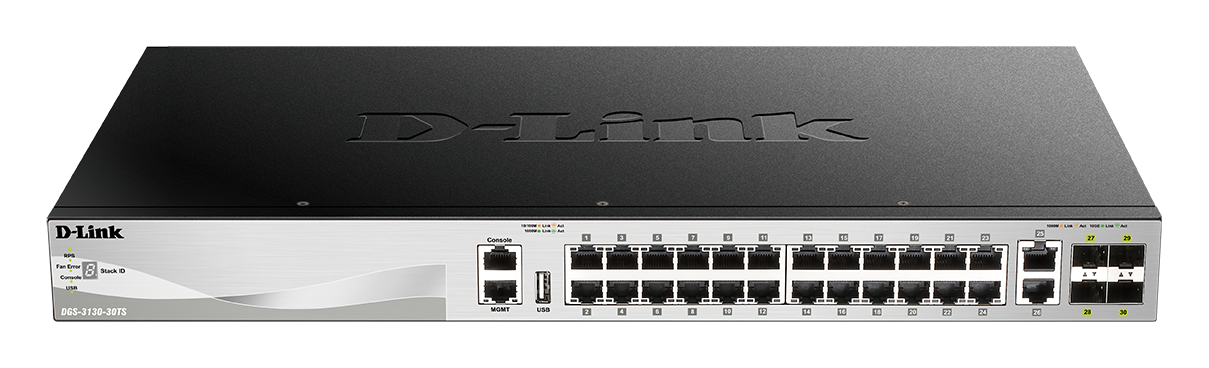

· 24 x 10/100/1000BASE-T
· 2 x 10GBASE-T
· 4 x 10G SFP+

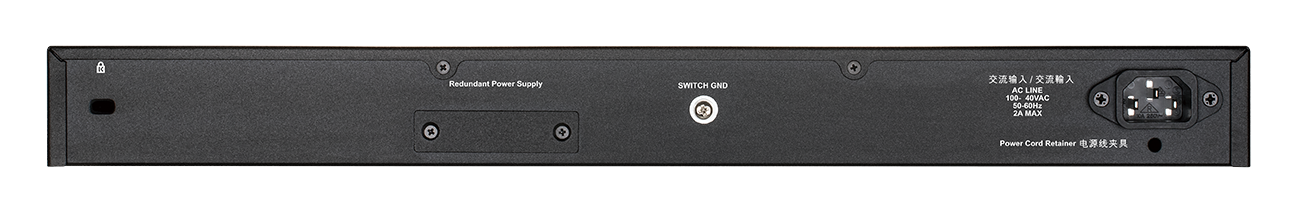

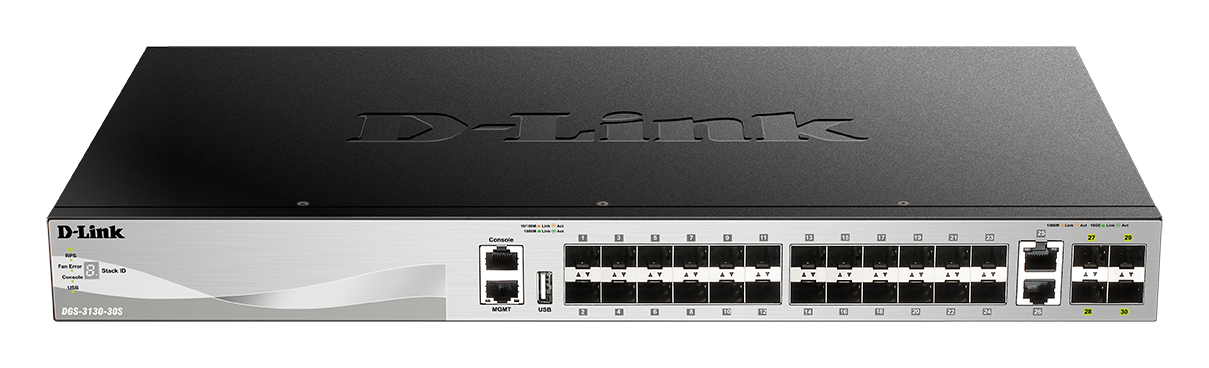

· 24 x SFP
· 2 x 10GBASE-T
· 4 x 10G SFP+

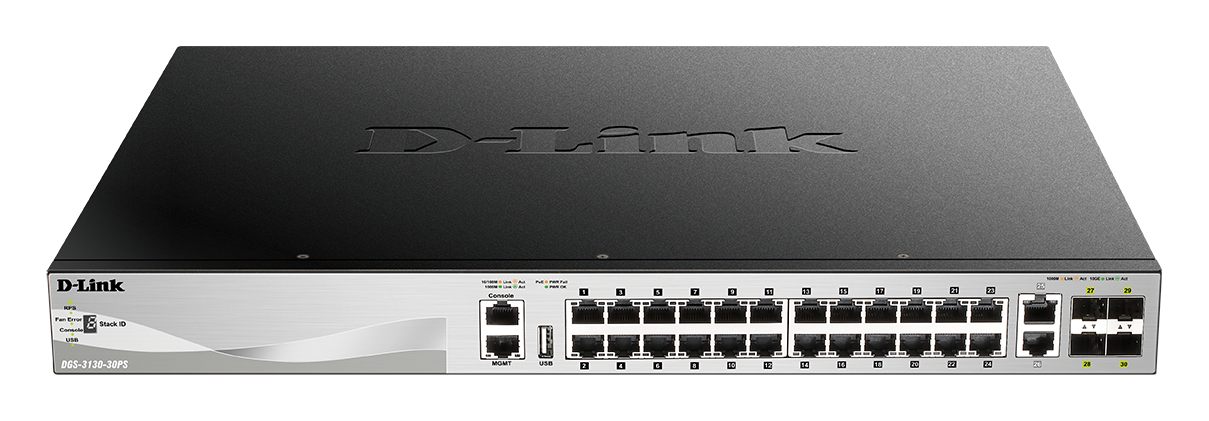

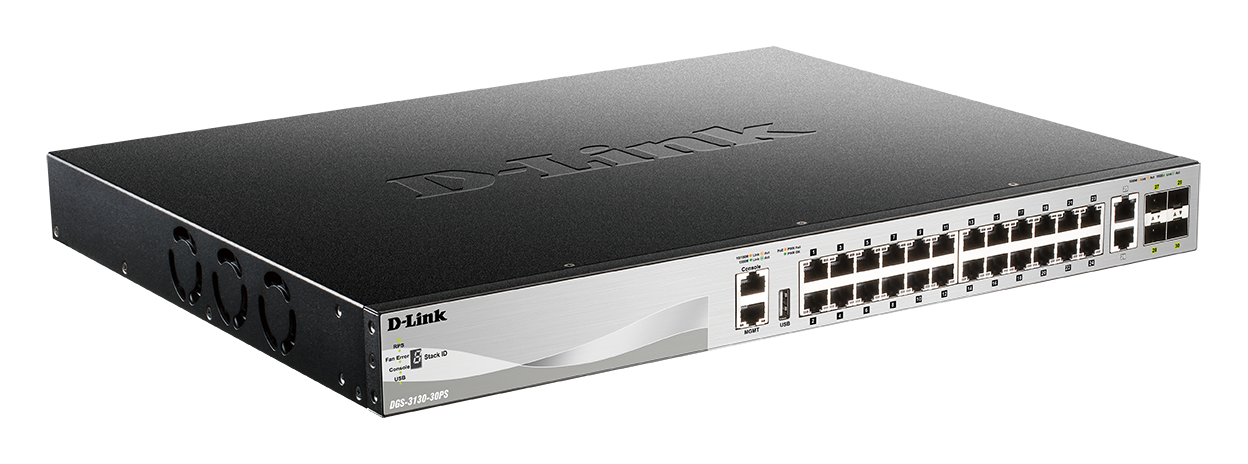

· 24 x 10/100/1000BASE-T PoE
· 2 x 10GBASE-T
· 4 x 10G SFP+

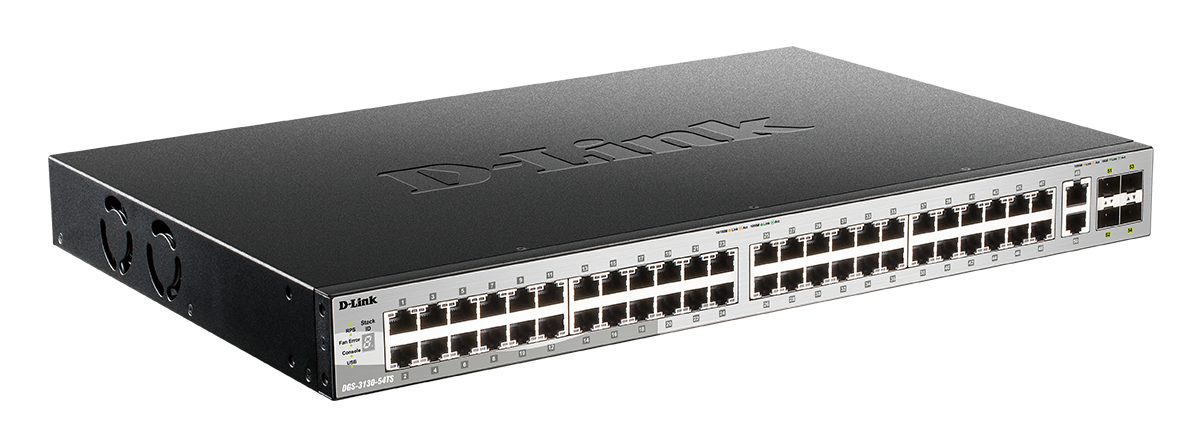

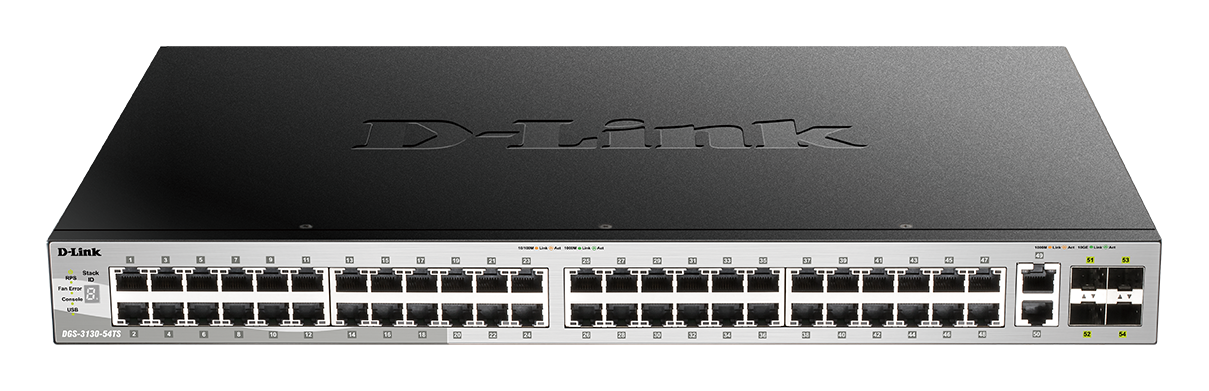

· 48 x 10/100/1000BASE-T
· 2 x 10GBASE-T
· 4 x 10G SFP+

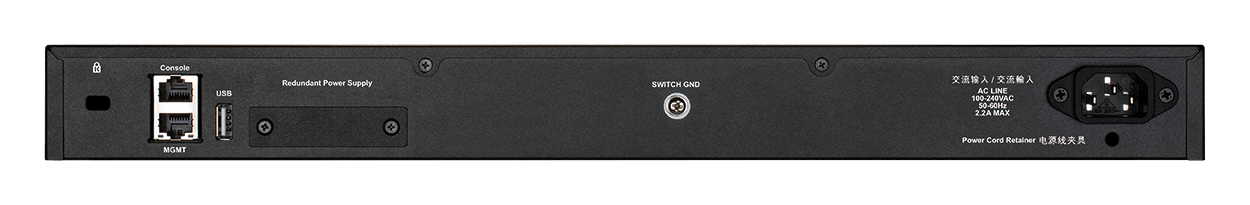

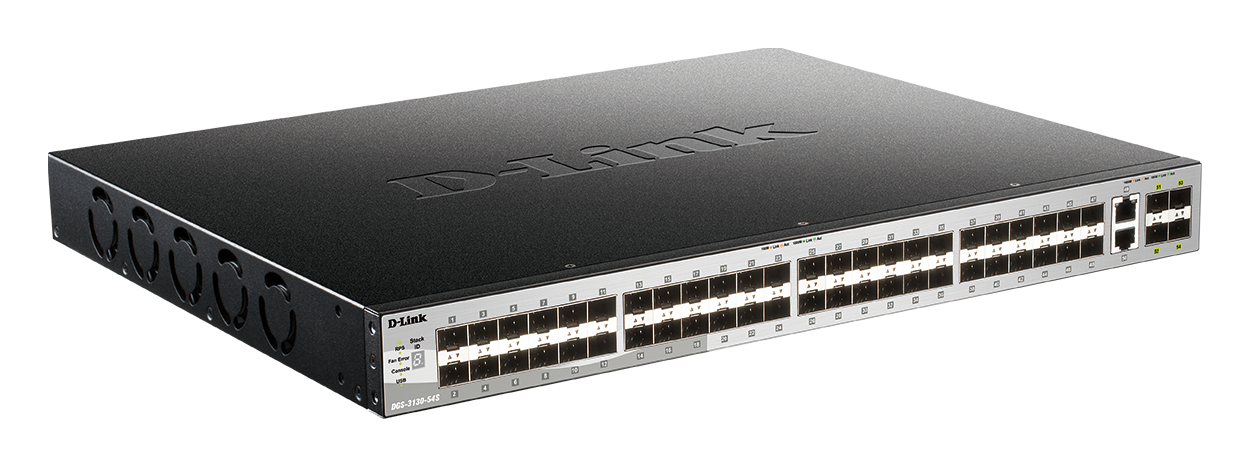

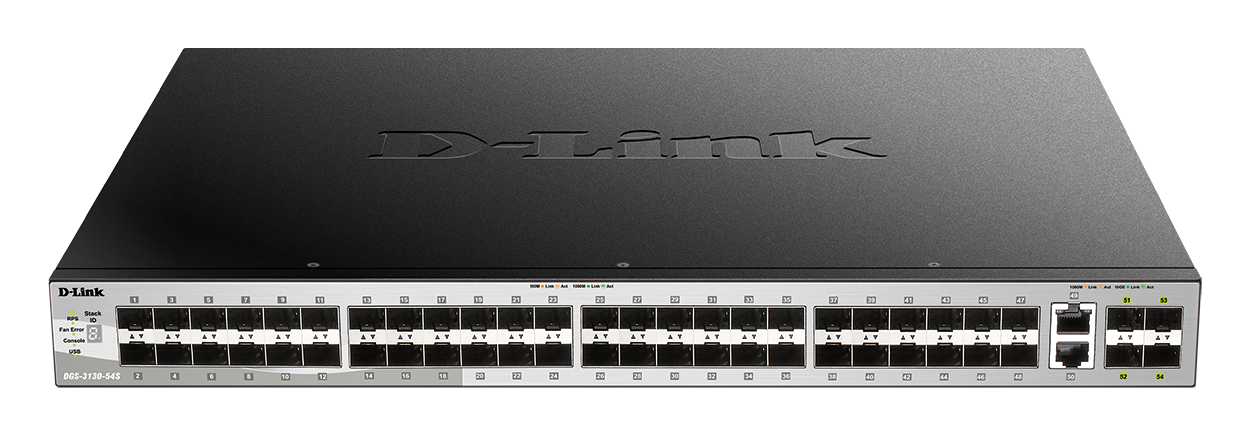

· 48 x SFP
· 2 x 10GBASE-T
· 4 x 10G SFP+

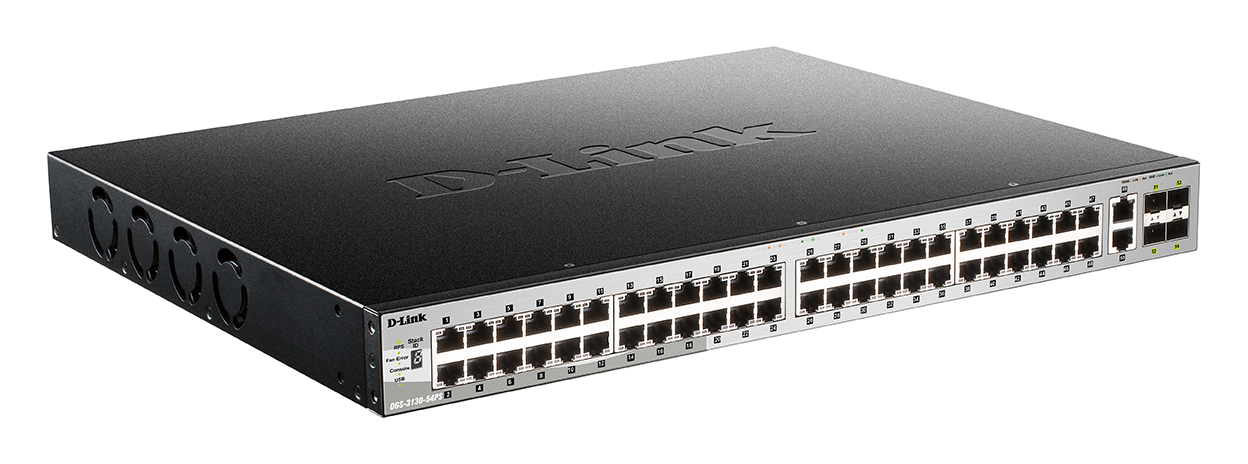

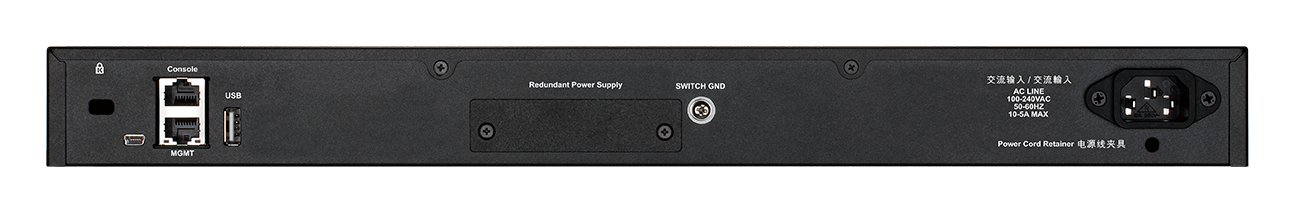

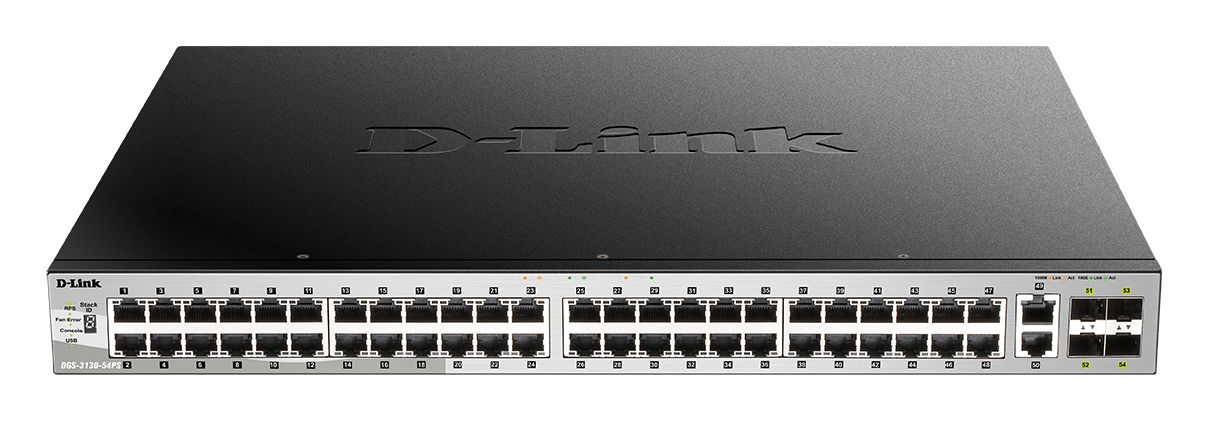

· 48 x 10/100/1000BASE-T PoE
· 2 x 10GBASE-T
· 4 x 10G SFP+
Nous sommes là pour vous aider.
Plus de 35 ans d’expérience dans la gestion de réseau.
Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.
Une assistance facilement accessible.
Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.
Garantie à vie limitée de D-Link
La qualité et la fiabilité des produits D-Link nous permettent de fournir une garantie à vie limitée leader du secteur avec chaque enregistrement.
Produits apparentés
Specification
|
Type
|
Managed |
|---|---|
|
Number of ports
|
16 to 30 ports 48 to 54 ports |
|
Layer
|
Layer 2+ Layer 3 |
|
Stacking
|
Physical Virtual |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet SFP |
|
Type of uplink ports
|
10GBASE-T 10GbE SFP+ |
|
Switching capacity
|
168 Gbps 216 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 48 |
|
PoE power budget
|
See datasheet See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Physical stacking
|
Up to 20 Gbps bidirectional bandwidth Up to 9 devices |
|
Virtual stacking (up to 32 devices)
|
Supported
|
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
|
Advanced VLAN
|
Asymmetric VLAN ISM VLAN Super VLAN Voice VLAN |
|
IP interfaces
|
16 |
|
Static route for IPv4/IPv6
|
IPv4 - 1K IPv6 - 512 |
|
RIP v1/v2
|
Supported
|
|
RIPng
|
Supported
|
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
8 Kbps minimum granularity |
|
Three colour marker
|
8 Kbps minimum granularity |
|
ACL type
|
Egress Ingress VLAN-based |
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
Microsoft NAP support
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1/v2
|
Supported
|
|
sFlow
|
Supported
|
|
LLDP
|
Supported
|
|
ICMPv6
|
Supported
|
|
802.3ah
|
Supported
|
1 When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit so the maximum units per stack is 9. When stacking the DGS-3130-54TS/54S/54PS models, the stacking cost is 2 per unit so the maximum units per stack is 6. When stacking different models in the same stack, switches can be stacked up to a maximum of 12 stacking cost per stack. For example: 2 x DGS-3130-30TS (2 stacking cost) + 2 x DGS-3130-30S (2 stacking cost) + 4 x DGS-3130-54TS (8 stacking cost) consumes a total stacking cost of 12 (2+2+8).
