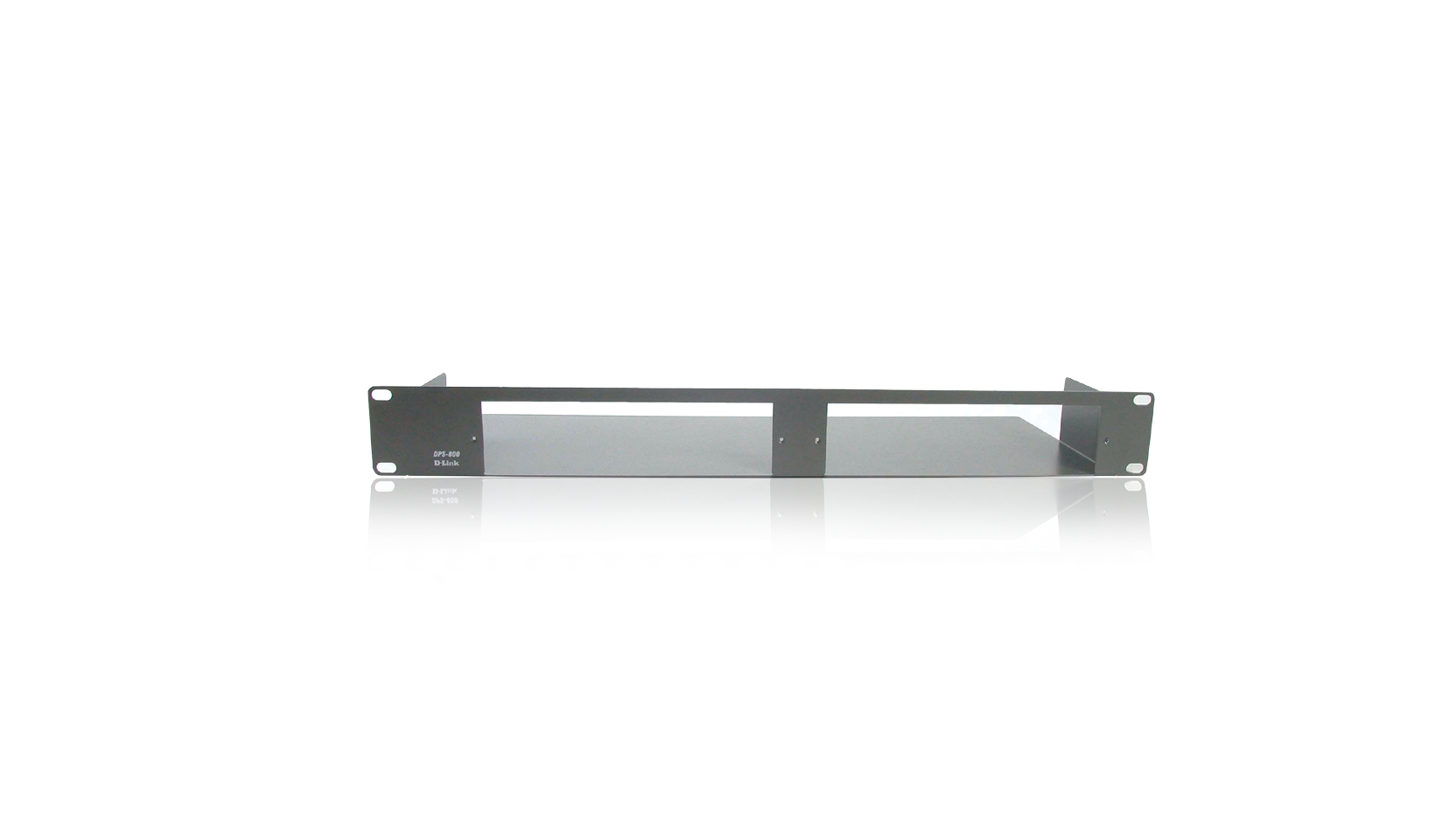

2 Slot Rack-mount Chassis for select D-Link DPS Redundant Power Supplies
DPS-800
- Statut produit (Revision A): Live
Description
The tandem of D-Link’s new Enterprise Gigabit switches and DPS Series of Modular Redundant Power Supplies (RPSU) enables today’s business networks with unmatched flexibility, performance, scalability, and availability.
The modular design of the DPS Series of RPSUs enables companies to selectively and cost effectively deploy higher availability configurations precisely when and where they are needed most. When paired with a supported D-Link switch, the DPS-200, and DPS-500 provide uninterrupted fail-over, in the unlikely event of a mechanical power supply failure. The system integration between D-Link’s Managed Layer 2 switches, Layer 3 switches, and RPSU system, provide customers with the fundamental building blocks to create economical and scalable networks without having to sacrifice network performance and availability.
- Holds 2 Redundant Power Supply Units
- 19" 1U Rack Mount, Supports DPS-200, DSP-500
The tandem of D-Link’s new Enterprise Gigabit switches and DPS Series of Modular Redundant Power Supplies (RPSU) enables today’s business networks with unmatched flexibility, performance, scalability, and availability.
The modular design of the DPS Series of RPSUs enables companies to selectively and cost effectively deploy higher availability configurations precisely when and where they are needed most. When paired with a supported D-Link switch, the DPS-200, and DPS-500 provide uninterrupted fail-over, in the unlikely event of a mechanical power supply failure. The system integration between D-Link’s Managed Layer 2 switches, Layer 3 switches, and RPSU system, provide customers with the fundamental building blocks to create economical and scalable networks without having to sacrifice network performance and availability.
Specification
DPS-800
Hold Up Time
Efficiency
Input Specifications
AC Input Voltage Rating
AC Input Voltage Range
AC Input Frequency
Max. In-Rush Current
Output Specifications
Output Voltage
Min. Load Current
Max Load Current
Line Regulation
Physical & Environmental
Safety
Dimensions RPSU (WxDxH)
Dimensions Chassis (WxDxH)
Weight RPSU
Weight Chassis
Temperature
Storage
Humidity
Warranty and Support Information
Warranty
Support
Ordering Information
DPS-800
DPS-800
- (2) Slot, 1U, 19 inch Rackmounting Chassis For DPS-200, DPS-300, and/or DPS-500 Units
Hold Up Time
- 16ms at Max Load and 115VAC Input at 60Hz Output Drop Down to 95% Voltage
Efficiency
- 75% Min. At Max Load and 115VAC Input
Input Specifications
AC Input Voltage Rating
- 100VAC to 240VAC
AC Input Voltage Range
- 90VAC to 264VAC
AC Input Frequency
- 47Hz to 63Hz
Max. In-Rush Current
- 30A Max @ 115VAC, 60A Max @ 230VAC at 25° Ambient Cold Start
Output Specifications
Output Voltage
- +12V
Min. Load Current
- 0.5A
Max Load Current
- 5.0A
Line Regulation
- (+/-) 2% Measured Output Load From (+/-) 10% Rated Load
Physical & Environmental
Safety
- UL and/or CSA
Dimensions RPSU (WxDxH)
- (6.69 x 7.48 x 1.77 inches) RPSU Units
Dimensions Chassis (WxDxH)
- (19.06 x 7.09 x 2.17 inches) DPS-800 Chassis
Weight RPSU
- (2.2 lbs) Weight Is Without DPS-800 Chassis
Weight Chassis
- (2.0 lbs) Weight Is Without RPSU Units
Temperature
- Operating: 0° - 40° C (32° - 104° F)
Storage
- -25° - 55° C (-13° - 131° F)
Humidity
- Operating: 20% to 80% RH, Non-Condensing
Warranty and Support Information
Warranty
- Power Supplies and Fans Carry A Limited 1 Year Warranty.
Support
- Free Technical Support
Ordering Information
DPS-800
- (2) Slot, 1U, 19 inch Rackmounting Chassis For DPS-200, DPS-300 and/or DPS-500 Units
DPS-800
- DPS-200
- DPS-500
