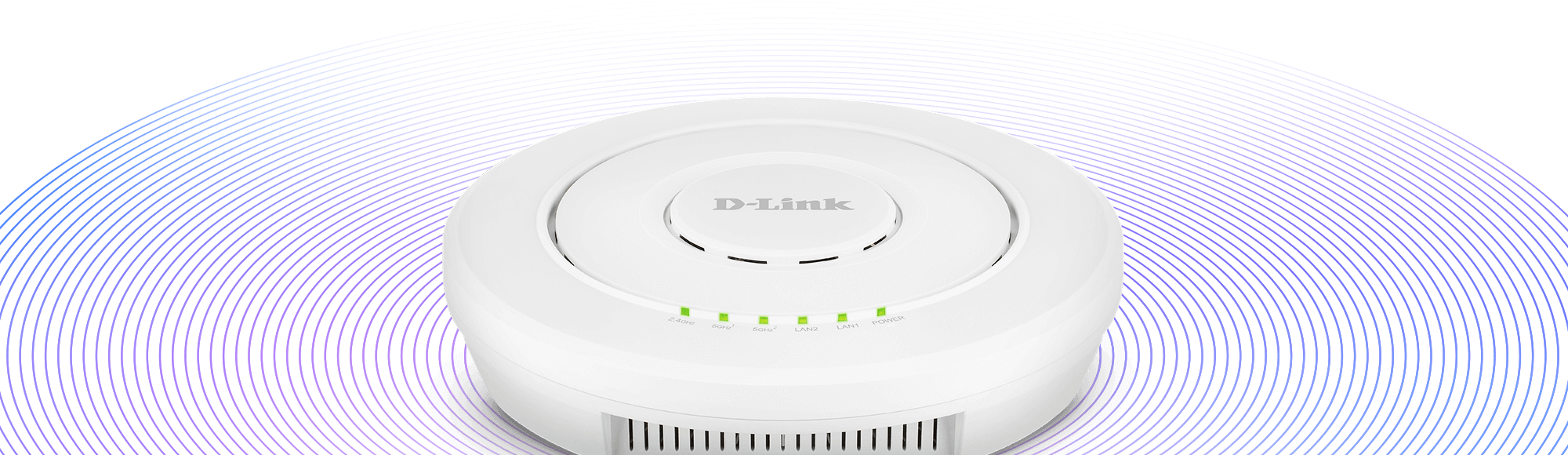

Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
- Statut produit (Revision A): Live
- 802.11ac Wave 2, Tri-Band, up to 2.2 Gbps*
- 2 Internal Omnidirectional Antennas
- Up to 64 dynamic VLANs per access point
- 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
- Link Aggregation2
Voir la liste de nos partenaires
AC2200 Wave 2 Wi-Fi
802.11ac Wave 2 wireless with combined speeds of up to 2.2 Gbps*
Tri-Band Wi-Fi
Improved throughput and coverage with three bands. Reduces co-channel interference, bringing more reliability in high-density areas.
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
Automatic Radio Frequency (RF) Management
Greatly reduces RF interference and enables denser AP deployments.
Centrally Managed
Used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller.
Faster Business with Wave 2 Tri-Band Wi-Fi
The Wireless AC2200 Wave 2 Tri-Band Unified Access Point delivers great bandwidth and flexibility for medium to large Wi-Fi networks. Its fast Tri-Band speeds, 2x2 MU-MIMO, band steering, and Airtime Fairness upgrades your business to the best.
Advanced Wireless Features
802.11k Fast Roaming1 allows wireless clients to move seamlessly between access points.
802.1p Quality of Service (QoS) provides enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. It also supports Wi-Fi Multimedia (WMM), so in the event of network congestion, time-sensitive traffic can be prioritised.
Airtime Fairness ensures that equal airtime is given to each client, preventing slower devices from monopolising the wireless connection.
Upgrade to Tri-Band WiFi

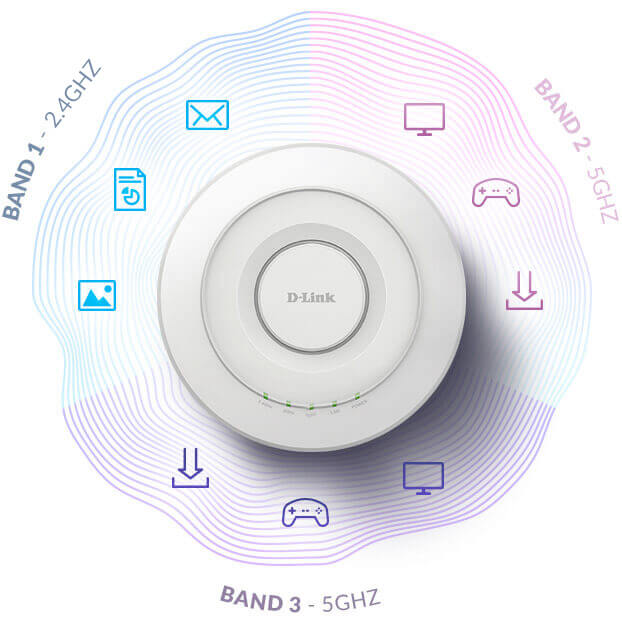

The DWL-7620AP features one 2.4 GHz and two 5 GHz wireless bands for the growing number of devices connecting to a single access point.
Allows older 802.11b/g/n devices to connect to the 2.4 GHz while two 5 GHz bands can be dedicated to newer, faster wireless AC devices to enjoy seamless bandwidth-intensive applications like HD video conferencing, VoIP and file collaboration.
Band steering technology efficiently load balances the clients and traffic between the three wireless bands to ensure your wireless clients have a superior user experience even in high-density environments.

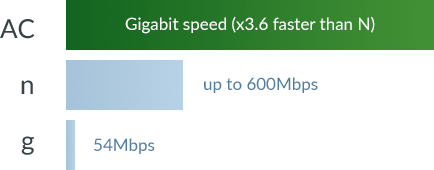

Greater Speed and Connectivity
Combined wireless speeds of up to 2,200 Mbps* over 3 wireless bands for improved business network speeds.

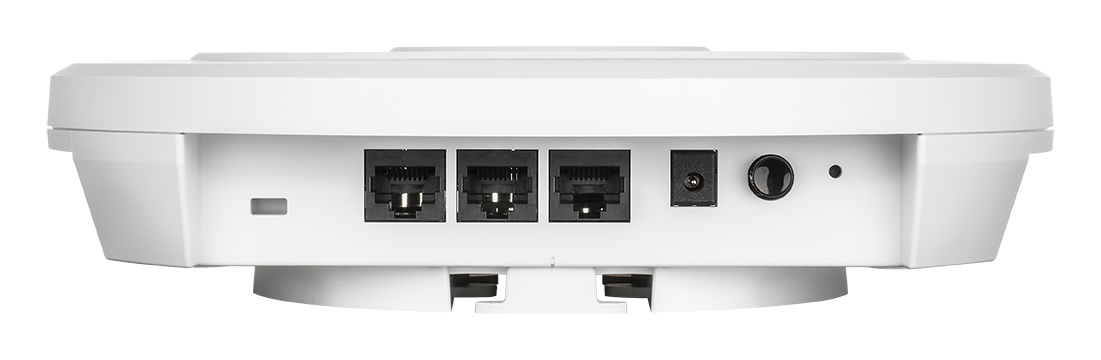

Wired link aggregation2 allows two Gigabit Ethernet ports to be linked together and act as a single port doubling the access point’s available bandwidth and maximising the overall throughput.

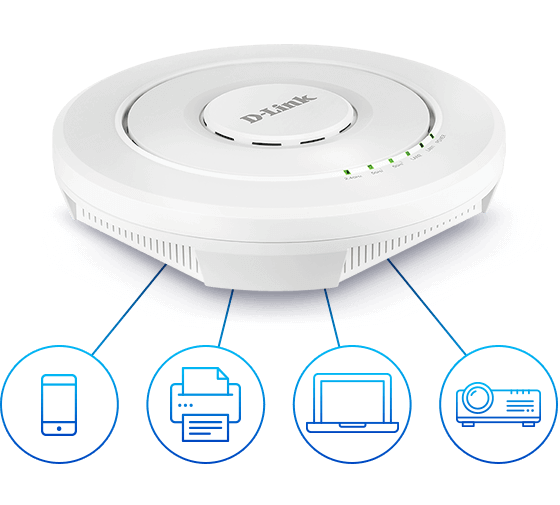

MU-MIMO Efficiency
With support for MU-MIMO (Multi-User Multiple Input Multiple Output), the DWL-7620AP simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity. The 2 x 2 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

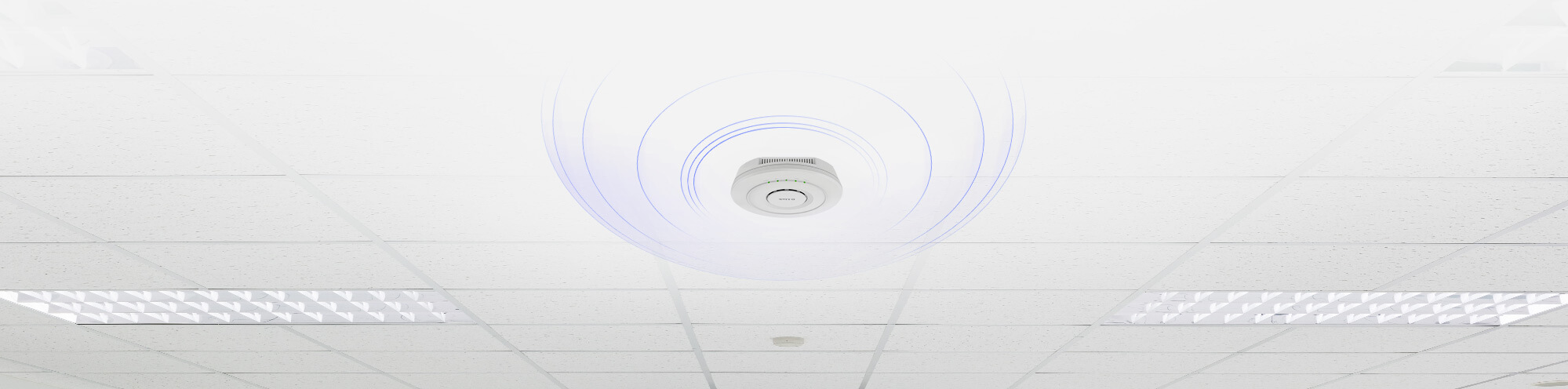

Flexible Deployment

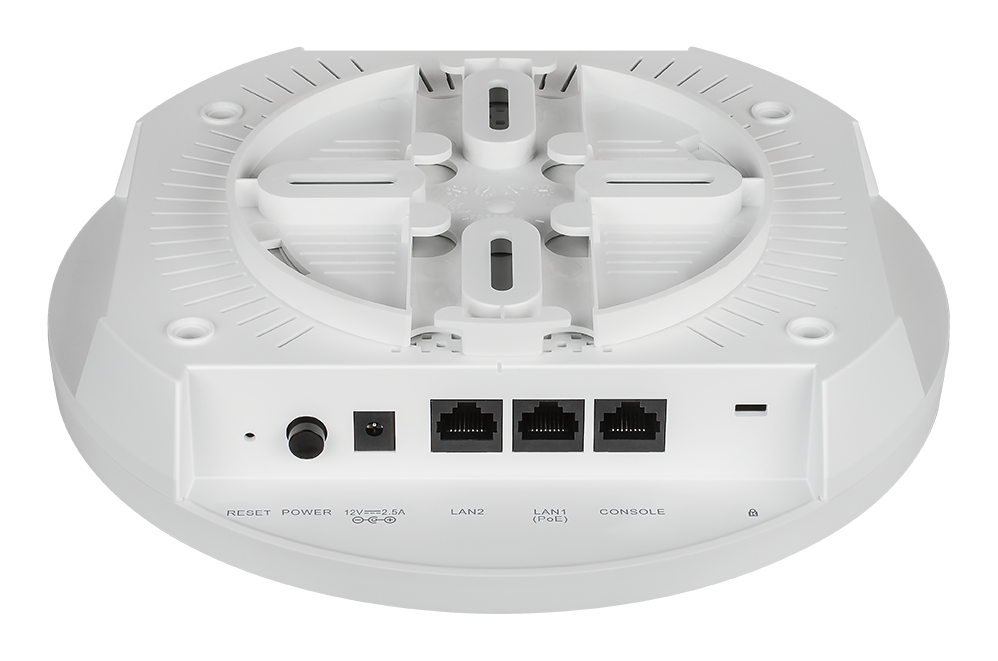

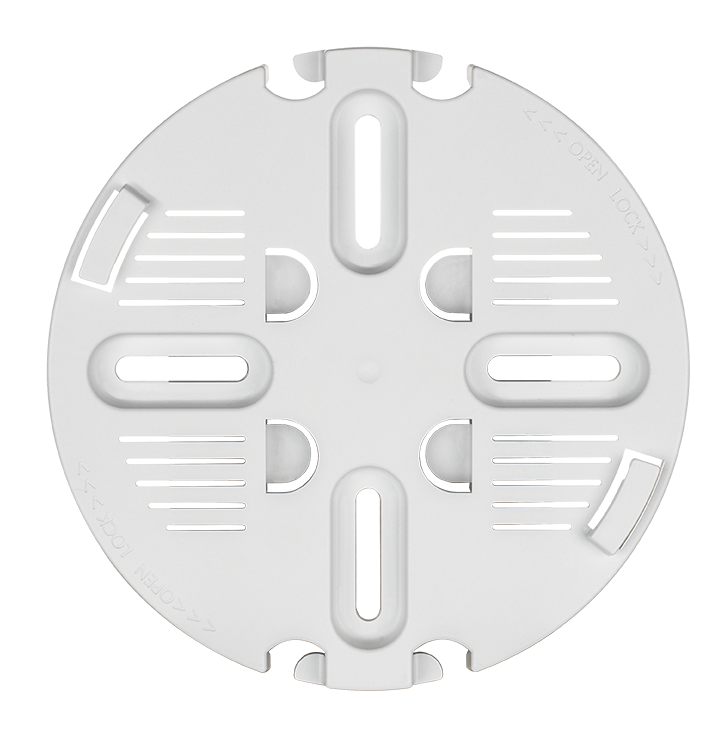

It can be ceiling mounted or wall mounted to provide the best wireless coverage. Integrated Power over Ethernet (PoE) makes deployments faster and means it can be installed in areas without power outlets.
Effective Management

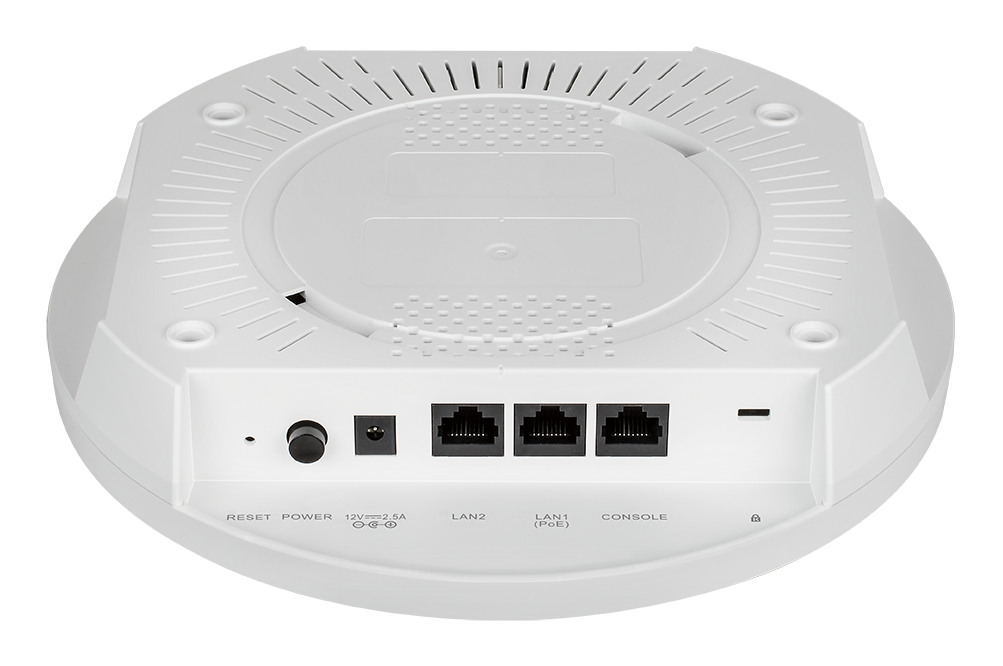

D-Link Unified Wireless Controllers enable centralised management of multiple access points. Used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller. The AP includes a Console port for debugging and configuration.
Centrally Managed

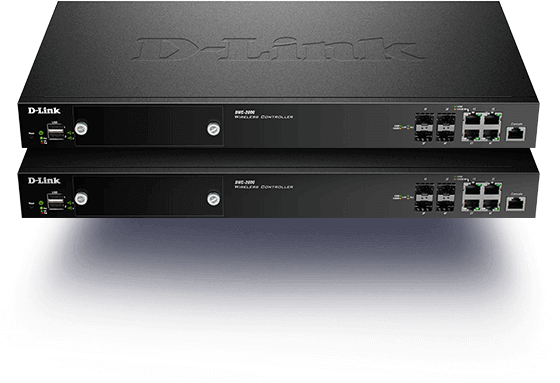

When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple units of DWL-7620AP can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently.
Automatic Radio Frequency (RF) Management
When the DWL-7620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows access points to be deployed more densely.
To further minimise interference, when a nearby AP is on the same channel, the DWL-7620AP will automatically lower its transmission power. If the nearby access point fails, then this access point will increase its transmission power to expand coverage.

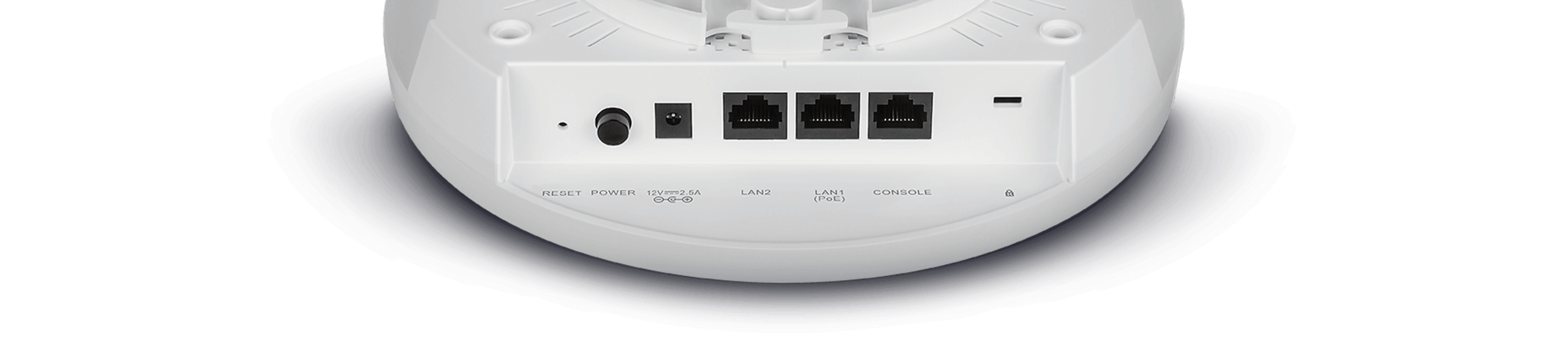

Service gratuit le jour ouvrable suivant
Profitez de notre service gratuit Next Business Day Service (Expédition le jour ouvré suivant), en standard, pour remplacer rapidement les équipements défectueux.
Notre assistance technique à réponse rapide est conçue pour que les entreprises obtiennent la meilleure assistance possible dans leur environnement unique. Notre garantie étenue et nos forfaits de services améliorés augmentent la durée des garanties et minimisent les temps d'arrêt. Vous pouvez même opter pour notre service le jour même (Same Business Day Service), qui garantit la livraison du produit de remplacement dans les 4 heures suivant la confirmation de la défaillance du produit.
Nous sommes là pour vous aider.
Plus de 35 ans d’expérience dans la gestion de réseau.
Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.
Une assistance facilement accessible.
Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.
Garantie à vie limitée de D-Link
La qualité et la fiabilité des produits D-Link nous permettent de fournir une garantie à vie limitée leader du secteur avec chaque enregistrement.
Specification
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Tri-band simultaneous |
|
Wireless speed
|
2 x 867 Mbps 5 GHz 400 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
|
802.1D STP
|
Supported
|
|
IPv6
|
Supported
|
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
*Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building
materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
1. This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
2. Support static Link Aggregation (LAG).
