How to setup U-APSD in the Nuclias Portal and confirm function work in air packets ?
Topology:
Nuclias Portal --- Internet --- Router --- DBA ))) PC
* Nuclias Portal fw: 2.1.3.6
* DBA-2520P fw: 2.01.002
Procedure:
1. Login to Nuclias Portal,

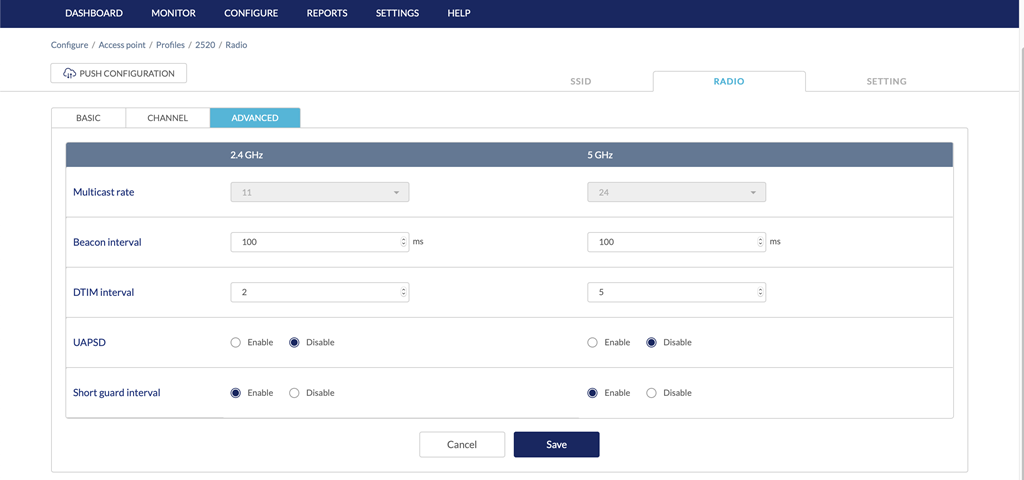

2. Go to Configure/ Access point/ profile/ Radio/ Advanced.
3. Enable UAPSD in Advanced page.
3-1. Save and Push configuration.
3-2. Capture air packet and check the UAPSD column in packet.
4. Disable UAPSD in Advanced page.
4-1. Save and push configuration.
4-2. Capture air packet and check the UAPSD column in packet.
Result

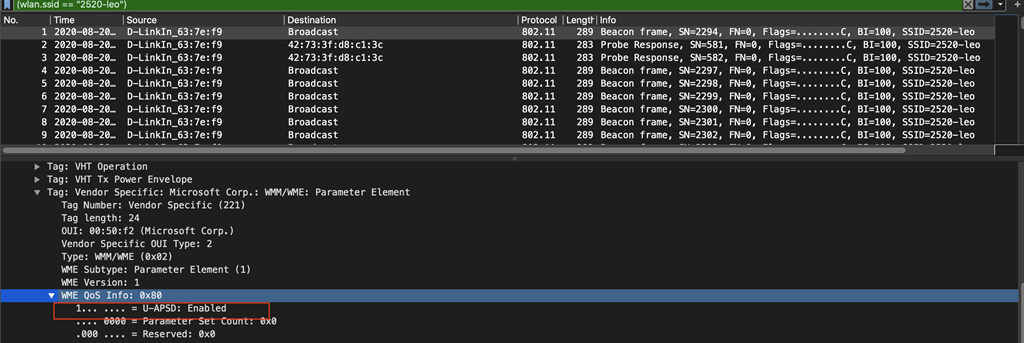

At step 3-2, air packet can see UAPSD column display Enable.

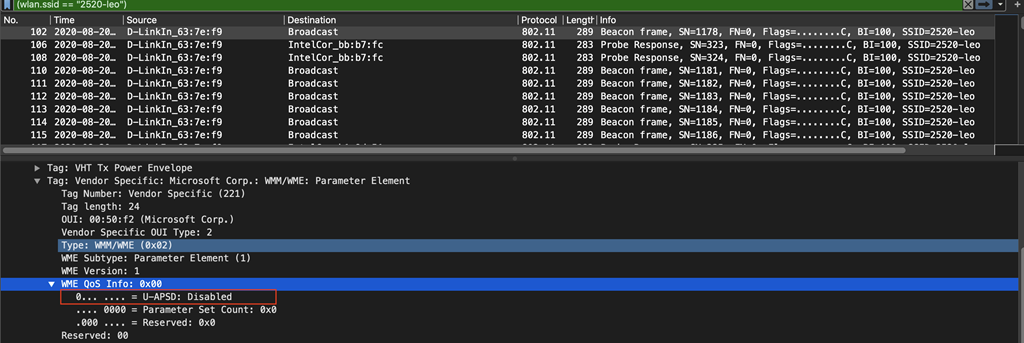

At step 4-2, air packet can see UAPSD column display Disable.
