DWC 1000 Configure MAC Filter Authentication

Step 1 – Go to the MAC Authentication settings

Security > Authentication > User Database



Step 2 – Click on the “Mac Authentication” tab and select either; “Black-List” or “White-List”

- Black-List: blocks the MAC addresses entered in the list
- White-List: allows Mac addresses entered in the list



Step 3 - Click on the "Add New Mac Authentication" button to add the MAC addresses to the list



Mac Address:{Enter the MAC address filter}
Name: {a brief overview of the device to filter}
Authenticathion Action: Select the action to be performed using "Grant" to enable and "Deny" to block.



Click “Save”

Step 4 – Go to “AP Profile”

Wireless > Access Point > AP Profile



 Step 5 - Click “AP Profile SSID” tab, right-click over the SSID and and click “Edit”



Step 6 - In the option “MAC Authentication” select “Local”, then click “Save”

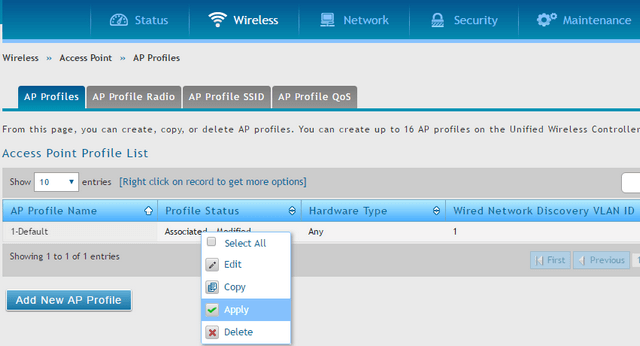

Step 7 - After saving the settings, go to “AP Profiles”

Wireless >  Access Point > AP Profiles

Right-click over the “Profile Status” and click "Apply" to apply the changes
