Professional.
Simple.
Affordable.
The all-seeing-eye that gives you 360° coverage that captures it all.
Fisheye lens · Hhigh-resolution 3-megapixel sensor · Distortion correction
The Vigilance Camera Range offers professional video surveillance that is easy to install and highly affordable.
Features
![]() |
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
|
![]() |
2 Way audio
2-way audio with built-in microphone and speaker
|
![]() |
Night Vision
IR LEDs guarantee bright & clear images, even in total darkness
|
![]() |
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
|
![]() |
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancemen
|
![]() |
Onboard SD Recording
Record snapshots and video to a microSD card without requiring a PC or network storage device
|
![360° Surveillance](/nl/nl/-/media/product-pages/dcs/4622/dcs-4622-360-surveillance.png)

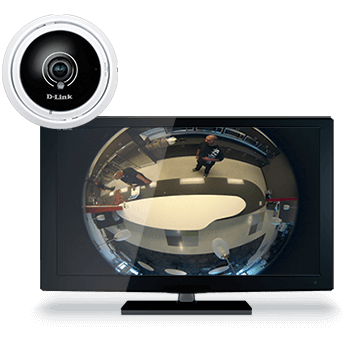

360° Surveillance
The DCS-4622 uses a fisheye lens to provide incredible wide angle coverage; simply place it on a wall for panoramic 180° wall-to-wall coverage of a room, or place it on a ceiling for a full 360° view without blind spots. Distortion correction fixes the camera video so you can use ePTZ to zoom in, zoom out and pan across your camera’s video to survey a large area with ease.
Security in High Definition
Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4622 Ideal for small, medium and large enterprise installations.
![Security in High Definition](/nl/nl/-/media/product-pages/dcs/4622/dcs-4622-hd.jpg)
*Screen images simulated
![Continuous Monitoring with Night Vision](/nl/nl/-/media/product-pages/dcs/4622/dcs-4622-continuos-monitoring.png)
Continuous Monitoring with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.
Combined with the IR-Cut filter, the DCS-4622 can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.
![Motion Detection](/nl/nl/-/media/product-pages/dcs/4622/dcs-4622-motion-detection.png)
Motion Detection
Motion detection lets you record events with ease and can even save snapshots and video before the event even happens so you can get the whole picture.
![PoE = Convenience](/nl/nl/-/media/product-pages/dcs/4703e/dcs-4703e-poe.png)
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4622 has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4622 can also be powered by a standard 12V DC, 1.5A power adapter (not included).
Video Management Software (VMS)
Manage your cameras with the free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4622 is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.
![Video Management Software (VMS)](/nl/nl/-/media/product-pages/dcs/4703e/dcs-4703e-vms.jpg)
Gerelateerde Producten
![](/nl/nl/-/media/product-pages/dcs/100/dviewcam.png?h=100&w=178&la=nl-NL&hash=79665843E889A5222A571DAE4947803F)
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
3 megapixel |
Image sensor
|
1/3.2" 3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
2048 x 1536 (other) |
Lens
|
1.1 mm F2.0 Fisheye |
Angle of View (H/V/D)
|
180° / 180° / 180° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
8 m |
Wide Dynamic Range(WDR)
|
Supported
|
2-way audio
|
Supported
|
Built-in Microphone
|
Supported
|
Built-in Speaker
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 128 GB) |
Power Consumption
|
4.6 W |
Features
|
ONVIF |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
