Professional.
Simple.
Affordable.

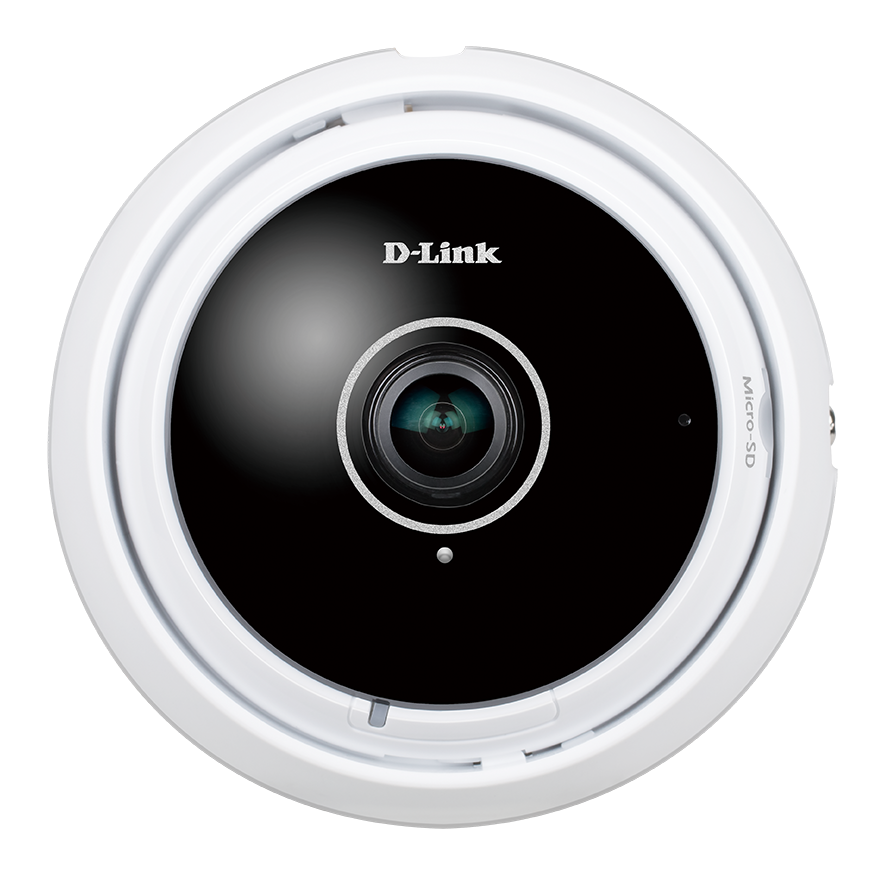

The all-seeing-eye that gives you 360° coverage that captures it all.
Fisheye lens · Hhigh-resolution 3-megapixel sensor · Distortion correction
The Vigilance Camera Range offers professional video surveillance that is easy to install and highly affordable.
Features
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
|
2 Way audio
2-way audio with built-in microphone and speaker
|
||
Night Vision
IR LEDs guarantee bright & clear images, even in total darkness
|
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
|
||
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancemen
|
Onboard SD Recording
Record snapshots and video to a microSD card without requiring a PC or network storage device
|

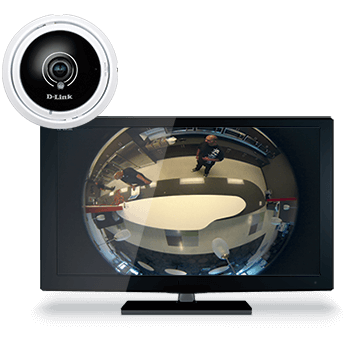

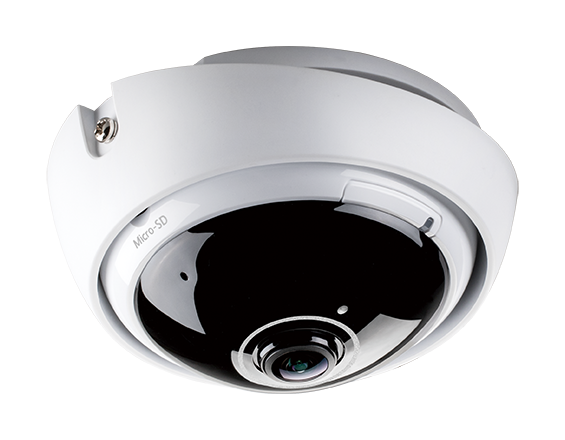

360° Surveillance
The DCS-4622 uses a fisheye lens to provide incredible wide angle coverage; simply place it on a wall for panoramic 180° wall-to-wall coverage of a room, or place it on a ceiling for a full 360° view without blind spots. Distortion correction fixes the camera video so you can use ePTZ to zoom in, zoom out and pan across your camera’s video to survey a large area with ease.

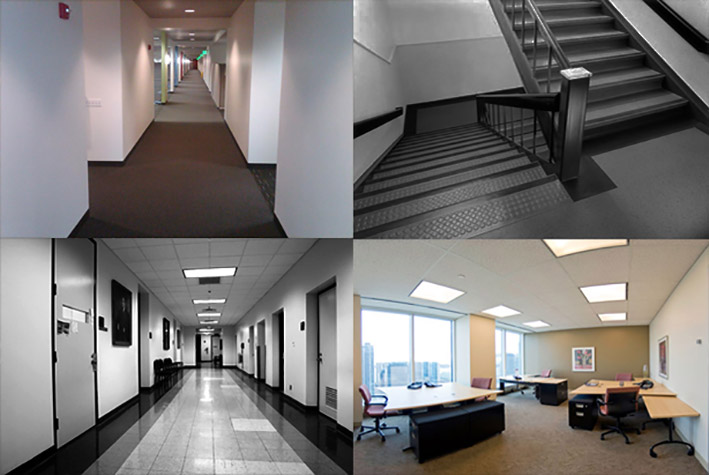

Security in High Definition
Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4622 Ideal for small, medium and large enterprise installations.
*Screen images simulated
Continuous Monitoring with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.
Combined with the IR-Cut filter, the DCS-4622 can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.
Motion Detection
Motion detection lets you record events with ease and can even save snapshots and video before the event even happens so you can get the whole picture.

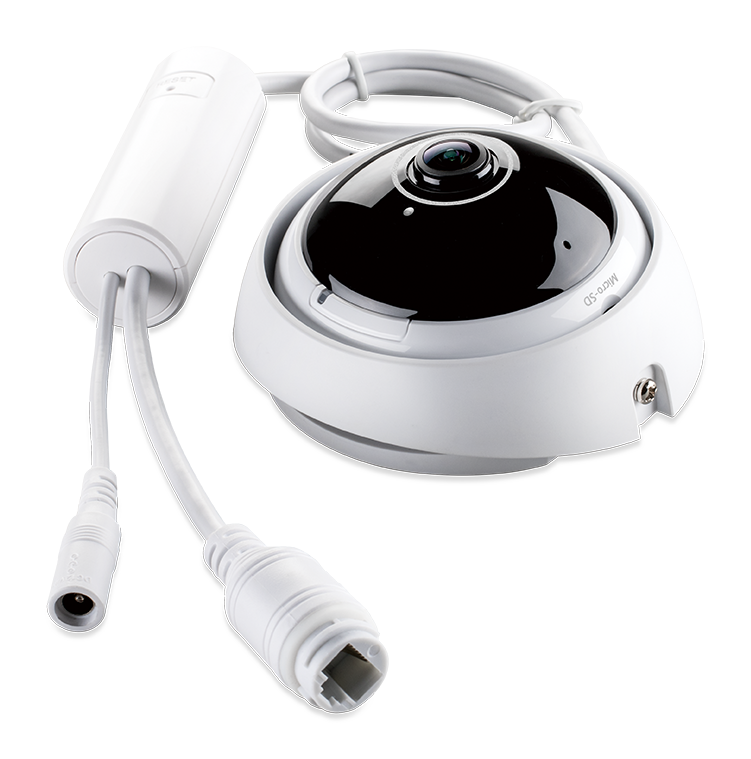

PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4622 has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4622 can also be powered by a standard 12V DC, 1.5A power adapter (not included).

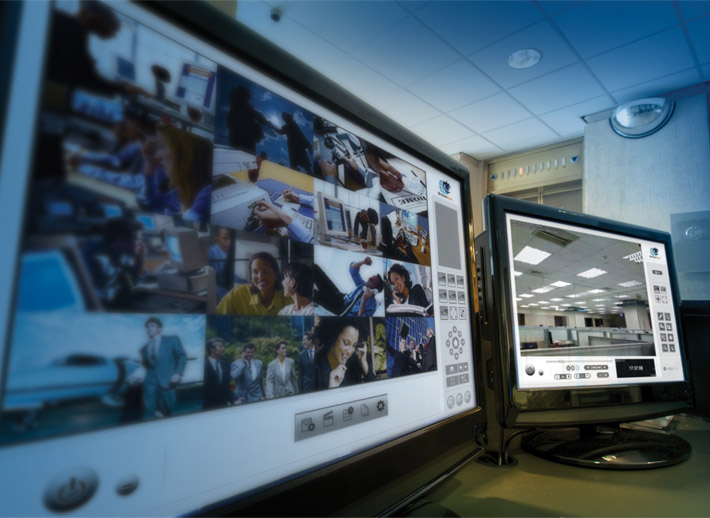

Video Management Software (VMS)
Manage your cameras with the free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4622 is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.
Related Products
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
3 megapixel |
Image sensor
|
1/3.2" 3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
2048 x 1536 (other) |
Lens
|
1.1 mm F2.0 Fisheye |
Angle of View (H/V/D)
|
180° / 180° / 180° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
8 m |
Wide Dynamic Range(WDR)
|
Supported
|
2-way audio
|
Supported
|
Built-in Microphone
|
Supported
|
Built-in Speaker
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 128 GB) |
Power Consumption
|
4.6 W |
Features
|
ONVIF |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.74mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual | Manual | 02.03.2017 | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
1.00.09 | Firmware 1.00.09 | 09.02.2017 | - | Download |
Version | Description | Date | |
---|---|---|---|
Setup Wizard | Setup Wizard | 09.02.2017 | Download |
Version | Description | Date | |
---|---|---|---|
DEU_CE_Declaration | DCS-4622 CE DoC | - | Download |
