5 Megapixel Varifocal Outdoor Dome Network Camera
DCS-6517
- Product Status: End of Sale
There's a new version of this product:

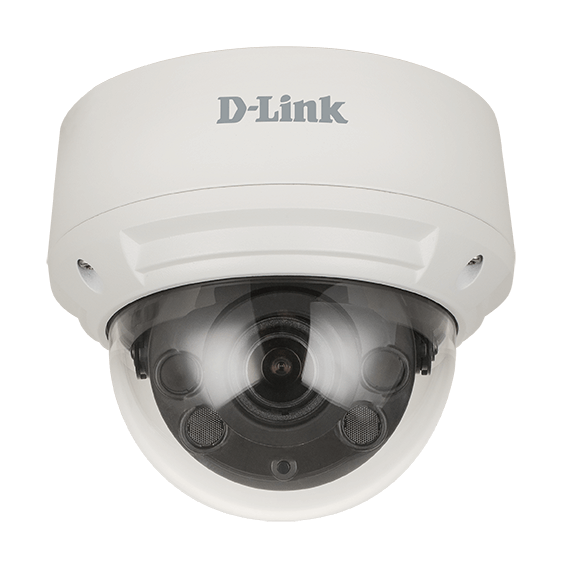

8 Megapixel H.265 Outdoor Dome Camera
DCS-4618EK
See Newer ProductThere's a new version of this product:
DCS-4618EK
8 Megapixel H.265 Outdoor Dome Camera
Overview
- 4K Ultra HD 8-megapixel sensor
- Vandal-proof IK10-housing
- IP66 Weather-Resistant
- Motorised varifocal lens
- 30m Night Vision with WDR & LowLight+
- PoE for easy installation
- Easy remote management with D-ViewCam
![](/no/nb/-/media/product-pages/dcs/4618ek/dcs_4618ek_a1_front.png?h=567&w=562&la=nb-NO&hash=DDED0C1D757339C164DB65621B914C06)
Overview
- 4K Ultra HD 8-megapixel sensor
- Vandal-proof IK10-housing
- IP66 Weather-Resistant
- Motorised varifocal lens
- 30m Night Vision with WDR & LowLight+
- PoE for easy installation
- Easy remote management with D-ViewCam

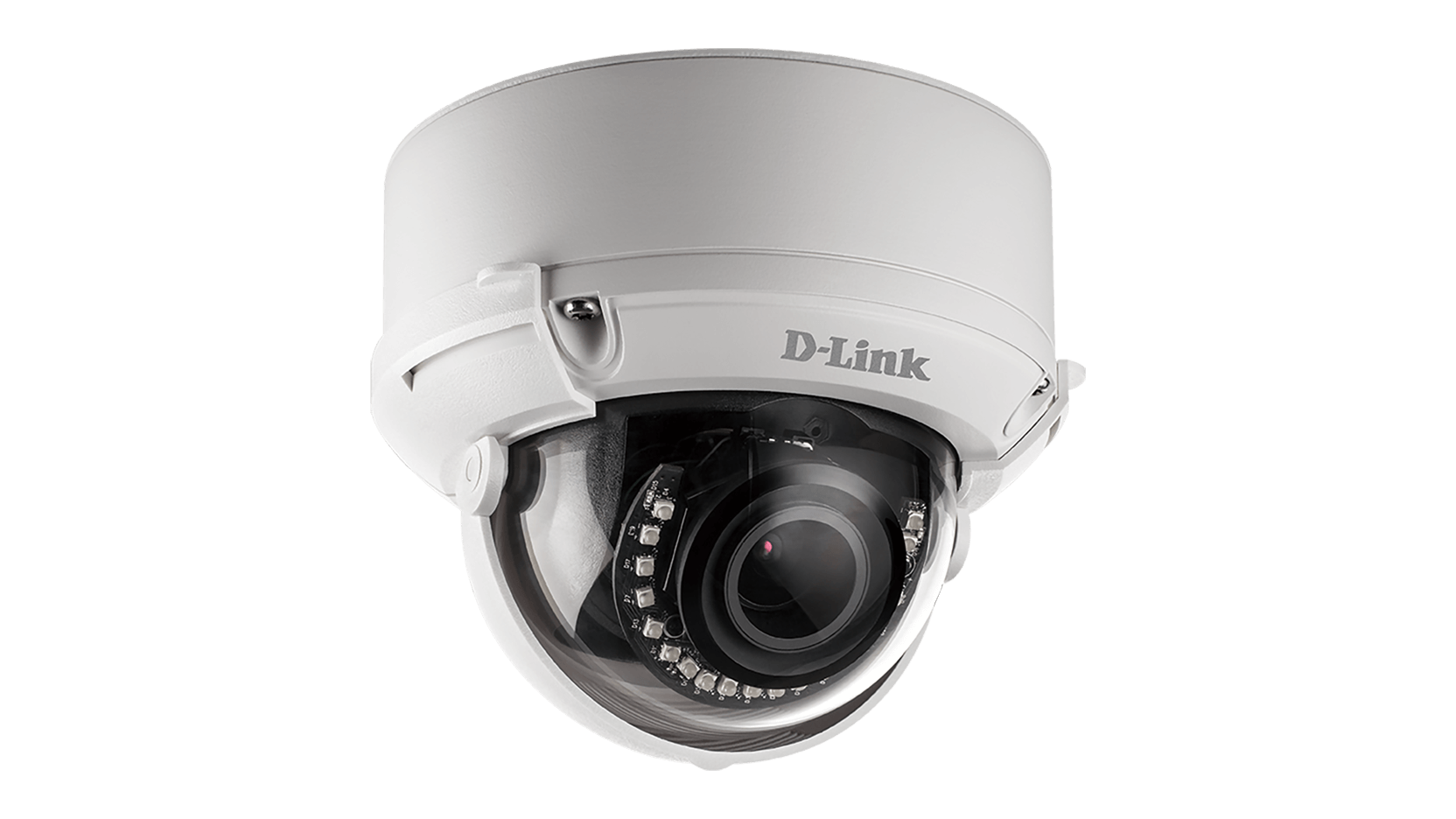

The D-Link DCS-6517 5 Megapixel Varifocal Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for businesses and enterprises. It uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video as well as support the latest H.265 High Efficiency Video Coding standard to maximise network bandwidth. Power over Ethernet (PoE) and a rugged, weatherproof design makes this camera extremely reliable and ideal for deployment in any surveillance application.
![](/no/nb/-/media/product-pages/dcs/6517/dcs_6517_on_ceiling.jpg?h=573&w=1145)

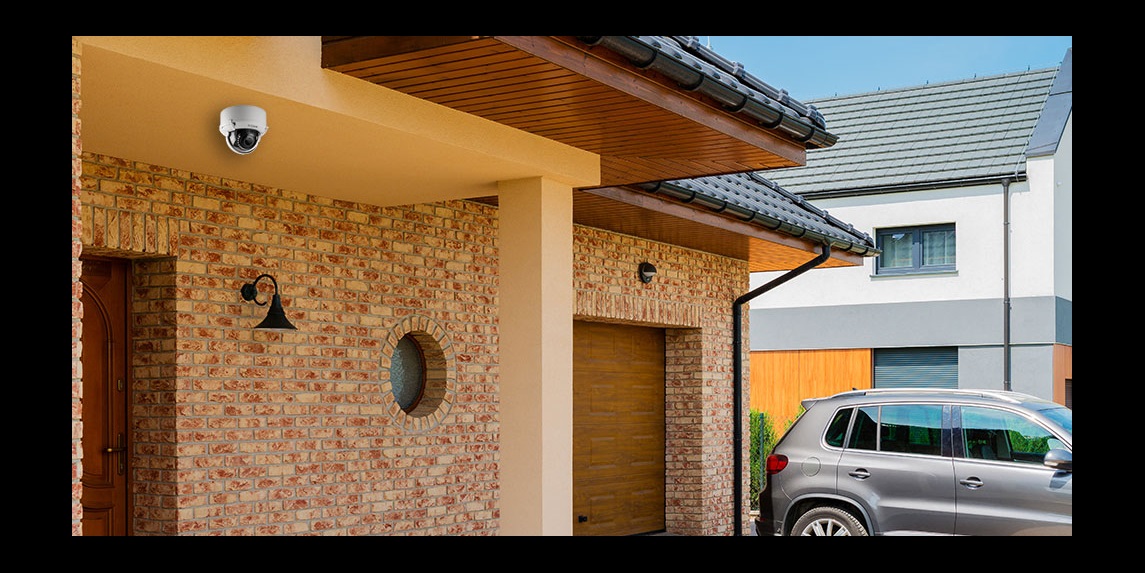

Built for the Outdoors
Specially built for outdoor use, the DCS-6517 has an IP67 weatherproof housing that protects it from dirt and rain. The durable housing has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that are prone to vandalism.
![](/no/nb/-/media/product-pages/dcs/6517/dcs_6517_on_outdoor.jpg?h=573&w=1145)
Continuous Monitoring
The DCS-6517 also has built-in smart IR LED illuminators with a 20 metre range, allowing the camera to keep watch even in complete darkness. To maximise bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording.
![](/no/nb/-/media/product-pages/dcs/6517/dcs_6517_monitoring.jpg)
Flexible Connectivity
The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
![](/no/nb/-/media/product-pages/dcs/6517/dcs_6517_poe.png)
Robust Management Software
Includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location.
Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
![](/no/nb/-/media/product-pages/dcs/6517/dcs_6517_dview.jpg)
Related Products
![](/no/nb/-/media/product-pages/dcs/11/dcs11-image.png?h=100&w=196&la=nb-NO&hash=239BC66C8719DDC929406C7A1688539E)
Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
5 megapixel |
Image sensor
|
1/2.9'' 5 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) 2560 x 1920 (other) |
Lens
|
2.8-12 mm F1.4 Motorised Varifocal |
Angle of View (H/V/D)
|
75° ~ 24° / 55° ~ 18° / 96° ~ 30° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
20 m |
Wide Dynamic Range(WDR)
|
Supported
|
Optical Zoom
|
4.2x |
Privacy Masks
|
5 zones |
Vandal Proof
|
Supported
|
2-way audio
|
Supported
|
External Microphone Input
|
Supported
|
External Speaker Output
|
Supported
|
Digital Input/Output(DI/DO)
|
1/1 |
External Card Slot
|
MicroSD SDHC SDXC (max 128 GB) |
Power Consumption
|
10 W |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Tamper Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
