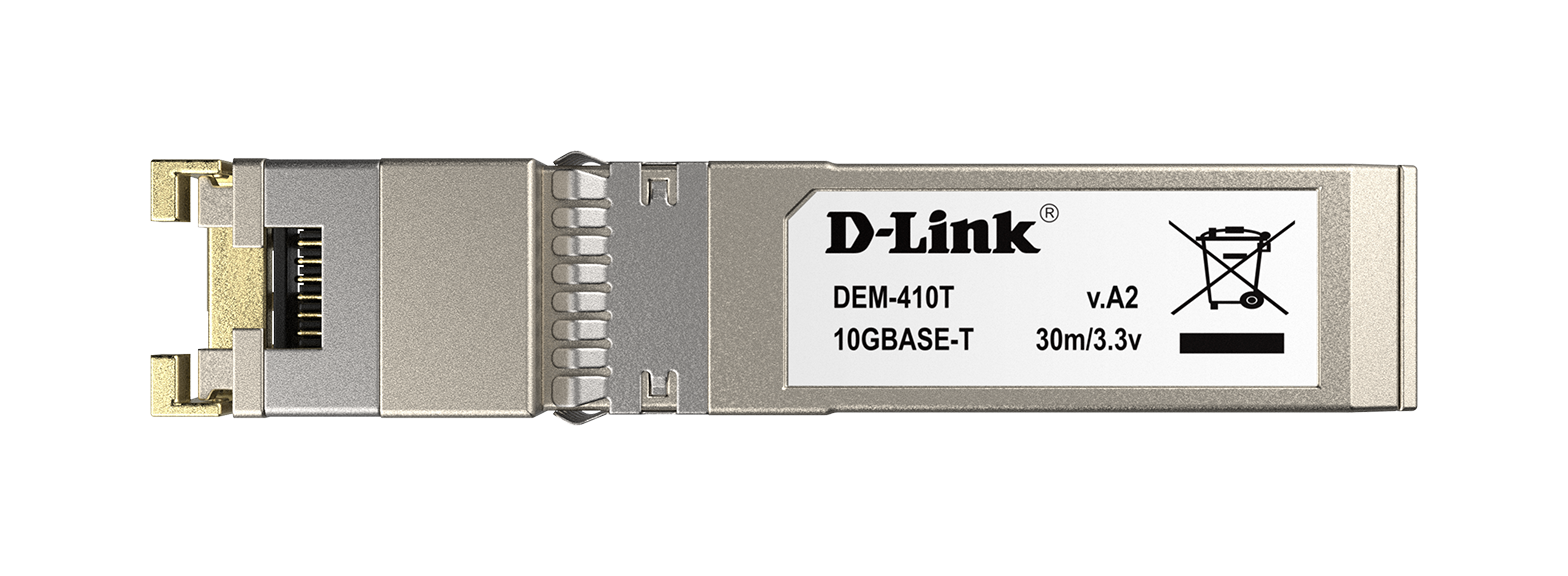

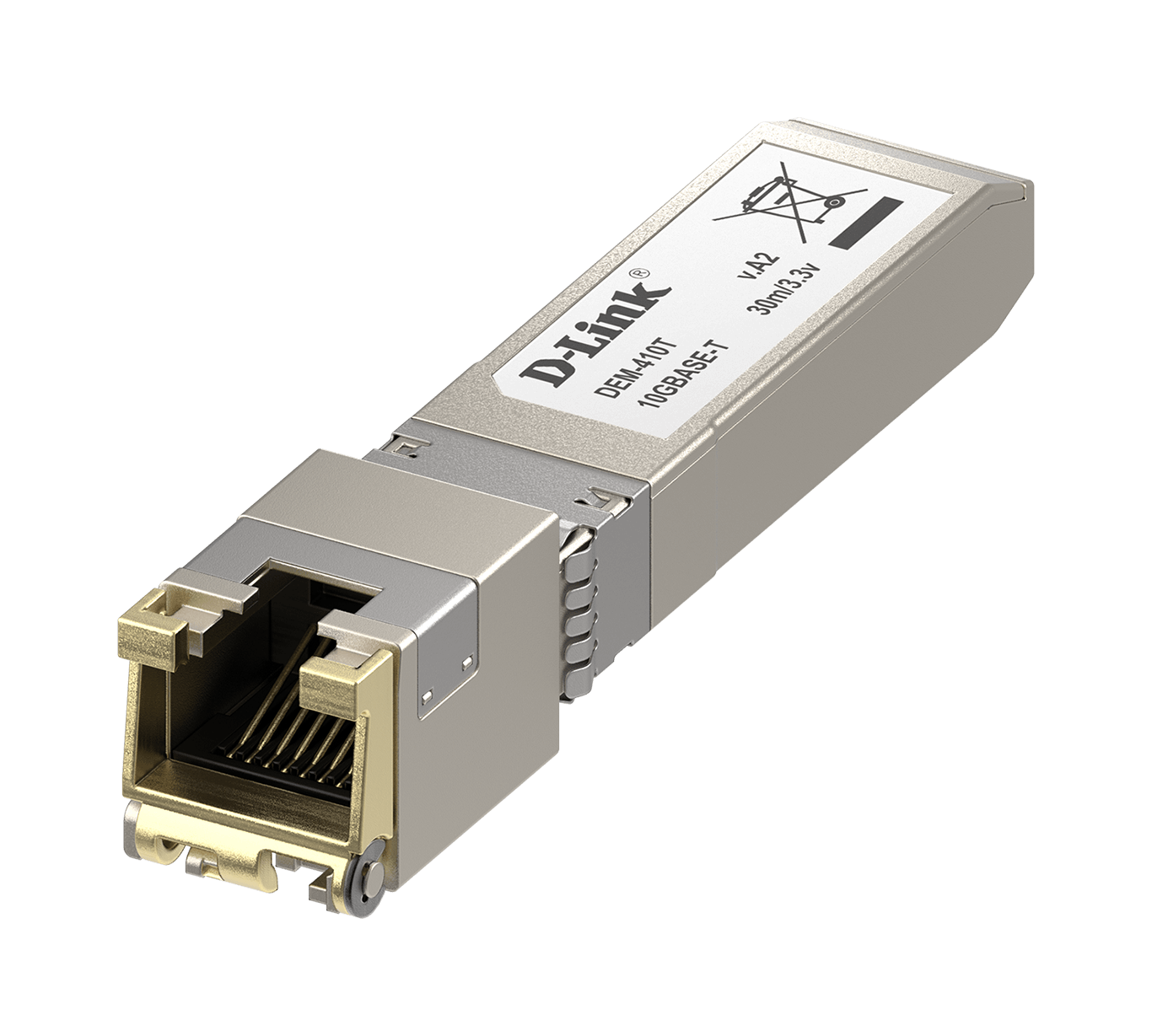

SFP+ 10GBASE-T Copper Transceiver
DEM-410T
- Product Status: Live
Where to buy
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
Related Products
![](/no/nb/-/media/product-pages/dxs/1210/b1/dxs121010ts12tc12sc16tcb1image-lfront.png?h=100&w=191&la=nb-NO&hash=7902FAB2E9CD5EE95C56AB6573C89EEC)
![](/no/nb/-/media/product-pages/dxs/3400/dxs340024tcsc-front.png?h=100&w=178&la=nb-NO&hash=1EC7E4FF518B2DFB08B36693B3C545F0)
![](/no/nb/-/media/product-pages/dgs/1510/dgs1510seriesa1image-lfront.png?h=100&w=178&la=nb-NO&hash=284876867E5709A2C587CDDA360735A8)
![](/no/nb/-/media/product-pages/dgs/3130/dgs_3130_30ts_30s_30ps_54ts_54s_54ps_side.png?h=100&w=140&la=nb-NO&hash=80B0522DB2A4F942CC6D085B4573050B)
![](/no/nb/-/media/product-pages/dgs/3630/series/dgs363028sc28tc28pc52tc52pca1image-lfront.png?h=100&w=178&la=nb-NO&hash=76F003F974FE5B11839FD4961A4545B7)
Specs
Features
- Hot Pluggable
- MSA Compliant: SFF-8431, SFF-8432
- RoHS Compliant
Specification
Compliant Standard
- IEEE 802.3an 10GBase-T IEEE
Transceiver Type
- RJ45
Max. Transmit Distance
- 10GBASE-T up to 30m with Cat 6a
Speed
- 10Gbps
Operating Power (V)
- 3.3V
Max Input Current (mA)
- 700mA
MTBF (hours)
- 217,186 hours
Operation Temperature (°C)
- 0~60℃
Storage Temperature (°C)
- -40~85℃
Operating Humidity (%)
- 5%~95%
Storage Humidity (%)
- 5%~95%
Dimension ( W x D x H mm)
- 13.7mm x 68mm x 8.5mm
Weight (g)
- 20g
Emission (EMI)
- FCC Class B, CE Class B VCCI, Class B
Safety
- LVD
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
DEM-410T datasheet | - | 0.33mb | Download |
Version | Description | Date | |
---|---|---|---|
Reach 1.03 RevA1 | - | 16.10.2023 | Download |
Reach 1.02 RevA1 | - | 15.05.2023 | Download |
CE doc UKCA 1.03 RevA1 | CE document | 17.10.2021 | Download |
CE doc UKCA 1.04 RevE1 | CE document | 15.10.2021 | Download |
Reach 1.01 RevA1 | - | 24.08.2021 | Download |
Reach 1.00 RevA1 | - | 16.06.2021 | Download |
CE doc 1.01 Revision A1 | CE document | 01.11.2018 | Download |
