• 48 V DC (24) ports 10/100BASE-T plus 2 Combo 10/100/1000Mbps Copper/ SFP ports*

• 8,000

• 8.8Gbps switching capacity

• Store-and-Forward

• 802.1d, 802.1w and 802.1s support

• Supports up to 255 Dynamic/ 64 Static VLAN groups (Port-based, Asymetric Port Based, 802.1q and GARP/GVRP)

• L2/L3/L4 filtering rules based On MAC address, IP Address, 802.1p, DSCP, TCP/UDP payload, and/or TCP/UDP port numbers

• 802.3ad and LACP support

• Port lock down to MAC Address

• Supports up to 128 L2 Multicast Groups

Interface Options

RJ-45

• 10BASE-T, 100BASE-TX & 1000BASE-T

• Support For Standard 3.3 Volt SFPs

Network Management

In Band & Out of Band

• Telnet, CLI/Console, RMON (4 Groups), Web-based HTTP, SNMPv1/v2c/v3 Compatible & Port Mirroring

Network Protocol and Standards

IEEE

• 802.3 Ethernet, 802.3u Fast Ethernet,802.3ad Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Group, 802.1p Priority Tags, 802.1Q VLANs, 802.3ad Link Aggregation Control, 802.3x Flow Control, 802.1x Port-based Network Access Control, and 802.1x MAC-based Network Access Control

• RFC 1157 SNMP, RFC 1757 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 1643 Ether-like MIB, RFC 2674 802.1p, IF MIB

Electrical & Electrical Emissions

Emissions

• CE Mark, & FCC Class A, C-Tick, VCCI Class A

• 60W DC Power Input; -48 V, output 12V. Internal universal power supply

Safety Agency Certifications

Safety

• CSA International

Physical and Environmental

Dimensions

• 441(W) x 207(D) x 44(H)mm (17.36 x 8.26 x 1.69 inches) 19-inch rack-mount width

• 1U

• 4.0 kg (8.89 lb.)

• Operating: 0° - 40° C (32° - 104° F)
• Storage: -40° - 70° C (-40° - 158° F)

• Operating: 5% to 95% RH, Non-Condensing

Warranty and Support Information

Warranty

• Limited Lifetime Warranty

• Free Technical Support

Ordering Information

• Part Number
• Description

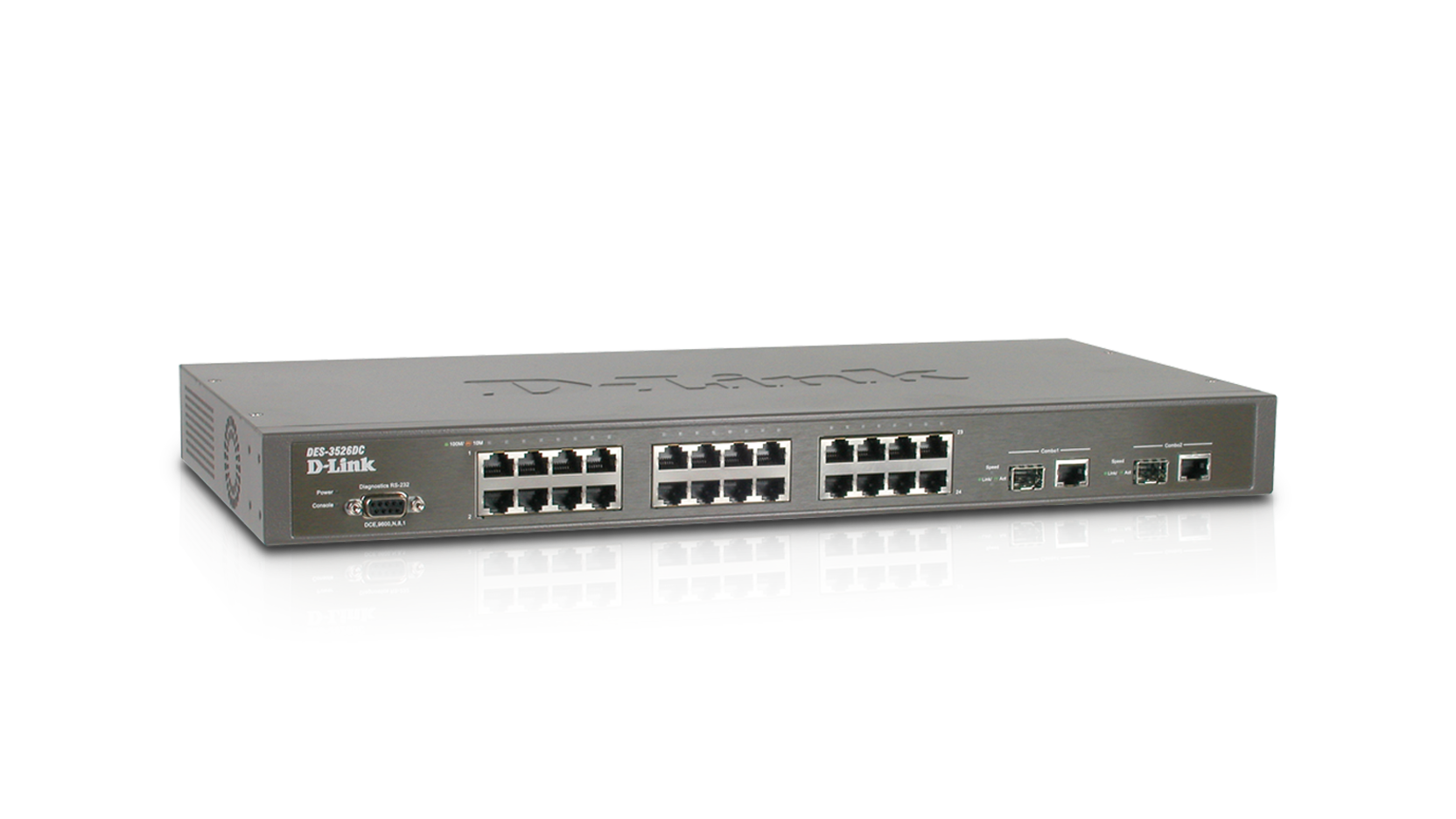

• -48V DC Managed stackable layer 2 switch with (24) 10/100Base-T ports , plus 2 10/100/1000 Copper/SFP ports*

• 1000BASE-LX 3.3V Mini GBIC Up to 550m (Multimode) Up to 10km (Singlemode)

• 1000BASE-SX 3.3V Mini GBIC, Up to 220m/550m (Multimode)

• 1000BASE-SX+ 3.3V Mini GBIC Up to 2km (Multimode)

• 1000BASE-LH+ 3.3V Mini GBIC Up to 50km (Singlemode)

• 1000BASE-ZX+ 3.3V Mini GBIC Up to 80km (Singlemode)
