Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots
DIS-700G-28XS
- Product Status: Live

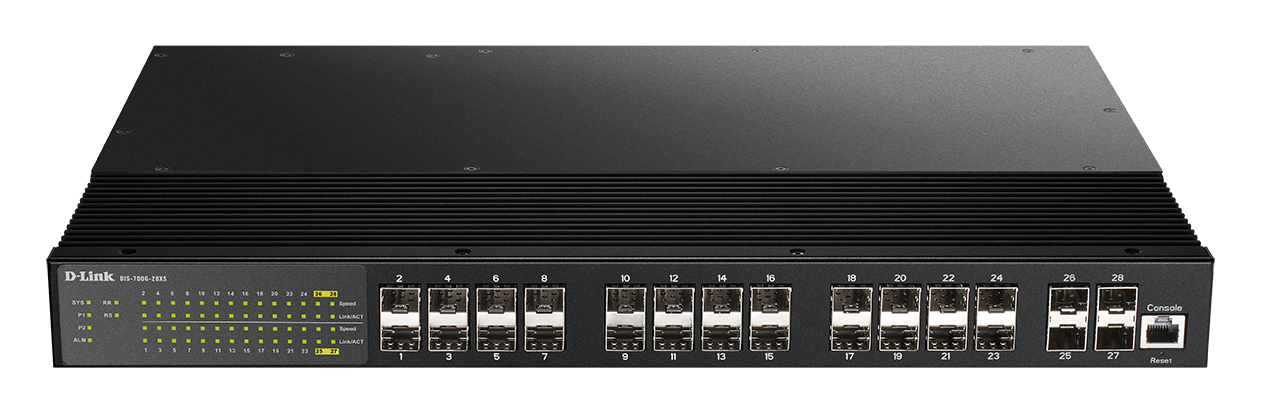

- 24 x SFP ports, 4 x 10G SFP+ slots
- Layer 2+ management features

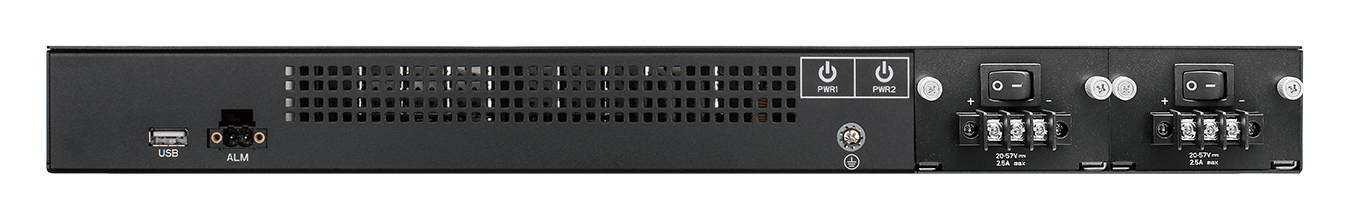

- High availability with redundant dual DC inputs
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMI, EMS
Where to buy
Features

For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.

Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.

Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Operates effortlessly in a range of industrial and harsh environments in temperatures from –40°C to +75°C.

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Rapid ring failover recovery time of < 20ms.

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Related Products





Specs
Type
|
Managed |
---|---|
Number of ports
|
16 to 30 ports |
Layer
|
Layer 2+ |
Main type of ports
|
SFP |
Type of uplink ports
|
10GbE SFP+ |
Fanless
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
<20ms link loss recovery
|
Supported
|
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
2048 |
VLAN type
|
Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) |
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
1 Kbps minimum granularity |
Three colour marker
|
1 Kbps minimum granularity |
Encryption protocol supported
|
SSH |
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
