1000BaseT to 1000BaseSX (SC) Multimode Media Converter
DMC-700SC
- Product Status: End of Life
Description

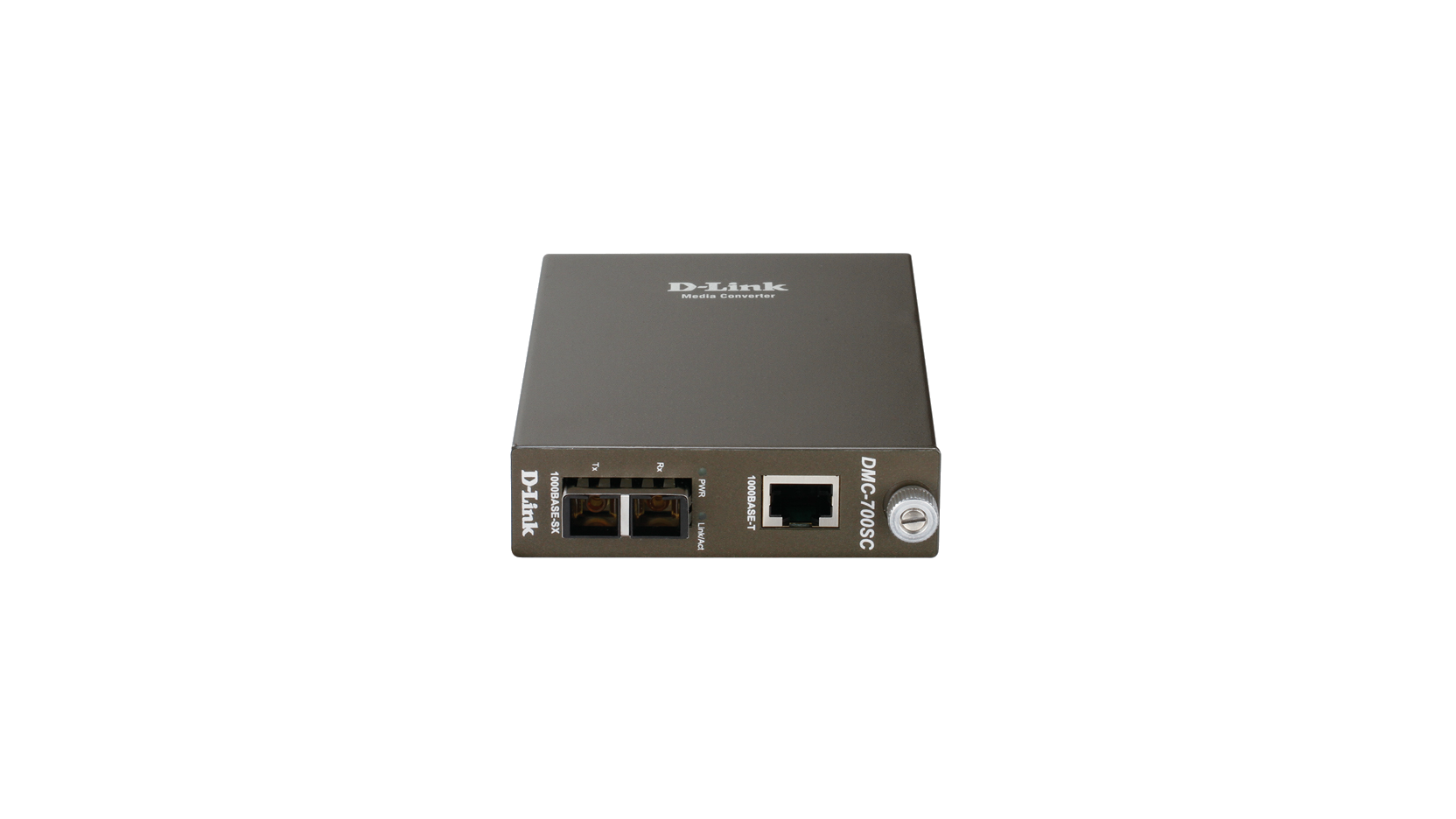

The DMC-700SC by D-Link® is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilising the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilising multimode fiber up to 550 meters.
The DMC-700SC by D-Link® is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilising the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilising multimode fiber up to 550 meters.
Specs
LED Indicators
Dimensions
Power Input
Operating Temperature
Storage Temperature
Humidity
Emission (EMI)
- Power (PWR)
- LINK/ACT
Dimensions
- 120 x 88 x 25 mm
Power Input
- 7.5V 1.5A
- Through external AC power adapter
Operating Temperature
- 0° - 40° C
Storage Temperature
- -25° - 70° C
Humidity
- 10 ~ 90% non-condensing
Emission (EMI)
- FCC Class B
- VCCI Class B
- CE Class B
- C-Tick
FAQ
- I lost the power supply for my media converter. How can I get a new one? Read Answer
- What do the lights indicate on the media converter modules? Read Answer
- What do the two switches on the DMC-700SC and DMC-810SC control? Read Answer
- What type of cable should I use on the copper port? Read Answer
Support
This product was phased out on: 28/09/2023
This product's last date of support is on: 13/05/2024
