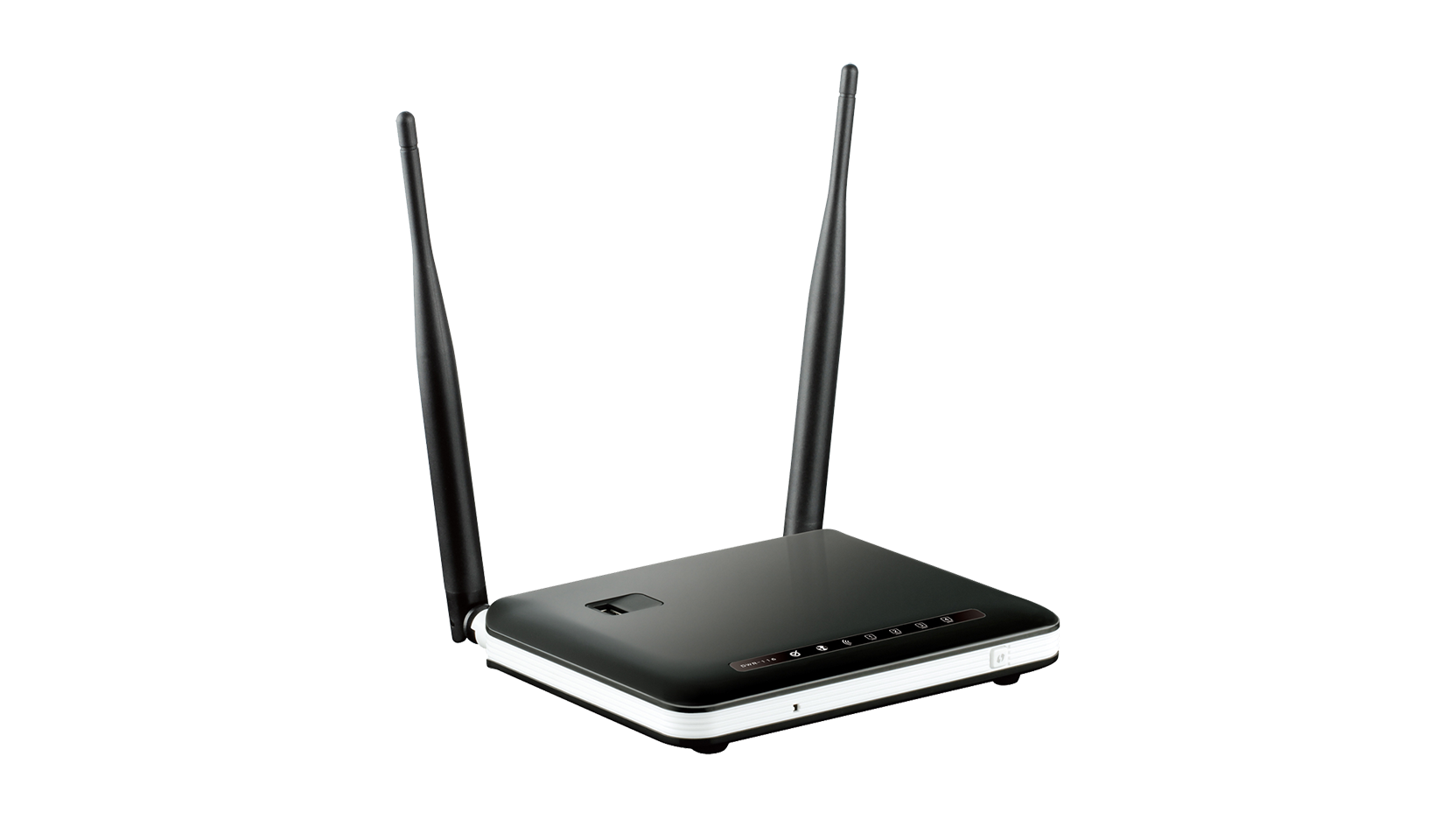

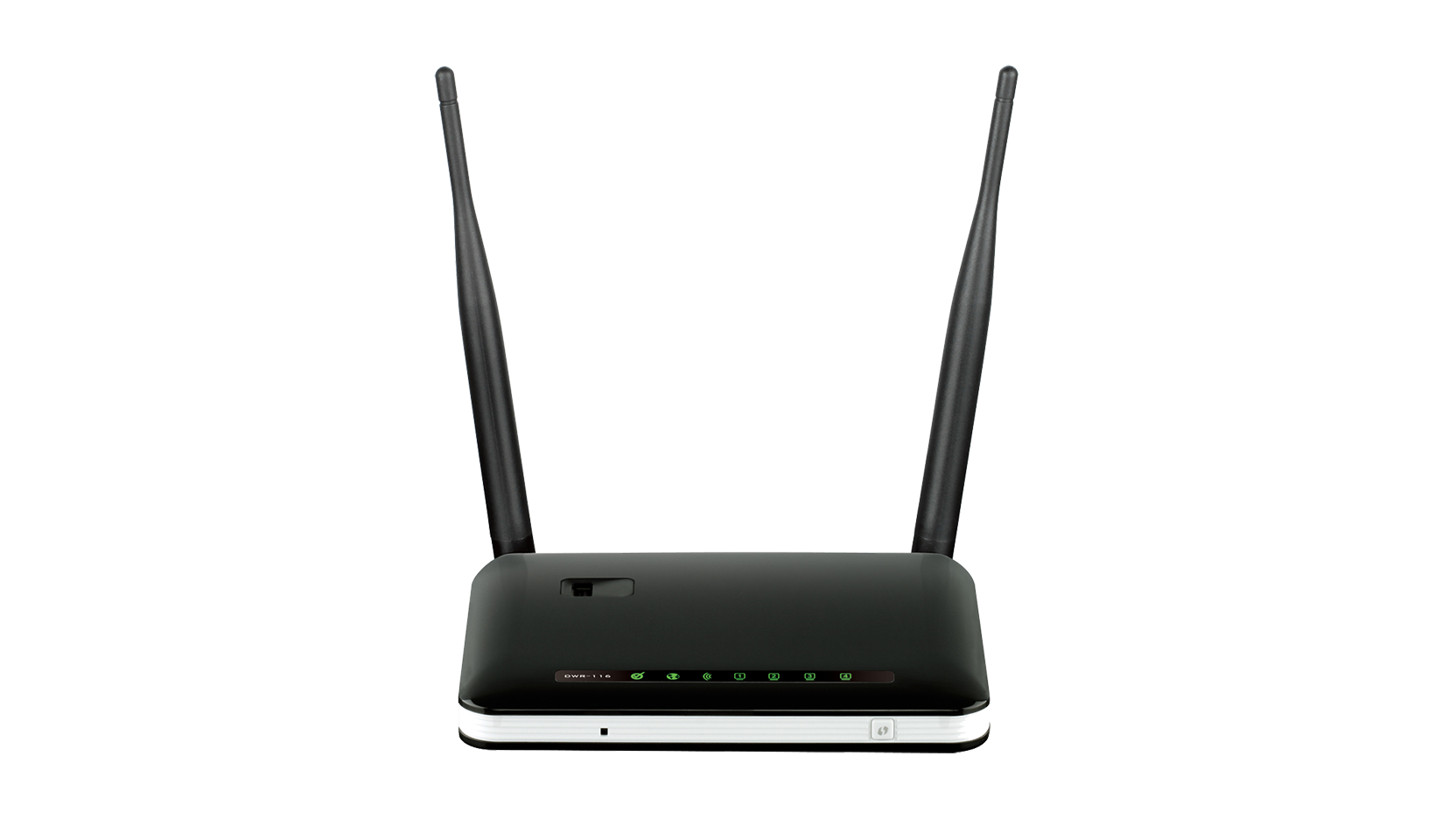

Wireless N300 Multi-WAN Router

DWR-116

  • Product Status (Revision A): End of Sale

The DWR-116 Wireless N300 Multi-WAN Router allows you to share superfast 4G LTE/3G mobile Internet3 simultaneously to your smartphone, tablet, notebook and desktop computer. Universal 4G LTE/3G USB dongle support from any mobile operator3, this is router is the ideal solution for setting up a Internet connection for work to share with your colleagues or when you are on holiday with your family and friends. Wireless N allows you to create a fast and secure high speed personal hotspot with wireless speeds of up to 300 Mbps1. Simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support allows you to combine Internet connections to give you faster Internet speeds. You can also set up fail-safe Internet should either connections fail.

Reliable, Uninterrupted and Faster Internet Connection

Create a load sharing and fail-safe Internet connection with simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support A 10/100 Ethernet WAN port allows you to attach a DSL/Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE/3G network whenever the WAN link is lost. Load sharing function allows the Internet connections to be combined to give you faster Internet speeds. The built-in QoS management feature also prioritises traffic to ensure that the most important data receives optimum bandwidth.

Incredible Wireless Speeds

The DWR-116 supports the latest, high-speed 4G LTE mobile broadband technology, allowing you to achieve blazing fast mobile broadband speeds. In addition to this, the Wireless N300 Multi-WAN Router’s N300 technology means that you can connect wireless clients to the router at up to 300 Mbps, with the enhanced range and reliability of the 802.11n wireless standard.

Advanced Network Security

The DWR-116 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DWR-116 also utilises dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.

Simple to Install and Use

The Wireless N300 Multi-WAN Router can be installed quickly and easily almost anywhere. The intuitive setup wizard will get you set up and connected in no time.  This router is great for situations where an impromptu wireless network is required, or where conventional wired network access is unavailable. The DWR-116 can even be installed on buses, trains, or boats, allowing passengers to access the internet while commuting.

1 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications when used with related Wireless N 300 devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
3 4G LTE/3G dongle not included. Please consult D-Link website for a list of compatible 4G LTE/3G USB dongle. Additional 4G LTE/3G USB dongle may be supported with future software updates. Please check regional mobile operators for 4G LTE/3G mobile Internet availability.

Wireless standard
Wireless N
Wireless speed
300 Mbps 2.4 GHz
Antenna type
2 fixed omni-directional antennas

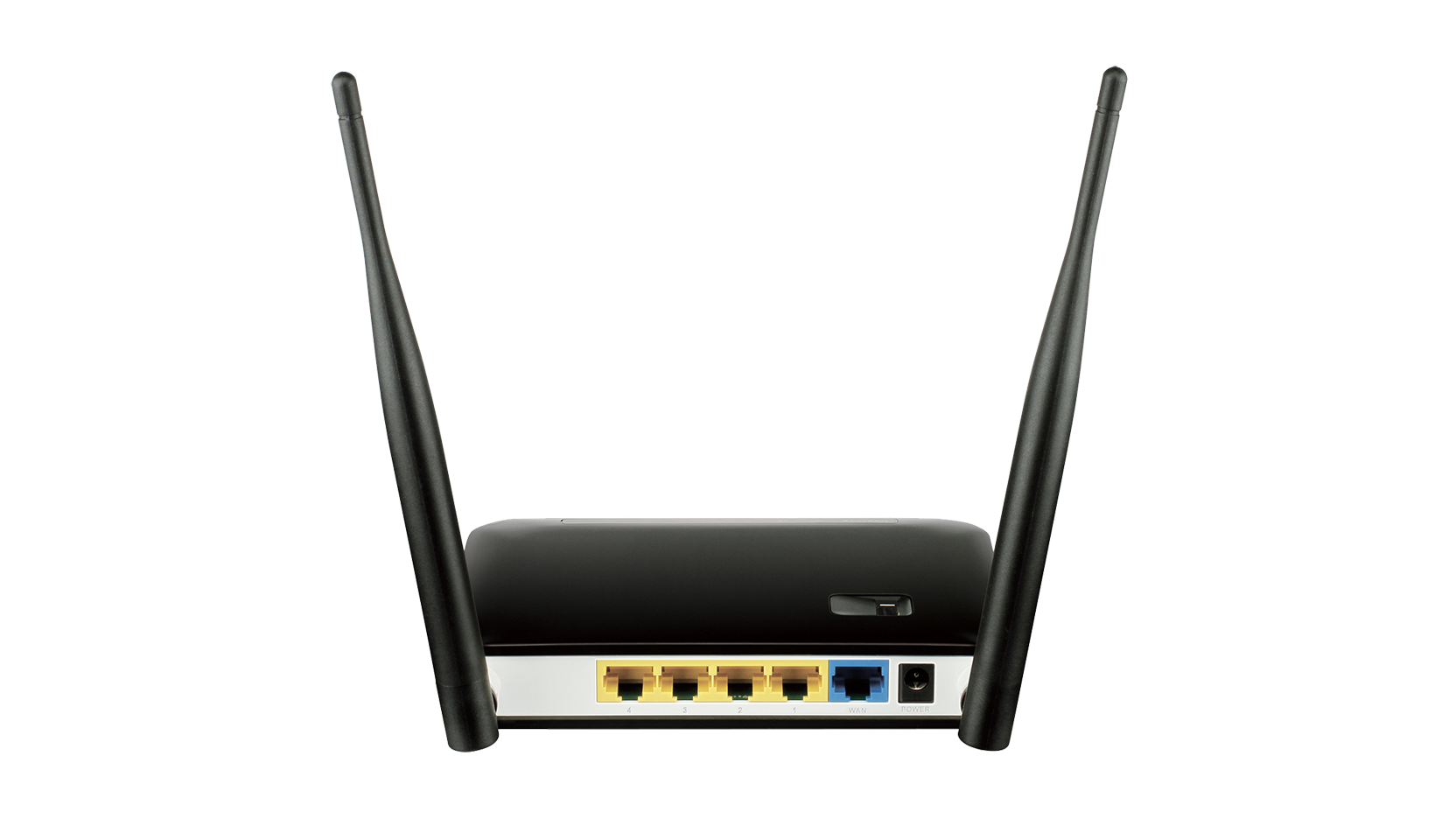

Wired interface
1 x Fast Ethernet WAN
4 x Fast Ethernet LAN
3G/4G LTE support
3G/4G LTE via optional USB dongle
USB ports
1 x USB 2.0
This product was phased out on: 23/09/2020
Version Date Type File Size
Datasheet - PDF 0.56mb Download
Version Description Date Type File Size
Product manual

Product manual

12.12.2013 PDF 6.84mb Download
Version Description Date Type File Size
QIG 1.20 Revision A2

Quick installation guide

02.11.2016 - - Download
1.00

Quick installation guide

12.12.2013 PDF 0.68mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.06b03 Firmware 19.02.2018 - Download
Version Description Date
CE doc 1.20 RevisionA2 CE document 11.05.2016 Download
DWR_116_modem_card_support_list_Q1_2016 DWR-116 USB modem card support list 02.03.2016 Download
