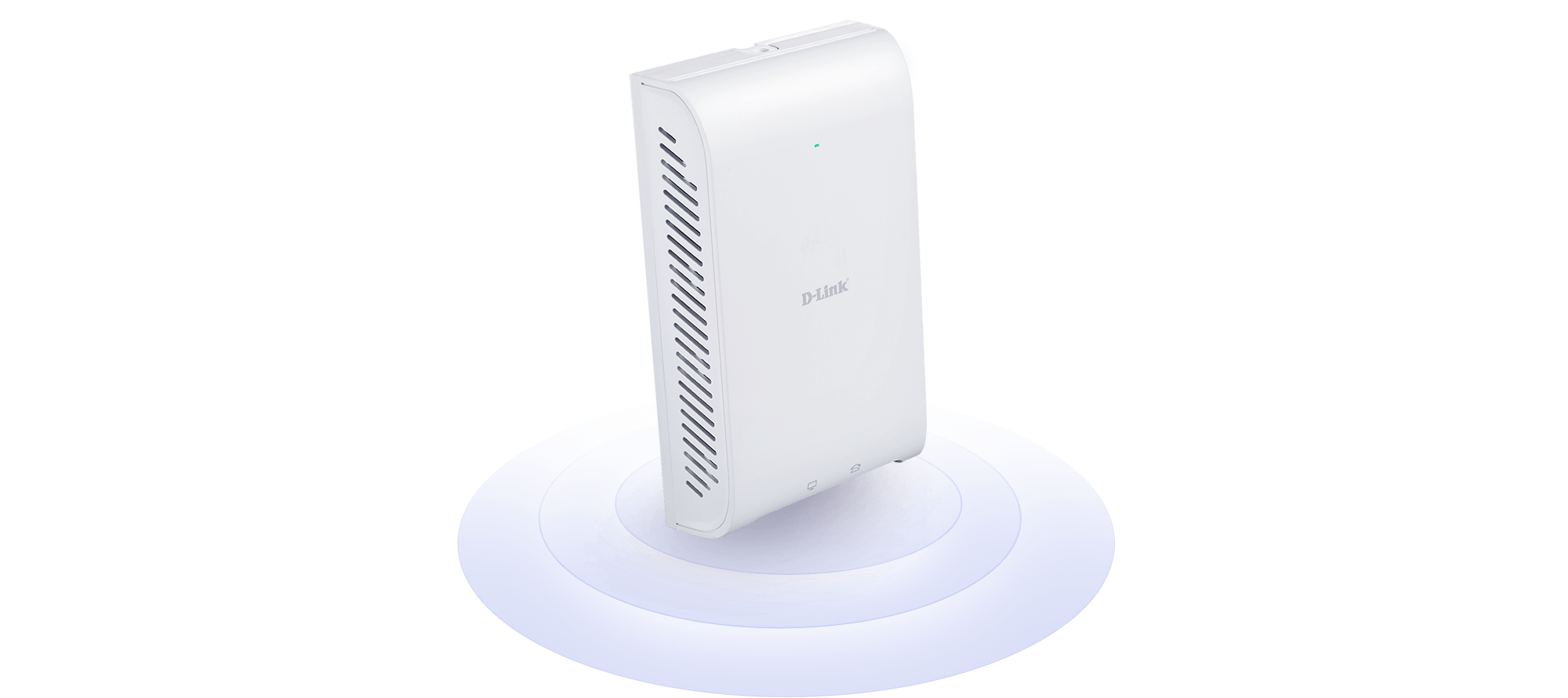

Wireless AC1200 Wave 2 In-Wall PoE Access Point
DAP-2620
- Product Status (Revision A1): End of Sale
There's a new version of this product:

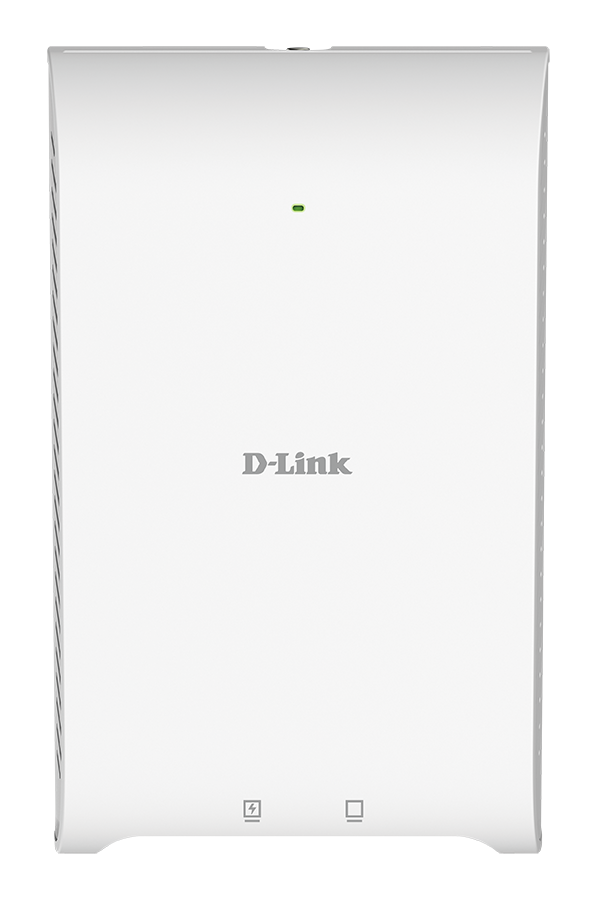

Trådlös AC1200 Wave 2 Väggmonterad PoE accesspunkt
DAP-2622
See Newer ProductThere's a new version of this product:
DAP-2622
Trådlös AC1200 Wave 2 Väggmonterad PoE accesspunkt
Overview
- Kompatibel med Nuclias Connect för centraliserad nätverksadministration
- IEEE 802.11ac Wave 2 trådlöst, upp till 1200 Mbps
- MU-MIMO med beamforming
- Gigabit LAN-port och stöd för 802.3at PoE
- Väggplatta för installation i eldosor
- WPA/WPA2 Personal/Företags-kryptering
Overview
- Kompatibel med Nuclias Connect för centraliserad nätverksadministration
- IEEE 802.11ac Wave 2 trådlöst, upp till 1200 Mbps
- MU-MIMO med beamforming
- Gigabit LAN-port och stöd för 802.3at PoE
- Väggplatta för installation i eldosor
- WPA/WPA2 Personal/Företags-kryptering
Wave 2 Wi-Fi with Band Steering
Fast wireless speeds of up to 1200 Mbps1. Automatically steers traffic to the fastest, least congested band.
MU-MIMO och beamforming
Gör att flera enheter kan anslutas samtidigt för förbättrad effektivitet. Och skapar riktade Wi-Fi-anslutningar för överlägsen Wi-Fi-bandbredd.

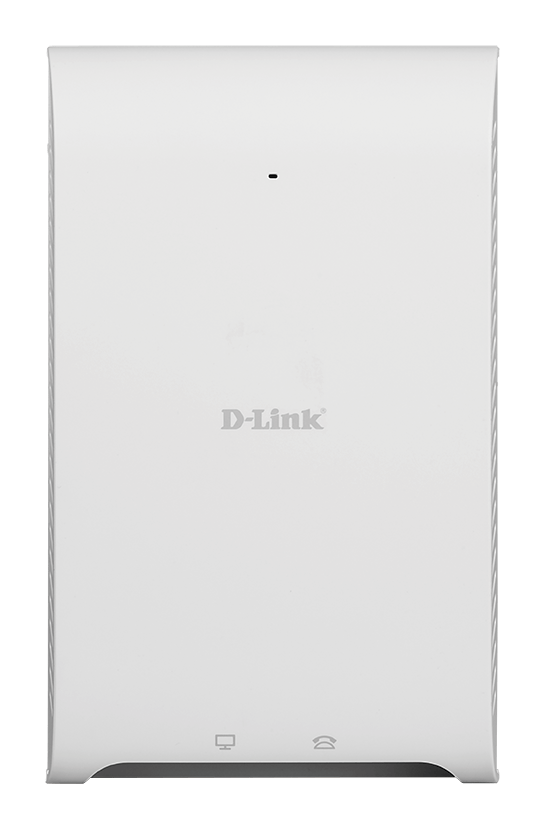

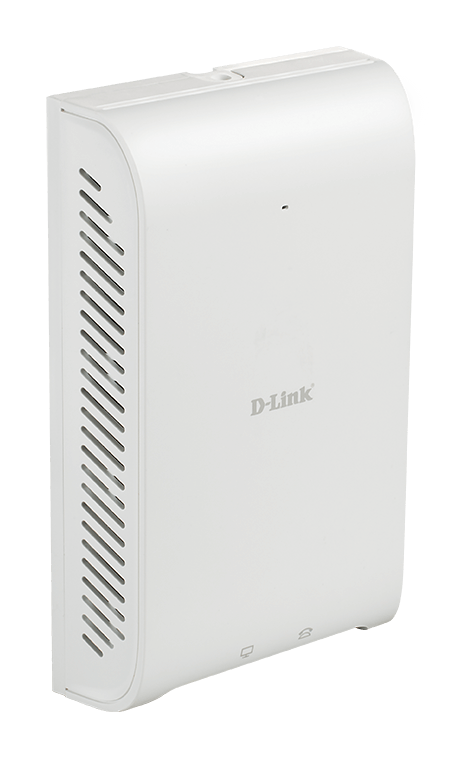

In-Wall Design

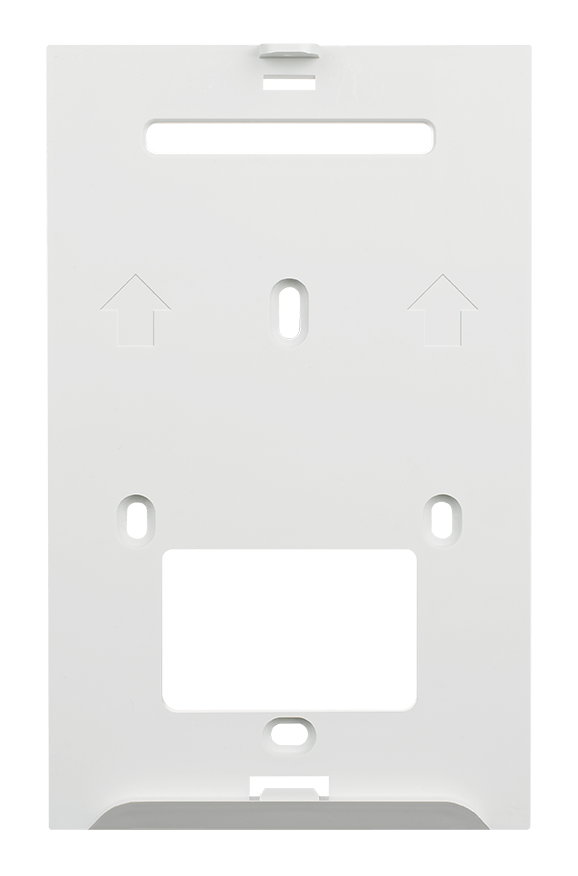

Wall-plate mount and discreet design to convert an Ethernet wall socket into an access point. Includes an RJ11 phone line port.
Hög säkerhet med centraliserad nätverksadministration
Använd som en fristående accesspunkt eller administrera centralt via den kostnadsfria programvaran Nuclias Connect.
Multiple Operational Modes
Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.
Built-in security
Supports wireless LAN segmentation, VLAN, and Personal and Enterprise versions of WPA2/WPA.
Easy-mount setup with PoE
802.3at Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren't available.
Turn an Ethernet socket into fast Wi-Fi.
Bring centrally manageable dual-band Wi-Fi to hospitals, hotels, student accommodation and any premises with Ethernet sockets in the rooms. Easily convert an Ethernet socket into an access point with cutting-edge 802.11ac Wave 2 Wi-Fi speeds, and greater network efficiency and security.

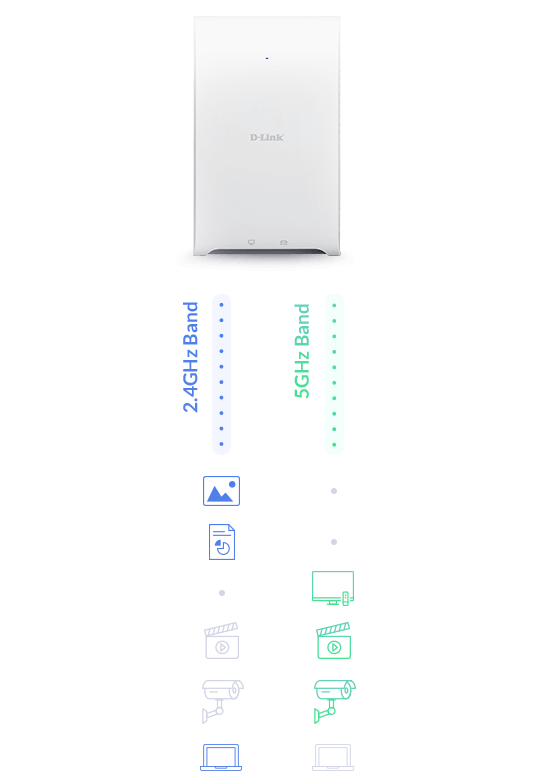

Reliably faster Wireless AC performance.
Designed for reliable, high-speed wireless connectivity using the latest 802.11ac Wave 2 technology. It uses maximum wireless signal rates of up to 867 Mbps over the 5 GHz band and 300 Mbps over the 2.4 GHz band1.
 | Band steering Detects dual-band capable devices and automatically connects them to the less congested, faster 5 GHz band. |
 | MU-MIMO Sends high-bandwidth Wi-Fi to multiple devices at the same time, for greater network data efficiency and a superior Wi-Fi experience for your clients. |

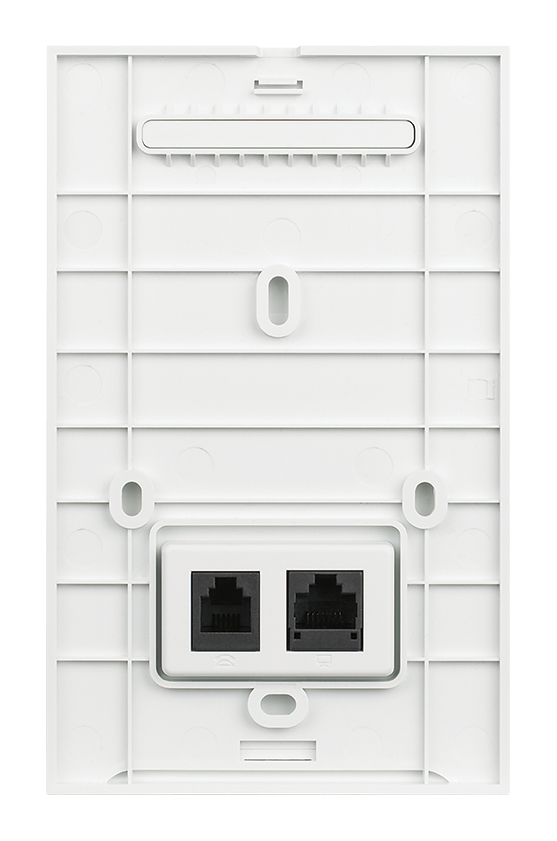

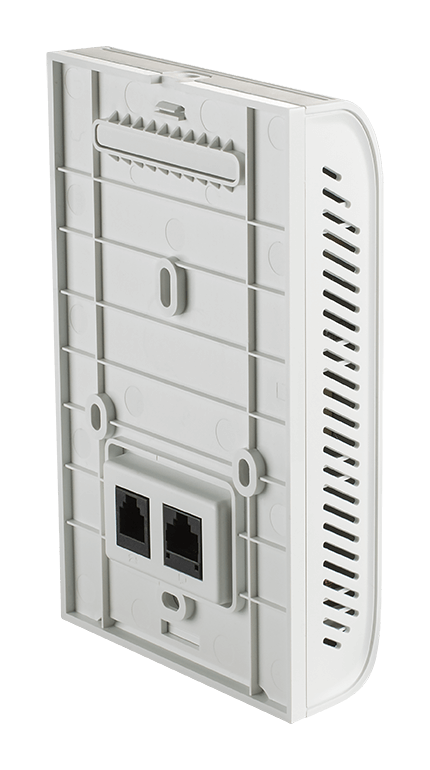

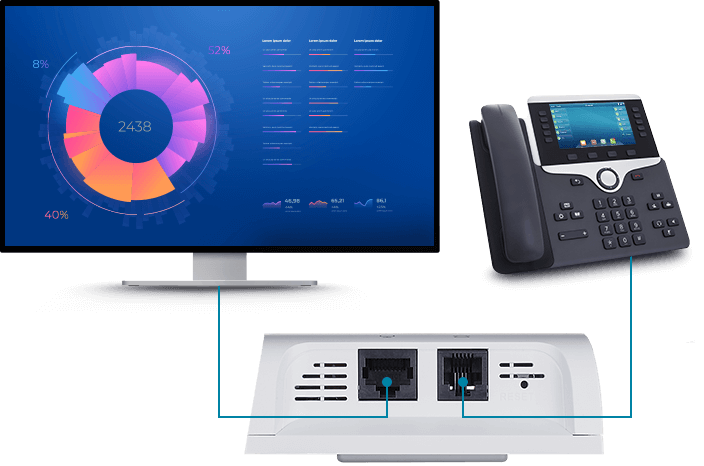

Flexible ports for data and a phone line.

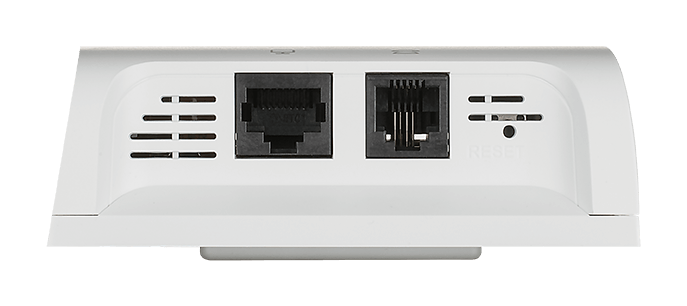

Utilise Gigabit Ethernet in an instant. Connect to a computer or smart tv in a room by utilising the Gigabit LAN port, and bring a phone to a room by using the RJ11 port at the bottom of the device.

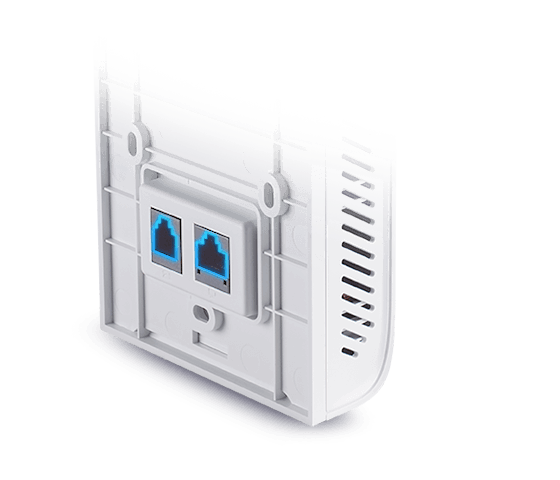

Hassle-free installation
Convert an Ethernet wall socket into a fast Wi-Fi hotspot without any hassle. Its discreet, wall-plate design makes installation over an Ethernet wall socket easy and painless.
Integrated 802.3af Power over Ethernet (PoE) support makes for more convenient deployments using a single Ethernet cable, so that no additional cables are required when connecting to a PoE Switch. Simply remove the Ethernet wall socket and replace it with the DAP-2620.
Strong security.
Create highly secure wireless networks with Personal and Enterprise versions of WPA, WPA2. The AP also supports a built-in RADIUS server, MAC address filtering, wireless LAN segmentation, captive portal with industry-standard authentication, and wireless broadcast scheduling to protect the network.
Your network, your way.
Customise your network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

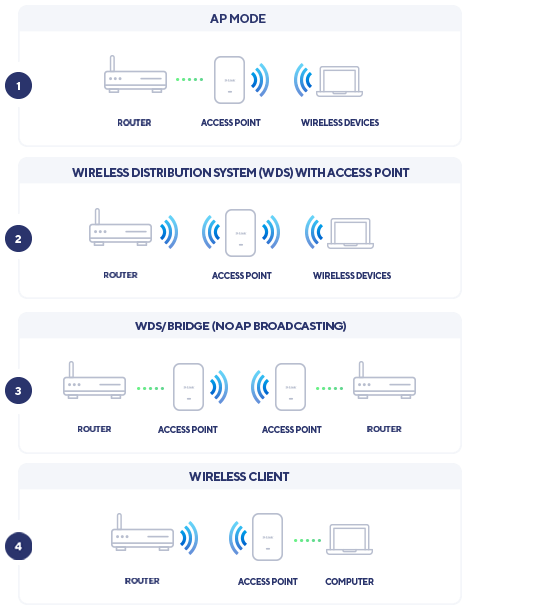

Configure the AP to optimise network performance based on any one of its multiple operational modes:
Access Point
Add wireless connectivity to an existing wired network.
Wireless Client
Add wireless connectivity to one device which doesn’t have a Wi-Fi adapter.
WDS
Wirelessly combine two separate networks.
WDS with AP
Wirelessly combine two separate networks while also providing wireless connectivity to both networks.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)2 provides hardware-based, centralised network management.
Kostnadsfri service nästa arbetsdag
Som standard får du gratis service nästa arbetsdag för att snabbt ersätta felaktig utrustning.
Vår snabba tekniska support är utformad för att ge företag bästa möjliga support för deras unika miljö. Vår förlängda garanti och våra utökade servicepaket ökar garantitiden och minimerar stilleståndstiden ytterligare.
Vi är här för att hjälpa dig
Över 35 år inom nätverksbranschen
Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.
Det är enkelt att prata med oss
Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.
D-Link Begränsad Livstidsgaranti
Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.
Related Products
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
2 dBi for 2.4 GHz 2 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN 1 x RJ11 |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2 Available Q2, 2020. Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.54mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.00 RevA1 | Product Manual | 2020-05-20 | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| FW 1.00 RevA1 | Firmware | 2019-10-29 | - | Download |
| Version | Description | Date | |
|---|---|---|---|
| Nuclias Connect | Free remote centralised network management software | 2019-09-09 | Download |
