Single-mode Fiber Gigabit 1000Base-ZX SFP-transceiver för långdistans (80 km)

DEM-315GT

  • Product Status: End of Life
  • Single-mode fibre transceiver
  • Up to 80 km. signal transmission
  • Hot-swappable

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

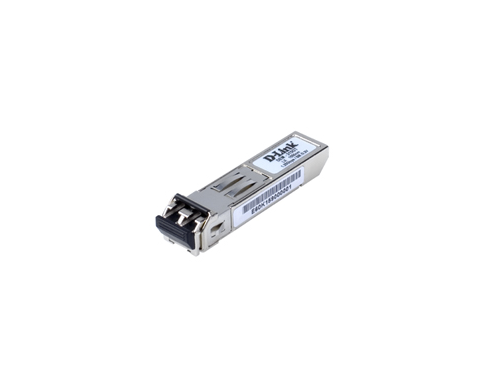

The DEM-315GT is a high performance 1550nm singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on singlemode fiber for distances of up to 80km on 9µm fiber. The unit features a metal housing to reduce EMI and to increase durability. The DEM-315GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

* Third-Party Devices Must Comply With specified Supported Industry-Standard Specifications

* Actual product appearance may differ from the image displayed on this page

  • 1000BASE-ZX port (IEEE 802.3z-standard)
  • Hot-swappable
  • Duplex-LC kontakt
  • Mycket låg paketfördröjning
  • Full duplex-drift
  • Stöd för flödeskontroll enligt 802.3x
  • Fibertyp: 9/125 um single-mode fiber upp till 80 km
  • Våglängd: 1 550 nm
  • Spänningsstöd: 3,3 V
  • Effektbudget: 22 dB
  • Låg effektförlust < 700 mW
This product was phased out on: 10/03/2014
This product's last date of support is on: 09/03/2016
Version Date Type File Size
Datasheet (English) - PDF 1.04mb Download
Version Description Date
DEU_CE_Declaration_RevD1 CE Declaration 2006-09-27 Download
DEU_CE_Devclaration_RevC1 CE Declaration 2006-09-27 Download
DEU_CE_Declaration_RevB1 CE Declaration 2004-07-05 Download
