1-Port GBIC Transceiver 1000Base LX, Singlemode Fiber, max. 5 km (3,3 V 5 V)
DGS-702
- Product Status (Revision A): End of Life
Description

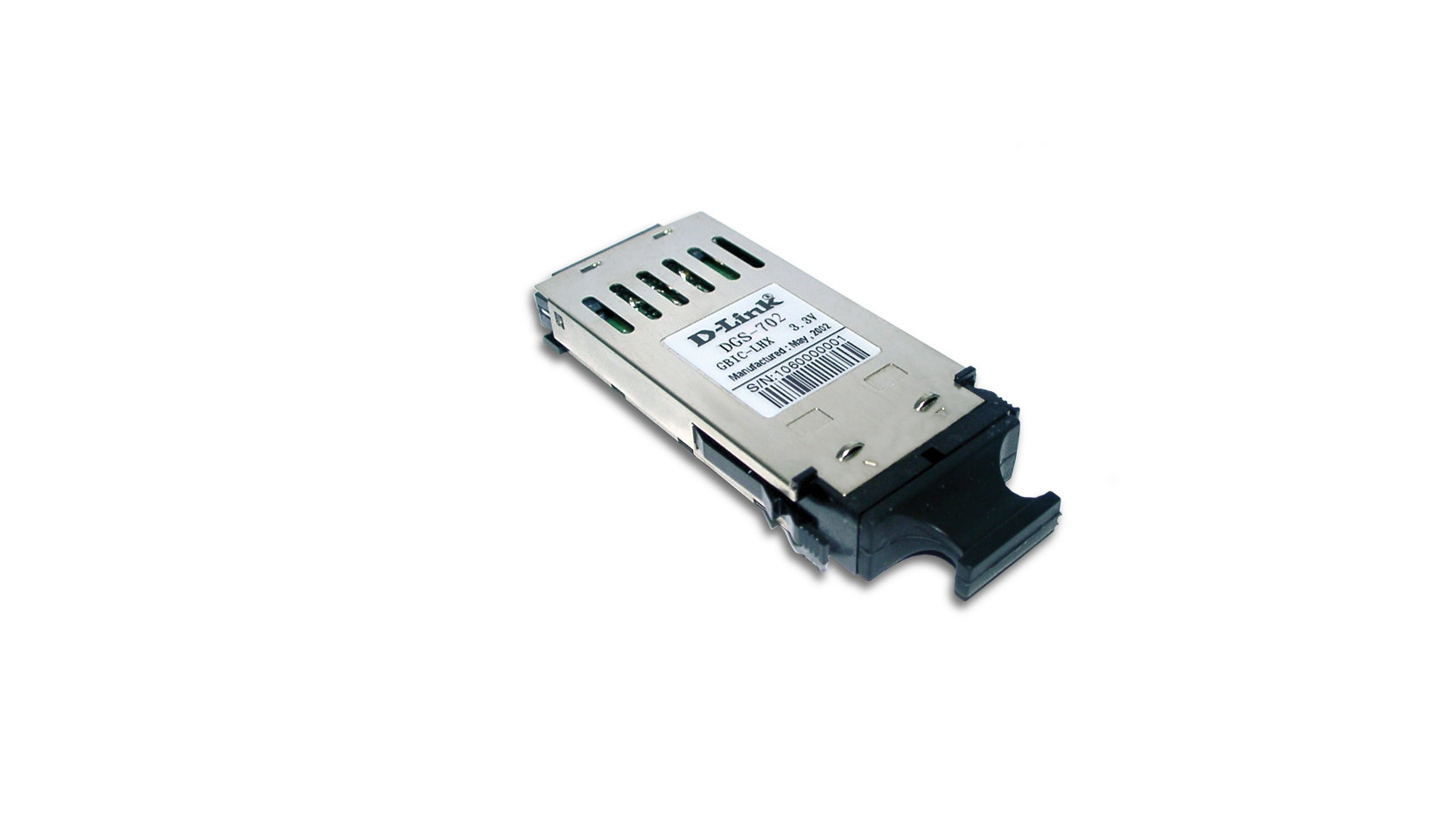

The DGS-702 is a high performance 1310nm multimode/singlemode GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DGS-702 is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
D-Link's new line of Gigabit Interface Converters (GBICs) and Small Form-Factors Pluggable (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link's new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.
* Third-Party Devices Must Comply With specified Supported Industy-Standard Specifications
The DGS-702 is a high performance 1310nm multimode/singlemode GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DGS-702 is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
D-Link's new line of Gigabit Interface Converters (GBICs) and Small Form-Factors Pluggable (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link's new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.
* Third-Party Devices Must Comply With specified Supported Industy-Standard Specifications
Specs
Technical Specifications
Product/Performance Specifications
Data Rate Gigabit
Data Rate Fiber Channel
Optical Receiver Sensitivity
Transmission Range
62.5/125µm
50.0/125µm
9/125µm
Interface Options
Connector Type
Standards
IEEE
Operational Ranges
Supply Voltage
Max Voltage
Max Current
Physical Specifications
Dimensions (WxDxH)
Safety Certifications and Environmental Information
Class 1 Laser
FDA 21
Operating Temperature
Storage
Operating Humidity
Warranty and Support Information
Warranty
Support
Ordering Information
DGS-702
Product/Performance Specifications
Data Rate Gigabit
- 1.250Gbps (Bi-Directional)
Data Rate Fiber Channel
- 1.062Gbps (Bi-Directional)
Optical Receiver Sensitivity
- -10.5dBm (Max)
Transmission Range
62.5/125µm
- Up to 550m
50.0/125µm
- Up to 550m
9/125µm
- Up to 10km
Interface Options
Connector Type
- SC Type
Standards
IEEE
- 802.3z
Operational Ranges
Supply Voltage
- 3.1-3.5V
Max Voltage
- 6.0V
Max Current
- 300mA
Physical Specifications
Dimensions (WxDxH)
- 1.19x0.47x2.25 in
Safety Certifications and Environmental Information
Class 1 Laser
- EN 60825-1
FDA 21
- 1040.10 & 1040.11
Operating Temperature
- 0°- 70° C (32° - 158° F)
Storage
- -40° - 85° C (-40° - 185° F)
Operating Humidity
- 10% to 85%
Warranty and Support Information
Warranty
- Limited 3 Year Warranty for as long as the original customer/end user owns the product, (excluding power supplies and fans). Power supplies and fans carry a limited 3 year warranty.
Support
- Free Technical
Ordering Information
DGS-702
- 1000BASE-LX Multimode/Singlemode GBIC
Support
This product was phased out on: 29/11/2006
This product's last date of support is on: 28/11/2011
