JustConnect 16-Channel H.265 PoE Network Video Recorder
DNR-4020-16P
- Product Status: End of Sale
All-In-One Solution
Standalone NVR solution with no need for additional computer or software
16-Channels
Simultaneously record and view real-time video streams from up to 16 cameras
PoE Capable
16 x 802.3af PoE ports with a total PoE power budget of 120 W
High Efficiency Video Coding
Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements
Dual Bay SATA
Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity

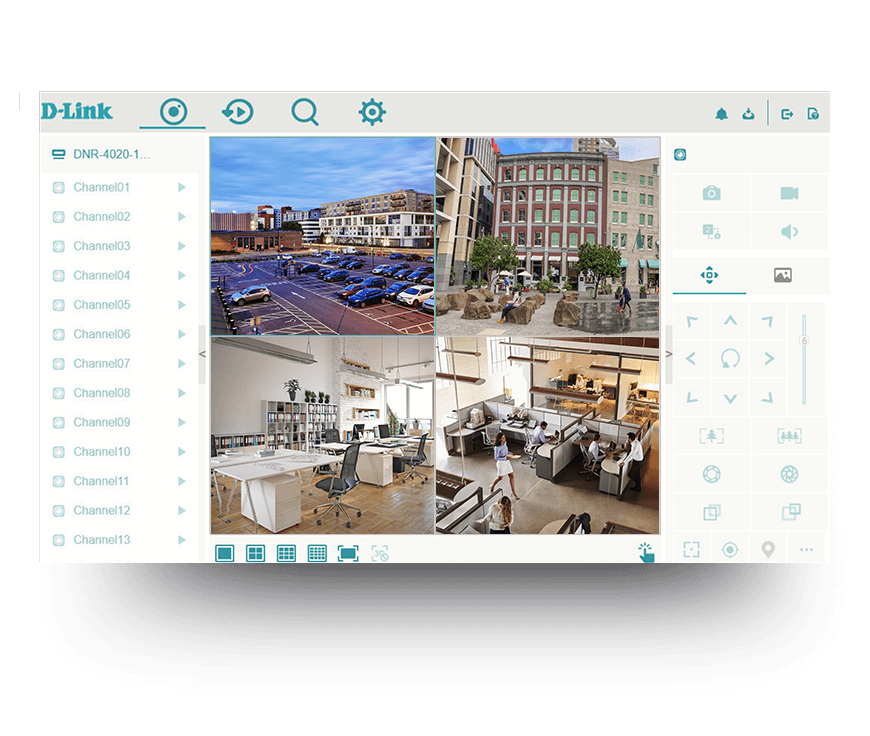

User-Friendly Interface
Provides 16 channels of simultaneous live view, recording, playback, and PTZ control

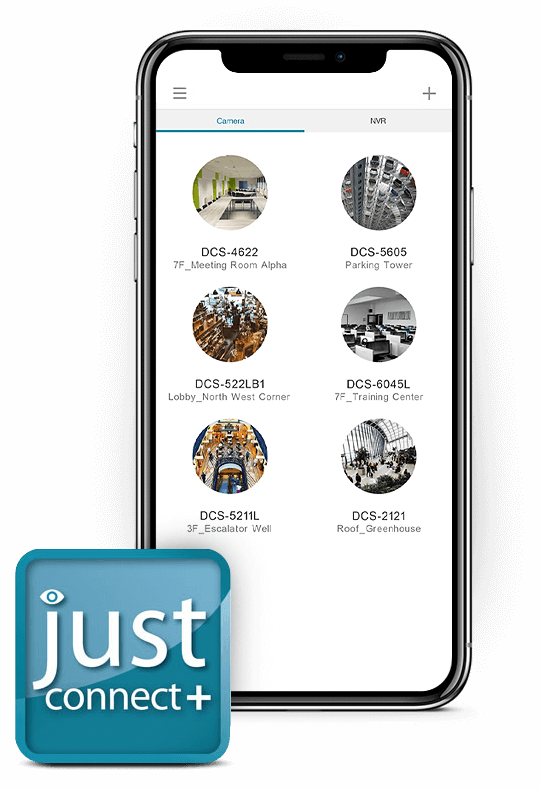

JustConnect+ App
Mobile app allows easy and remote access on a mobile device
2-Year D-Link Warranty
You're protected by one of the global leaders in the industry
Specs
|
Channel Number
|
16 channels |
|---|---|
|
Compression Format
|
H.264 H.265 |
|
Video Output
|
HDMI VGA |
|
Display Mode
|
1, 4, 6, 9, 10, 13, 16 split screen |
|
PTZ Control
|
Supported
|
|
Audio
|
2-way |
|
Recording Type
|
Digital Input Edge Motion Detection by Camera Manual Motion Event Schedule |
|
Post-Recording Period
|
30/40/50/60 seconds |
|
Audio Recording
|
Supported
|
|
Auto/Scheduled Recycling
|
Supported
|
|
Simultaneous Playback
|
16 channels |
|
Video Control
|
Play, stop, pause, forward, backward, next, previous |
|
Digital Zoom
|
4X |
|
Audio Control
|
Supported
|
|
Video Search
|
Camera Event Time |
|
Video Export Format
|
MP4 |
|
Event to E-mail
|
Supported
|
|
Event to Alarm
|
Supported
|
|
Event by Signal Lost
|
Supported
|
|
Client Viewer
|
JustConnect+ App Web browser |
|
Remote View
|
Supported
|
|
Playback Viewer
|
Playback manager via browser |
|
Supported Camera
|
D-Link |
|
Number of HDD Bay
|
2 |
|
HDD Configuration
|
JBOD |
|
Network Interface
|
1 x Gigabit port |
|
Backup Options
|
USB |
