Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
- Product Status: Live
- 802.11ac Wave 2, Dual-Band, up to 2.5 Gbps2
- 4 Internal Omnidirectional Antennas
- Up to 64 dynamic VLANs per access point
- 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
- Link Aggregation
AC2500 Wave 2
Combined wireless speeds of up to 2.5 Gbp2 with 802.11ac Wave 2 technology
Dual-Band Wi-Fi
Two bands to improve throughput and coverage. Reduces co-channel interference.

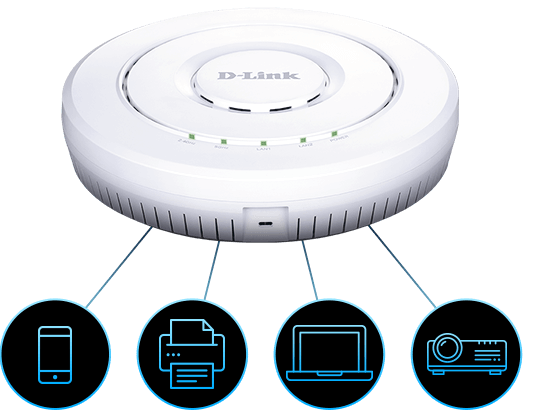

4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network

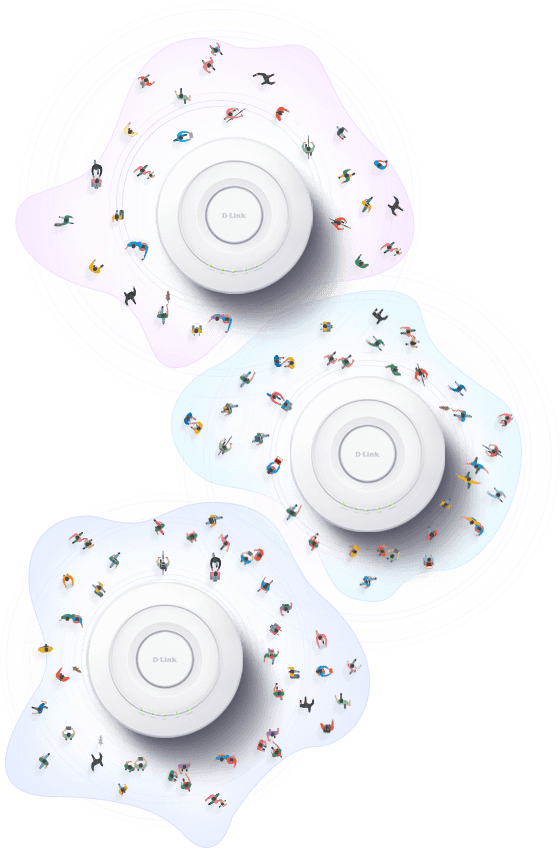

Automatic Radio Frequency (RF) Management
Greatly reduces RF interference and enables denser AP deployments.
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

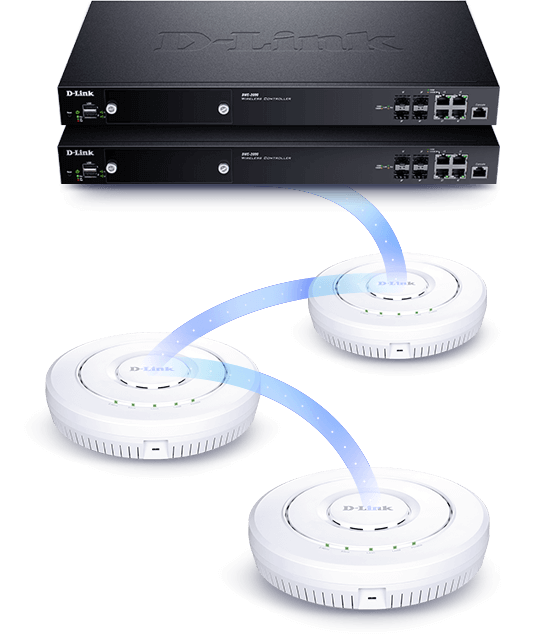

Centrally Managed
Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.
Related Products
Wireless Controller
DWC-1000
Wireless Controller
DWC-2000
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna
DWL-6620APS
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1733 Mbps 5 GHz 800 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

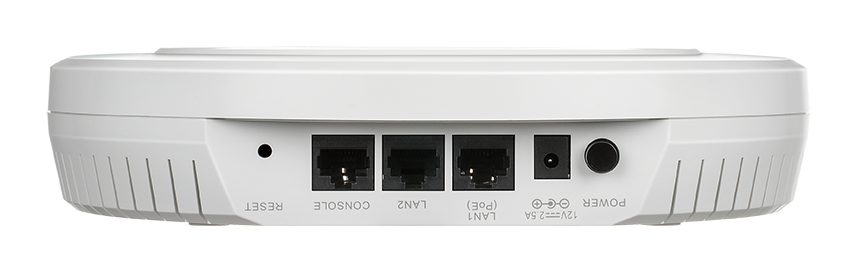

Wired interface
|
2 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client Wireless extender |
|
Advanced features
|
Fast Roaming MU-MIMO |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
