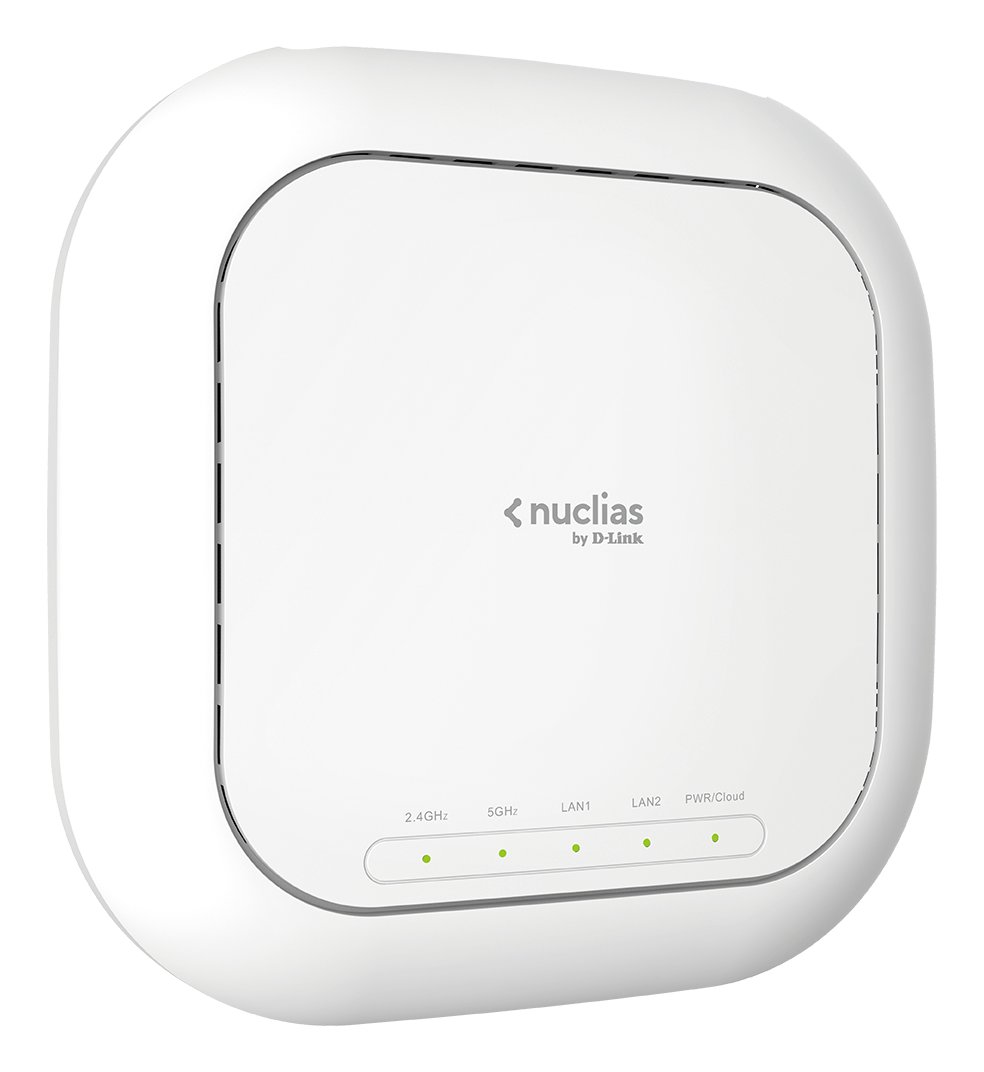

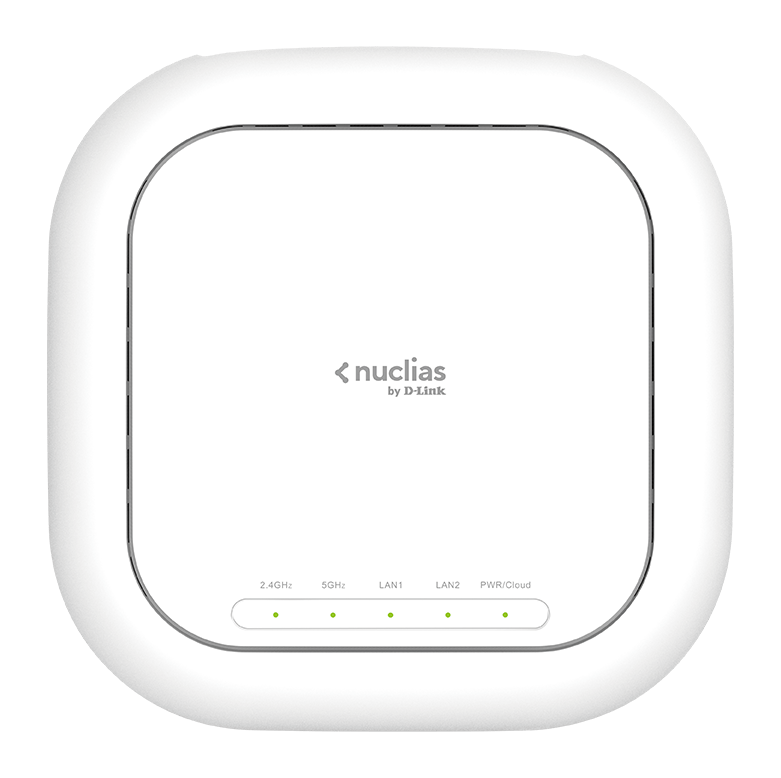

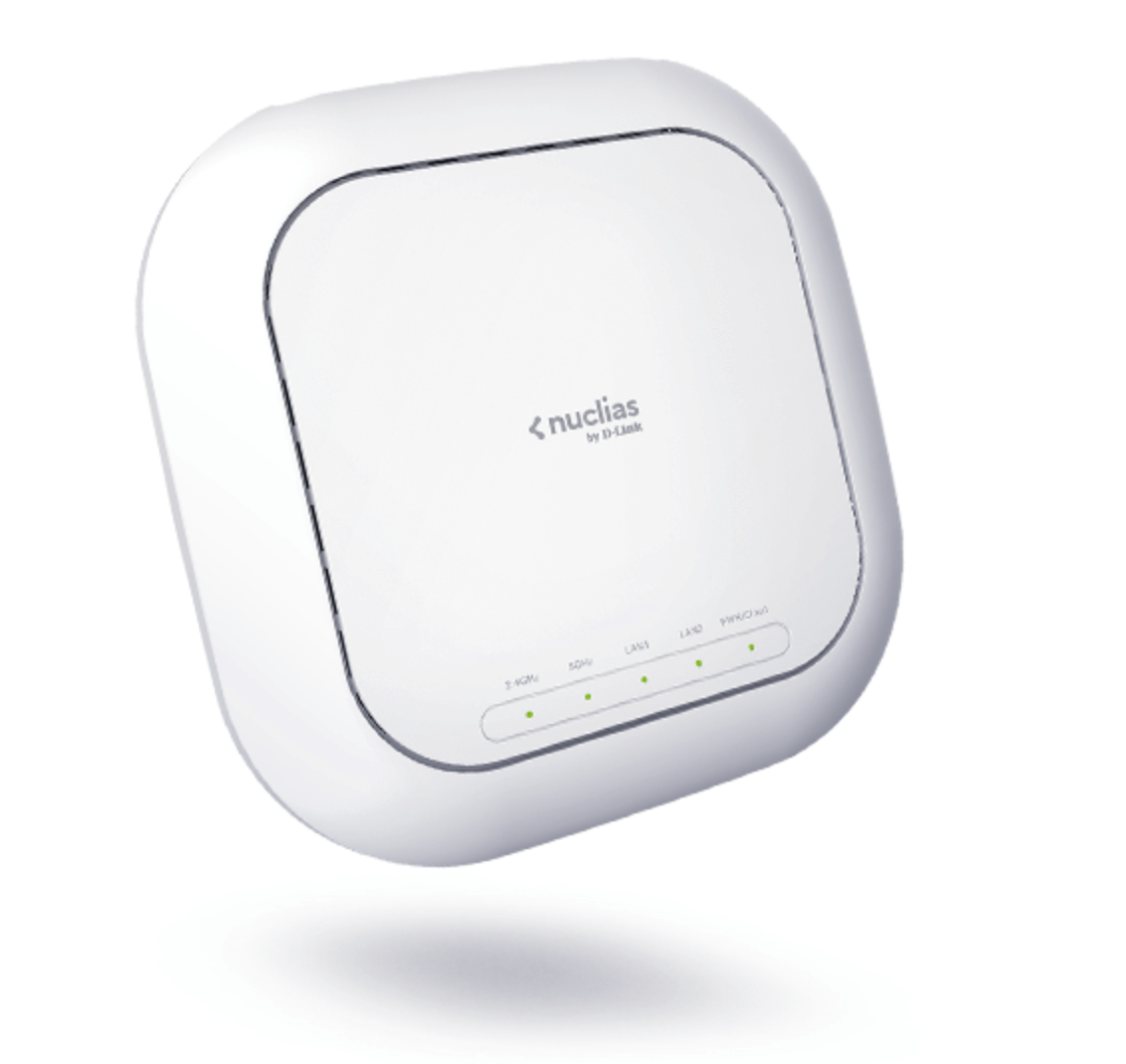

Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
DBA-X2830P
- Product Status (Revision A1): Live
- Nuclias cloud-based remote management (1-year license included)
- Dual-band AX3600, Wi-Fi CERTIFIED 6™, 4x4 MU-MIMO
- Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability
- Instant alerts, real-time statistics, WPA3 encryption, captive portal
- Register for Limited Lifetime Warranty
Where to buy

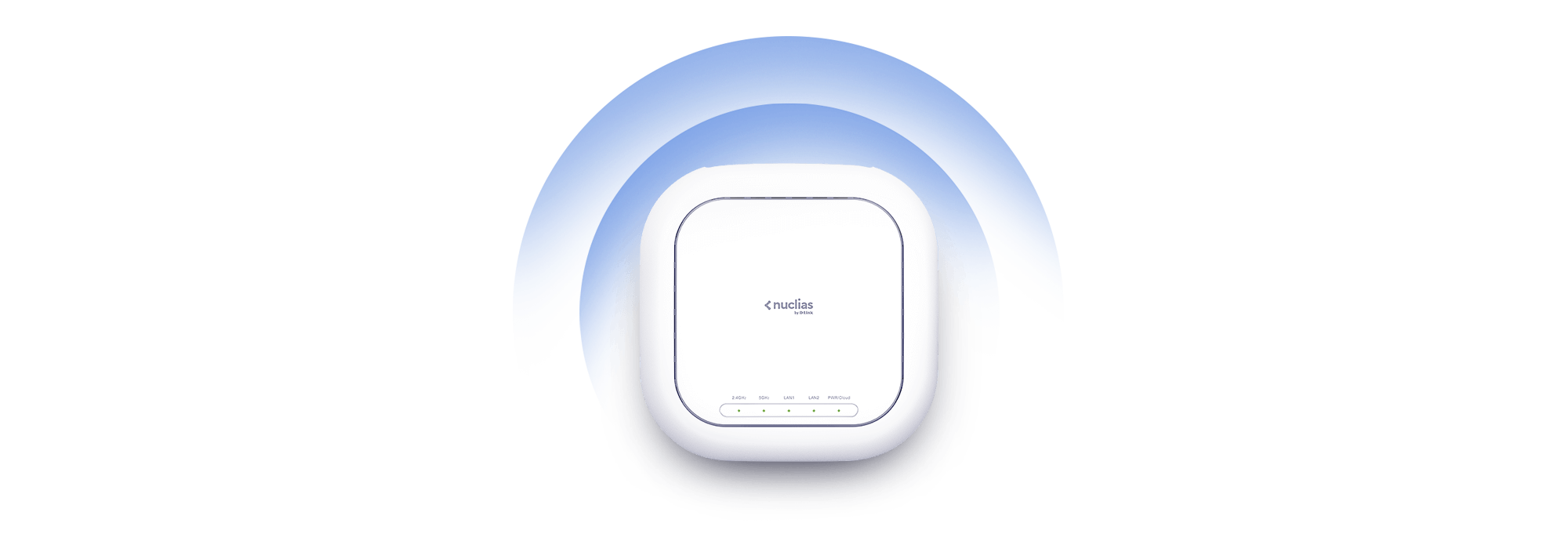

Cloud-managed Wi-Fi 6.
Manage your wireless network from anywhere in the world with this Nuclias Cloud Wi-Fi 6 indoor access point. Designed to give you the latest technology and efficiency in any setup, it’s ideal for SMB, retailers, hospitality, campuses, and managed service providers. Deliver high-combined data rates of up to 3,600 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.
Nuclias cloud-based network management
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1
License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
Wi-Fi 6
Combined dual-band 802.11ax Wi-Fi CERTIFIED 6™ speeds of up to 3.6Gbps.2
Zero-Touch Provisioning
Plug and play, cloud-based auto-configuration.
Unlimited scalability
Easy to add or scale back in line with demand.
Gigabit PoE Ethernet LAN Port
Power the device over Ethernet without the need for nearby power outlets.

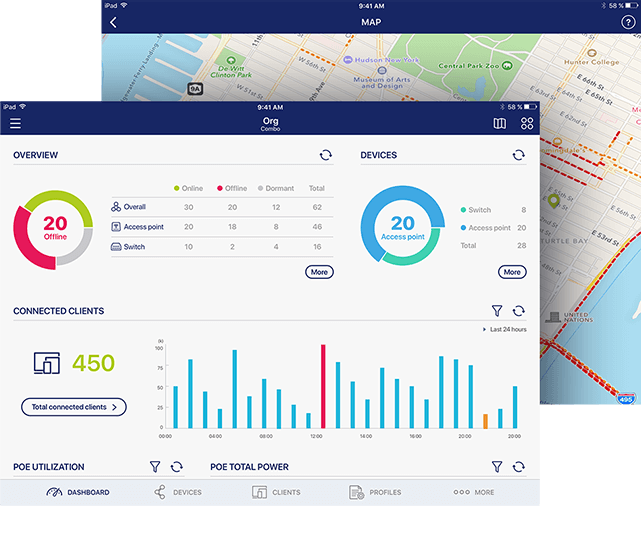

Network management has never been this easy.
Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.
Wi-Fi 6 means better performance
.
Uses the latest Wi-Fi technology to deliver reliable wireless performance and reduce congestion, with maximum wireless signal rates of up to 1147 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band2.

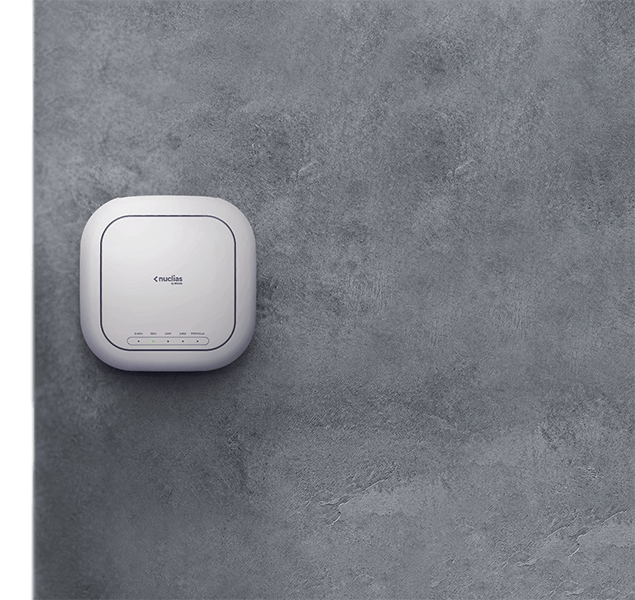

Simple and clean installation.

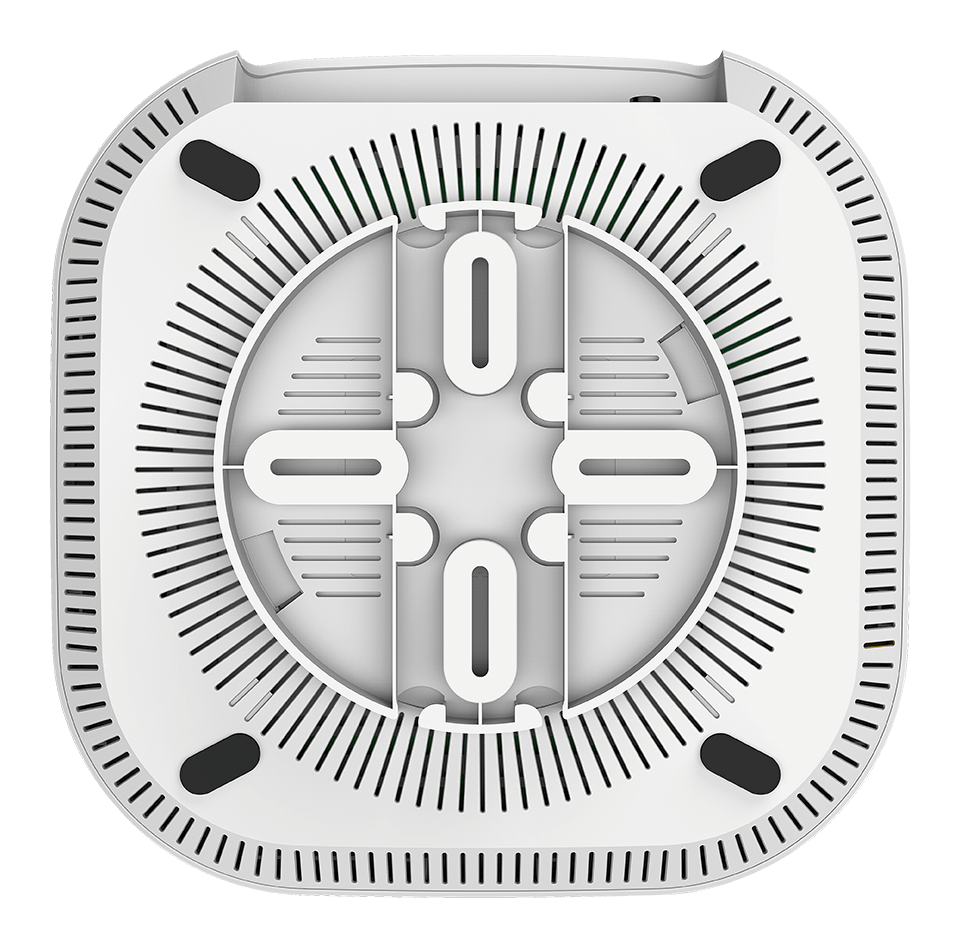

It can be ceiling-mounted, wall-mounted, or placed on a desk, and PoE support allows for easy and simple installation. No need to run extra power lines, and no-hassle configuration thanks to the Nuclias Cloud management and auto-configuration options. Perfect for advanced installations where technicians may not be readily available.

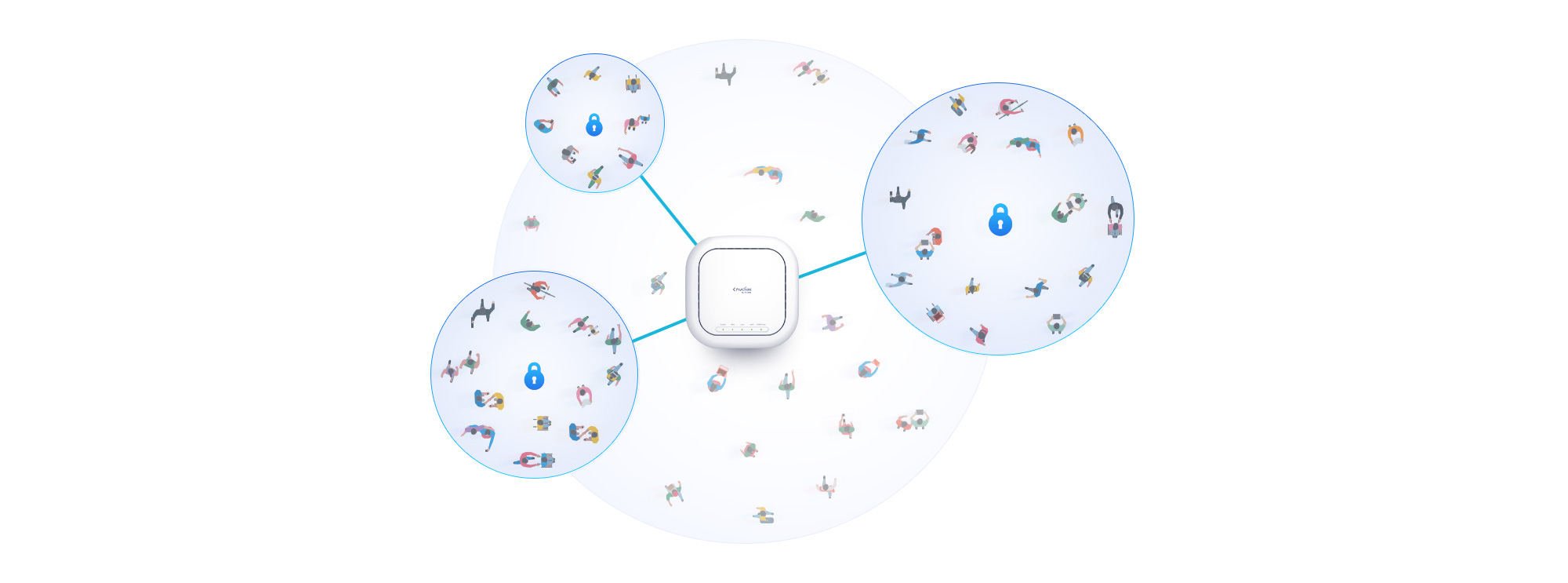

Seamlessly connect entire crowds to a safer and faster internet.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.

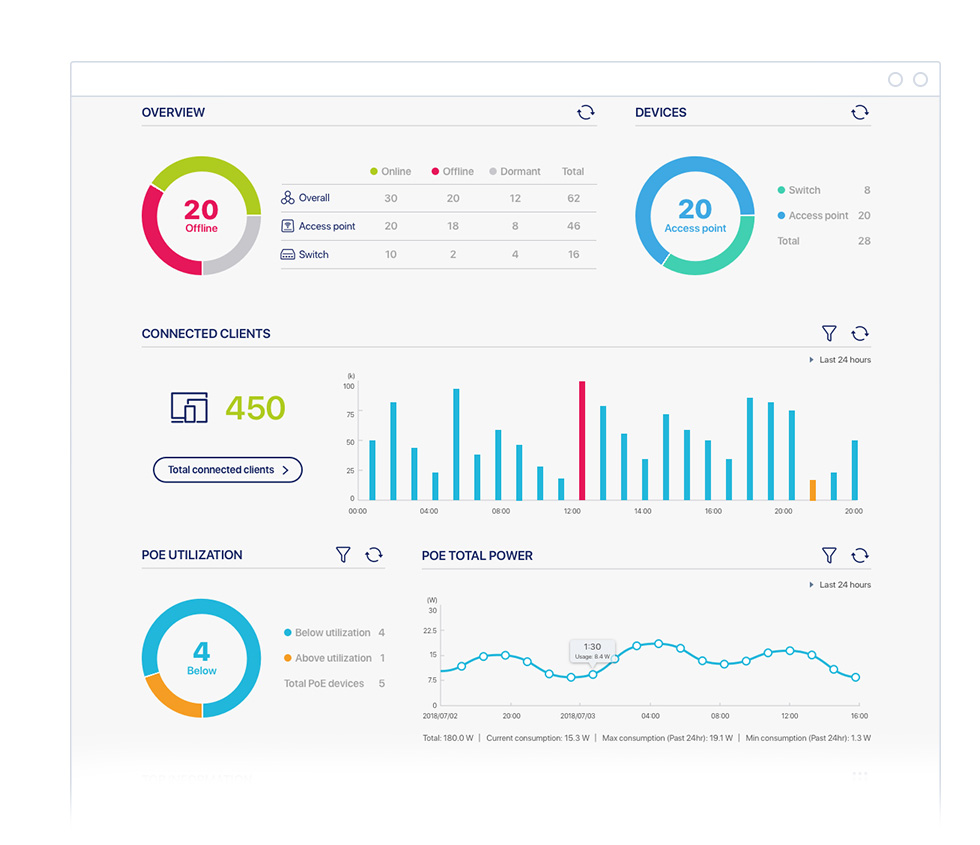

Effectively organise your entire wireless network.
With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.

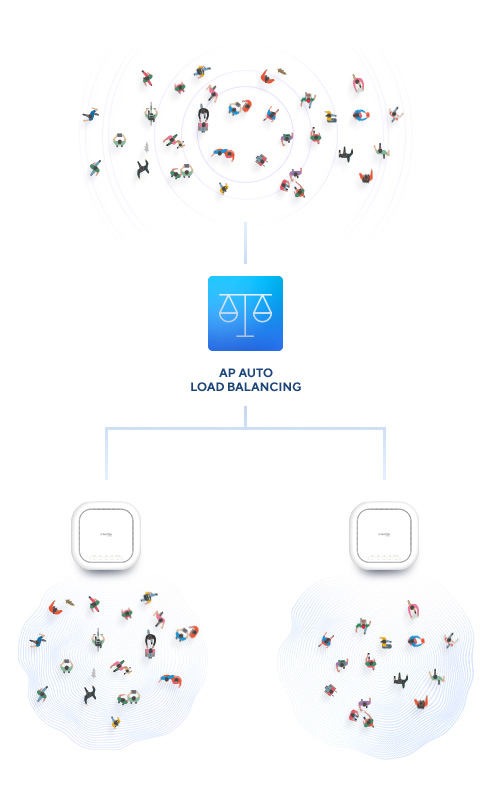

Increase network speeds and efficiency.
Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.

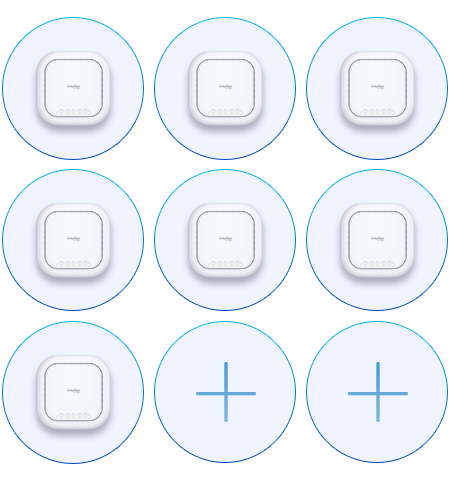

Scale your Wi-Fi alongside your business.
Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy thanks to all management and configuration being done through the cloud, with access points being ready to deploy straight out of the box.
D-Link is officially Wi-Fi Certified by the Alliance.
The Wi-Fi CERTIFIED 6™ seal is a declaration of having passed a series of rigorous tests performed by the Wi-Fi Alliance - an internationally recognised organisation. It's only granted to products that adhere to the strict industry-agreed standards for interoperability.
With this, purchasing a D-Link Wi-Fi CERTIFIED 6™ device ensures increased speeds, advanced Wi-Fi 6 capability, backwards compatibility and improved security.
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
Retail
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
Small businesses
Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.
Hospitality
Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.
Education
Ensure staff and student online safety while supporting a digital learning experience.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Specs
|
Type
|
Cloud-managed AP |
|---|---|
|
Wireless standard
|
802.11ax Wi Fi 6 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1200 Mbps 2.4 GHz 2400 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|

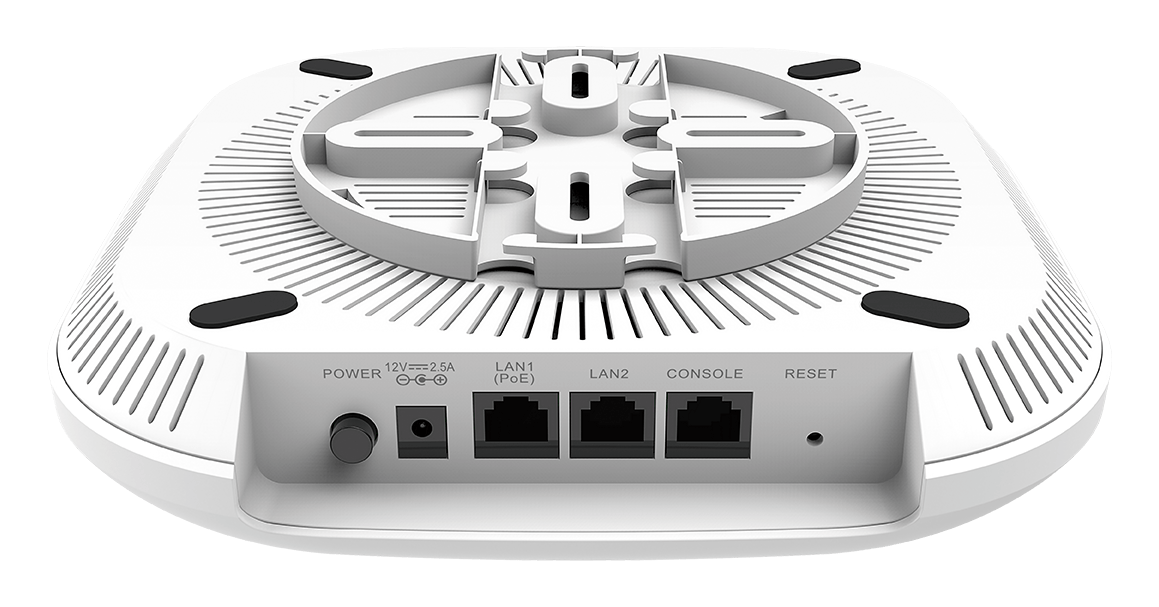

1 x 2.5GBASE-T LAN 1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
802.11k/r Roaming MU-MIMO |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal |
|
IPv6
|
Supported
|
|
Management platform
|
Nuclias Cloud Networking Solution |
FAQ
- What is D-Link's Nuclias Cloud SLA? Read Answer
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 2.12mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.10 RevA1 | Product Manual | 2. 12. 2020 | - | - | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| QIG 1.00 RevA1 | Quick Install Guide | 30. 10. 2020 | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| FW 2.05 RevA1 | - | 28. 03. 2023 | - | Download |
