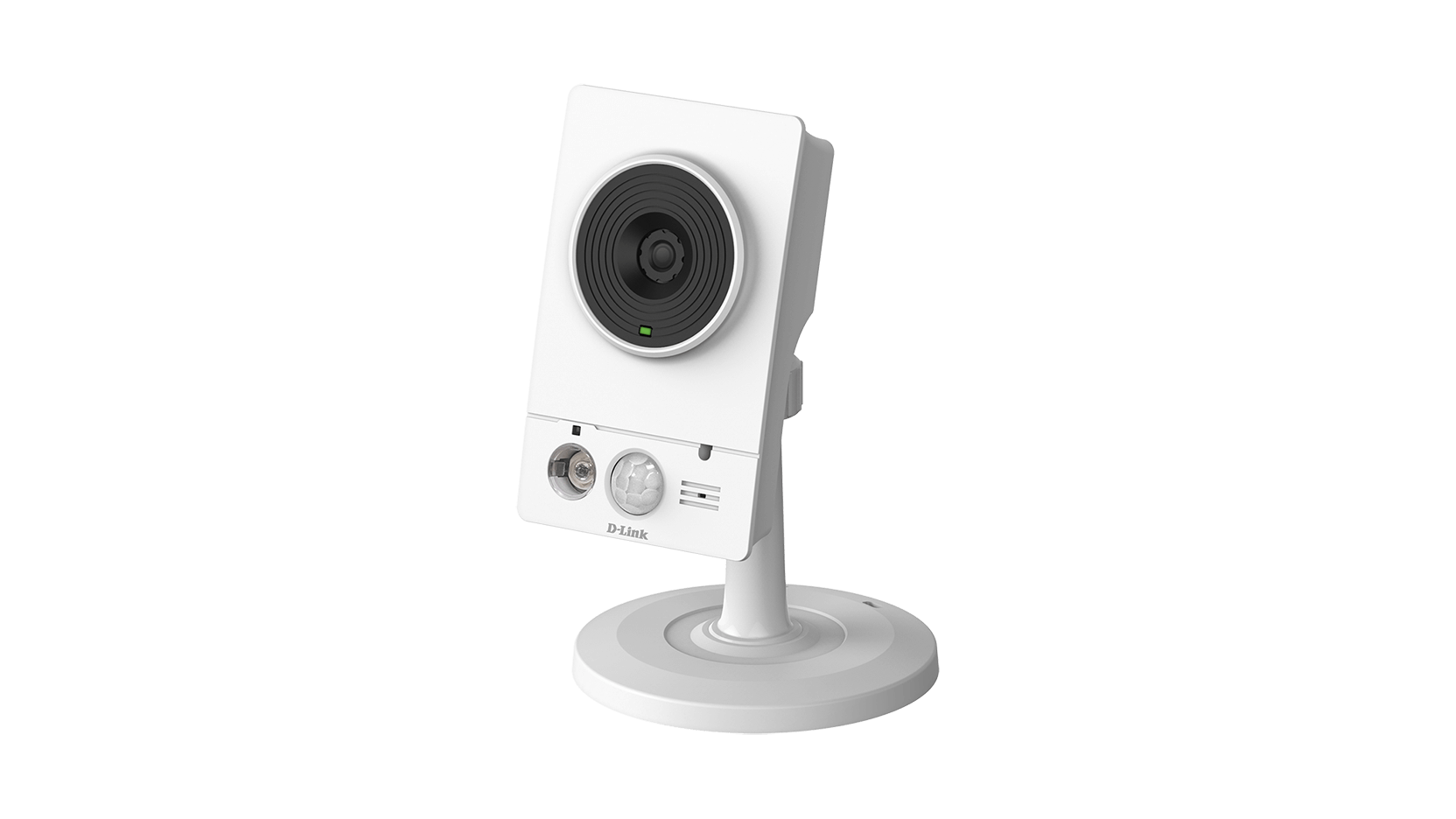

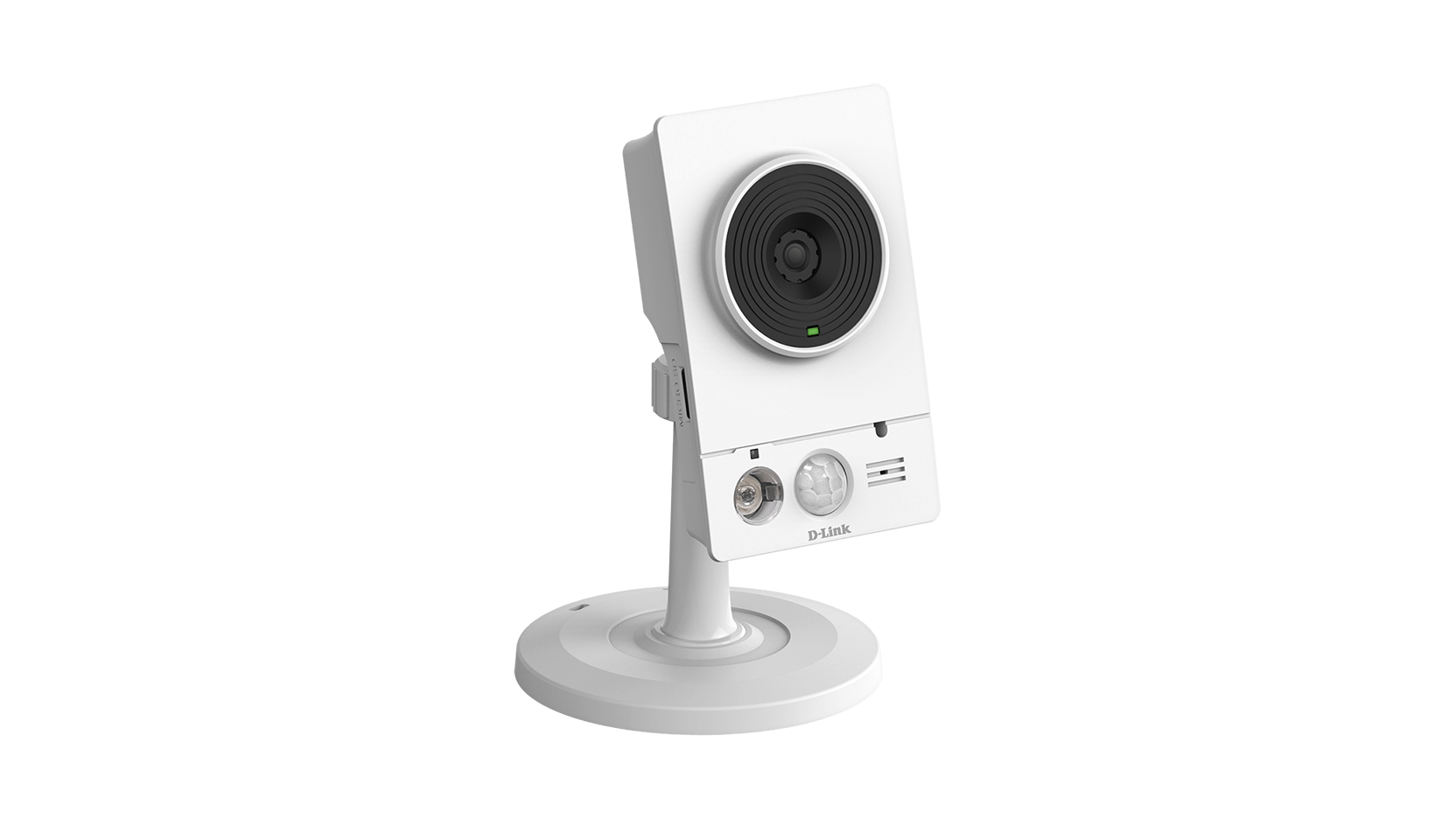

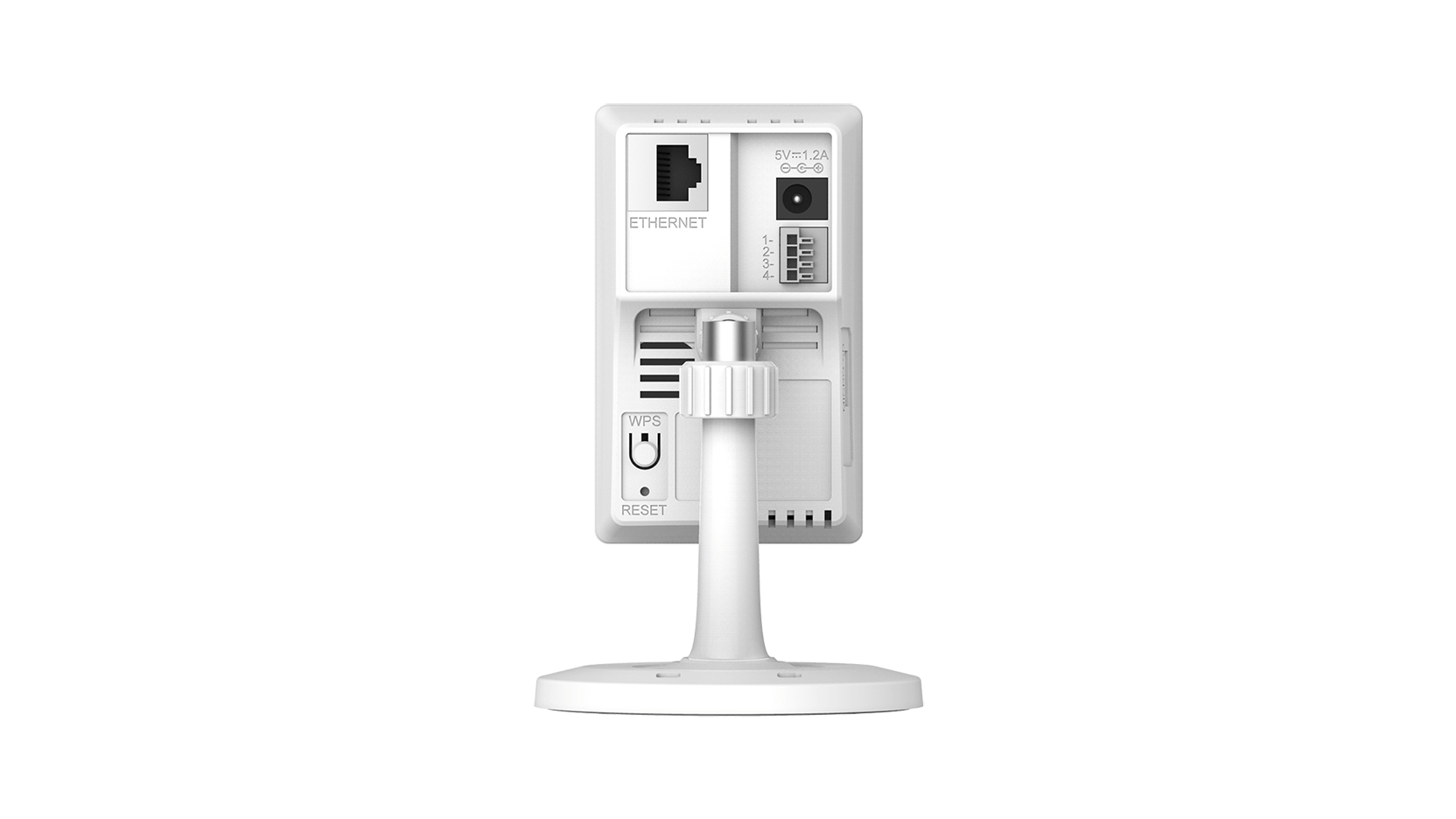

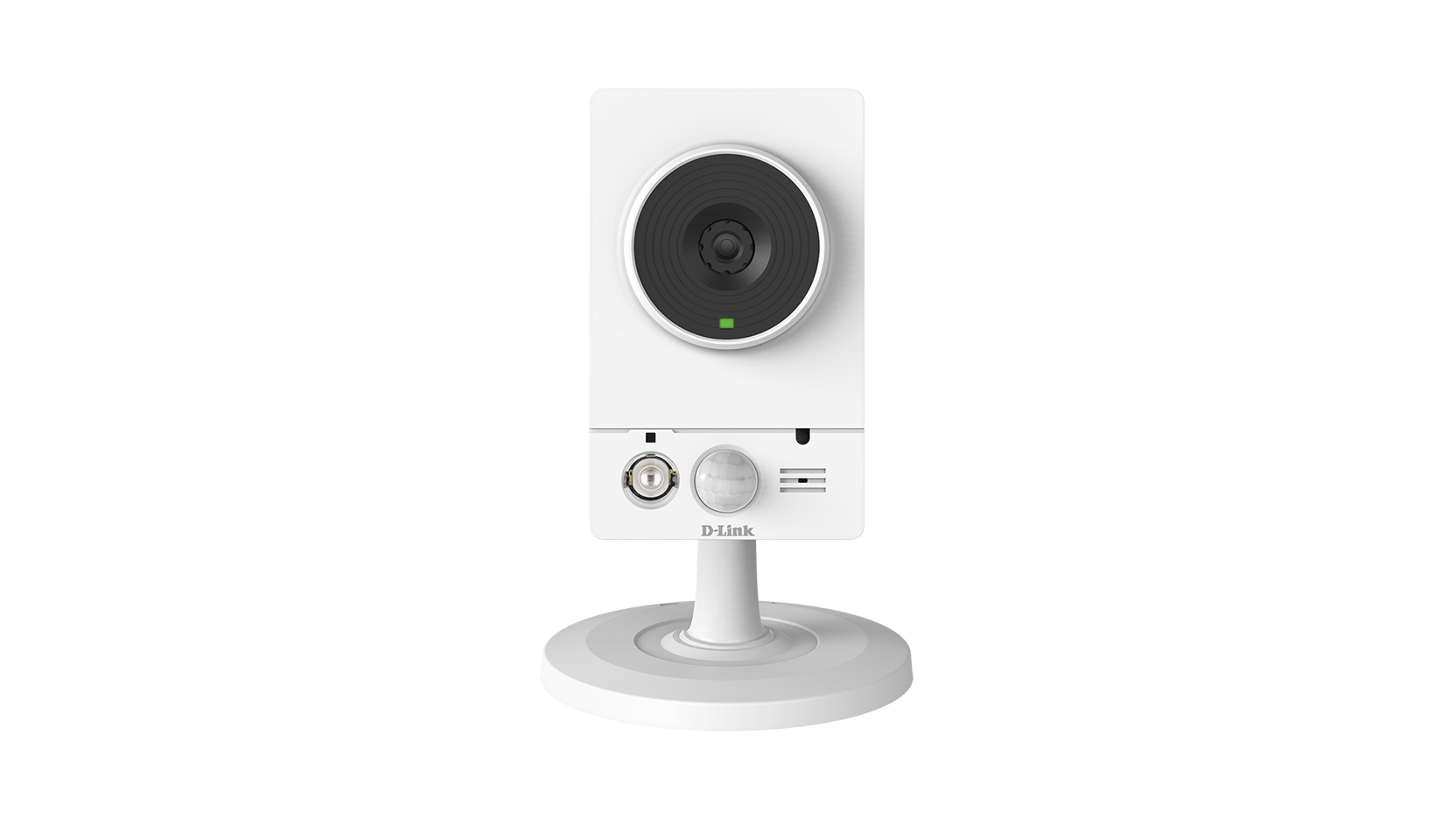

HD Wireless Camera
DCS-4201
- Product Status: End of Life
HD Wireless Camera
The Vigilance Wireless HD Camera is a professional, full featured HD camera that is easy to install and highly affordable. Capable of viewing up to 10 metres at night thanks to its infrared LED illuminator, this camera can monitor an area even in complete darkness. A built-in microphone and speaker allows for 2-way communication, which is ideal for use in entryways or for caretaker applications. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send a notification when motion is detected.
Vigilance range
The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.
Security Installer Focused
Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.
Compatible Accessories for the Vigilance Cameras
DCS-37-1 Fixed Dome Wall Mount Bracket |
DCS-37-2 Fixed Dome Junction Box |
|
| DCS-4201 | ||
| DCS-4602EV | • | • |
| DCS-4603 | • | • |
| DCS-4701E | ||
| DCS-4802E | • | • |
Specs
|
Indoor/outdoor
|
Indoor |
|---|---|
|
Type
|
Box |
|
Connectivity
|
Wireless |
|
Resolution
|
HD 1 megapixel |
|
Image sensor
|
1/4" 1 megapixel progressive scan CMOS |
|
Maximum Video Resolution
|
1280 x 720 (16:9) 960 x 720 (other) |
|
Lens
|
1.8 mm F2.4 Fixed |
|
Infrared-Cut Removable Filter
|
Supported
|
|
Night vision
|
Supported
|
|
Night vision range
|
10 m |
|
PIR(Passive Infrared)sensor
|
Supported
|
|
Privacy Masks
|
3 zones |
|
2-way audio
|
Supported
|
|
Built-in Microphone
|
Supported
|
|
Built-in Speaker
|
Supported
|
|
Digital Input/Output(DI/DO)
|
1/1 |
|
External Card Slot
|
MicroSD SDHC (max 64 GB) |
|
Features
|
ONVIF |
|
Video Format
|
H.264 MJPEG |
|
Multi-Stream
|
Supported
|
|
Mobile Stream
|
Supported
|
|
Digital Zoom
|
4x |
|
Motion Detection
|
Supported
|
|
Event Recording
|
Supported
|
|
E-mail Notification
|
Supported
|
|
Recording to NAS
|
Supported
|
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Vigilance Range Datasheet | - | 1.60mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Product manual | Product manual | 21. 10. 2015 | 10.43mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | |
|---|---|---|---|
| Windows Setup Wizard 1.05 | Windows Setup Wizard |
16. 06. 2015 | Download |
