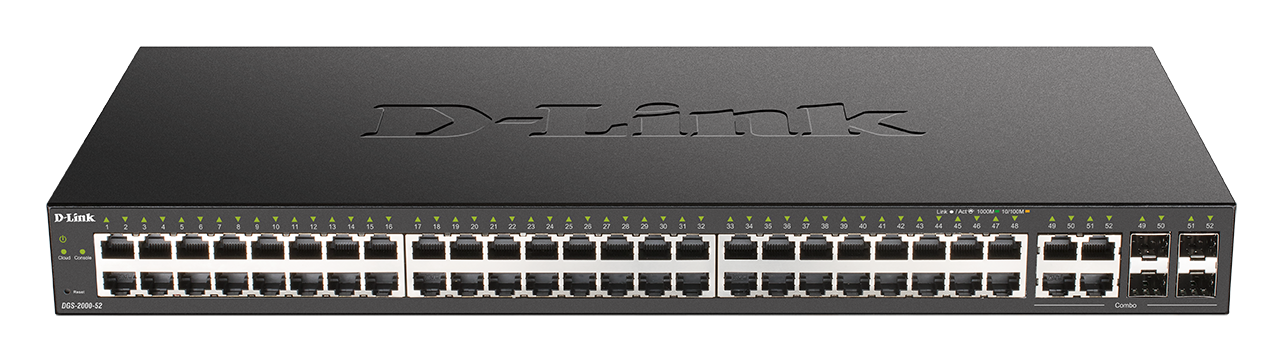

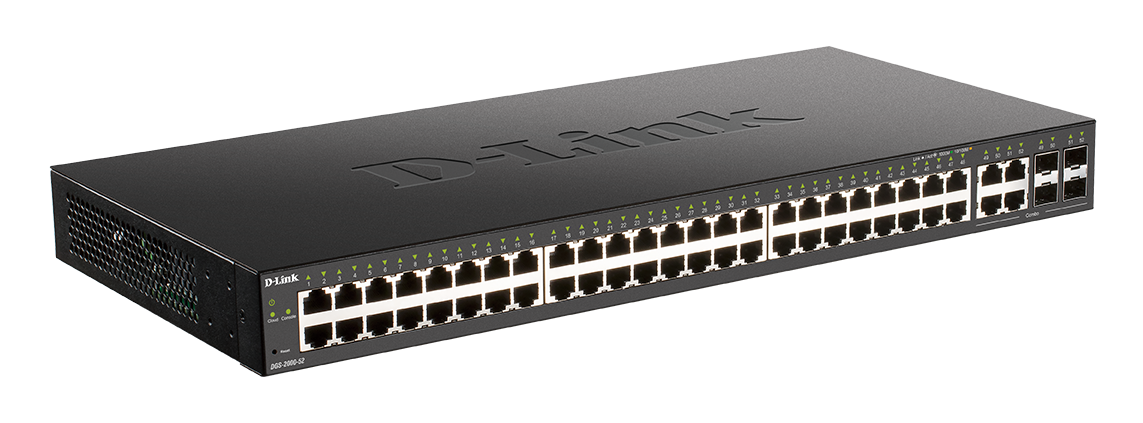

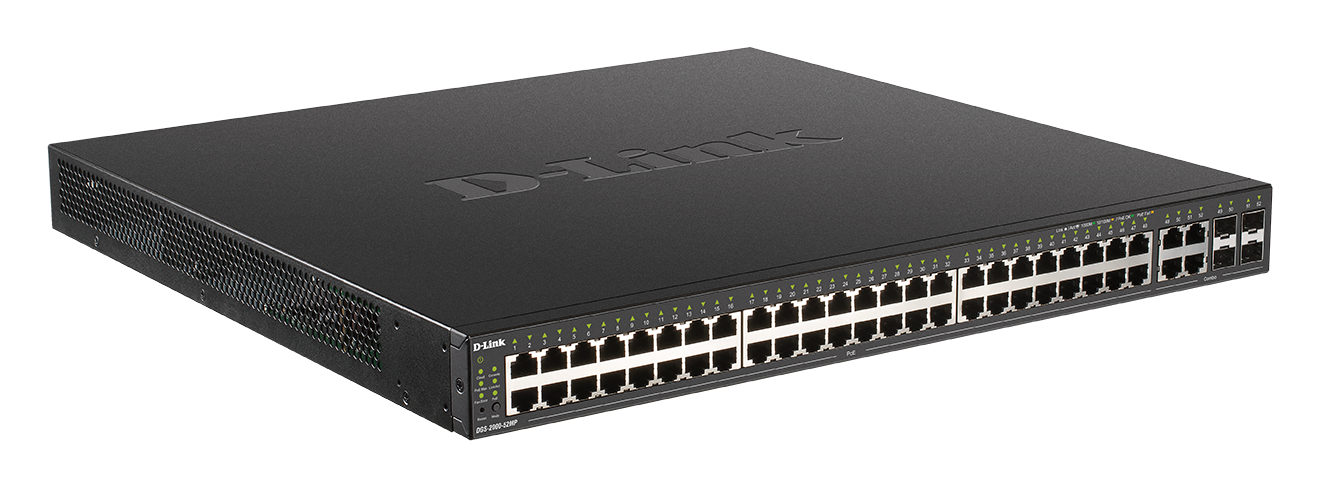

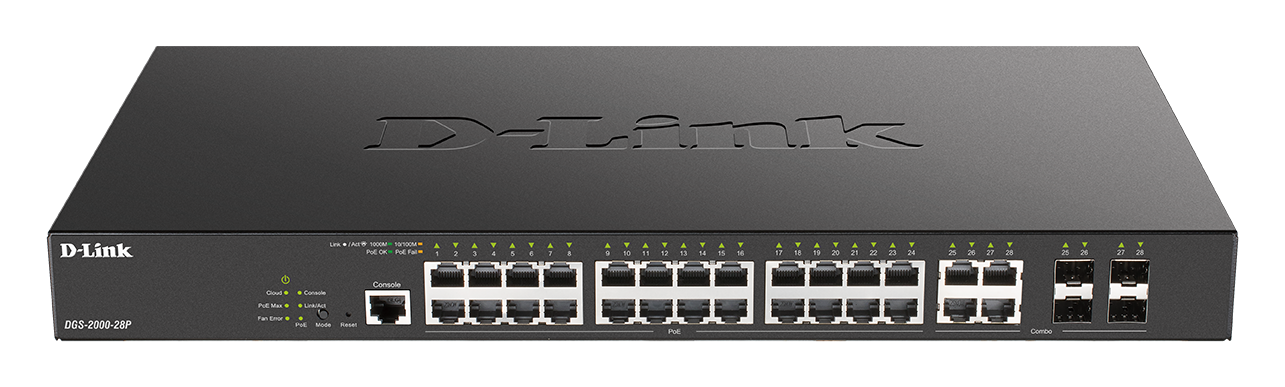

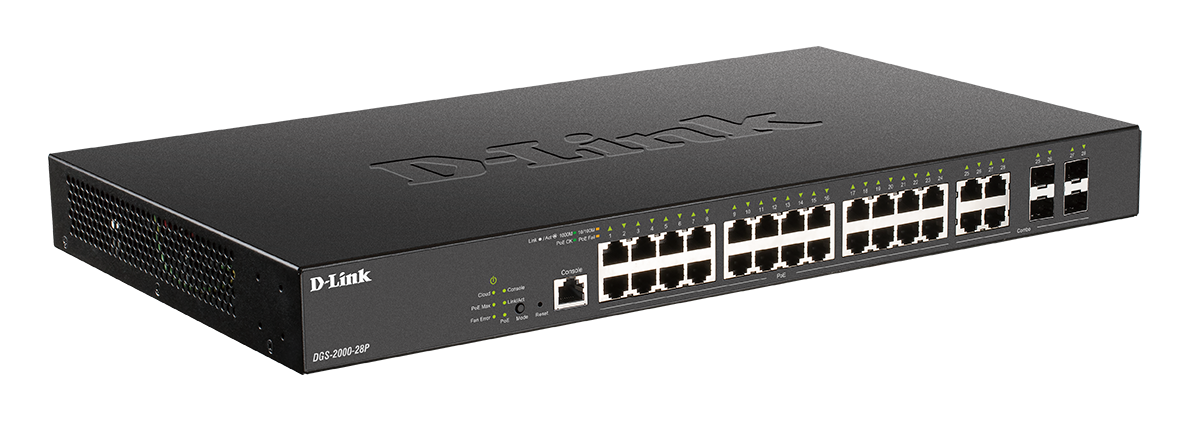

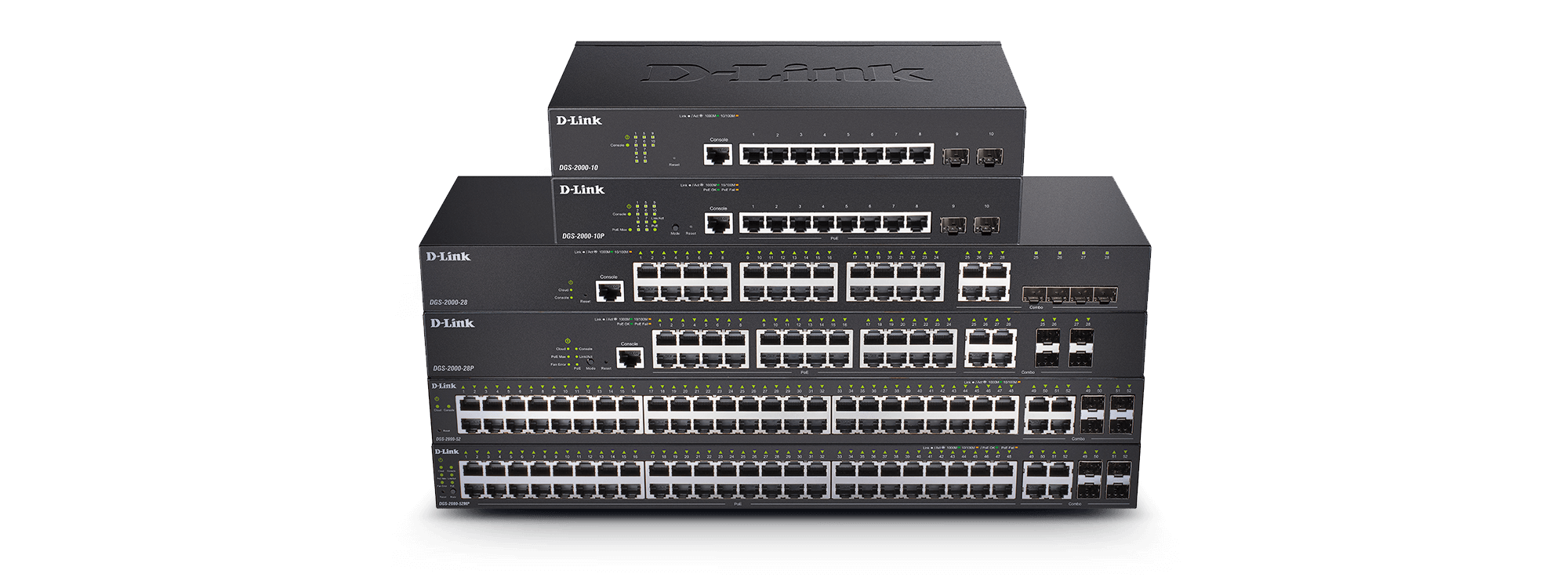

Gigabit Managed Switches
DGS-2000
- Product Status (Revision A1): Live
- Wide range of port and media types
- Effortless multi-site deployment
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
Where to buy
Cost-Effective and Flexible Networking for Your Business
The DGS-2000 series are cost-effective, high-performance fully-managed Gigabit Access Switches with a comprehensive set of features, making them the perfect solution for small offices or large multi-site enterprise businesses.
Flexible Hardware Design
Wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports.
Effortless multi-site deployment
Have a DGS-2000 switch delivered to any site to be up and running in minutes with automatic configuration download thanks to Zero-Touch provisioning.
High Switching Capacity and PoE Budget
Up to 104 Gbps switching capacity with a maximum PoE budget up to 370W.
Prioritised traffic with network optimisation
The DGS-2000 series auto-detect important traffic to give you uninterrupted surveillance video and jitter-free VoIP calls.
Layer 2 with Layer 3 Lite features
Equipped with a complete lineup of L2 features, and supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing.
Network Security
D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.
Simplified Management
Simple management through user-friendly web configuration or command line interface (CLI) via Telnet or SSH for ease-of-use.
Limited Lifetime Warranty & Next Day Service
Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.
Learn more

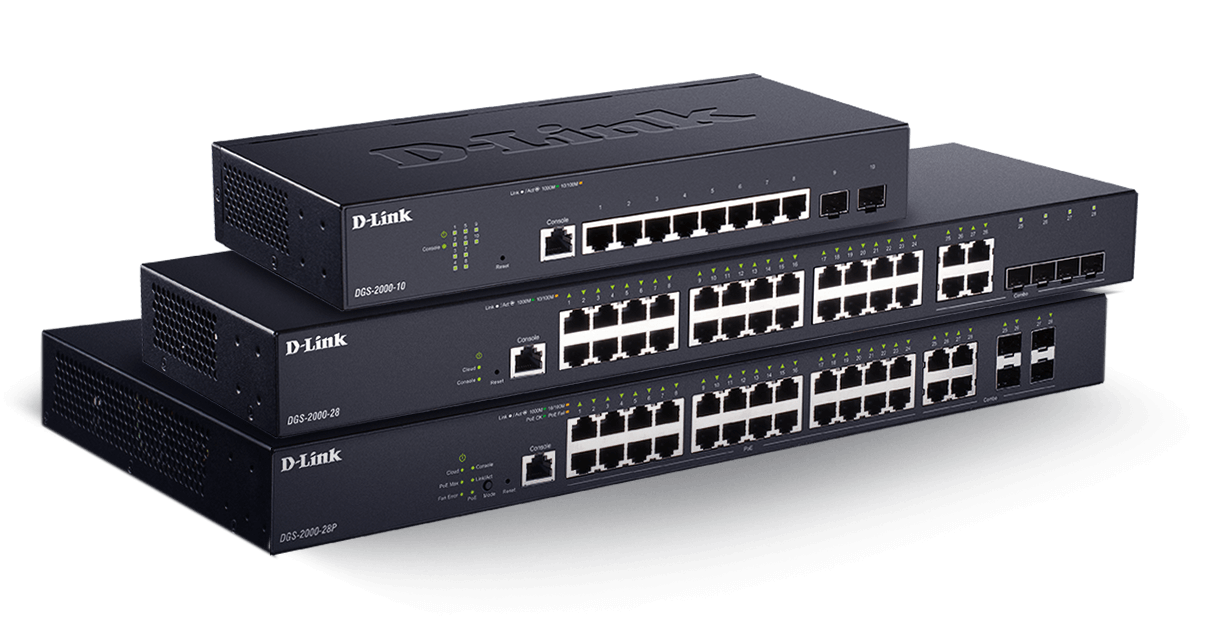

Seamless Integration

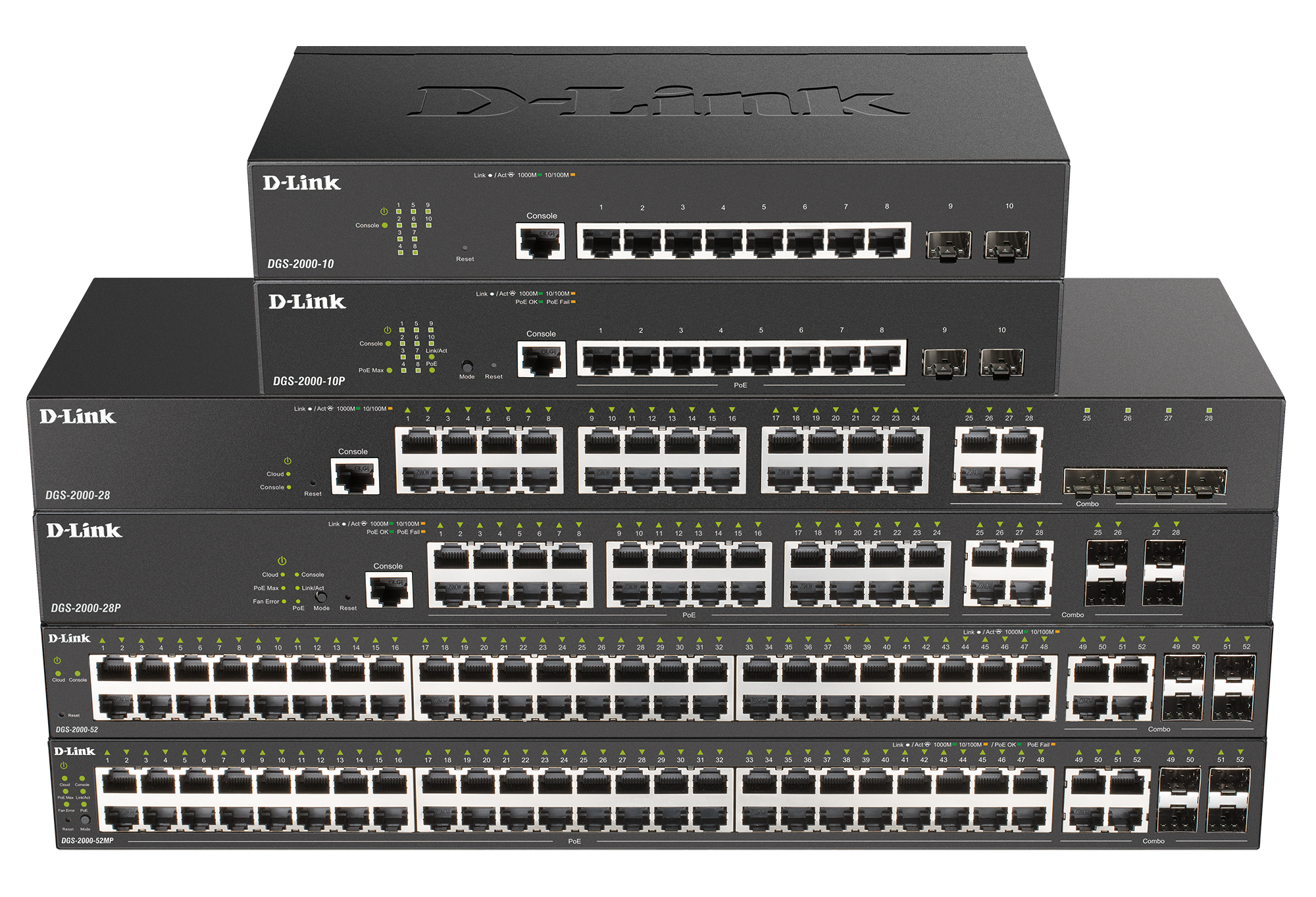

The DGS-2000 Series includes a wide range of port density and media types, from 10 to 52 ports, including Gigabit copper, fibre and combo ports. All PoE switches within the series support PoE+ and provide high power budgets of up to 370W, allowing more PoE devices to be connected and powered.

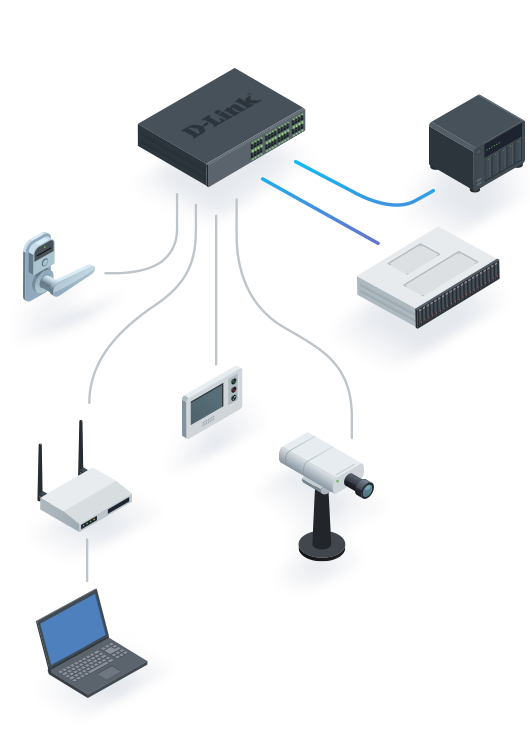

Efficient and Resilient Networking
The DGS-2000 Series supports 802.3ad Link Aggregation, which allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments. Additionally, these switches also support 802.3ah OAM Ethernet link-layer remote loopback and discovery as well as D-Link’s Unidirectional Link Detection (DULD). These two Layer 2 protocols combined ensure the reliability of data transmission in your network.
Network Optimisation
The DGS-2000 Series supports Auto Voice VLAN and Auto Surveillance VLAN, which allows voice and video traffic to be automatically identified and prioritised, even during peak hours of traffic.

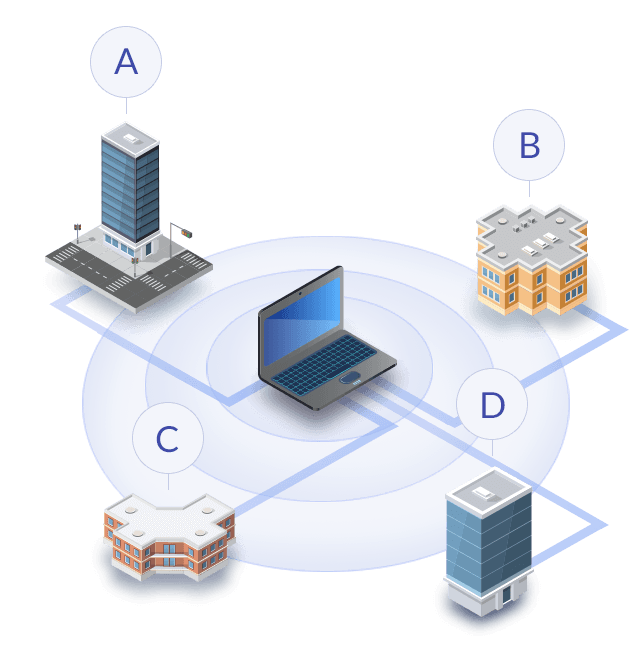

Zero Touch Provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralised location, then install the DGS-2000 switches for effortless deployments.

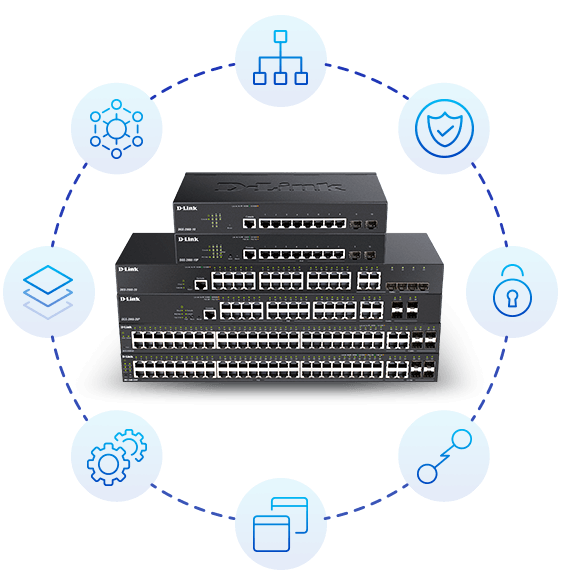

Advanced features with ultra-high availability
For mission critical environments, the DGS-2000 series supports IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
Troubleshooting made easy
Protect your network with comprehensive security
The DGS-2000 Series provides users with the latest security features such as Packet Content Access Control Lists (ACL), Storm Control, and Smart IP-MAC-Port Binding (Smart IMPB) with DHCP Snooping. D-Link’s innovative Safeguard Engine helps to protect the switches against traffic flooding caused by malicious attacks.

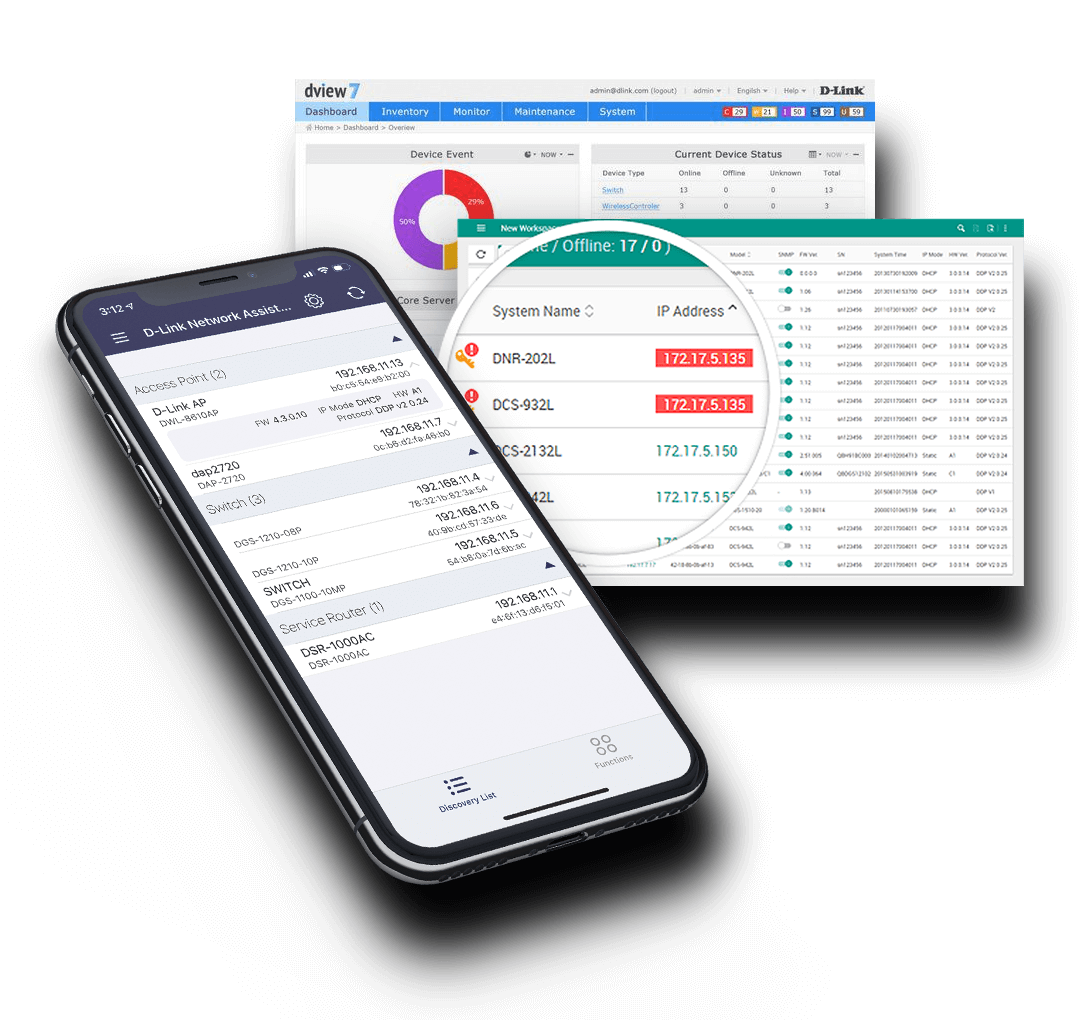

Manage your network from anywhere
D-Link Network Assistant (DNA) is our latest software for admins to easily discover, configure and control their network down to the port level. We also provide an additional legacy software that authorises them to configure multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance.
The DGS-2000 Series also supports full Command Line Interface (CLI) through Telnet, SSH and the console port.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specs
|
Type
|
Managed |
|---|---|
|
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
|
Layer
|
Layer 2 Layer 3 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
|
Switching capacity
|
104 Gbps 20 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 48 |
|
PoE power budget
|
See datasheet See datasheet |
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
MAC address
|
16K 8K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
256 |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Double VLAN (Q-in-Q) ISM VLAN Voice VLAN |
|
IP interfaces
|
4 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 128 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
ACL based on packet contents
|
Supported
|
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
802.1X access control
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
802.3ah
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.73mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.00 RevA1 | Product Manual | 17.11.2020 | - | - | Download |
