xStack 12-Port SFP Layer 3+ Gigabit Switch

DGS-3612G

  • Product Status (DEU Revision A): End of Life
• 8 SFP Slots + 4 Combo GE/SFP Ports, IPV6 Ready
• Flexible Web, Telnet, Serial Console Management
• Virtual Stacking with Single IP Management (SIM)

Unparalleled Flexibility

Easy to deploy and simple to managed, the DGS-3600 series can be stacked with any switches supporting D-Link's Single IP Management to form a multi-level network structured with backbone and centralized high-speed servers. This virtual stack can comprise units located anywhere on the same network domain. It can eliminate single points of failures, cable distance barriers, physical stacking method limitations and the need for stacking cabling.

Redundant Ring Stacking (note: not available in the DGS-3612G)


Alternatively, users can install one or two 10-Gigabit uplinks, depending on whether the linear or fault-tolerant ring stacking is implemented, to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack. Using the coaxial cable or fiber as the medium to stack switches together, the DGS-3600 series provides not only high-bandwidth stacking but also the cost control capability that allows users to add 10-Gigabit uplinks strictly as needed. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.

Security, Performance & Availability.

The DGS-3600 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v4/v6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense2 technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.

The DGS-3600 series offers extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. To prevent malicious flooding traffic caused by worm/virus infections, the DGS-3600 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

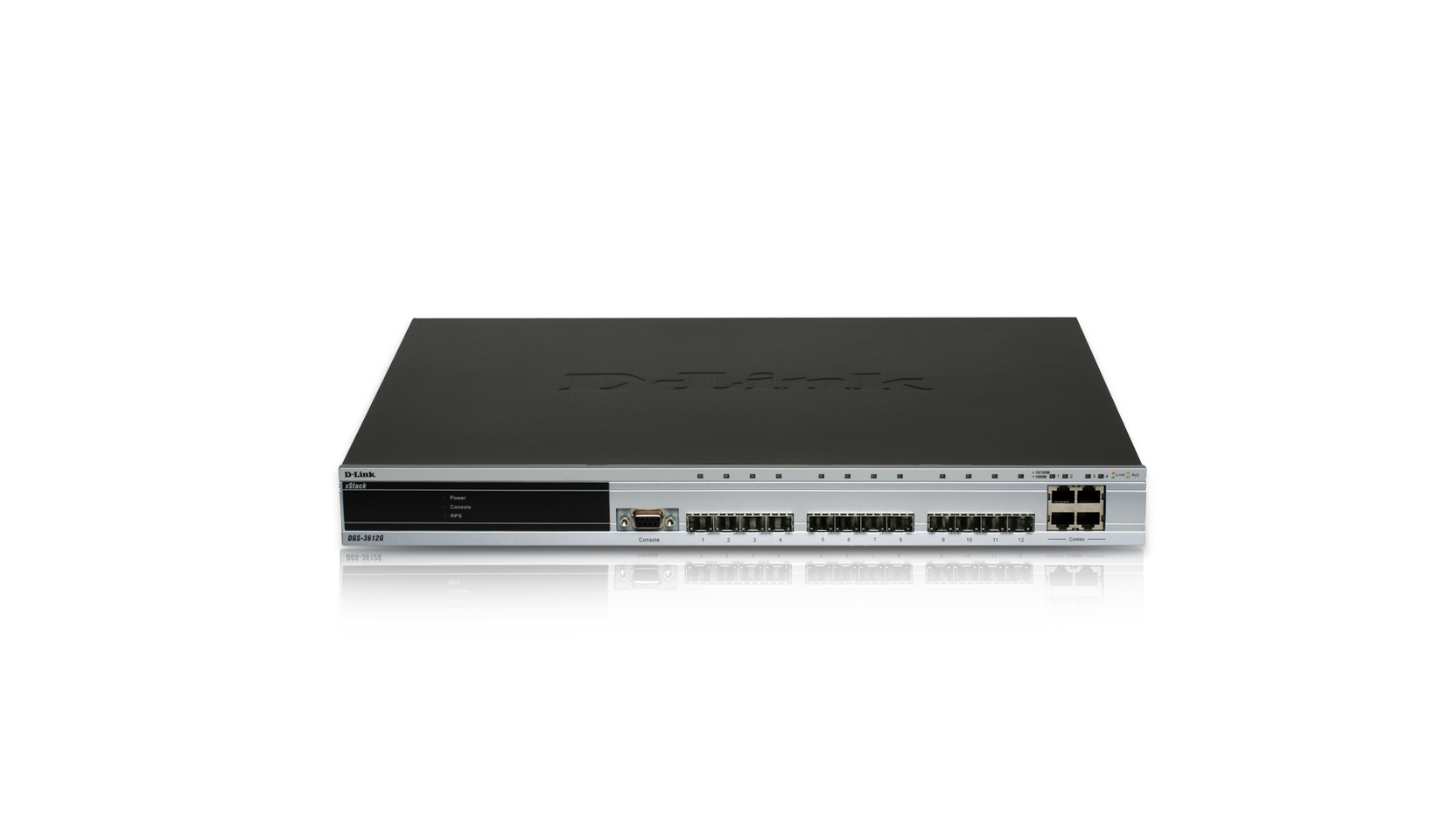

Actual product appearance may differ from the image displayed on this page

Related Products

SFP 100Base-FX Multi-mode Fibre Transceiver
DEM-211
Find out more
1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
1000Base-BX-U SFP Fibre Transceiver
DEM-330R
Find out more
DGS-3612G
•    xStack® Managed 12-Port Gigabit SFP Standalone L3 Switch with 4 Combo 1000BASE-T Ports, IPv6
Packet Buffer
•    2MB
MAC address Table
•    16K
IP Routing
•    256 Static/ 12k Dynamic Total
Aggregated Bandwidth
•    24Gbps
Throughput
•    17.86Mpps
Transmission Method
•    Store-and-Forward
Forwarding Rate
•    14,880pps (10M)
•    148,800pps (100M)
•    1,488,000pps (1000M)
VLANs
•    Support up to 4K Static, 255 Dynamic 802.1p VLAN Groups
•    Priority Queues 8 Queues - Strict Priority or Weight Round Robin Queue Scheduling
Classification ACLs
•    Switch Port, VLAN ID, IEEE802.1p, MAC Address, DSCP, Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, TCP/UDP Port, User Defined Packet Content, Time Based ACL, CPU Interface Filtering
Classification QoS
•    Switch Port, VLAN ID, IEEE802.1p Priority, MAC Address, IP Address, DSCP, Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, TCP/UDP Port, User Defined Packet Content
Multicast Support
•    IGMP v1/2/3, IGMP Snooping, MLD Snooping (1K Groups)
Jumbo Frames
•    Up to 9216Bytes
Interface Options
RJ-45

•    10BASE-T, 100BASE-TX & 1000BASE-T
LC
•    With Standard Small Form-factor Pluggable (SFP) Gigabit Transceivers
RPS
•    Redundant Power Option Via Optional DPS-500
Network Management
In Band & Out of Band

•    Telnet, CLI/Console, RMON, Web-based HTTP, SNMPv1/v2/v3, Syslog, Port Mirroring, TFTP Client, BootP Client, DHCP Client, BootP/DHCP Client
IEEE
•    802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1p Priority Tags, 802.1q VLANs (4K static/255 dynamic), 802.3ad Link Aggregation (32 Groups/8 ports), 802.3x Flow Control, 802.1x Port-based/MAC-based Authentication, 802.1s (Multiple Spanning Tree)
IETF
•    RFC 1157 SNMP, RFC 1112/2236 IGMPv1/2 IGMPv3, RFC 1757/2021/2819 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, and DiffServ, RFC 1724 RIP v1/2, RFC 1850 OSPF,DVMRP, RFC 2934 PIM DM, PIM-SM, RFC 2932 Multicast Routing, RFC 2787 VRRP, RFC 2096 IP Forwarding Table MIB (CIDR), RFC 2787 VRRP MIB, RFC 2618/2620 RADIUS Accounting Client, RFC2618 RADIUS Authentication Client MIB, RFC 2863 IF MI B, RFC 2674 802.1p MIB, RFC 2668 802.3 MAU MIB, RFC 2665 Ether-like MIB, SSH2, SSLv3, TACACS+
Electrical & Emissions Summary
Emissions

•    CE class A, FCC Class A, VCCI Class A, C-Tick Class A
Power Supply
•    AC Input: 100 - 240 VAC, 50/60 Hz Internal Universal Power Supply
Power Consumption
•    60 Watts (maximum)
Heat Dissipation
•    187.67 BTU/Hr
Power Consumption
•    Compliant
Safety Agency Certifications and Environmental
Safety

•    CSA International, CB Report
Temperature
•    Operating: 0° to 40° C (32° to 104° F)
•    Storage: -40° to 70° C (-40° to 158° F)
Humidity
•    Operating: 10% to 85% RH, Non-condensing
•    Storage: 5% to 95% RH, Non-condensing
Physical Specifications
Dimensions (W x D x H)

•    17.3in x 15.2in x 1.7in (439.9mm x 386mm x 45mm) 19-inch, 1U Rackmount size
Weight
•    10.9 lbs (4.9 kg)
Warranty and Support Information
Warranty

•    Lifetime2
Support
•    Free Technical Support


All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. Specifications contained herein are based on Hardware version A1.
This product was phased out on: 26/03/2014
This product's last date of support is on: 25/03/2019
