Wireless N PoE Access Point
DAP-2230
- Product Status: End of Sale
There's a new version of this product:
Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
See Newer ProductThere's a new version of this product:
DAP-2610
Wireless AC1300 Wave 2 DualBand PoE Access Point
Overview
Overview
Performance without Compromise
The DAP-2230 Wireless N PoE Access Point allows businesses to create a secure and manageable wireless network. Multiple operational modes, network management tools and security features give network administrators more flexible deployment options.
Flexible Deployment

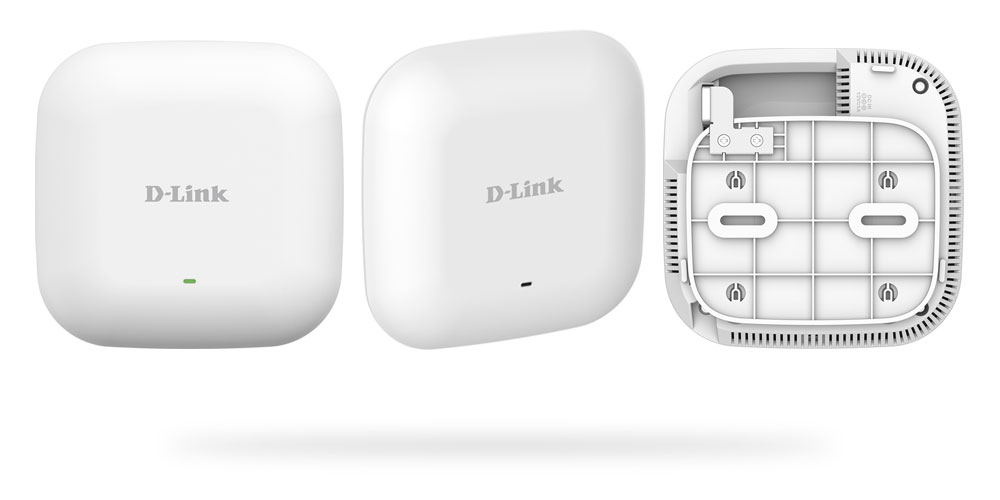

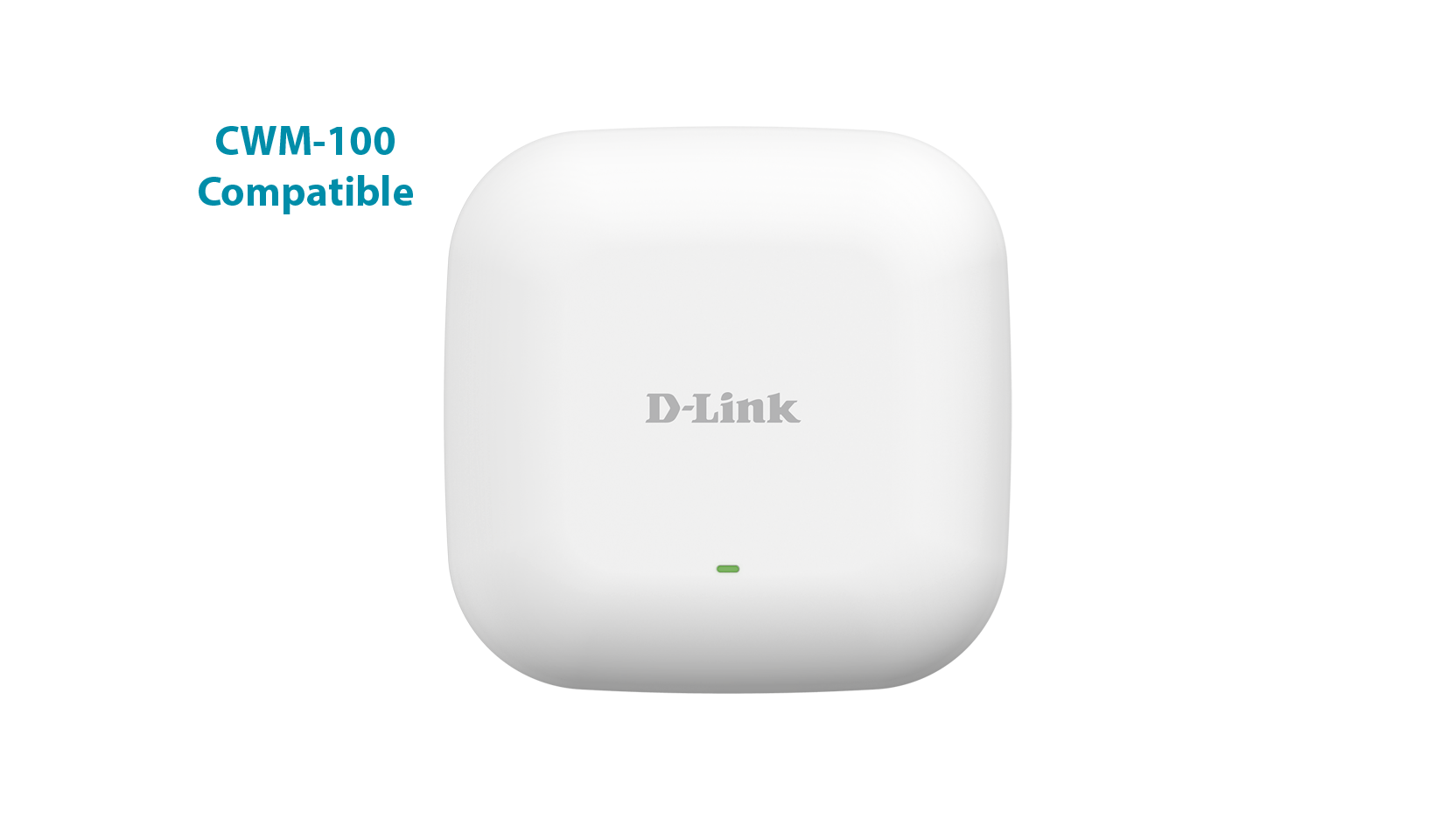

The DAP-2230 has a super compact design, and can be ceiling mounted, wall mounted or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.

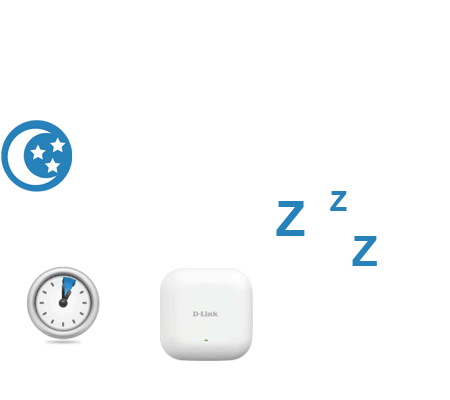

Green Design
The DAP-2230 has a wireless scheduler feature, which turns off wireless functionality when it isn't needed, saving power.

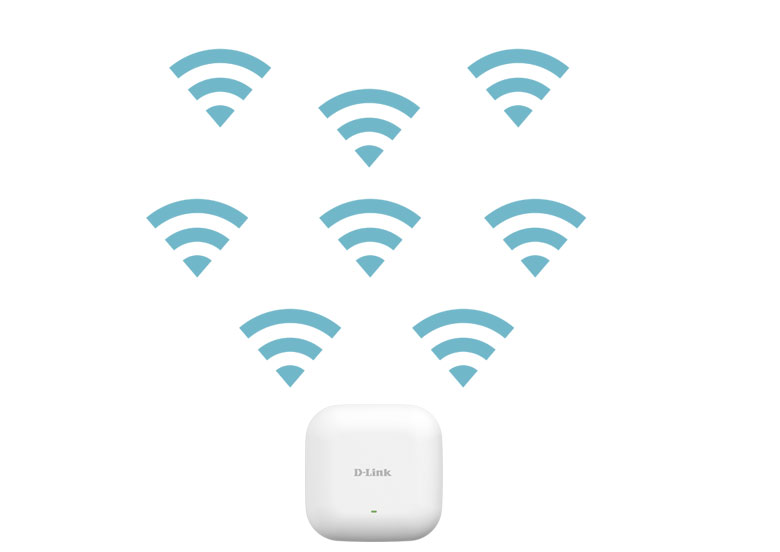

8 SSIDs Simultaneously
Supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.

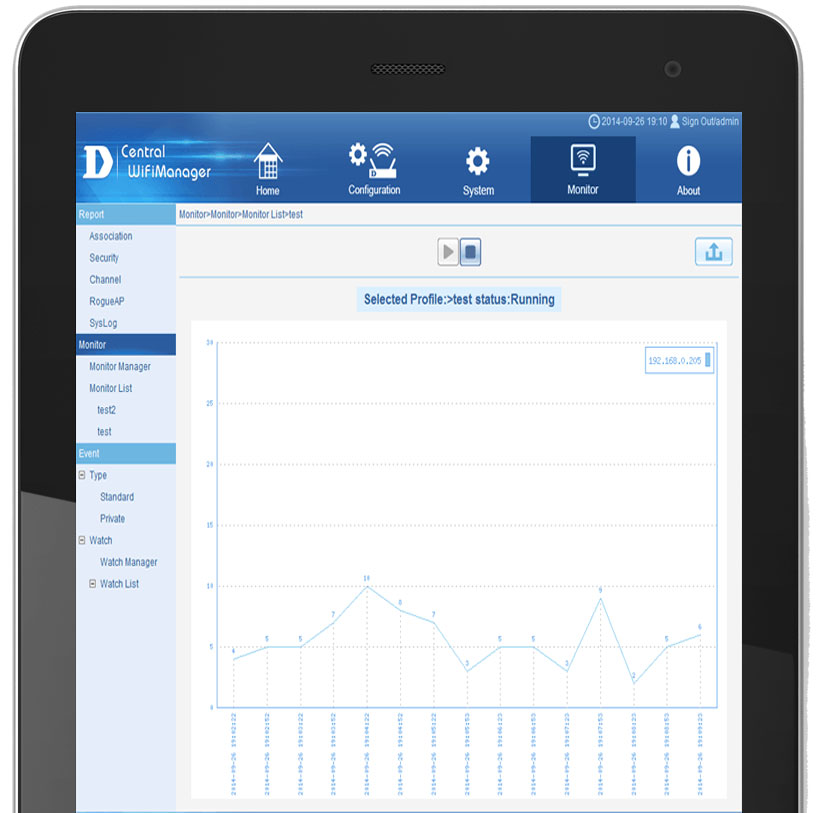

Free Wireless AP Controller software
D-Link's free Central WiFiManager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

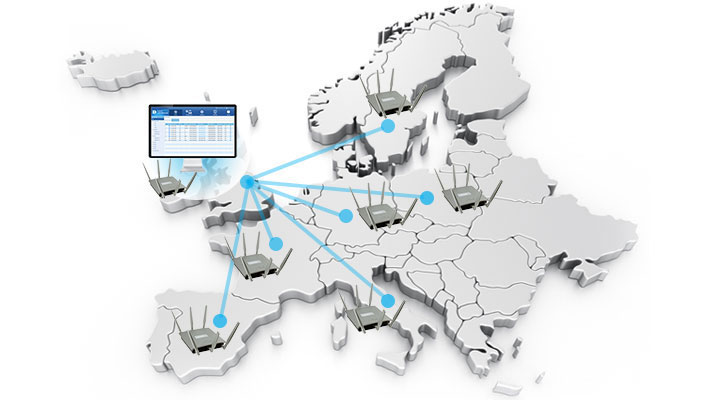

Scalable, flexible, centralised AP management
Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud, regardless of geography.
Related Products
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Single-band |
|
Wireless speed
|
300 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Fast Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
802.11k/r Roaming MIMO |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
IPv6
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet | - | 0.73mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.30 RevA1 | Product Manual | 14/01/2020 | - | - | Download |
