AX3000 Wi-Fi 6 Outdoor PoE Access Point

DAP-X3060OU

Product Status: Live

Wi-Fi 6 AX3000, up to 3.0 Gbps
1 x 2.5 Gigabit Ethernet LAN
2x2.4GHz +2x5GHz internal antennas, MU-MIMO with beamforming
IP68 water, dust-proof, weather-resistant housing (-30 to 60℃)

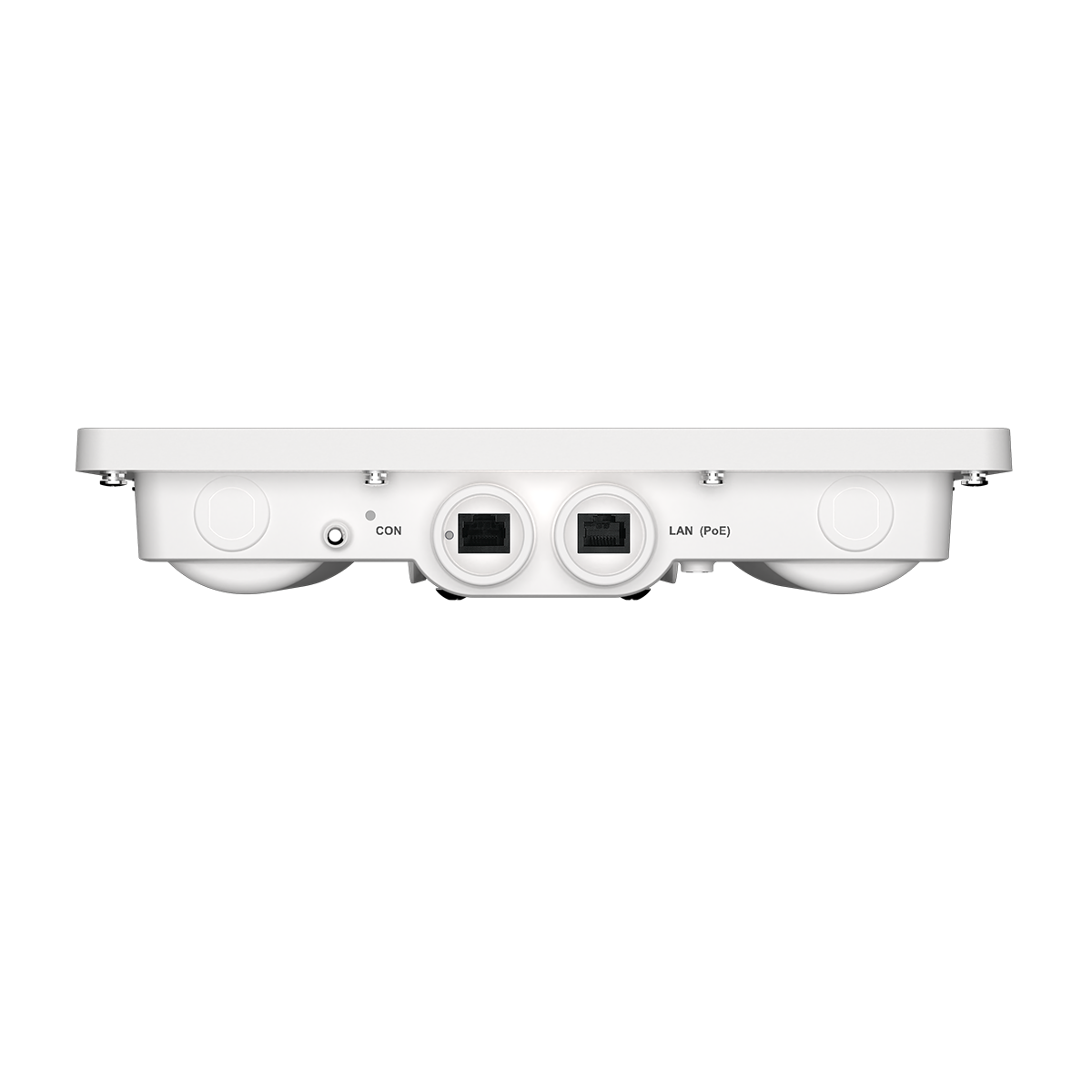

2.5 Gigabit Ethernet Port (PoE+)
Customizable Captive Portal

Download the datasheet.

Where to buy

Central Management

Centralized management through on-premises software (Nuclias Connect). This empowers network managers to analyze, automate, configure, optimize, scale, and secure their network

User Authentication and Roaming Capability

With centralized management through Nuclias Connect, once a guest connects to D-Link EAP within the same organization the users may not required to re-authenticate after the initial login.

MU-MIMO & Beamforming

Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.

Multiple Operational Modes

Use as an access point (AP), Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

Strong security, with centralized network management

Use as a standalone AP or manage centrally via Nuclias Connect software. Support WPA/WAP2/WPA3, wireless LAN segmentation and VLAN.

Network Security & Data Privacy

All communications over the system are encrypted. User data never leaves your possession.

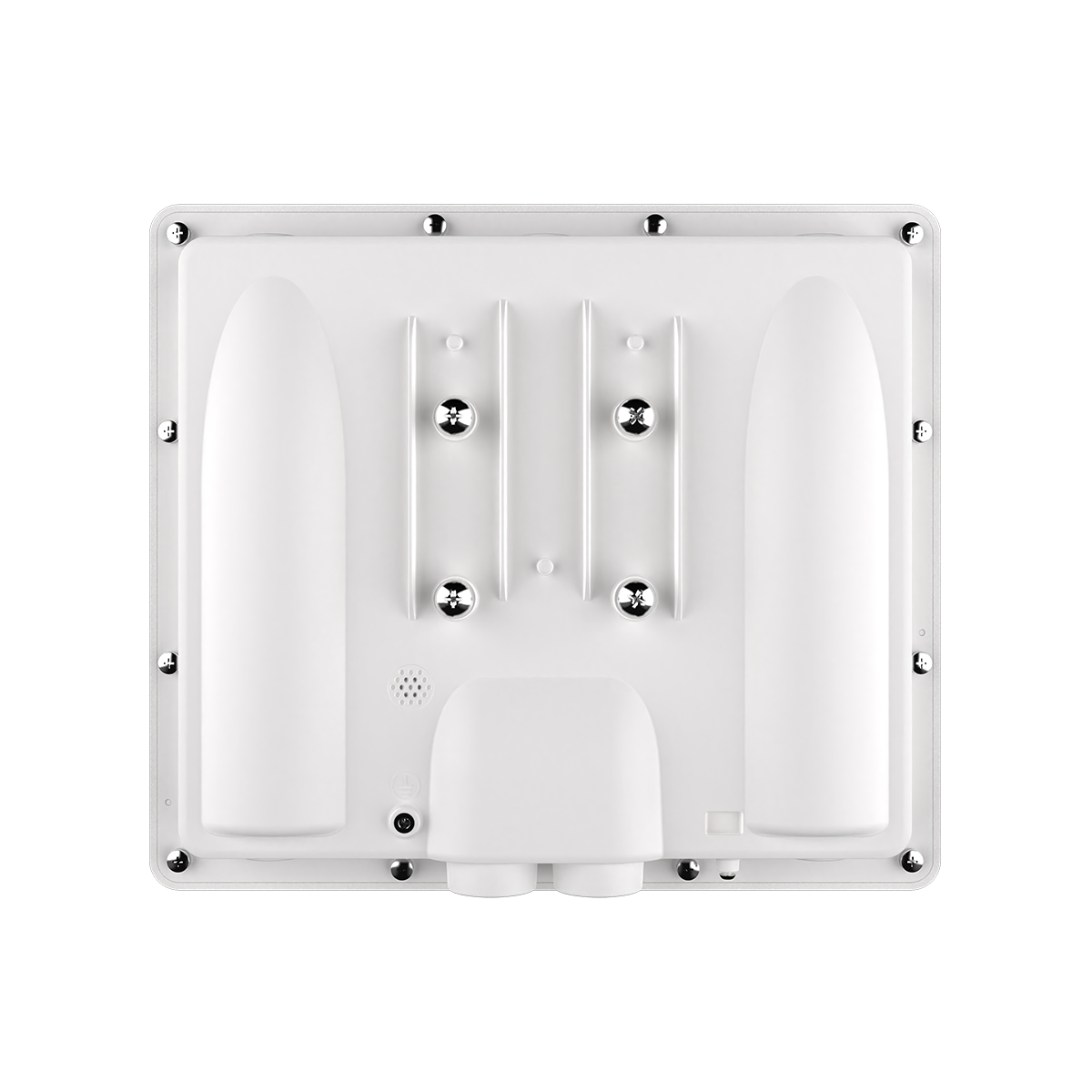

Weatherproof & easy-mount setup

IP68 water and dust-proof housing. 802.3at Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren’t available.

Branded Captive Portal

A branded Captive Portal with industry-standard authentication for enhanced access management.

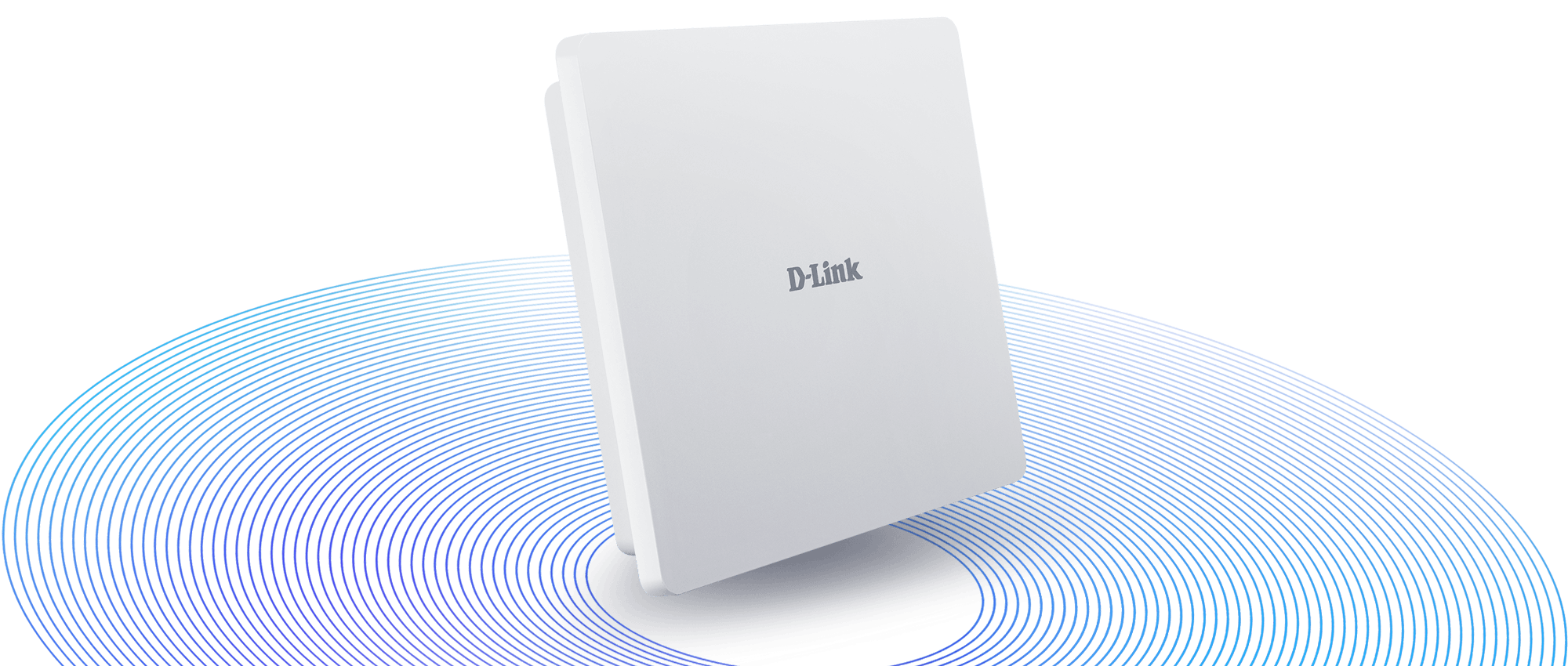

Easily use Wi-Fi in outdoor environments, making life more convenient

Deliver outdoor wireless connectivity for public places with this IP68 weather-proof, secure and centrally manageable Access Point. Provide AX3000 Wi-Fi speeds and achieve greater network security and efficiency for users. Ideal for creating outdoor wireless hot spot networks.

Reliably faster Wi-Fi 6 performance.

Designed for reliable, high-speed wireless connectivity using the latest 802.11ax technology. It uses maximum wireless signal rates of up to 2402 Mbps over the 5 GHz band and 574 Mbps over the 2.4 GHz band.

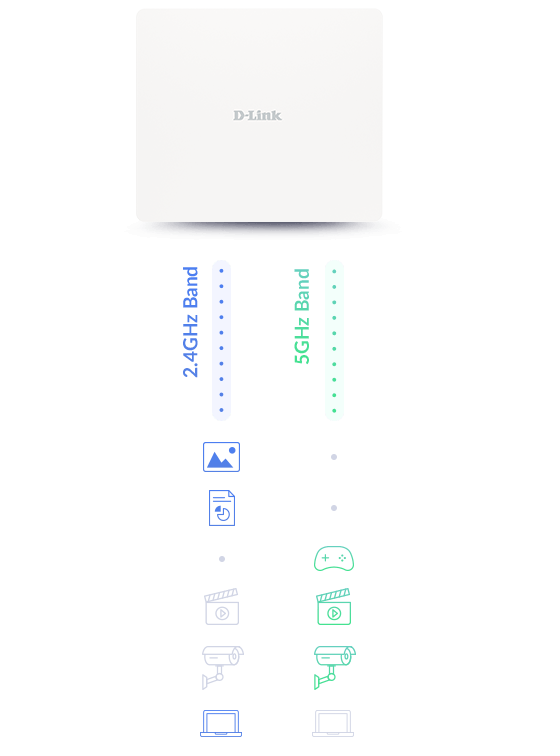

Band Steering

Detects dual-band capable devices and automatically connects them to the less congested, faster 5 GHz band.

MU-MIMO

Sends high-bandwidth Wi-Fi to multiple devices at the same time, for greater network data efficiency and a superior Wi-Fi experience for your clients.

Quality of Service

The Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature enables you to create rules for automatically prioritising audio, video, and voice traffic for even greater efficiency.

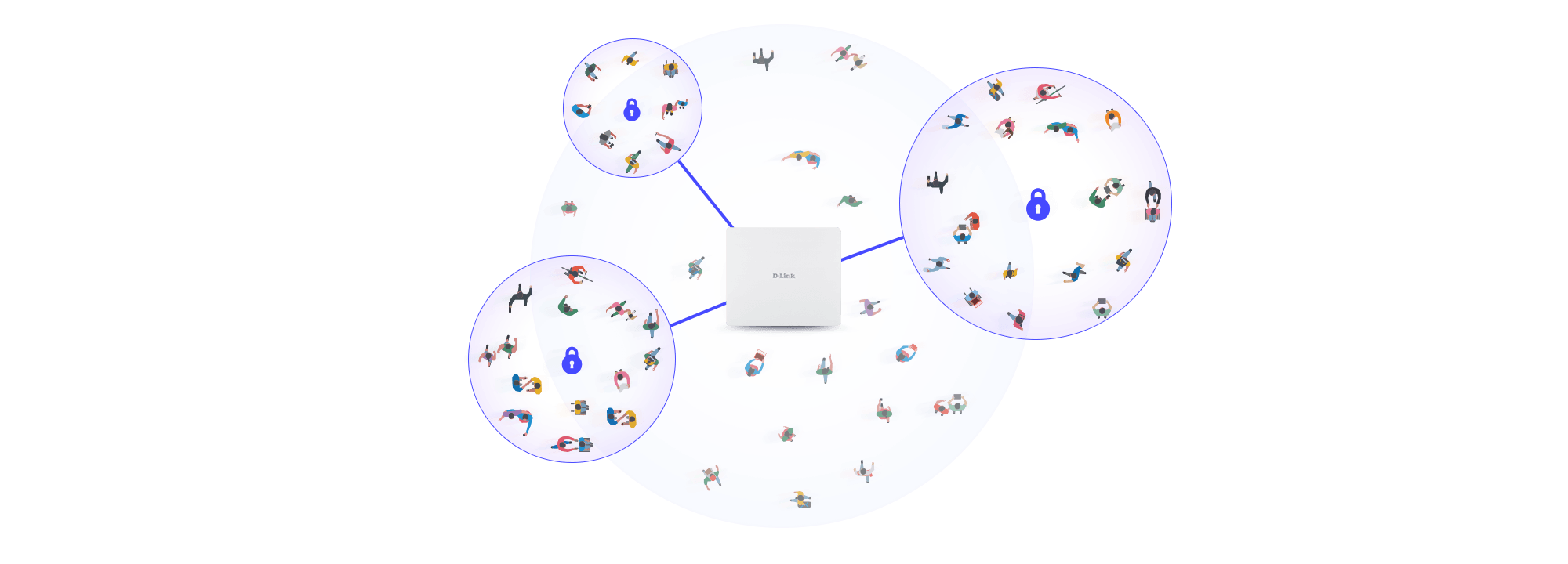

Load Balancing

Distribute the workload between two or more APs to optimise resource utilisation, throughput and response times.

Connect entire crowds to a safer and faster internet.

It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Moreover, Network Access Protection (NAP), allows multiple levels of network access to be defined based on a client’s needs.

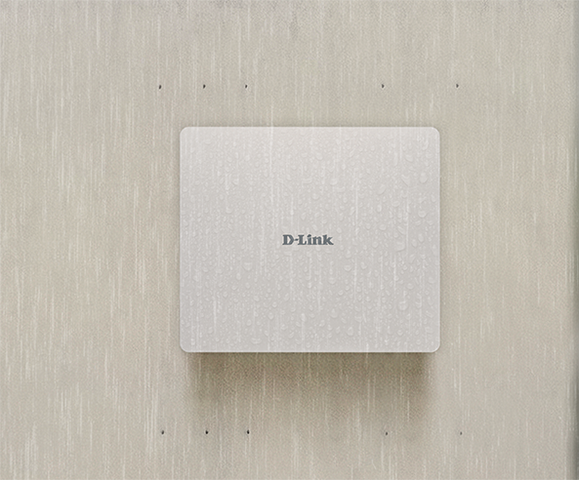

Reliable connectivity, whatever the weather.

Its rugged IP68-certified weatherproof housing provides protection against dust, rain, heat, snow and rust, even in extreme summer or freezing winter temperatures of -30 to 60°C. The breathable hole design repels liquid water while allowing heat and humidity to dissipate. With the AP's optimized antennas and integrated 802.3at PoE, you can deploy it exactly where your network needs wireless coverage and where power outlets are not available.

Best-in-class security.

Create highly secure wireless networks with Personal and Enterprise versions of WPA, WPA2 and WPA3

The AP also supports a built-in RADIUS server, RADIUS server (backend), MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to protect the network.

Your network, your way.

Customise your network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

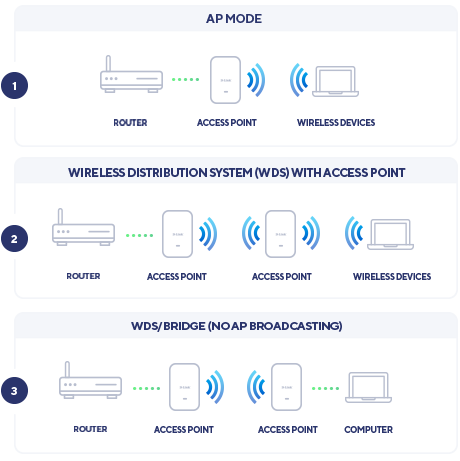

Configure the AP optimize network performance based on any one of its multiple operational modes:

Access Point
Add wireless connectivity to an existing wired network.

WDS
Wirelessly combine two separate networks.

WDS with AP
Wirelessly combine two separate networks while also providing wireless connectivity to both networks.

Nuclias Connect remote network management software

Download Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform.

Made for your business

SMB & SME

Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.

Retail Chains

Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.

Universities

Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.

Hotels

Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.
