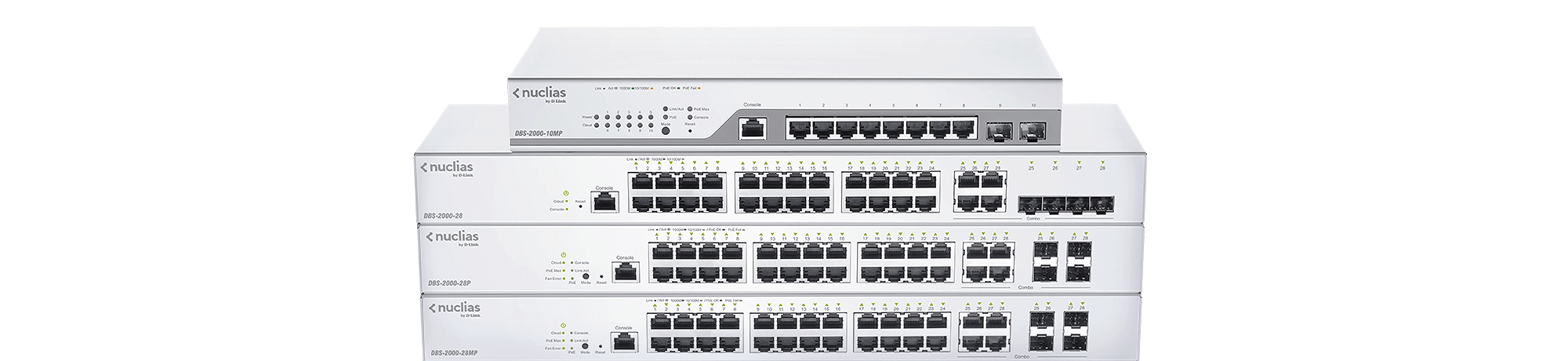

Nuclias Cloud-Managed Switches
DBS-2000 Series
- Product Status (Revision A): Live
- 10/28/52 GE ports with 2/4 combo GE/SFP ports
- Cloud management (1-year license included)
- Up to 104 Gbps switching capacity
- Up to 370 W PoE power budget
- Layer 2 features and advanced security
- Zero-Touch Deployments, unlimited scalability
- Register for Limited Lifetime Warranty
Where to buy
Nuclias cloud-based network management
Manage your network from one place from a browser or through the app, anywhere, anytime.
License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
Zero-Touch Deployments
Plug-and-play installation, Nuclias cloud-based auto-configurations.
Unlimited scalability
Easy to add or scale back in line with your requirements as a business.
Intuitive web or app-based interface
Easy to use multilingual user interface for single or multi-site management.
High switching capacity
Large switching capacity of up to 104 Gbps.
PoE up to 370W
Power devices using single Ethernet cables, without relying on nearby power outlets.
Cloud Networking is easier with Nuclias.

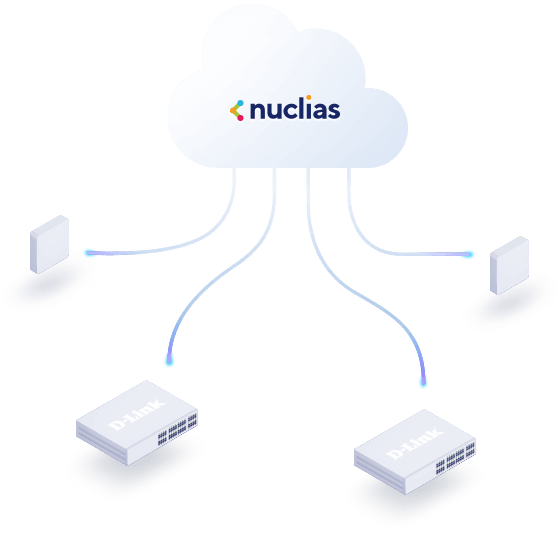

D-Link’s Nuclias Cloud-Managed Switches come pre-configured and are controlled remotely through the Nuclias Cloud web-browser interface or Nuclias app. That means your business can enjoy feature-rich yet easy-to-use cloud management, rapid deployments, and unlimited scalability to match the requirements of your network.
Centralised management through a single pane of glass.
Manage your entire Nuclias network from anywhere using D-Link’s easy-to-use Nuclias Cloud Management1 platform. Segment the network, manage multiple switches simultaneously, enforce security policies, and monitor live network statistics remotely, all from the cloud with a few clicks.
 | Zero-touch Provisioning Plug-and-connect deployments without the need for any additional configuration. Switches download their configurations from the cloud for quicker and easier management. |
 | Cloud-management simplicity Nuclias cloud is easy to use, and remote management enables you to monitor and configure your networks from anywhere and doesn’t require any on-site administration, enabling rapid deployments at remote locations. |
Ready before they’re out of the box.
Nuclias Cloud enables businesses to quickly configure, deploy, maintain, and expand the entire network remotely. All without the expenses of on-site staff, maintenance, and additional equipment.
With unlimited scalability, businesses can easily cater to the demands of a growing network by simply adding more Cloud-Managed Switches. Configuration profiles can be created and pushed through the cloud anytime, anywhere.

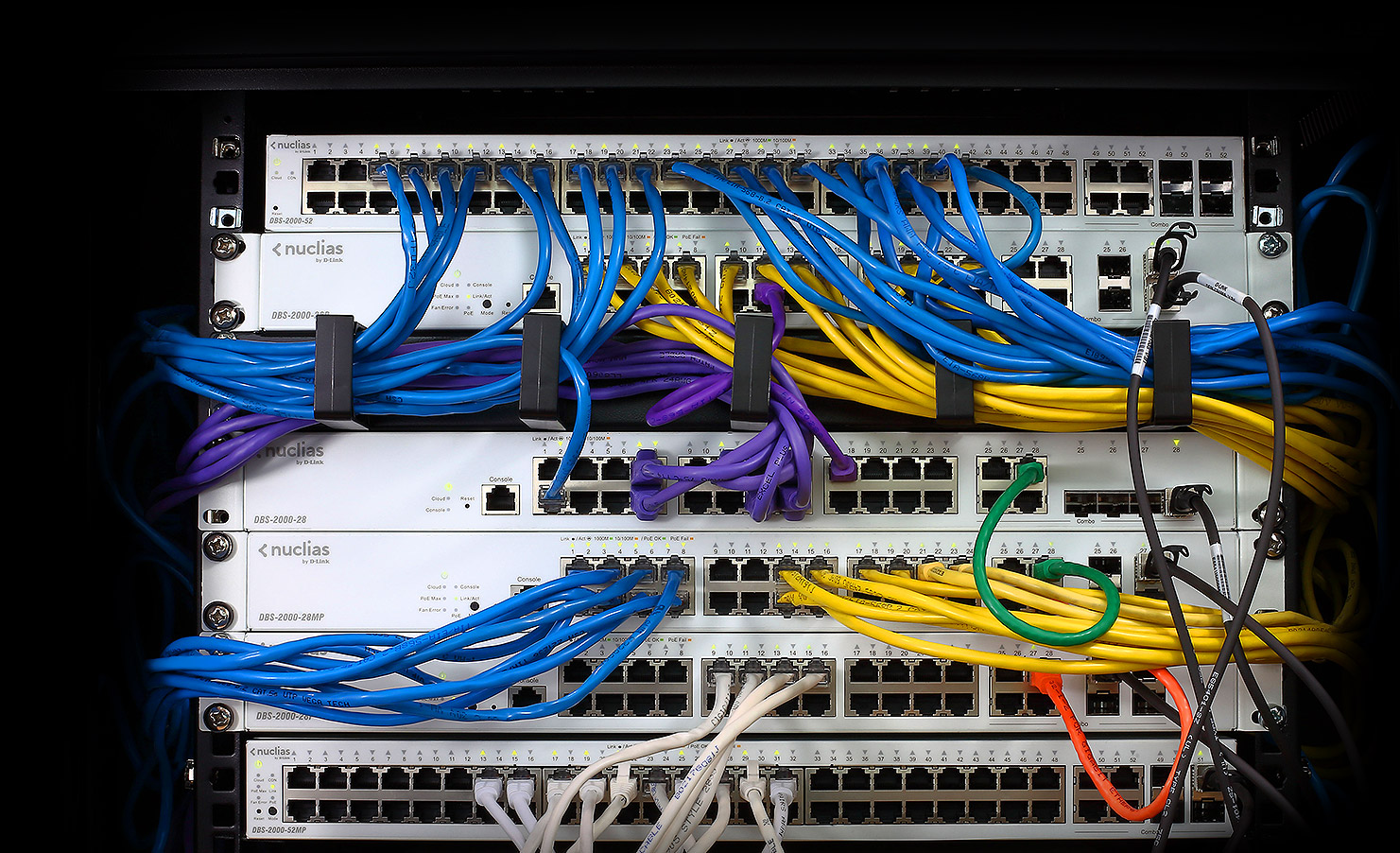

Advanced Layer 2 features and security.
While easy to deploy and manage, Nuclias Cloud-Managed Switches are equipped with enterprise-grade features including L2 capabilities such as Link Aggregation Control Protocol (LACP), IGMP snooping, Voice VLAN, Spanning Tree Protocols (STP and RSTP), and a security feature set that includes Access Control Lists (ACLs), port security, and DHCP Server Screening for increased protection.
 | Loopback detection Used to detect loops created by a specific port and automatically shuts down the affected port. |
 | The cable diagnostic feature Rapidly discovers errors and determines the cable quality, allowing hassle-free diagnostics and maintenance. |

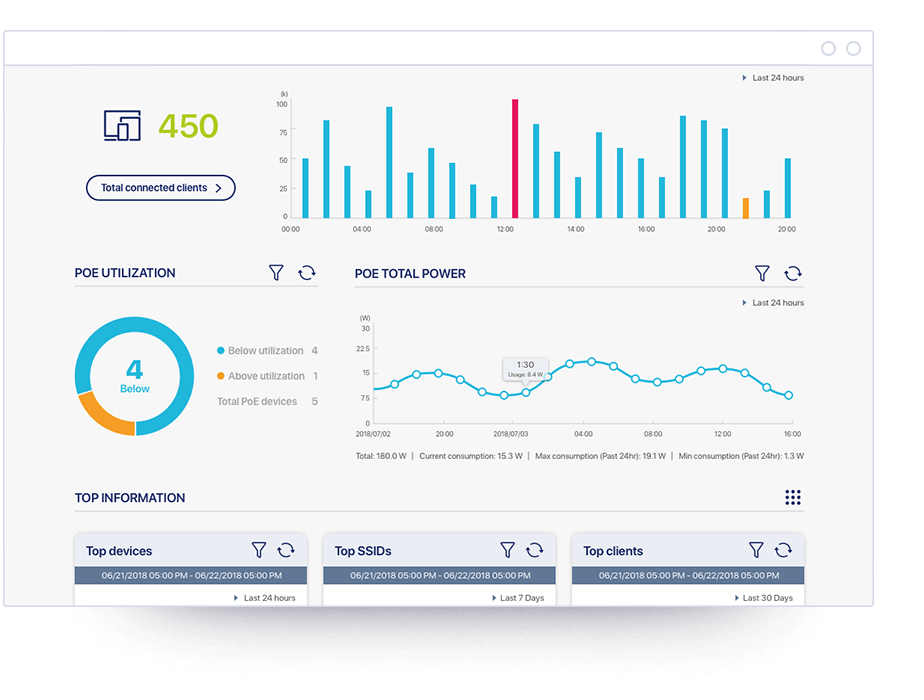

Monitoring and alerts that keep you ahead.

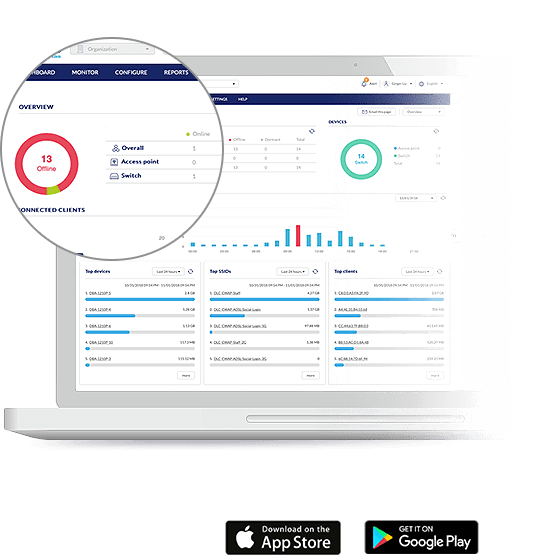

Through the Nuclias dashboard, you can easily view your switches1 real-time port traffic and connection status. And for switches that support PoE, you can monitor real-time power consumption statistics. You can also remotely view real-time information about the network and get an instant overview of key network statistics such as performance, connectivity, and network usage.
It’s easy to customise and filter the dashboard to display only the information that suits you. Be ahead of any problems with instant push notifications and alerts to swiftly identify and resolve problems.
Dedicated port-level security.
To ensure the safety and reliability of all sensitive traffic, all switches come with Port Security, and data to and from the cloud is separated from regular data using an SSL encrypted out-of-band connection.
Nuclias Cloud also provides the ability to control user access. You can configure external RADIUS servers to set up IP and MAC-based access control lists to authenticate and authorise clients, to create a safer and trusted network environment.
Find out how D-Link’s Nuclias cloud solution can help your business.
Find out how D-Link’s Nuclias cloud solution can help your business.
Nuclias makes deploying a network simple. Nuclias devices are automatically configured by the Nuclias Cloud, and instant alerts let you know what’s happening through the browser or the Nuclias app.
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

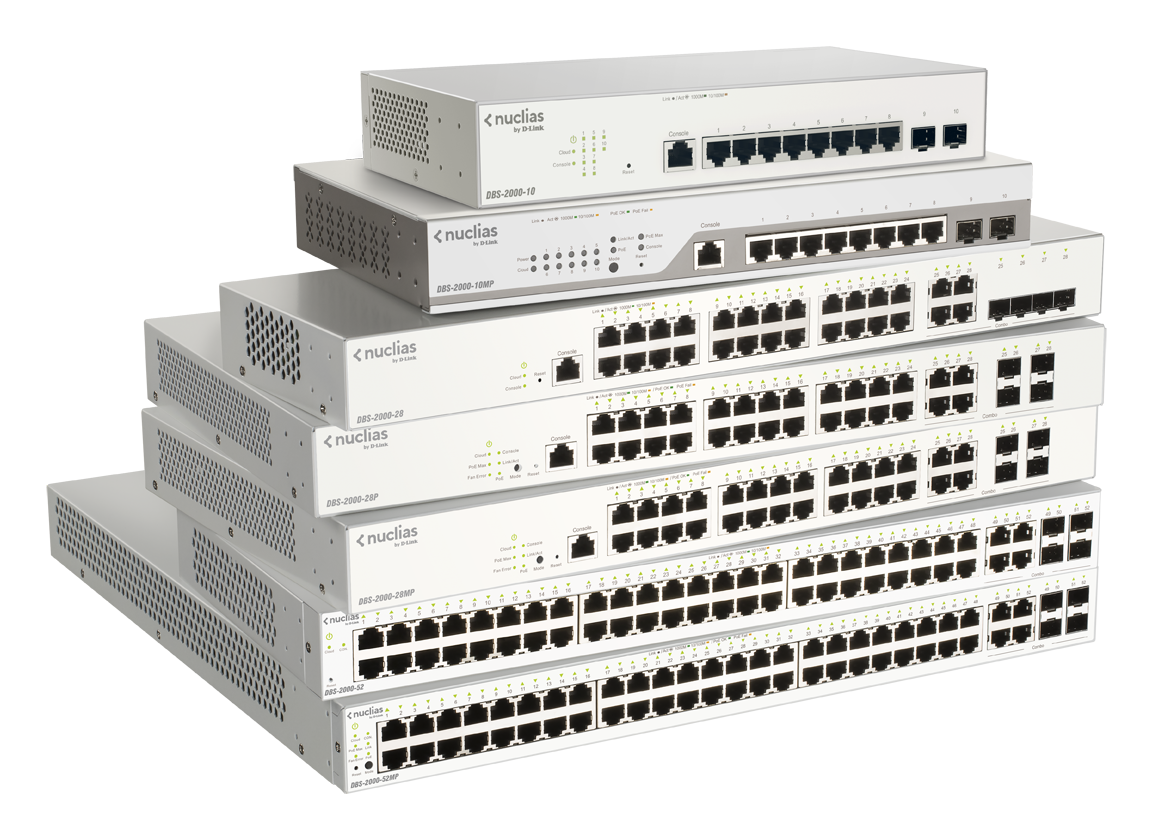

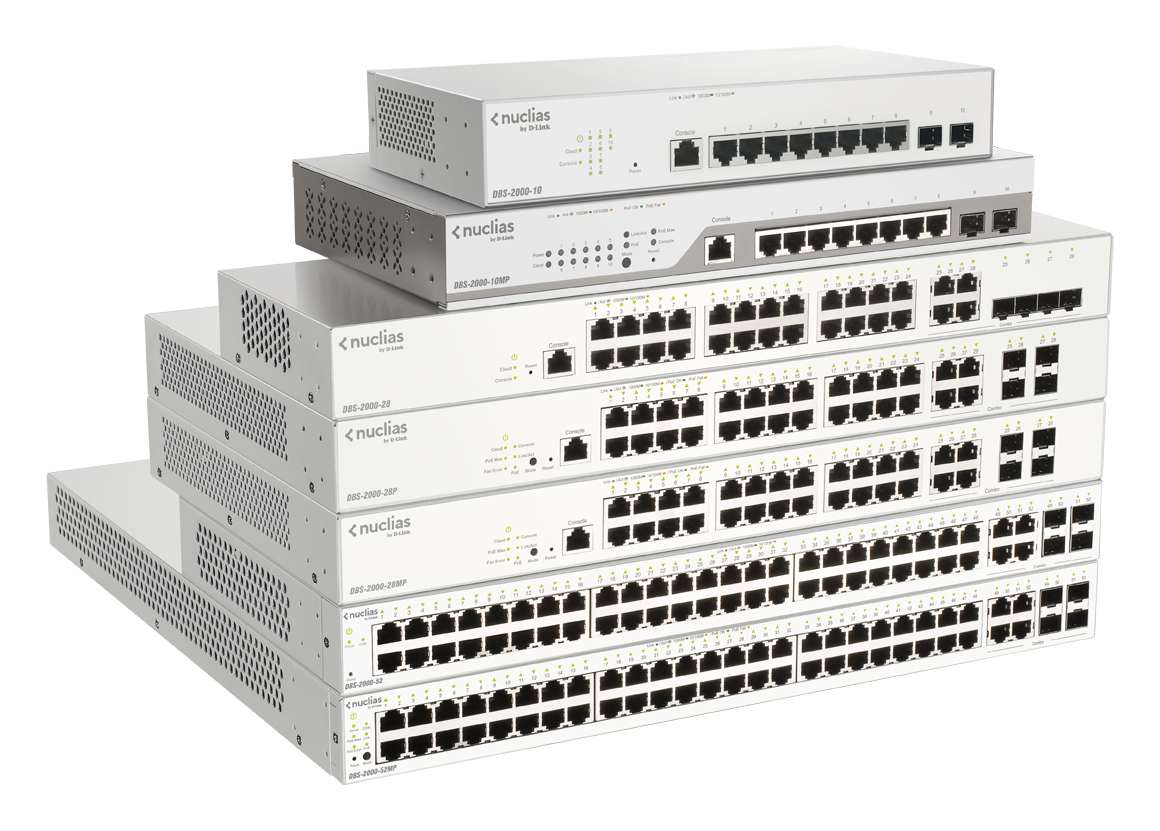

DBS-2000 switch series
- 8 x 10/100/1000 BASE-T
- 2 x 100/1000 Mbps SFP
- 20 Gbps switching capacity

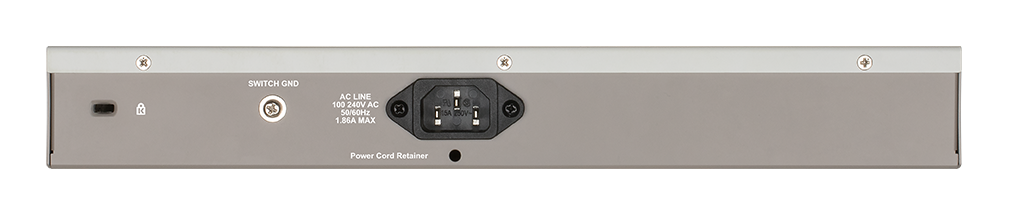

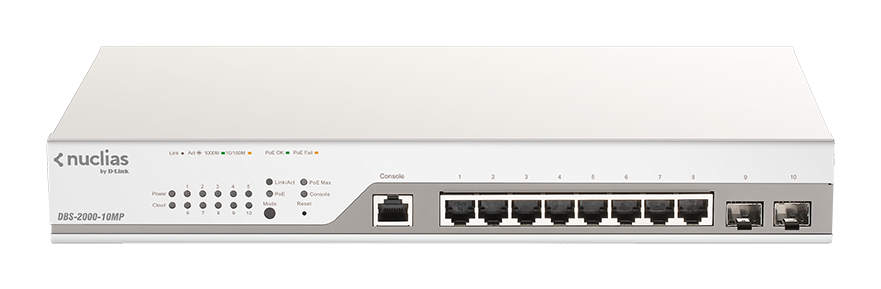

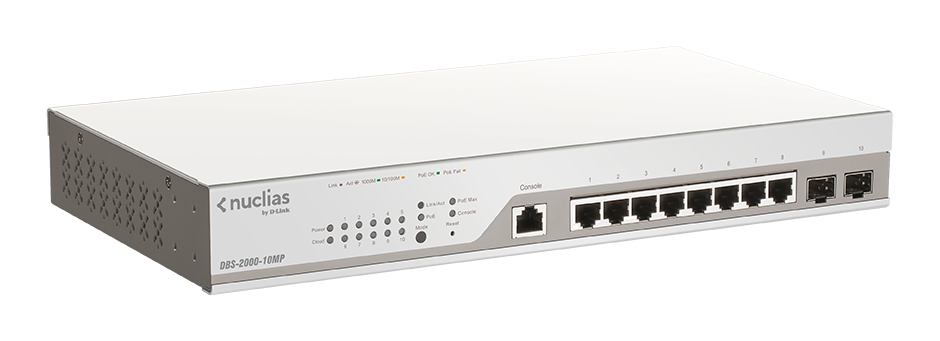

- 8 x 10/100/1000 BASE-T PoE
- 2 x 100/1000 Mbps SFP
- 20 Gbps switching capacity
- 130 W PoE Power Budget

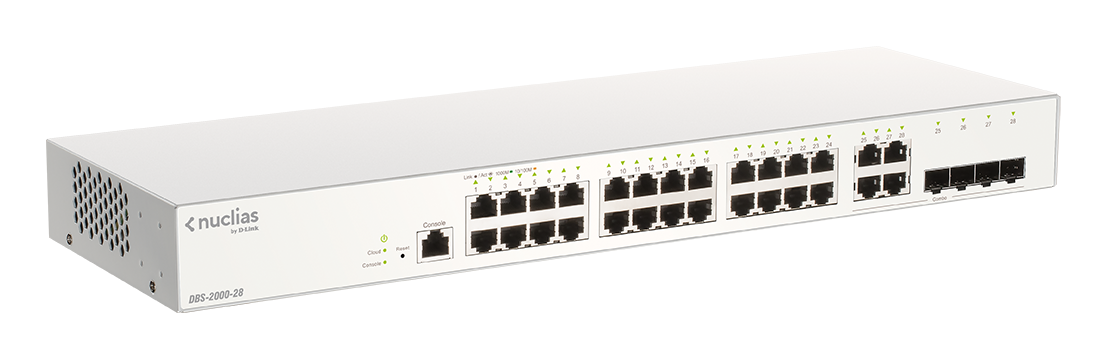

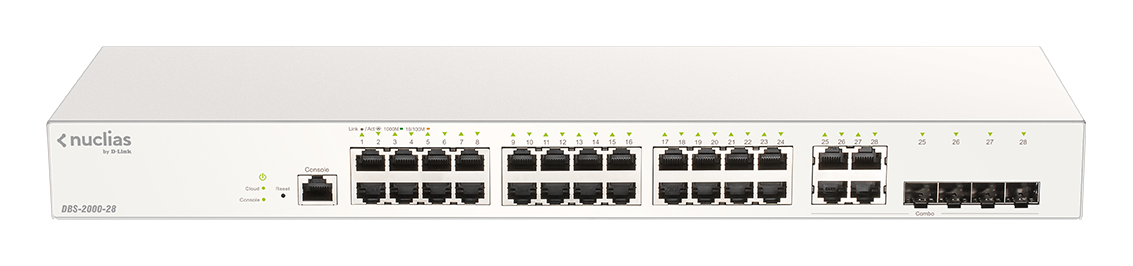

- 24 x 10/100/1000 BASE-T
- 4 x 1000 Mbps combo
- 56 Gbps switching capacity

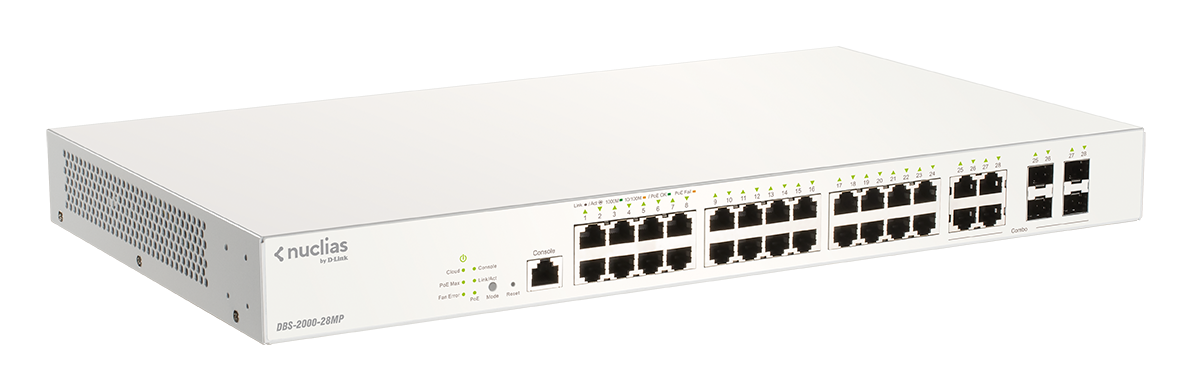

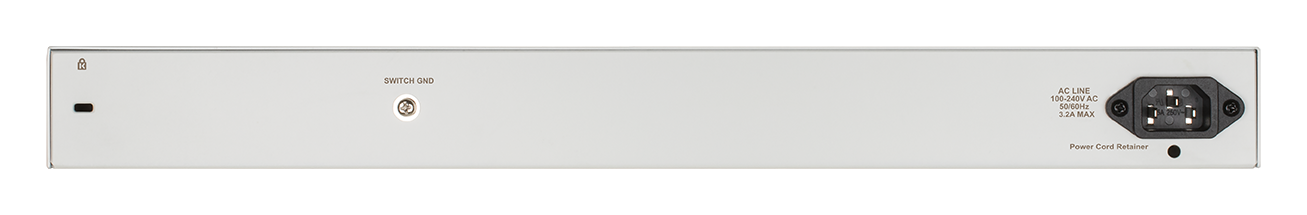

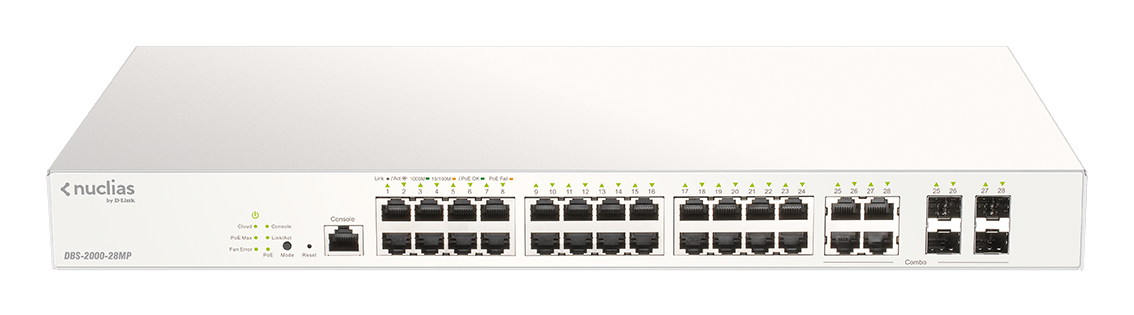

- 24 x 10/100/1000 BASE-T PoE
- 4 x 1000 Mbps combo
- 56 Gbps switching capacity
- 193 W PoE Power Budget
- 24 x 10/100/1000 BASE-T PoE
- 4 x 1000 Mbps combo
- 56 Gbps switching capacity
- 370 W PoE Power Budget

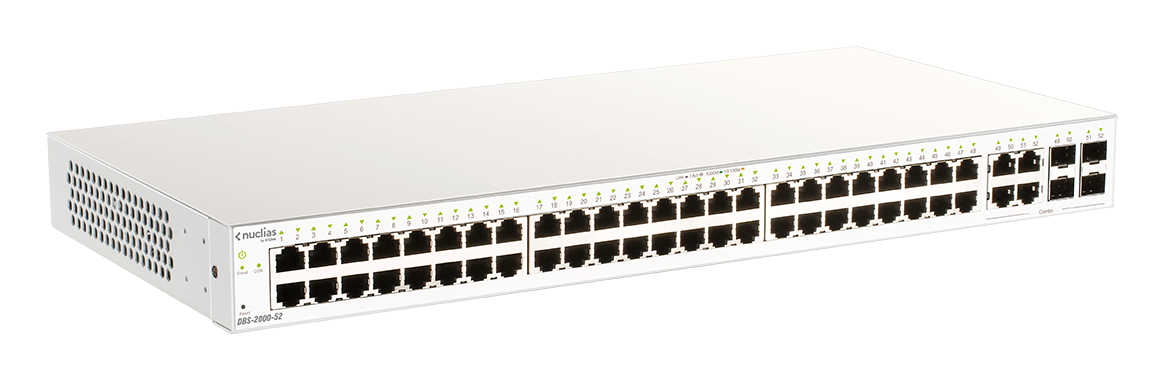

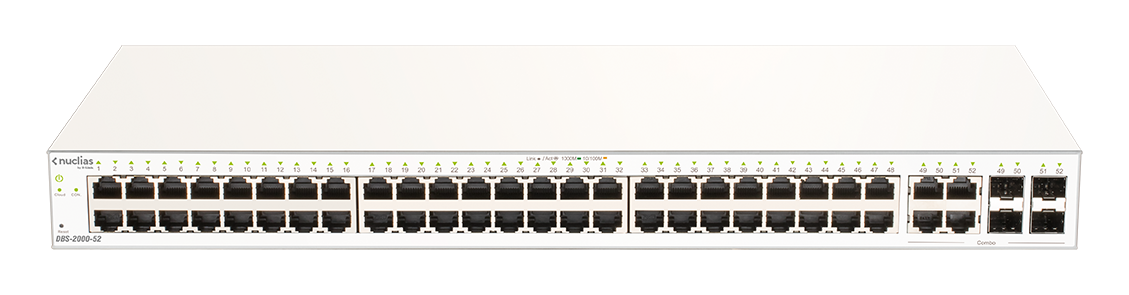

- 48 x 10/100/1000 BASE-T
- 4 x 1000 Mbps combo
- 104 Gbps switching capacity

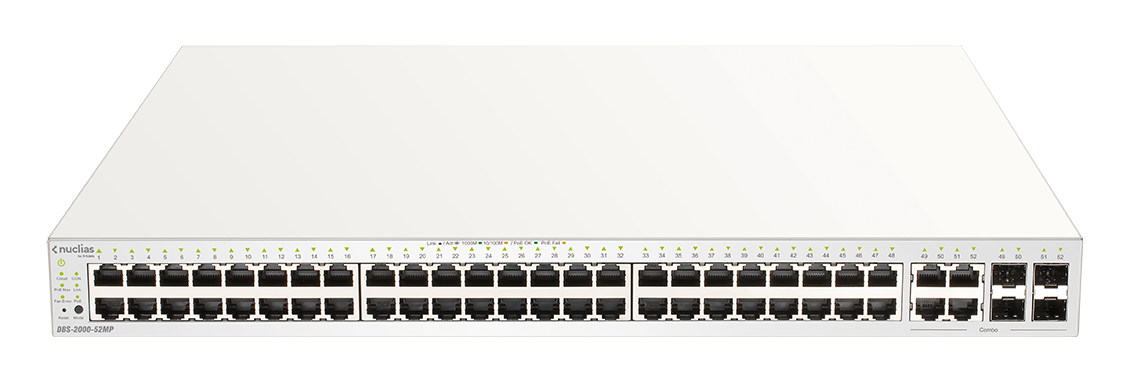

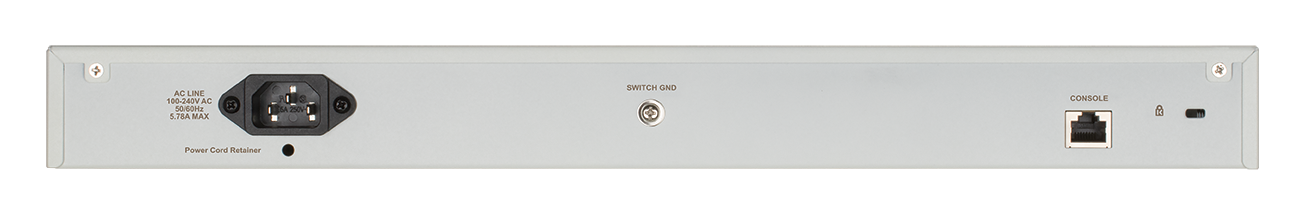

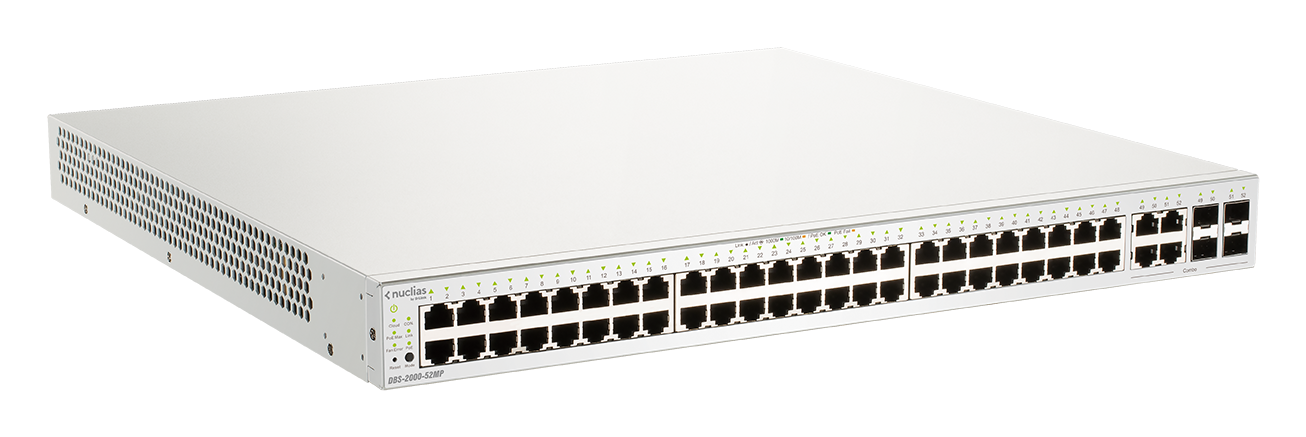

- 48 x 10/100/1000 BASE-T PoE
- 4 x 1000 Mbps combo
- 104 Gbps switching capacity
- 370 W PoE Power Budget
Related Products
Specs
|
Type
|
Cloud managed |
|---|---|
|
Management platform
|
Cloud based |
|
Number of ports
|
16 to 30 ports 48 to 54 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
|
Switching capacity
|
104 Gbps 20 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 48 |
|
PoE power budget
|
See datasheet See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K 8K |
|
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
256 |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Voice VLAN |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSL (v1/v2/v3) |
|
802.1X access control
|
Supported
|
|
Captive portal
|
Supported
|
1 Active D-Link Nuclias Cloud account and valid device license required.
