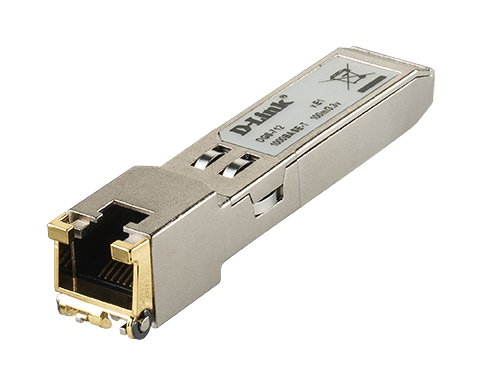

SFP 1000 BASE-T Copper Transceiver

DGS-712

  • Product Status (Revision E): Live
Description

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper.
Standard
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Compliant with MSA SFP Specification
Transceiver Type
  • SFP (Small Form Pluggable)

Connector
  • RJ-45

Auto MDI/MDIX
  • Automatic crossover detection enabled
  • External crossover cable not required

Data Rate
  • 1,000 Mbps (IEEE 802.3 compatible)
  • 1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

Cable Type
  • Cat. 5 twisted-pair cable

Maximum Cable Distance Coverage
  • 100 meters

Supply Current
  • 350mA (typical)
  • 400mA (maximum)
  • 1.3W max power over full range of voltage and temperature

Input Voltage
  • 3.1V (minimum)
  • 3.3V (typical)
  • 3.5V (maximum)
  • Referenced to GND

Surge Current
  • 30mA
  • Hot plug above steady state current

Dimensions (W x D x H)
  • .47” x 2.95” x .47” (11mm x 75mm x 11mm)

Weight
  • .53 lbs (0.2 kg)

Operating Temperature
  • 32° to 185° F (0° to 85° C)

Storage Temperature
  • -40° to 185° F (-40° to 85° C)

Waranty
  • 2-Year Limited
