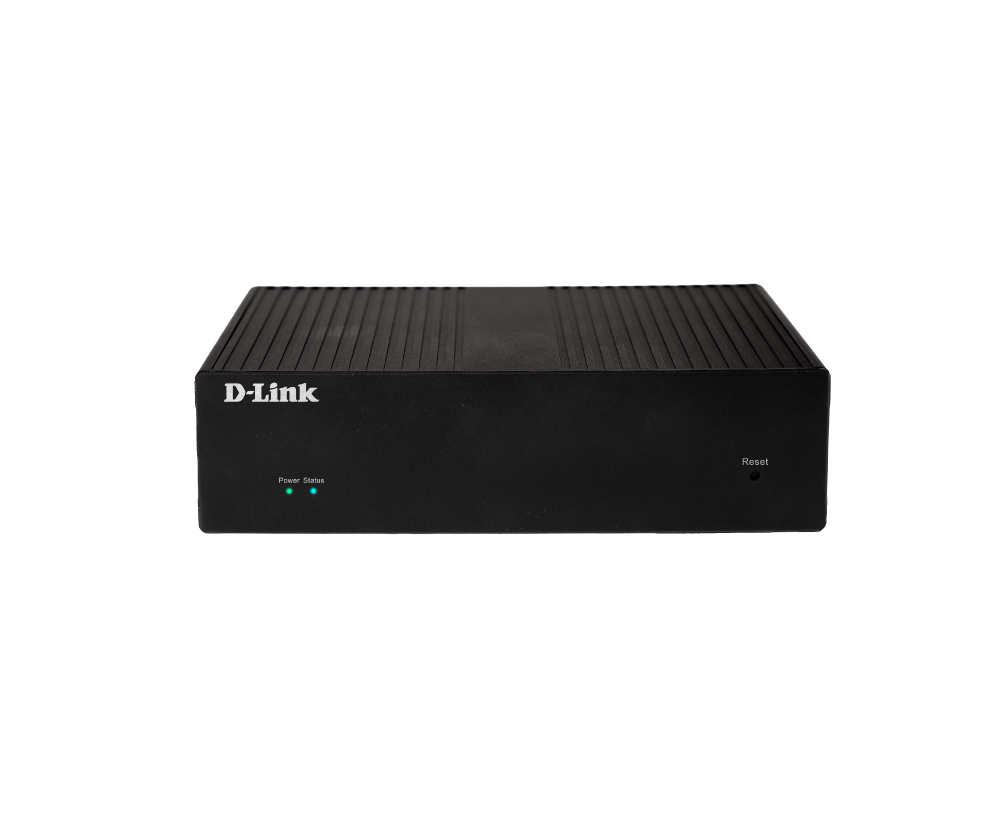

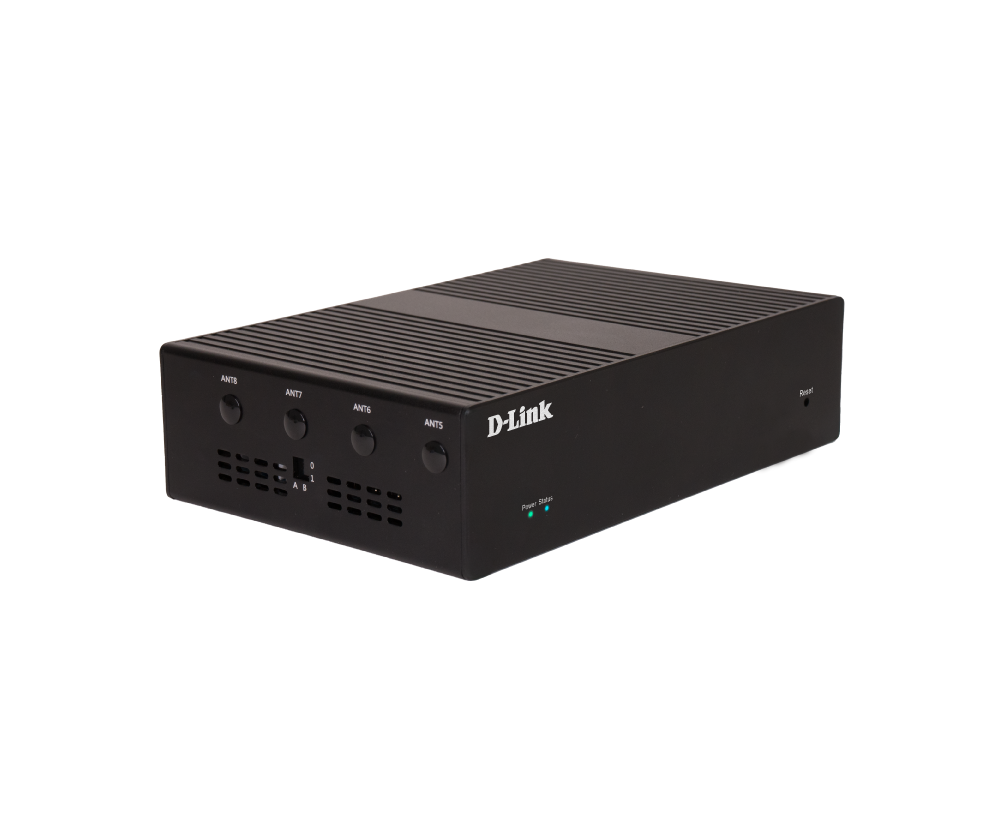

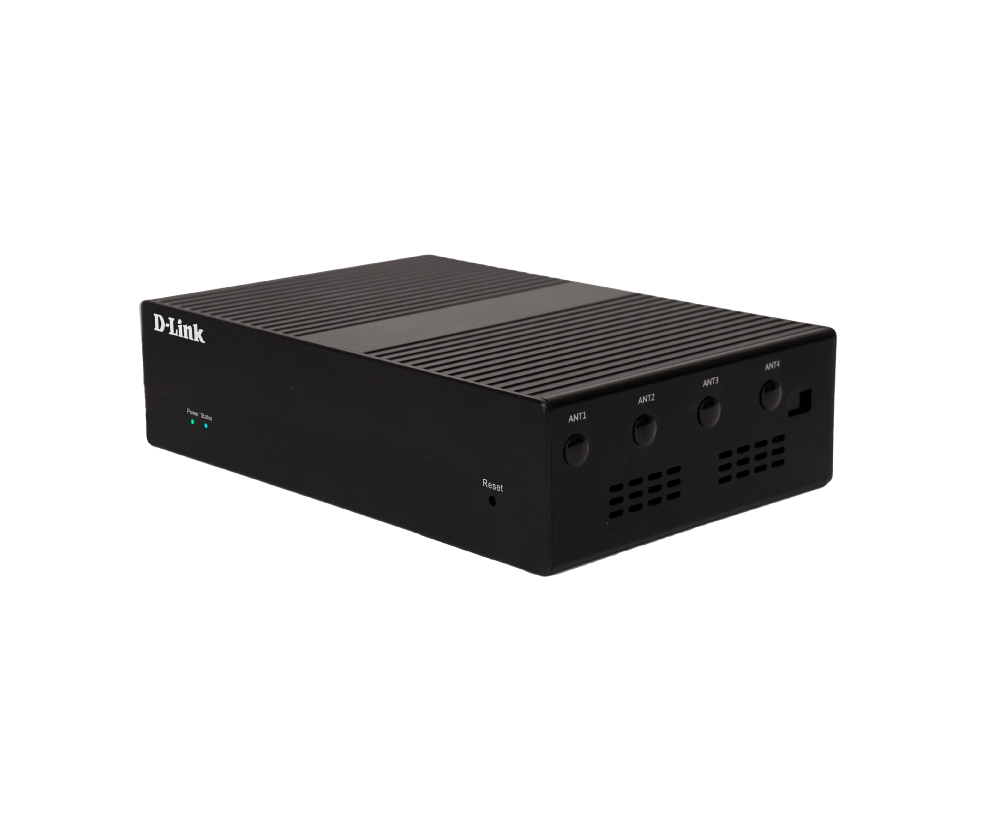

Nuclias Network Controller
DNH-3000
- Product Status (A1_V6): Live
- Supports up to 1500 total connected devices
- Centralized management for switches and APs

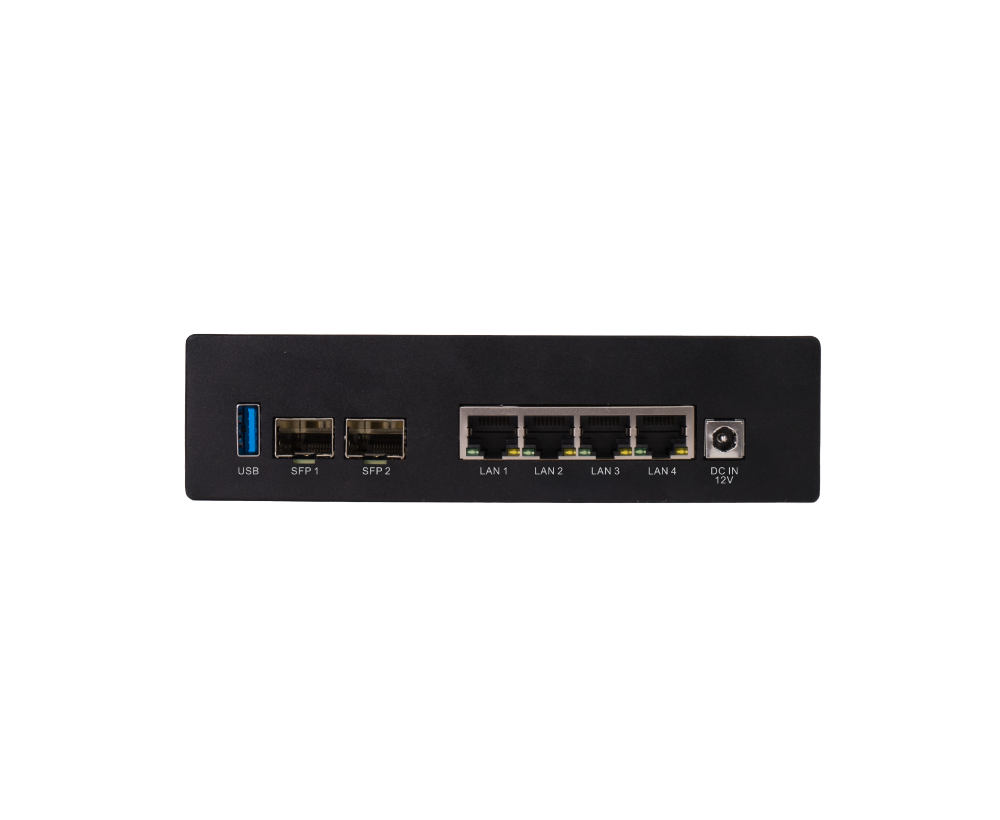

- 10G SFP + 1G LAN ports network connectivity
- Real-time system status monitoring and alerts
- USB 3.2 port for external data backup storage
- Web-based management accessible remotely
- Online firmware upgrades for APs and switches
- Multi-tenant and role-based admin control
Where to buy
User Benefits
Centralized Device Management
Enables centralized device management, automated configurations, and simultaneous firmware updates for efficient network operations.
Role Based Administration
Allows network administrators to assign role-based access levels and permissions while enabling localized control for specific network segments.
Online Firmware Upgrade
Enables remote firmware upgrades, ensuring the latest features, security patches, and performance improvements without manual intervention.
Traffic Reporting and Analytics
Provides advanced traffic analytics, real-time insights, and customizable reports for optimized network performance.
Advanced VLAN Segmentation and Access Policies
Enhances network security and efficiency with VLAN access control, enabling administrators to segment networks, prioritize traffic, and enforce tailored policies.
Auto RF & Bandwidth Optimization
Optimizes wireless performance with Auto RF and Bandwidth Optimization, ensuring optimal connectivity and minimal interference.
Multi-SSID and Captive Portal Authentication
Supports Multi-SSID and Captive Portal, allowing separate networks for user groups with secure, customizable login options for guests and employees.
Real-Time Monitoring and Alerts
Monitor real-time network status, generate reports, and receive instant alerts from a centralized dashboard.
Centralized Management for APs and Switches
The Nuclias Network Controller centrally manages up to 1500 devices via a unified interface. It enables configuration of SSID, VLAN, RF, and firmware updates to reduce downtime and manual effort. With role-based access and compatibility with Nuclias APs and switches, it ensures secure, scalable, and efficient network operations.
Batch Configuration for Streamlined Network Management
Effortlessly apply settings, updates, and security policies across multiple APs and switches, reducing manual effort and ensuring consistency. Automate SSID, VLAN, RF optimization, scheduling, and wireless resource allocation to optimize network performance, while streamlining IPv4 ACL, access policies, port settings, and SNTP configurations for enhanced security and reliability.

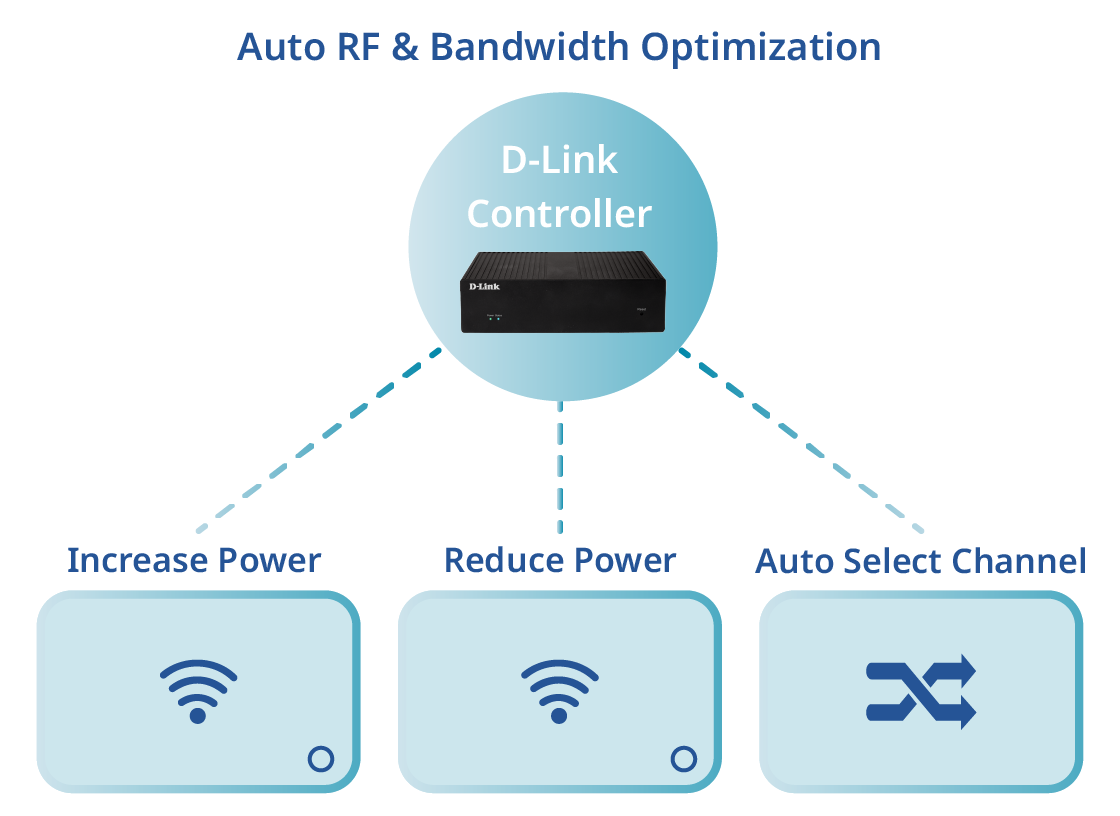

Auto RF for Stable Connectivity
Enhances wireless performance with Auto RF Management, which dynamically adjusts channel and power levels based on real-time interference and traffic conditions to reduce signal interference and maintain stable connectivity. Bandwidth Optimization enables efficient allocation of bandwidth across devices to ensure optimal connectivity.
Real-Time Monitoring for Smarter Network Management
Get complete network visibility with real-time monitoring of APs and switches. Instantly view client counts, traffic, channel use, PoE status, and event logs. Monitor signal quality, client data, and switch activity — including IP, MAC, VLAN, port info, and PoE usage — with built-in tools for port control and VLAN settings. Traffic and performance reports reveal peak usage, top APs, PoE consumption, and error trends. Comprehensive logs and real-time alerts ensure security and system stability.
Deployment & Monitoring with the Nuclias Connect App
Effortlessly deploy and monitor your network with the Nuclias Connect app. Simplify device setup, track real-time performance—all from the convenience of your mobile device.

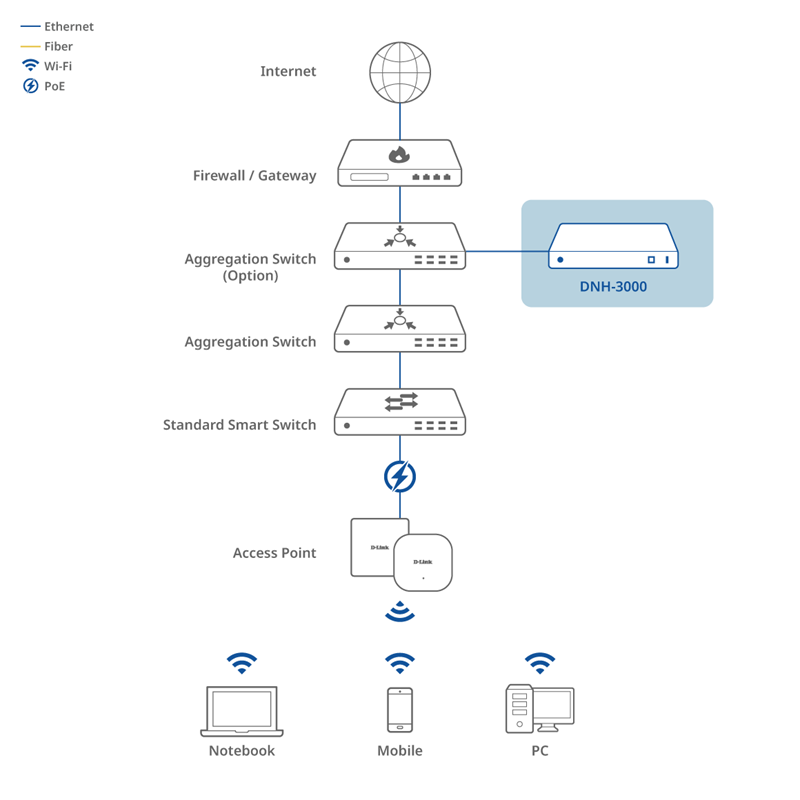

Diagram
With the DNH Nuclias Network Controller series, you can easily centralize the management of D-Link's AP and switches , offering more convenient and graphical interface-based centralized monitoring.

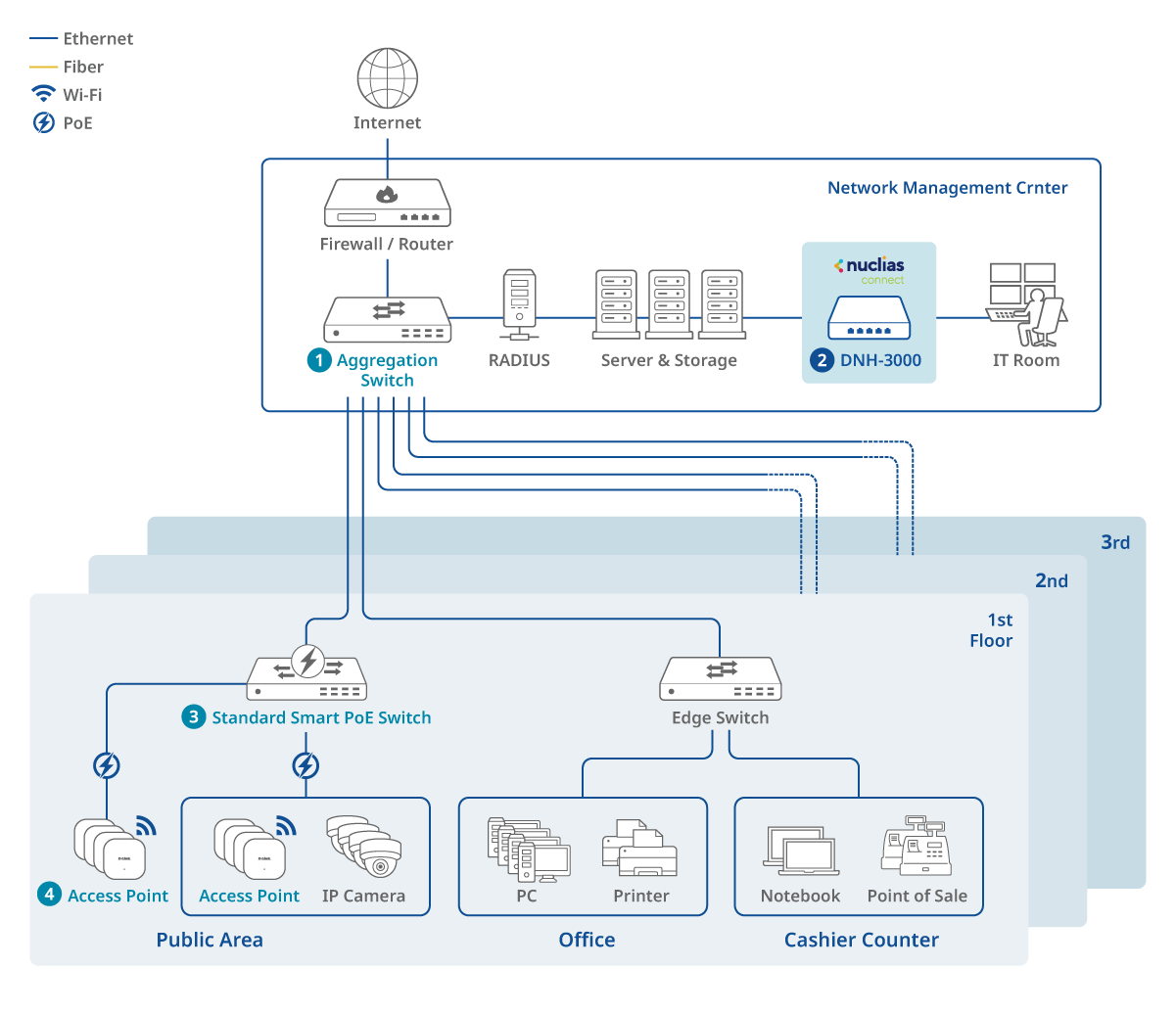

Department Store (Business)
User benefits :
- Centralized management boosts efficiency and ensures network stability
- Port Security and VLANs block attacks and unauthorized access
- QoS maintains smooth traffic across all network segments
- Supports 802.1X authentication and ACL rules for secure access control
- Works with 2.5G/10G/25G switches and Wi-Fi 6/7 speeds
- Delivers high-speed, reliable Wi-Fi 6 Dual Band for building and public areas.
Learn more :
- Controller : DNH-3000
- Aggregation Switch : DXS-3130-32S
- Edge PoE Switch : DMS-1250-28P
- Wireless AP : DAP-X3060

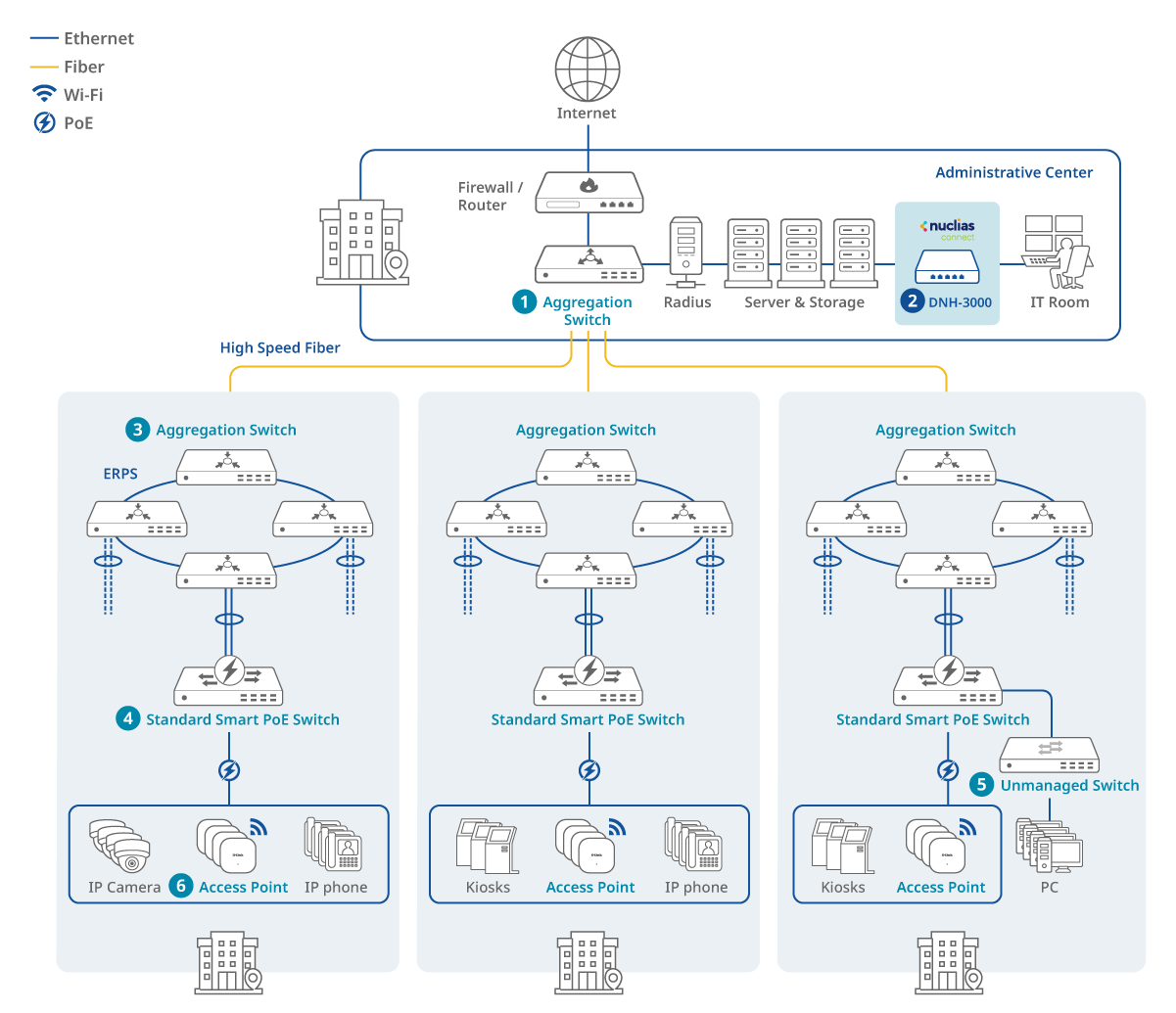

Midsize Enterprise (Enterprise)
User benefits :
- Monitor up to 1500 devices through one centralized interface
- 802.1X, ACL, IP-MAC-Port binding ensure secure network access
- Supports 2.5G/10G/25G switches and Wi-Fi 6/7 connectivity
- VLAN and access control improve security and network efficiency
- Provides multiple authentication methods for employee and guest access
Learn more :
- Controller : DNH-3000
- Aggregation Switch : DXS-3130-32S
- Aggregation Switch : DMS-3130-30TS
- Edge PoE Switch : DMS-1250-28YP
- Unmanages Switch : DGS-1016D
- Wireless AP : DAP-E9650
Specs
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 Layer 2+ |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
Fanless
|
Supported
|
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
IP interfaces
|
8 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 64 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
